Zigbee 3.0 30A High Power LED Dimmer
LumaCircuit offers Zigbee 3.0 30A High Power LED Dimmer as a configurable LED controller for project builds. Typical applications include CCT and RGB+CCT rooms, Retrofit dimming, Home Assistant lighting zones. Type: 2-In-1 Zigbee 3.0 High Power LED Dimmer Size: 134*81*24mm(L*W*H) Brightness And Color Temperature Adjustable The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.

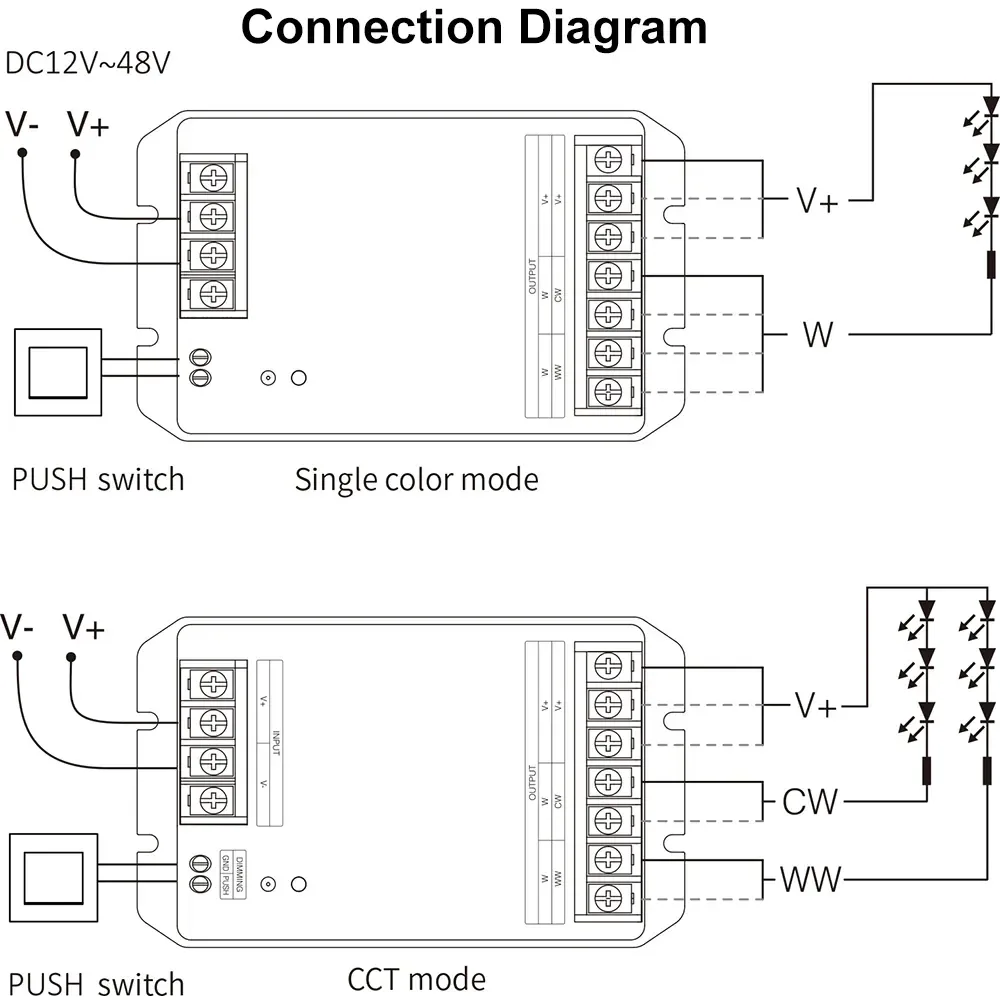

- The wireless controller is a high-power LED dimmer with a 30A output current and a max loading power of up to 1440W. It features a 2-in-1 design, allowing for single-color and dual-white LED lights, which can be adjusted to suit various scenes by changing the brightness or color temperature.
- Type: 2-In-1 Zigbee 3.0 High Power LED Dimmer

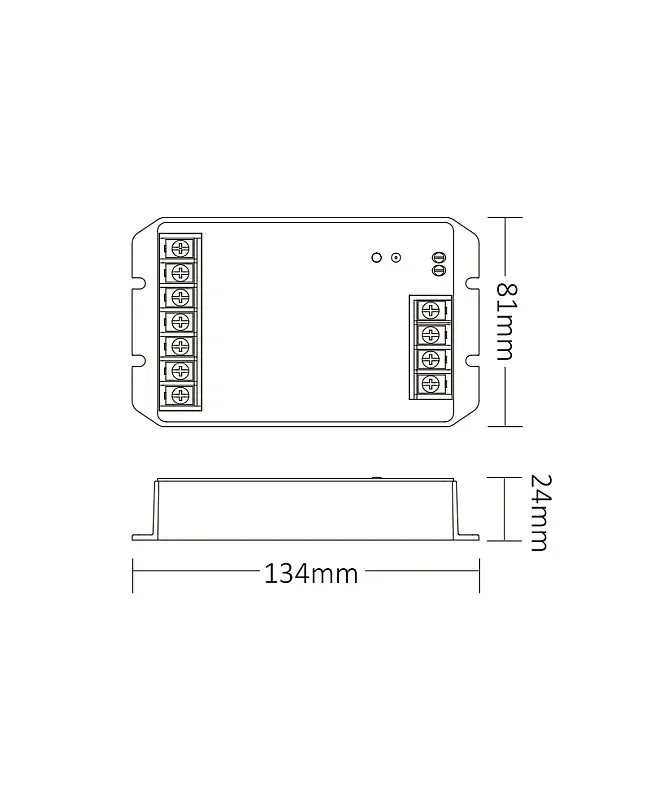

- Size: 134*81*24mm(L*W*H)
- Brightness And Color Temperature Adjustable
- Control Signal: Zigbee 3.0 + 2. RF
- Control Distance: Zigbee: ≤100M(Open Area) / 2.4G RF: ≤30M
- Support TUYA SMART App Control(Zigbee 3.0 Gateway Needed)
- Support Third-party Voice Control(Zigbee 3.0 Gateway Needed): Amazon Alexa, Google Assistant, Yandex Alice, voice assistant, Baidu And voice assistant
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 12-48 V
- Light engine: CCT
- LumaCircuit model: LC-CTL-I6H5M7
- Size: 134*81*24mm(L*W*H)
- Input Voltage: -48V
- Output Current: 30A
- Control Signal: Zigbee 3.0 + 2. RF
- Control Distance: Zigbee: ≤100M(Open Area) / 2.4G RF: ≤30M
- Support Third-party Voice Control(Zigbee 3.0 Gateway Needed): Amazon Alexa, Google Assistant, Yandex Alice, voice assistant, Baidu And voice assistant
- IP Rate: IP20 Non-waterproof
- Working Temperature: -10-40℃
- Dimensions found: 134x81x24mm / 24mm / 100M / 30M
Control and installation
Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination.
Plan the installation around CCT and RGB+CCT rooms, Retrofit dimming, Home Assistant lighting zones. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview

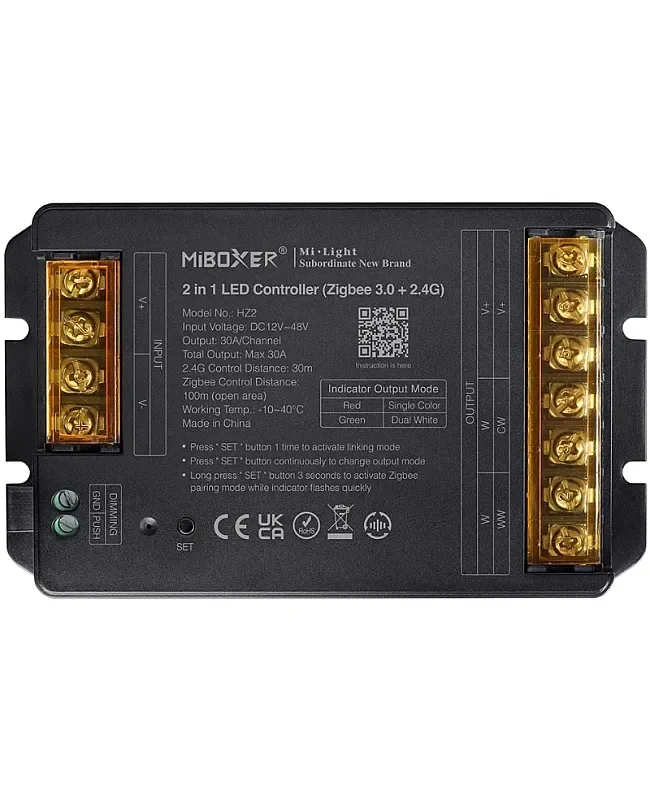

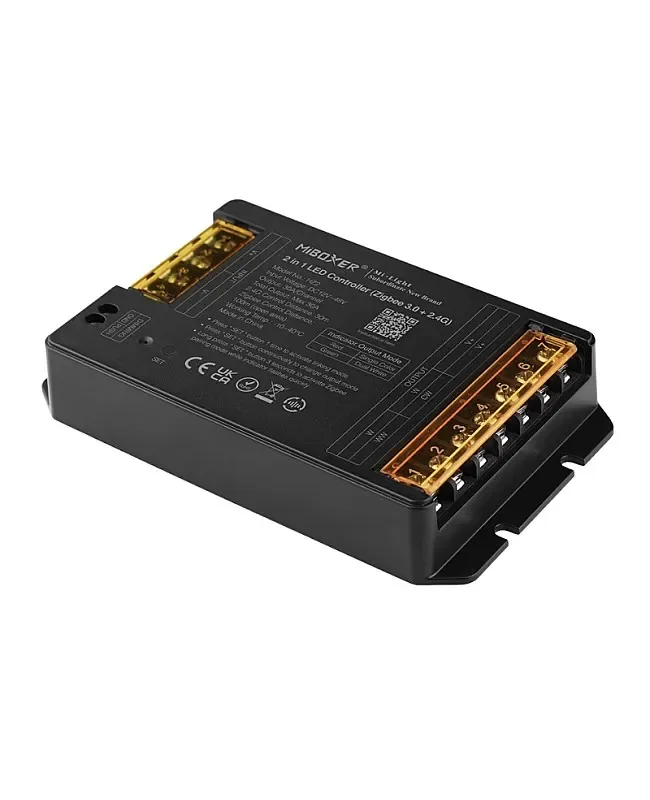

The wireless controller is a high-power LED dimmer with a 30A output current and a max loading power of up to 1440W. It features a 2-in-1 design, allowing for single-color and dual-white LED lights, which can be adjusted to suit various scenes by changing the brightness or color temperature. The wireless controller high-power light dimmer utilizes Zigbee 3.0 and 2.4G wireless transmission technology, enabling low power consumption and a strong ability to resist interference wireless controller 2.4G remote controls can control it and will automatically forward the signal to another controller within 30 meters. All controllers will work in synchronization, and the control distance of the remote control is virtually infinite. After pairing with Zigbee 3.0 gateways, the device can be controlled by the Tuya Smart App and third-party voice commands to adjust the lighting. The installer can also access additional features on the app, such as group control, timer, wireless dimming, and music rhythm, among others. The wireless controller light dimmers support individual or multi-zone control, making them suitable for both home and commercial lighting applications.
Specifications
Type: 2-In-1 Zigbee 3.0 High Power LED Dimmer
Model
Size: 134*81*24mm(L*W*H)
Input Voltage: -48V
Output Current: 30A
Brightness And Color Temperature Adjustable
Control Signal: Zigbee 3.0 + 2. RF
Control Distance: Zigbee: ≤100M(Open Area) / 2.4G RF: ≤30M
Support PUSH Dimming
Support TUYA SMART App Control(Zigbee 3.0 Gateway Needed)
Support Third-party Voice Control(Zigbee 3.0 Gateway Needed): Amazon Alexa, Google Assistant, Yandex Alice, voice assistant, Baidu And voice assistant
Auto Forwarding
Automatic Synchronization
Have DND Function
IP Rate: IP20 Non-waterproof
Working Temperature: -10-40℃
Includes

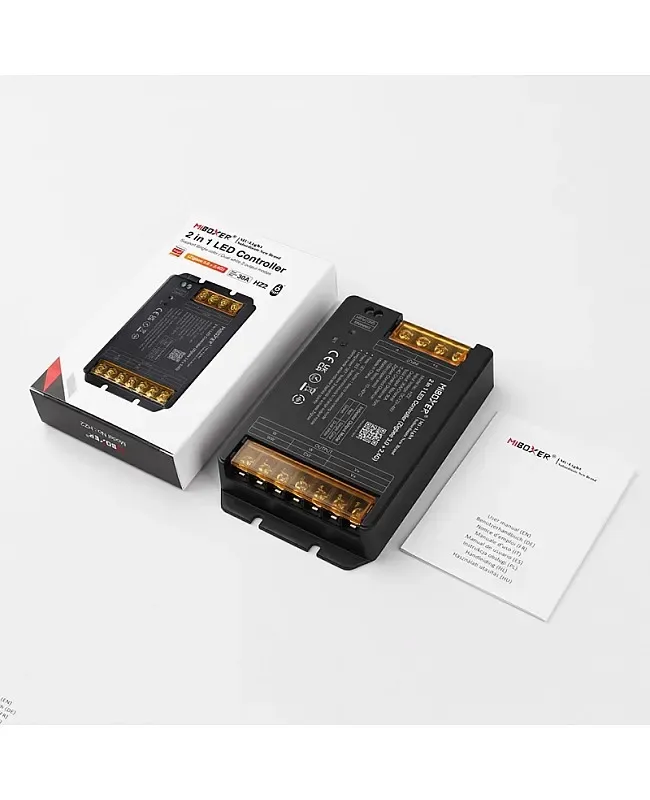

1* 2 In 1 Zigbee High Power LED Dimmer
Typical applications
- CCT and RGB+CCT rooms
- Retrofit dimming
- Home Assistant lighting zones
