IP66 Wwatereproof RGB LED Controller Voice Control
LumaCircuit offers IP66 Wwatereproof RGB LED Controller Voice Control as a configurable LED controller for project builds. Typical applications include CCT and RGB+CCT rooms, Retrofit dimming, Home Assistant lighting zones. Link: wireless controller RGB Waterproof Controller User Manual Model: (RGB), P(RGBW), P(RGB+CCT) Size: 150*46.5*20mm(L*W*H) The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- The waterproof RGB wireless controller LED controller has a waterproof level of IP66. The installer can use them for outdoor lighting projects and install them in a wet location. The working voltage is DC12V to DC24V, with three output channels designed, and the maximum output current is 12A. 2.4 G RF remotes can control the wireless controller RGB controller, and the installer can use the remote to set the color and adjust the brightness and saturation for various scenes. There are 16 million colors available.
- Link: wireless controller RGB Waterproof Controller User Manual
- Model: (RGB), P(RGBW), P(RGB+CCT)

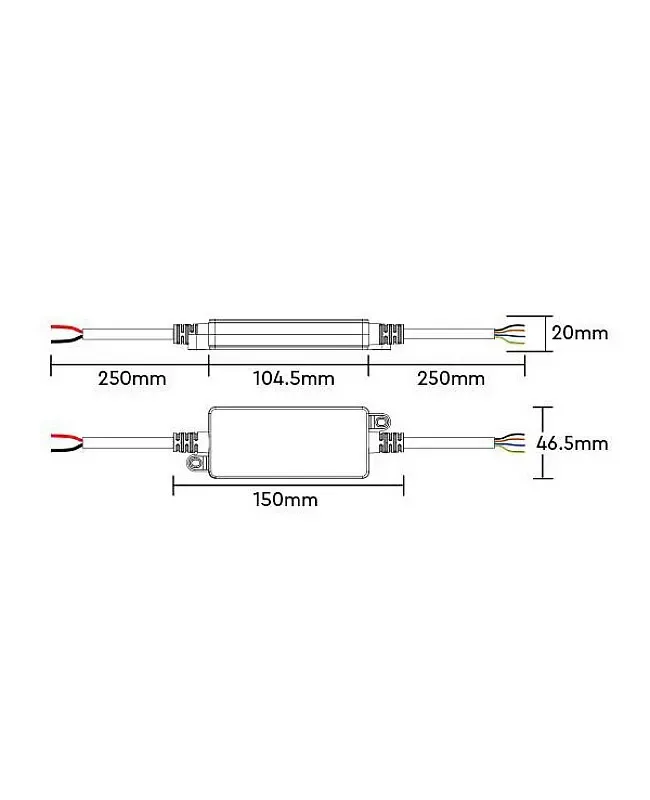

- Size: 150*46.5*20mm(L*W*H)
- Output Current: 6A/Channel
- Brightness And Saturation Controllable
- IP Rate: IP66 Waterproof
- 4G RF Remote Controllable B, B, B, W, B, G
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 12-24 V
- Light engine: RGB+CCT
- LumaCircuit model: LC-CTL-IPEDUO
- Size: 150*46.5*20mm(L*W*H)
- Working Voltage: -24V
- Output Current: 6A/Channel
- Total Output: Max 12A
- IP Rate: IP66 Waterproof
- 2.4G RF Remote Controllable: B, B, B, W, B, G
- Control Distance: ≤30m
- Output Connection: Common Anode
- Working Temperature: -20-45℃
Control and installation
Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination.
Plan the installation around CCT and RGB+CCT rooms, Retrofit dimming, Home Assistant lighting zones. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview
The waterproof RGB wireless controller LED controller has a waterproof level of IP66. The installer can use them for outdoor lighting projects and install them in a wet location. The working voltage is DC12V to DC24V, with three output channels designed, and the maximum output current is 12A. 2.4 G RF remotes can control the wireless controller RGB controller, and the installer can use the remote to set the color and adjust the brightness and saturation for various scenes. There are 16 million colors available. One waterproof controller will transmit the signals from the LED light remote to another controller within 30m, and different controllers can work synchronously when they are started at different times, controlled by the same remote, under the same dynamic mode, and within a 30m distance. After adding a 2.4G gateway, the IP66 waterproof RGB controller supports smartphone APP and third-party voice control and can work with Amazon Alexa and Google Assistant. The working frequency can be switched from 8 kHz high to 500 Hz low frequency.
Link: wireless controller RGB Waterproof Controller User Manual
Specifications
Model: (RGB), P(RGBW), P(RGB+CCT)
Size: 150*46.5*20mm(L*W*H)
Working Voltage: -24V
Output Current: 6A/Channel
Total Output: Max 12A
16 Million Colors Available
Brightness And Saturation Controllable
IP Rate: IP66 Waterproof
RF: 2.
4G RF Remote Controllable B, B, B, W, B, G
Control Distance: ≤30m
Output Connection: Common Anode
Support Smartphone APP Control And Third-Party Voice Control(2.4G Gateway Needed)
Can Work With Amazon Alexa And Google Assistant(2.4G Gateway Needed)
Supports PWM High-Frequency Low-Frequency(500Hz) Switched
Auto Signal Transmitting And Mode Synchronization
Working Temperature: -20-45℃
Includes
1 * RGB wireless controller LED Controller
Product resources
Technical documents
Typical applications
- CCT and RGB+CCT rooms
- Retrofit dimming
- Home Assistant lighting zones
