Product details

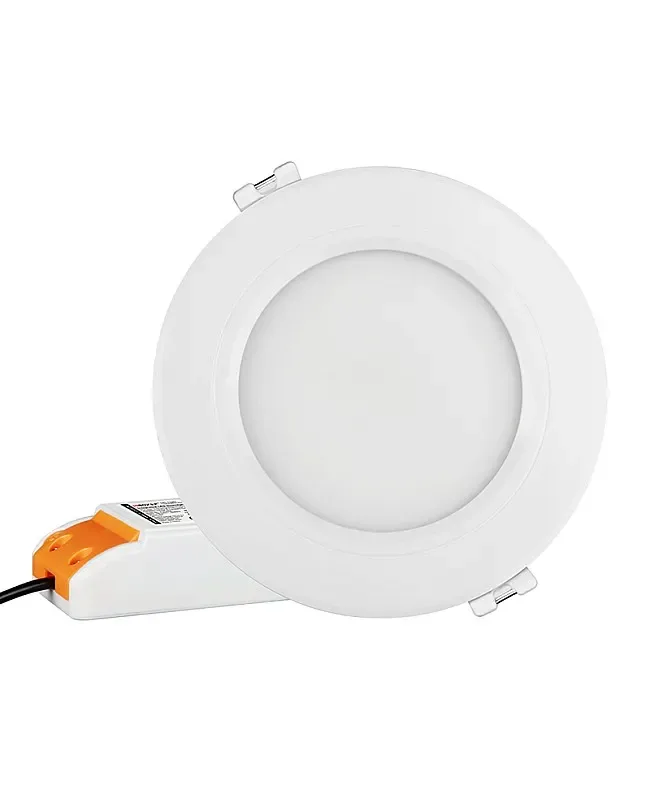

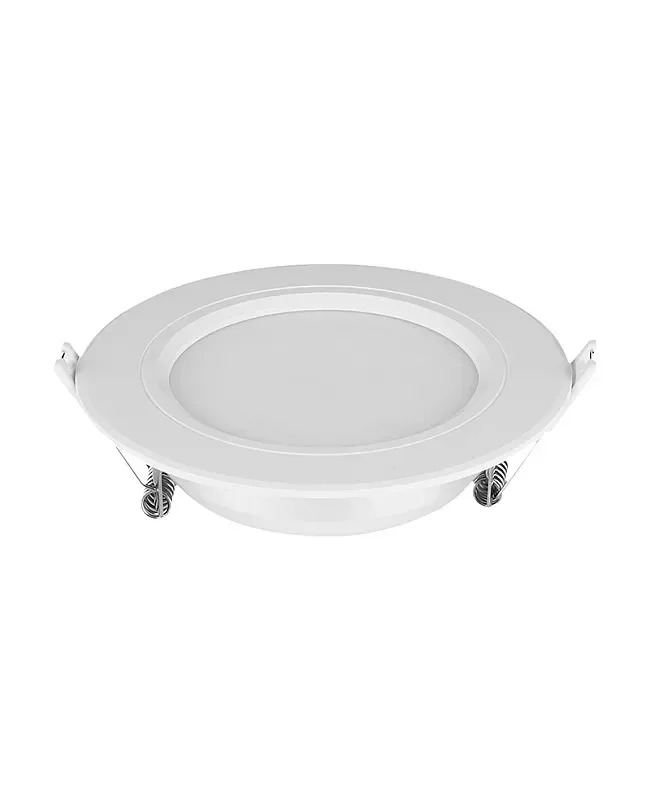

RGB CCT 6W Zigbee Down Lights LED
LumaCircuit offers RGB CCT 6W Zigbee Down Lights LED as a configurable downlight for project builds. Typical applications include Everyday room lighting, Kitchen and cabinet task light, Retail and commercial fit-outs. Material: Aluminum + PMMA Input Voltage: -240V, 50/60Hz Luminous Efficiency: 100LM/W The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- The wireless controller RGB+CCT 6W Zigbee down lights can be controlled via remote control, smartphone app, and third-party voice commands after adding Zigbee 3.0 gateways, allowing users to set the color, adjust the color temperature, brightness, and saturation to their needs. The installer can download the APP to your phone to access many additional features, such as a timer, music rhythm, biorhythm, scene customization, sleep/wakeup plan, do not disturb mode, etc.
- Material: Aluminum + PMMA
- Input Voltage: -240V, 50/60Hz
- Luminous Efficiency: 100LM/W
- Color Temperature Adjustable 2700K To 6500K
- Brightness And Saturation Adjustable
- Zigbee 3.0 Remote Controllable(Zigbee Gateway Needed)
- Support Third-party Voice Control
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 240 V
- Light engine: RGB+CCT
- LumaCircuit model: LC-DL-MXHGUK
- Material: Aluminum + PMMA

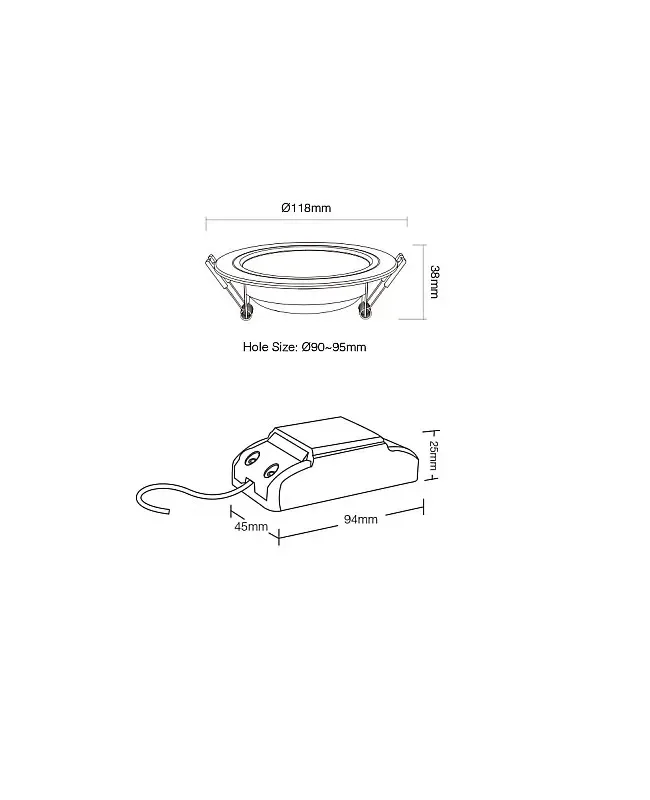

- Size: Φ 118*
- Hole Size: Φ90-95mm
- Input Voltage: -240V, 50/60Hz
- Power: 6W
- Beam Angle: 120°
- CRI: >
- Communication Protocol: Zigbee 3.0 +2.
- Zigbee Wireless Frequency: 2.400- 2.
Control and installation
Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination.
Plan the installation around Everyday room lighting, Kitchen and cabinet task light, Retail and commercial fit-outs. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview

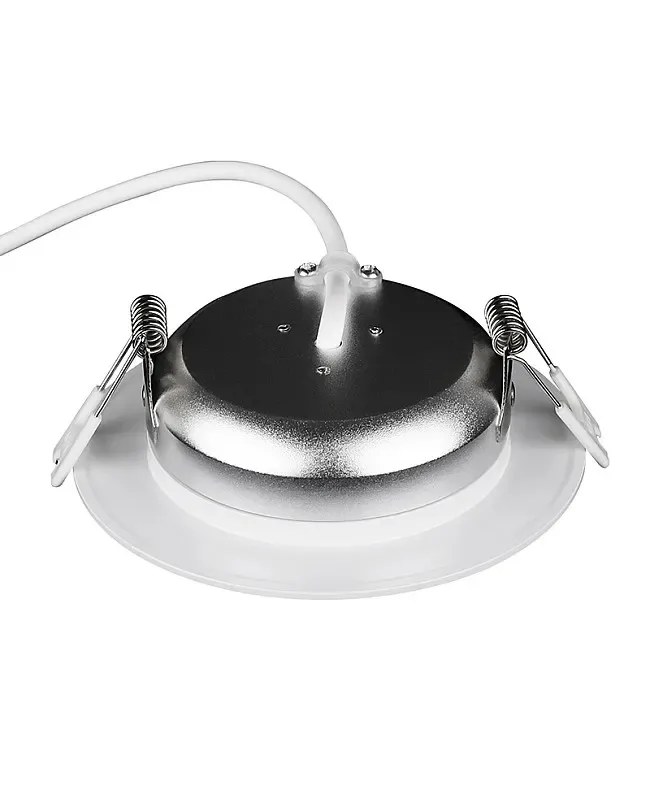

The wireless controller RGB+CCT 6W Zigbee down lights can be controlled via remote control, smartphone app, and third-party voice commands after adding Zigbee 3.0 gateways, allowing users to set the color, adjust the color temperature, brightness, and saturation to their needs. The installer can download the APP to your phone to access many additional features, such as a timer, music rhythm, biorhythm, scene customization, sleep/wakeup plan, do not disturb mode, etc. There are 16 million colors available, and color temperatures can be adjusted from 2700K to 6500K for various scenes. Amazon Alexa or Google Assistant can control the Zigbee 3.0 downlights through voice commands. It can enter Philips Hue, IKEA TRADFRI, and Amazon Echo Series Standard Zigbee 3.0 gateways. The low-profile pot lights feature a constant-voltage, constant-current LED driver that operates over a wide voltage range, making them easy to light. With a high-quality aluminum housing for better heat dissipation, a PMMA lens for a high light transmittance rate of over 95%, and light evenly distributed with no flickering. The sides with stainless steel spring snaps are easy to recess into the ceiling, simple, and reliable.
Specifications
Model
Material: Aluminum + PMMA
Size: Φ 118*
Hole Size: Φ90-95mm
Input Voltage: -240V, 50/60Hz
Power: 6W
Luminous Flux: 600LM
Luminous Efficiency: 100LM/W
16 Million Colors Available
Color Temperature Adjustable 2700K To 6500K
Brightness And Saturation Adjustable
Zigbee 3.0 Remote Controllable(Zigbee Gateway Needed)
APP Controllable
APP Name: mobile app
Support Third-party Voice Control
Can Work With Amazon Alexa/Google Assistant
Beam Angle: 120°
CRI: >
Communication Protocol: Zigbee 3.0 +2.
Wireless Technology: Zigbee 802.15.4
Zigbee Wireless Frequency: 2.400- 2.
Control Distance: Zigbee: ≤100m(Open Area); 2.4G:≤30m

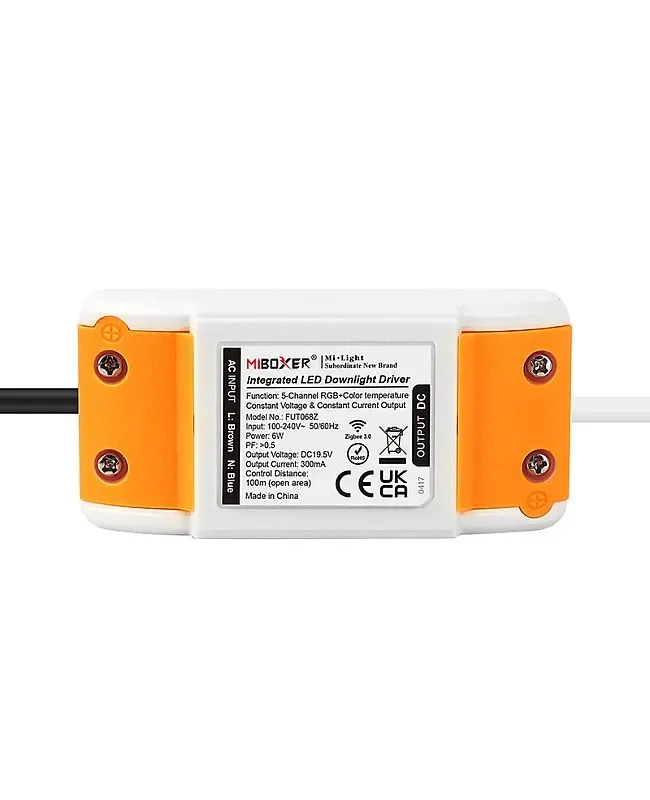

Constant Current And Constant Voltage LED Driver Included
Working Temperature: -10-40℃
Includes
1 * Zigbee RGB CCT Zigbee Down Light
Typical applications
- Everyday room lighting
- Kitchen and cabinet task light
- Retail and commercial fit-outs
