Product details

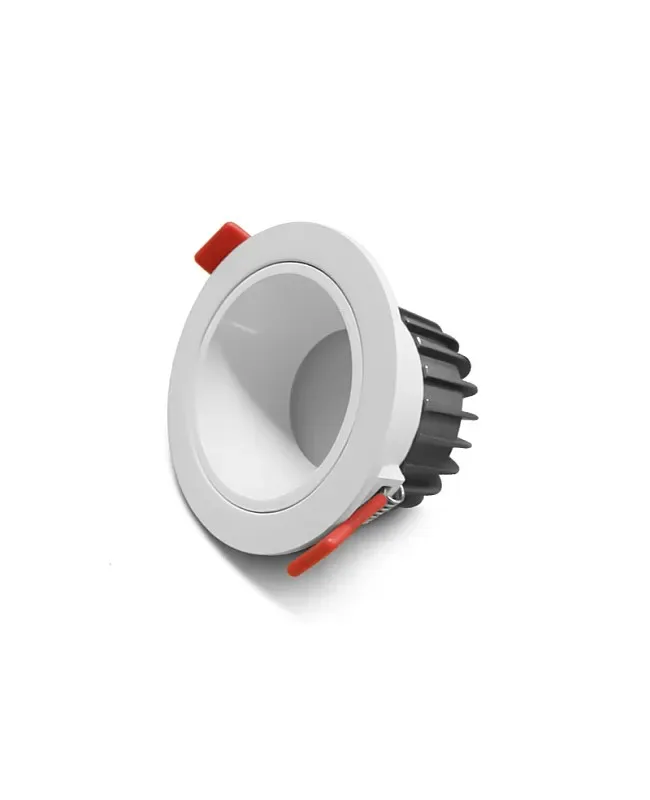

Zigbee Smart Dimmable Bathroom Downlights
LumaCircuit offers Zigbee Smart Dimmable Bathroom Downlights as a configurable downlight for project builds. Typical applications include Everyday room lighting, Kitchen and cabinet task light, Retail and commercial fit-outs. Material: Aluminum + PC Cover Size: 93*93*65mm(6W)/113*113*68mm(12W) Hole Size: 80mm(6W)/95mm(12W) The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- Type: Zigbee Smart Downlights
- Material: Aluminum + PC Cover

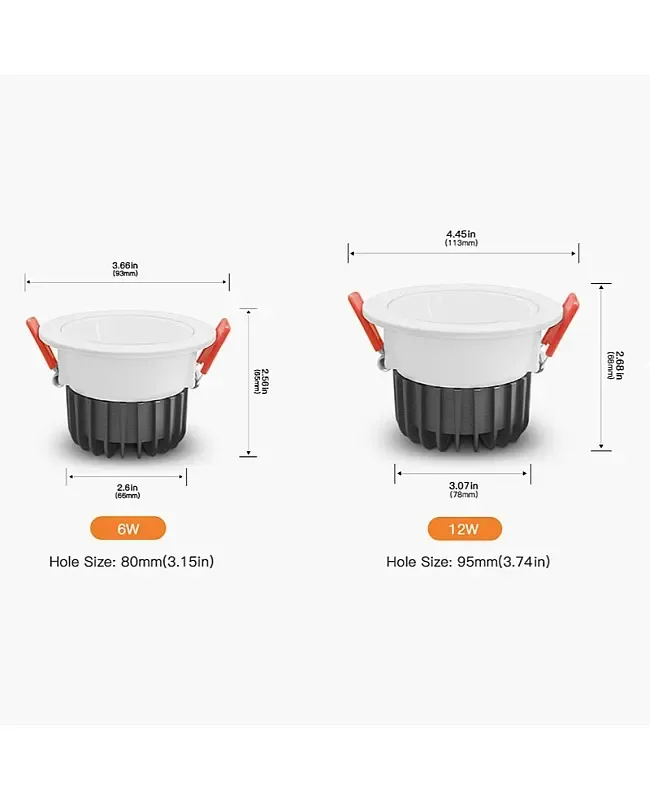

- Size: 93*93*65mm(6W)/113*113*68mm(12W)
- Hole Size: 80mm(6W)/95mm(12W)
- Power Supply Size: 94*45*27mm
- Luminous Flux: 500-550LM(6W)/1000-1050LM(12W)
- CCT Adjustable From 2200K To 6500K
- Brightness Adjustable From 1% To 100%
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 240 V
- Light engine: CCT
- LumaCircuit model: LC-DL-ANPN4Z
- Material: Aluminum + PC Cover
- Size: 93*93*65mm(6W)/113*113*68mm(12W)
- Hole Size: 80mm(6W)/95mm(12W)
- Power Supply Size: 94*45*27mm
- Input Voltage: -240V
- Power: 6W/12W
- IP Rating: IP54
- Beam Angle: 60°
- CRI: >
Control and installation
Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination.
Plan the installation around Everyday room lighting, Kitchen and cabinet task light, Retail and commercial fit-outs. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Specifications
Type: Zigbee Smart Downlights
Model: GL-D-(6W)/(12W)
Material: Aluminum + PC Cover
Size: 93*93*65mm(6W)/113*113*68mm(12W)
Hole Size: 80mm(6W)/95mm(12W)
Power Supply Size: 94*45*27mm
Input Voltage: -240V
Power: 6W/12W
Luminous Flux: 500-550LM(6W)/1000-1050LM(12W)
16 Million Colors Available
CCT Adjustable From 2200K To 6500K
Brightness Adjustable From 1% To 100%

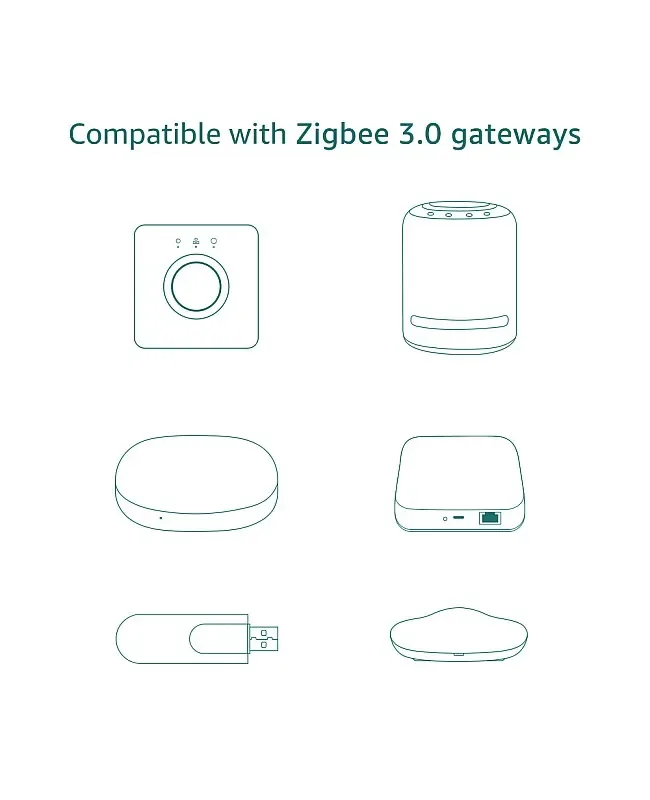

Compatible With Zigbee 3.0 Gateways: Philips HUE, Amazon Echo Studio, SmartThings, Tuya, Terncy, Conbee
Smart Phone APP Control
Voice Control
4G Wireless Remote Control
IP Rating: IP54
Anti-glare Design
Beam Angle: 60°
CRI: >
Includes
1 * Smart Bathroom Downlight
1 * User Manual
Typical applications
- Everyday room lighting
- Kitchen and cabinet task light
- Retail and commercial fit-outs
