6W 06A RF Dual White LED Recessed Lighting
LumaCircuit offers 6W 06A RF Dual White LED Recessed Lighting as a configurable downlight for project builds. Typical applications include Low-voltage LED systems, Controller and strip power, Signage and display BOMs. Model: (6W)/DW-12A-RF(12W) Size Of Downlights: Φ90*31mm(6W)/Φ108.3*37mm(12W) Size Of Drivers(L*W*H): 100*43.5*22mm The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- The wireless controller LED recessed lighting is a dimmable, energy-efficient lighting fixture that can create a bright yet ambient atmosphere for the interior. These recessed lights are designed to be installed in the ceiling and provide a soft, even illumination suited to task-based lighting. It uses high CRI COB LED chips as the light source, and the color temperature is adjustable from 2700K warm white to 6500K cool white.
- Model: (6W)/DW-12A-RF(12W)
- Size Of Downlights: Φ90*31mm(6W)/Φ108.3*37mm(12W)
- Size Of Drivers(L*W*H): 100*43.5*22mm
- Hole Size: Φ70-75mm(6W) / Φ91-95mm(12W)
- Input Voltage: -240V, 50/60Hz
- Color Temperature Range: 2700 K- 6500 K
- Luminous Flux: 500LM(6W) / 1000LM(12W)
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 240 V
- Light engine: CCT
- LumaCircuit model: LC-DL-P3DVZP
- Size Of Downlights: Φ90*31mm(6W)/Φ108.3*37mm(12W)
- Size Of Drivers(L*W*H): 100*43.5*22mm
- Hole Size: Φ70-75mm(6W) / Φ91-95mm(12W)
- Input Voltage: -240V, 50/60Hz
- Power: 6W/12W
- Color Temperature Range: 2700 K- 6500 K
- Beam Angle: 30°
- CRI: >
- Communication Protocol: 2.4G RF
Control and installation
Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination.
Plan the installation around Low-voltage LED systems, Controller and strip power, Signage and display BOMs. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview

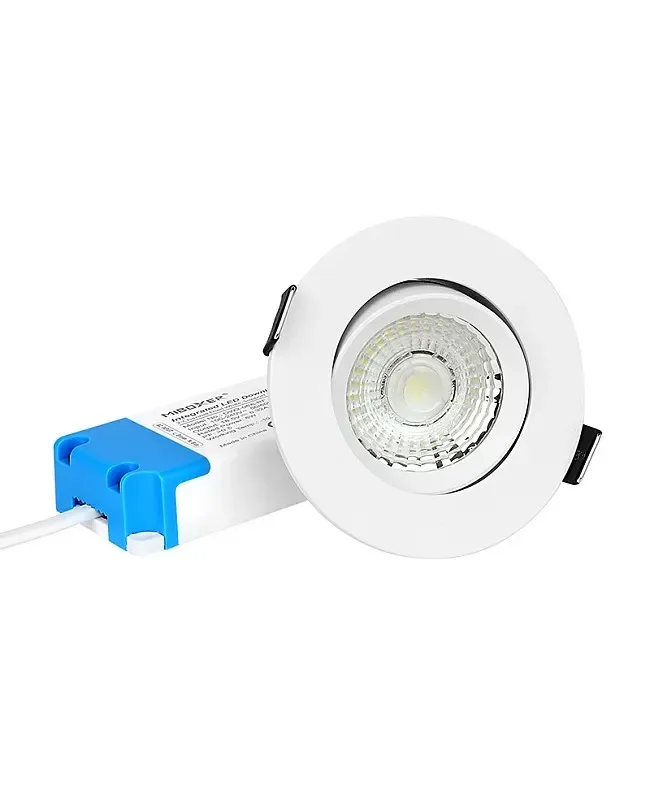

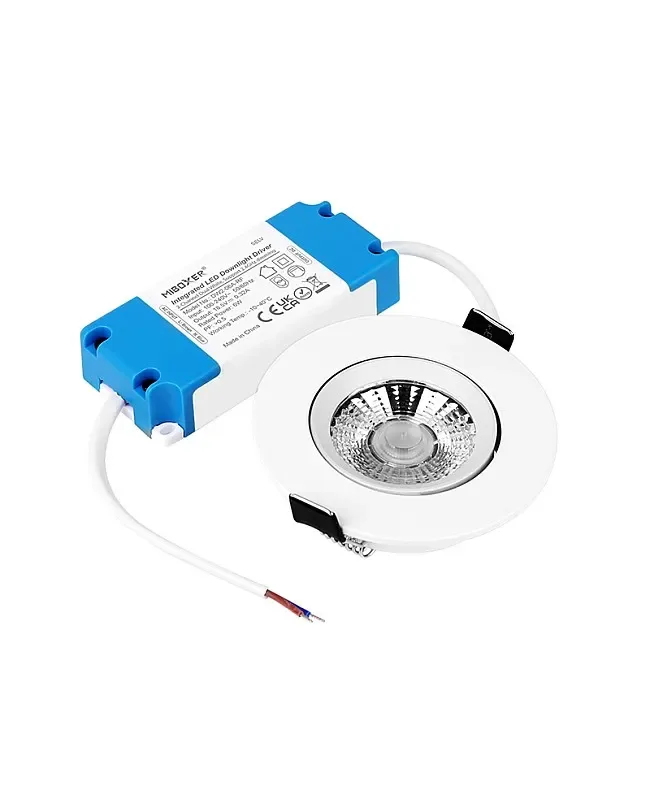

The wireless controller LED recessed lighting is a dimmable, energy-efficient lighting fixture that can create a bright yet ambient atmosphere for the interior. These recessed lights are designed to be installed in the ceiling and provide a soft, even illumination suited to task-based lighting. It uses high CRI COB LED chips as the light source, and the color temperature is adjustable from 2700K warm white to 6500K cool white. It integrates a 2.4G RF communication module, which RF remote controls can use to turn ON/OFF and adjust the color temperature and brightness for various scenes. The recessed ceiling light can transmit the signals from the remote control to other LED recessed lighting fixtures within 30 meters. All of them will work synchronously. After matching a 2.4G gateway, a smartphone app, and third-party voice commands can control the recessed downlights. The installer can use the APP or voice commands to remotely control the dual white downlights.
Specifications

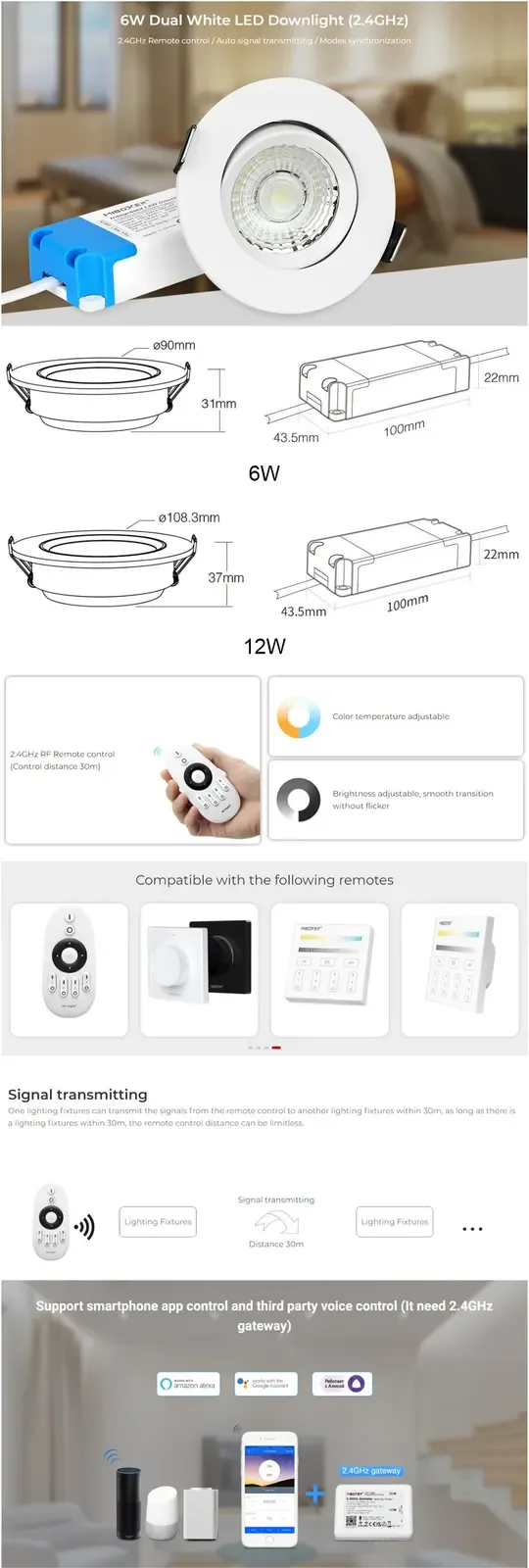

Model: (6W)/DW-12A-RF(12W)
Size Of Downlights: Φ90*31mm(6W)/Φ108.3*37mm(12W)

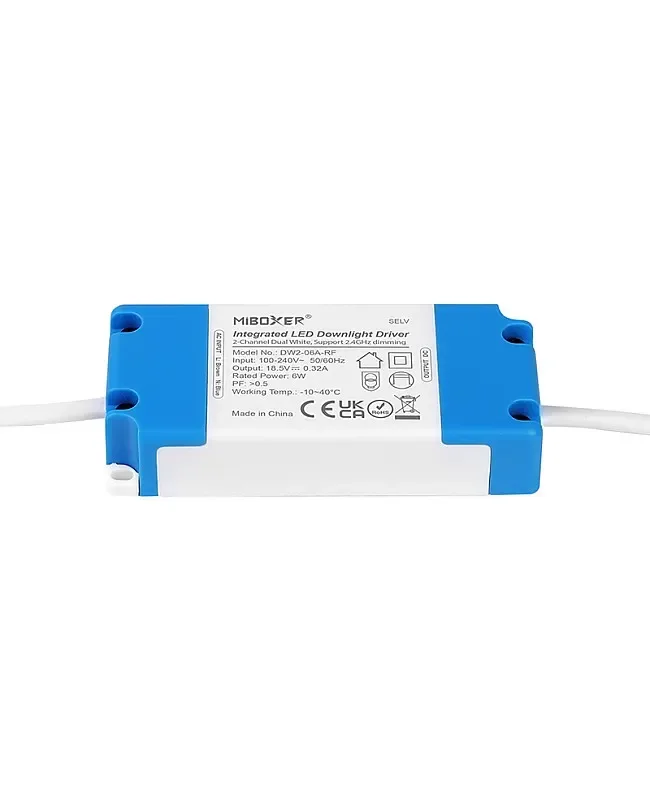

Size Of Drivers(L*W*H): 100*43.5*22mm
Hole Size: Φ70-75mm(6W) / Φ91-95mm(12W)
Input Voltage: -240V, 50/60Hz
Power: 6W/12W
Color Temperature Range: 2700 K- 6500 K
Luminous Flux: 500LM(6W) / 1000LM(12W)
Luminous Efficiency: 83LM/W
Beam Angle: 30°
CRI: >
Communication Protocol: 2.4G RF
4G RF Remote Controllable
Recommend Remote Controls T2, B, B, W, G, WL
Control Distance: ≤30m
Dimmable: YES
Auto Signal Transmitting
Support Smartphone APP Control And Third-Party Voice Control(2.4G Gateway Needed)
Can Work With Amazon Alexa And Google Assistant(2.4G Gateway Needed)
IP Rate: IP20 Non-waterproof

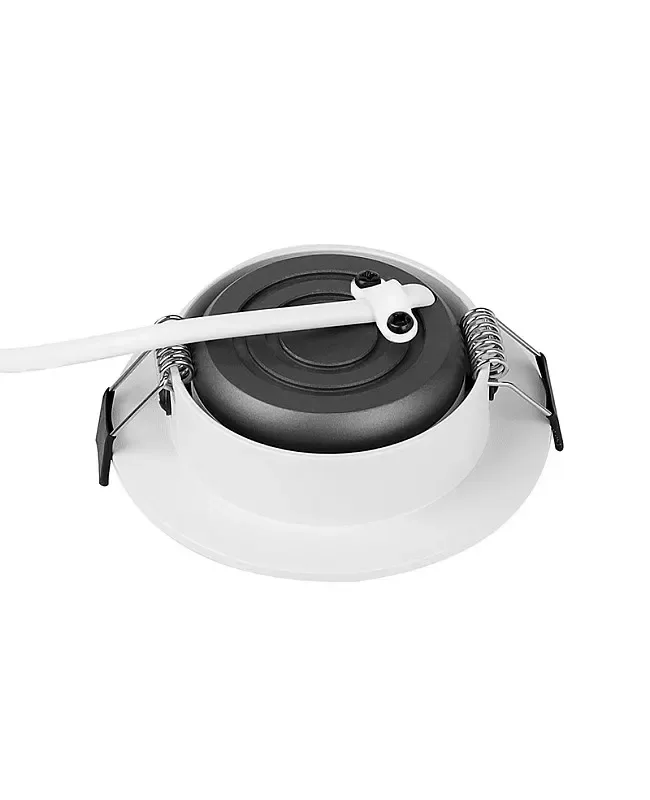

The angle Of The Lamp Body Rotated
Working Temperature: -10-40℃
Includes
1 * LED Recessed Lighting Dimmable
