Product details
06A ZB 6W Dimmable Dual White Commercial Downlights
LumaCircuit offers 06A ZB 6W Dimmable Dual White Commercial Downlights as a configurable downlight for project builds. Typical applications include Low-voltage LED systems, Controller and strip power, Signage and display BOMs. Models: (6W) / -12A-ZB(12W) Size Of Light: Φ90*31mm(6W) / Φ108.3*37mm(12W) Size Of Driver: 100*43.5*22mm The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- The wireless controller dimmable dual white commercial downlights are designed to provide energy efficiency and superior lighting performance. Integrates Zigbee 3.0 communication protocol, can be controlled by Zigbee remote control, smartphone APP, and third-party voice commands to adjust the color temperature from 2700K to 6500K and brightness for various scenes.
- Models: (6W) / -12A-ZB(12W)
- Size Of Light: Φ90*31mm(6W) / Φ108.3*37mm(12W)
- Size Of Driver: 100*43.5*22mm
- Hole Size: Φ70-75mm(6W) / Φ91-95mm(12W)
- Input Voltage: -240V, 50/60Hz
- Color Temperature: 2700-6500K
- Luminous Flux: 500LM(6W) / 1000LM(12W)
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 240 V
- Light engine: CCT
- Models: (6W) / -12A-ZB(12W)
- Size Of Light: Φ90*31mm(6W) / Φ108.3*37mm(12W)
- Size Of Driver: 100*43.5*22mm
- Hole Size: Φ70-75mm(6W) / Φ91-95mm(12W)
- Input Voltage: -240V, 50/60Hz
- Power: 6W / 12W
- Color Temperature: 2700-6500K
- Beam Angle: 30°
- CRI: >90
- Communication Protocol: Zigbee 3.0
Control and installation
Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination.
Plan the installation around Low-voltage LED systems, Controller and strip power, Signage and display BOMs. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview

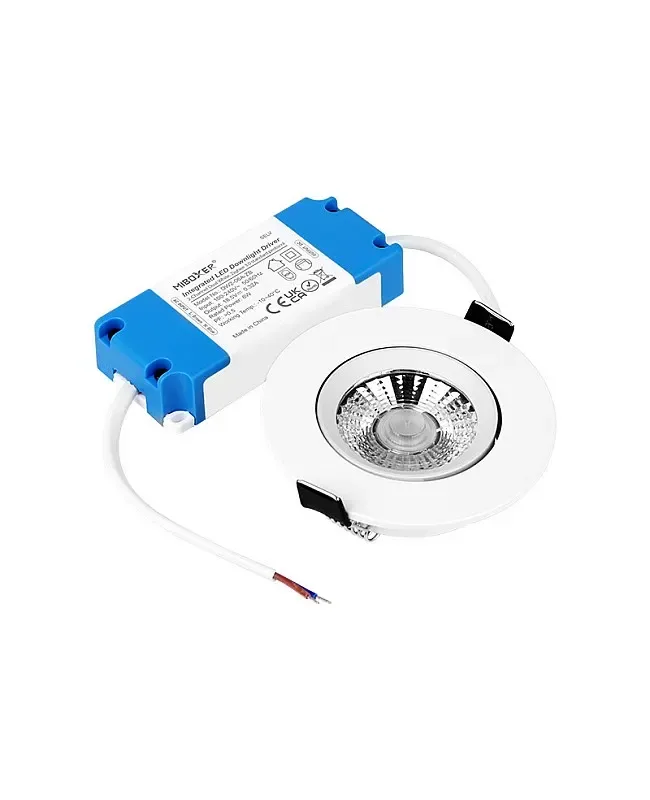

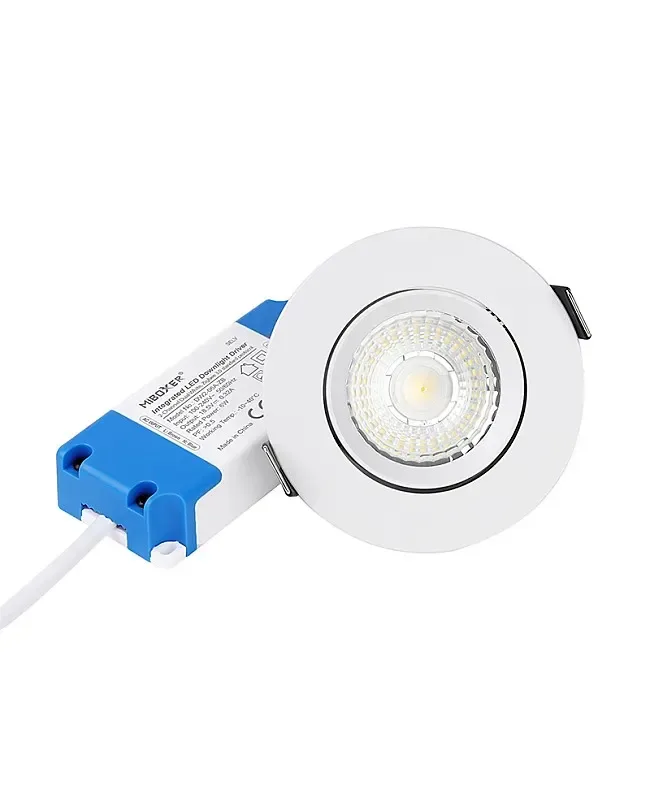

The wireless controller dimmable dual white commercial downlights are designed to provide energy efficiency and superior lighting performance. Integrates Zigbee 3.0 communication protocol, can be controlled by Zigbee remote control, smartphone APP, and third-party voice commands to adjust the color temperature from 2700K to 6500K and brightness for various scenes. Download the " Tuya Smart" APP to your phone to achieve more functions like scene customization, sleep/wake-up plan, timing, biorhythm, device sharing, etc. The wireless controller Zigbee downlights can work with Amazon Alexa and Google Assistant. The installer can use voice commands to turn ON/OFF, adjust brightness and color temperature, etc the tunable white Zigbee down lights also can enter into Philips Hue, IKEA TRADFRI, Amazon series standard Zigbee 3.0 gateways, the installer can use them in offices, homes, bedrooms, dining rooms, sitting rooms, etc it's non-waterproof, only recommend for interior lighting projects.
Specifications

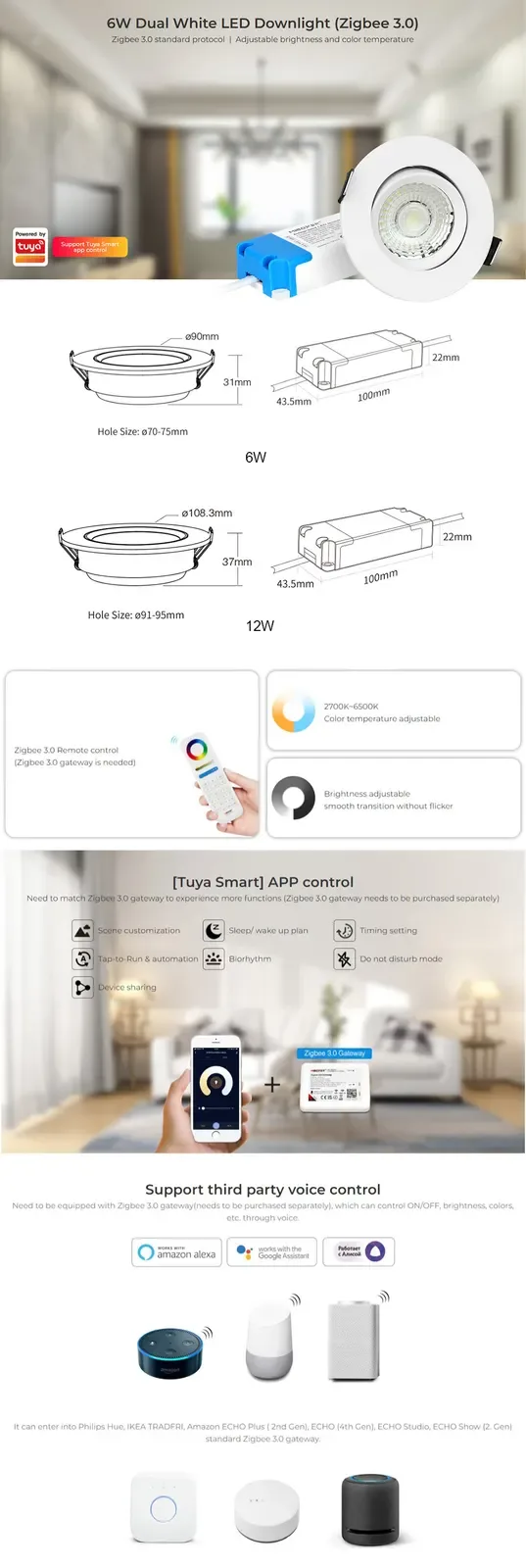

Models: (6W) / -12A-ZB(12W)
Size Of Light: Φ90*31mm(6W) / Φ108.3*37mm(12W)

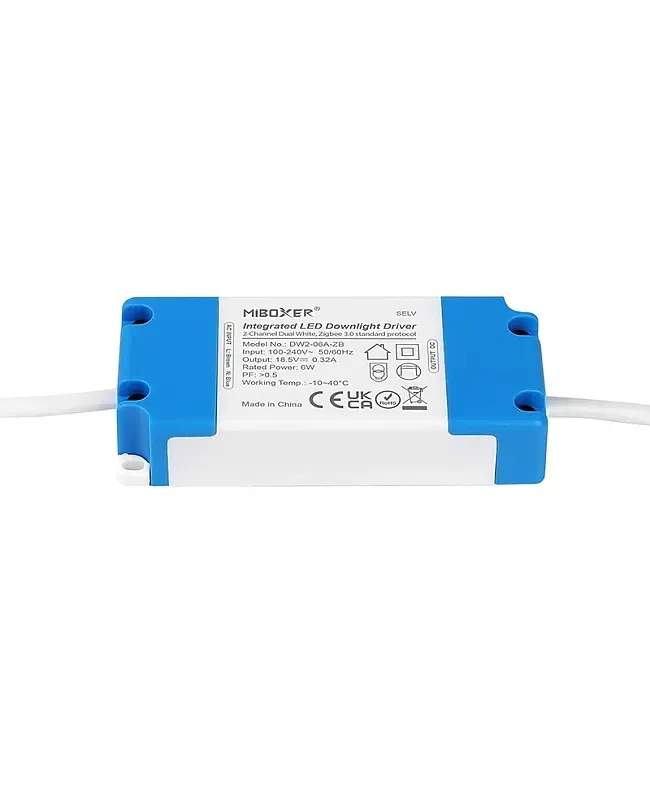

Size Of Driver: 100*43.5*22mm
Hole Size: Φ70-75mm(6W) / Φ91-95mm(12W)
Input Voltage: -240V, 50/60Hz
Power: 6W / 12W
Color Temperature: 2700-6500K
Luminous Flux: 500LM(6W) / 1000LM(12W)
Luminous Efficiency: 83LM/W
Beam Angle: 30°
Dimmable: YES
Communication Protocol: Zigbee 3.0
Control Distance: ≤100m(Open Area)
IP Rate: IP20 Non-waterproof
Wireless Technology: Zigbee 802.15.4
Zigbee Wireless Frequency: 2.400- 2.
Support Zigbee 3.0 Remote Control(Zigbee Gateway Needed)
Smartphone app Control(Zigbee Gateway Needed)
APP Name: Tuya Smart
Third-Party Voice Control(Zigbee Gateway Needed)
Can Work With Amazon Alexa And Google Assistant

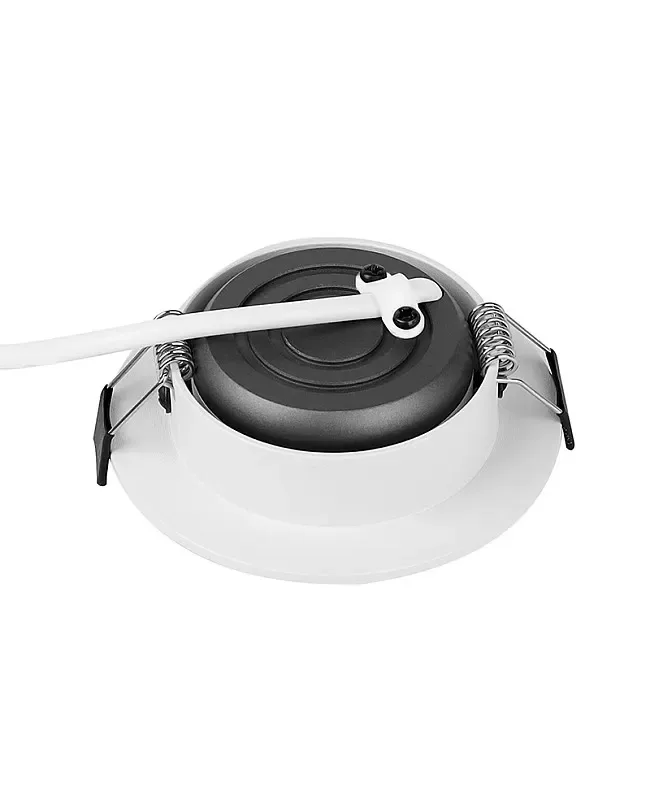

The Angle Of The Lamp Body Can Be Rotated
Working Temperature: -10℃-+40℃
Includes
1 * Zigbee Commercial Downlight
Typical applications
- Low-voltage LED systems
- Controller and strip power
- Signage and display BOMs
