Product details
06A TR 6W Triac Dimming Down Lighting Interior
LumaCircuit offers 06A TR 6W Triac Dimming Down Lighting Interior as a configurable downlight for project builds. Typical applications include Low-voltage LED systems, Controller and strip power, Signage and display BOMs. Models: (6W) / -12A-TR(12W) Size Of Lamp: Φ90*31mm(6W) / Φ108.3*37mm(12W) Size Of Drivers: 88*38.5*22mm(L*W*H) The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- The wireless controller triac dimming down lighting interior is an increasingly popular type of LED lighting that uses a triac circuit to dim the light output of the downlights, is more energy efficient, and provides a more even dimming range. Triac dimming LED downlights are also typically more affordable than other types of dimming systems, making them an excellent choice for anyone looking to save on energy costs.
- Models: (6W) / -12A-TR(12W)
- Size Of Lamp: Φ90*31mm(6W) / Φ108.3*37mm(12W)
- Size Of Drivers: 88*38.5*22mm(L*W*H)
- Hole Size: Φ70-75mm(6W) / Φ91-95mm(12W)
- Input Voltage: -240V, 50/60Hz
- Color Temperature: 2700K
- Luminous Flux: 500LM(6W) / 1050LM(12W)
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 240 V
- Models: (6W) / -12A-TR(12W)
- Size Of Lamp: Φ90*31mm(6W) / Φ108.3*37mm(12W)
- Size Of Drivers: 88*38.5*22mm(L*W*H)
- Hole Size: Φ70-75mm(6W) / Φ91-95mm(12W)
- Input Voltage: -240V, 50/60Hz
- Power: 6W / 12W
- Color Temperature: 2700K
- Beam Angle: 30°
- CRI: >
- IP Rate: IP20 Non-waterproof
- Working Temperature: -10-40℃
Control and installation
Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination.
Plan the installation around Low-voltage LED systems, Controller and strip power, Signage and display BOMs. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview
The wireless controller triac dimming down lighting interior is an increasingly popular type of LED lighting that uses a triac circuit to dim the light output of the downlights, is more energy efficient, and provides a more even dimming range. Triac dimming LED downlights are also typically more affordable than other types of dimming systems, making them an excellent choice for anyone looking to save on energy costs. 6W and 12W products are available that can match triac dimmers to adjust the brightness from 1% to 100% for various scenes. The color temperature of the interior downlighting is 2700K warm white to provide a strong, direct lighting source with minimal glare, suited to illuminating specific areas or objects in commercial and residential settings in sitting rooms, dining rooms, bedrooms, offices, etc the lighting drivers are included, easy to connect to a triac dimmers or power system to light up.
Specifications
Models: (6W) / -12A-TR(12W)

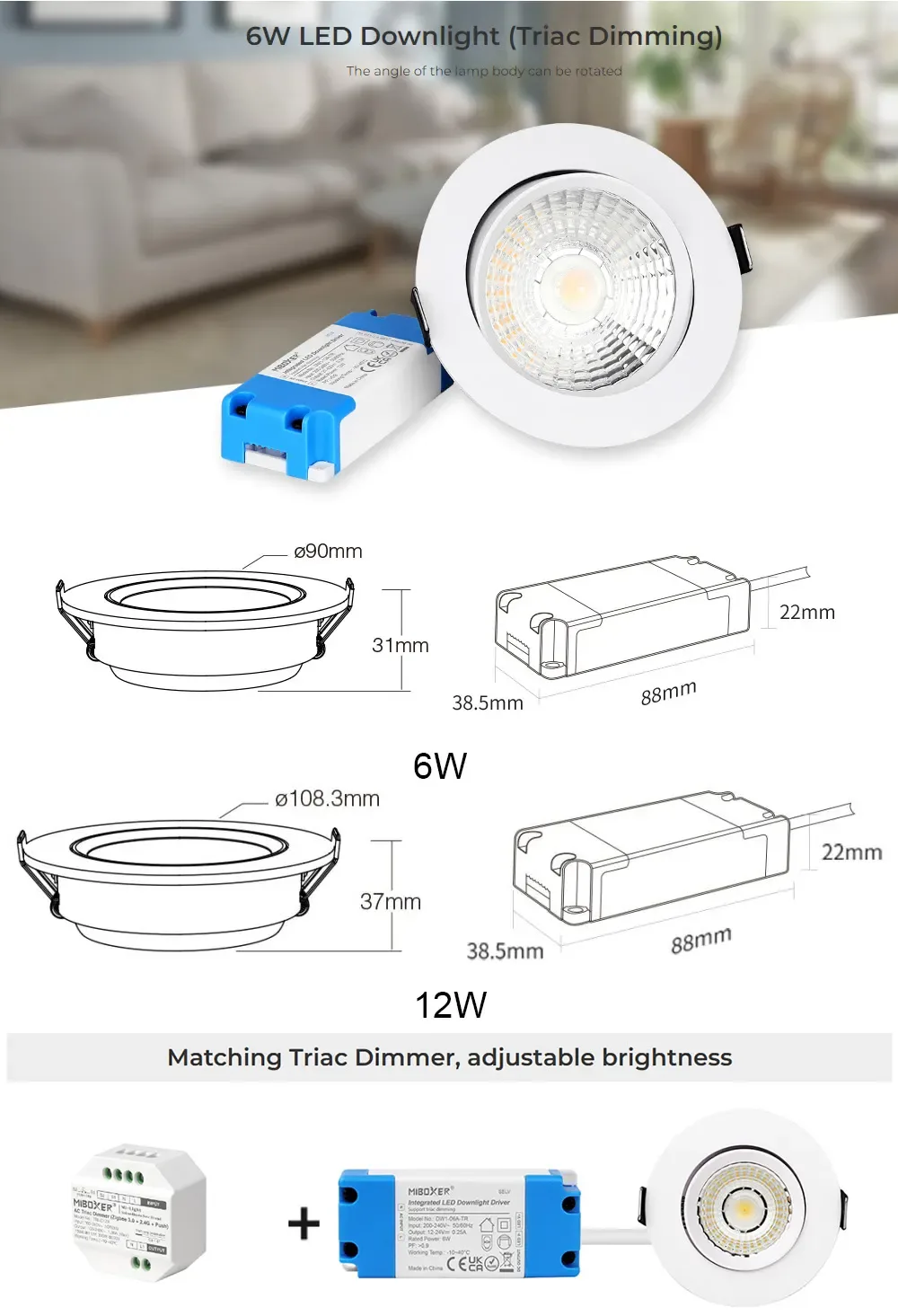

Size Of Lamp: Φ90*31mm(6W) / Φ108.3*37mm(12W)

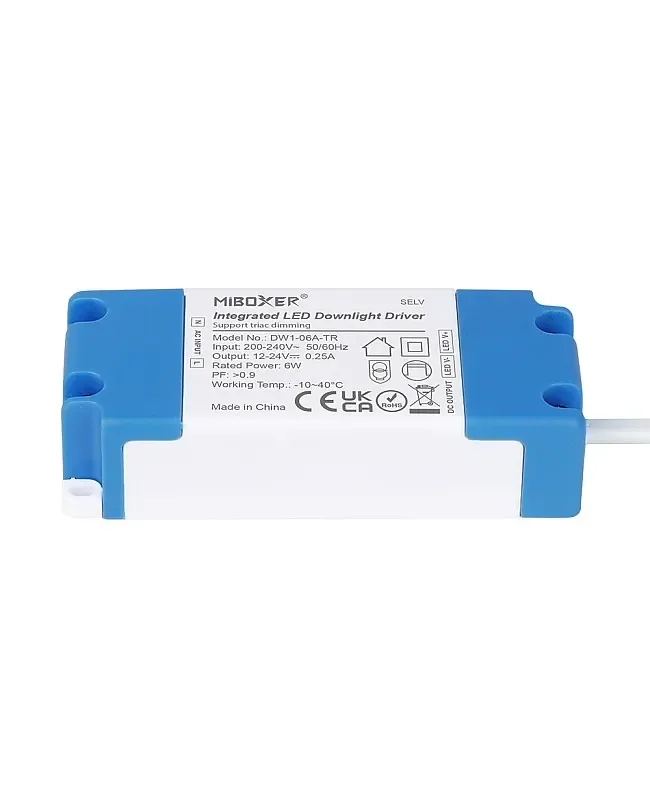

Size Of Drivers: 88*38.5*22mm(L*W*H)

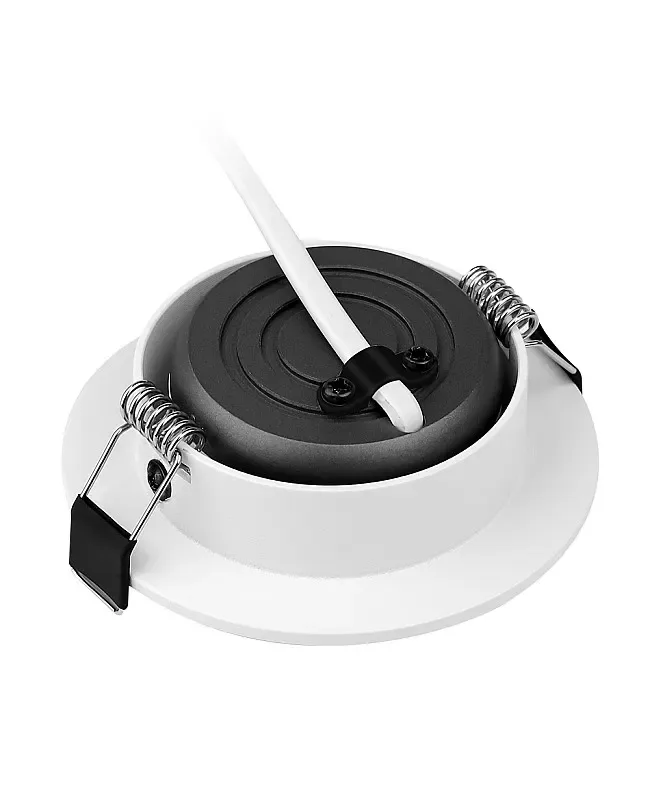

Hole Size: Φ70-75mm(6W) / Φ91-95mm(12W)
Input Voltage: -240V, 50/60Hz
Power: 6W / 12W
Color Temperature: 2700K
Luminous Flux: 500LM(6W) / 1050LM(12W)
Luminous Efficiency: 83LM/W(6W) / 87LM/W(12W)
Beam Angle: 30°
CRI: >
Dimmable: YES
IP Rate: IP20 Non-waterproof

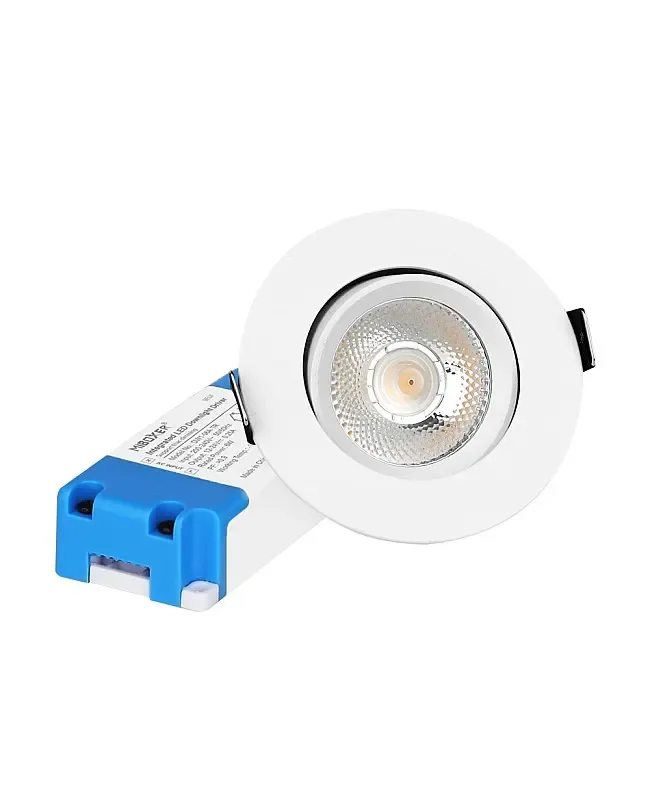

The Angle Of The Lamp Body Can Be Rotated
Recommend Triac Dimmers: TRI
Working Temperature: -10-40℃
Includes

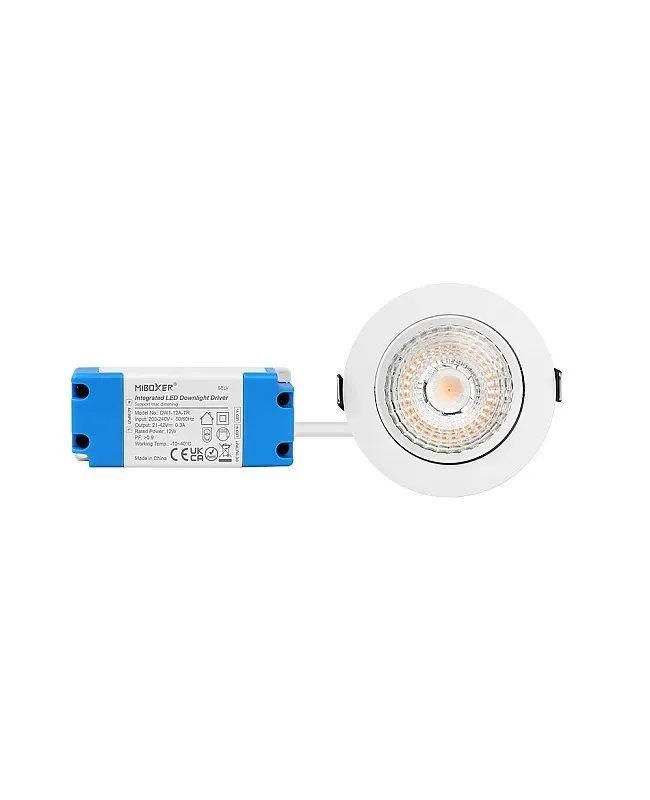

1 * 6W Triac Dimming Interior Down Lighting
Typical applications
- Low-voltage LED systems
- Controller and strip power
- Signage and display BOMs
