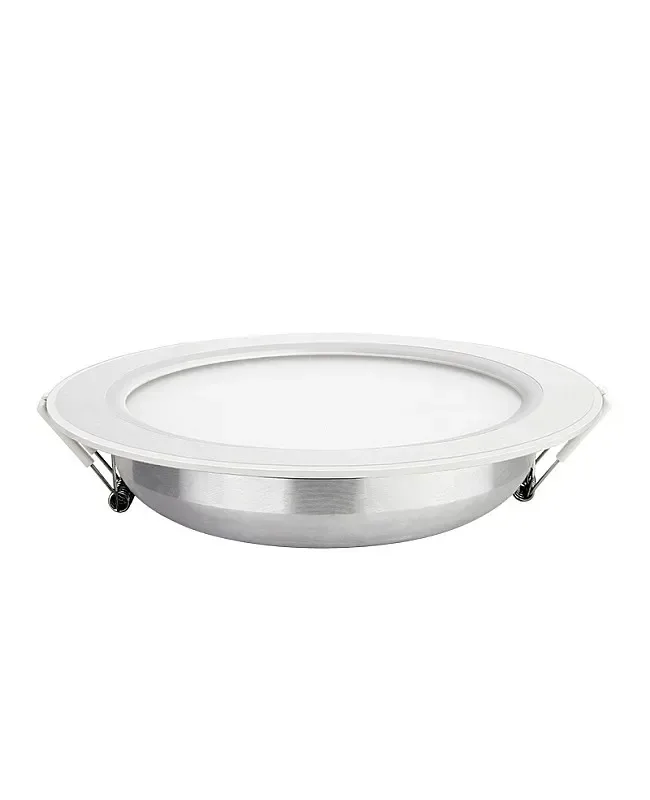

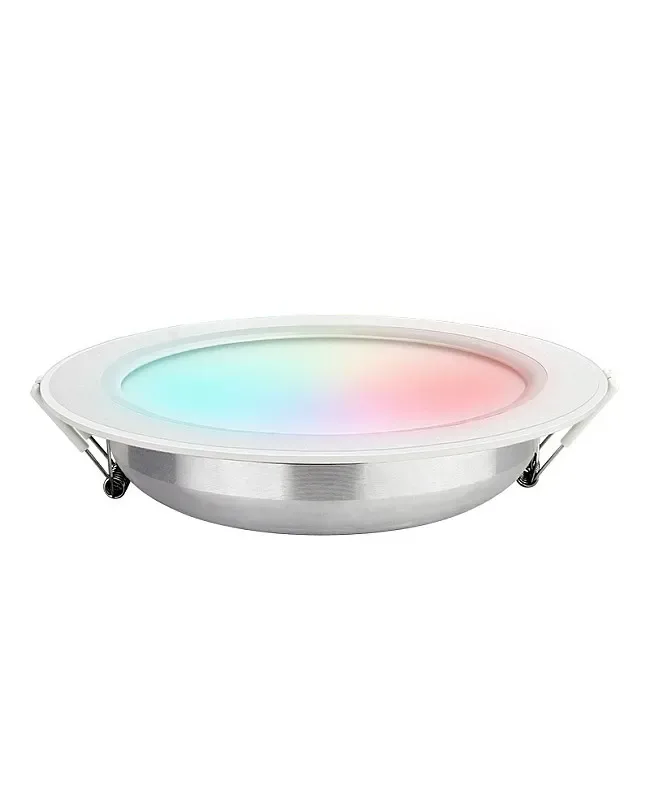

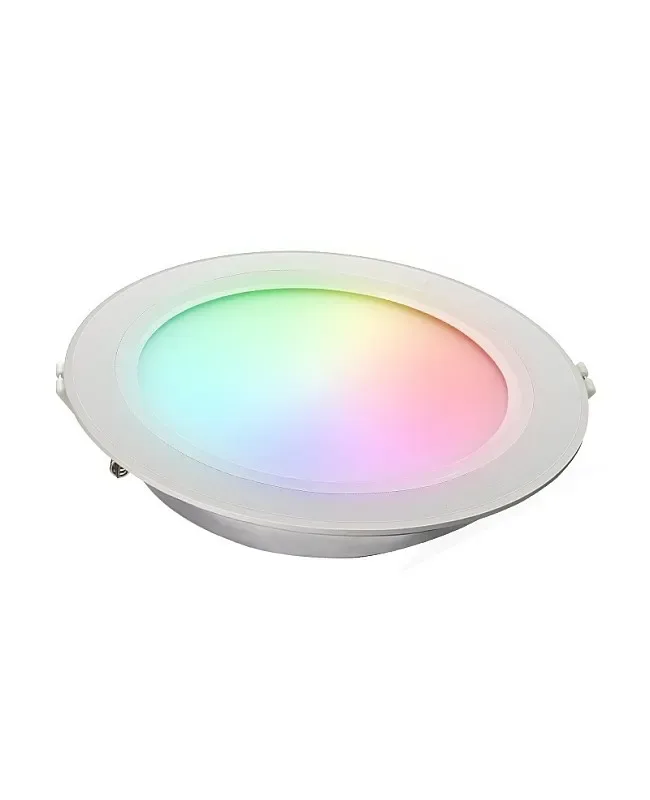

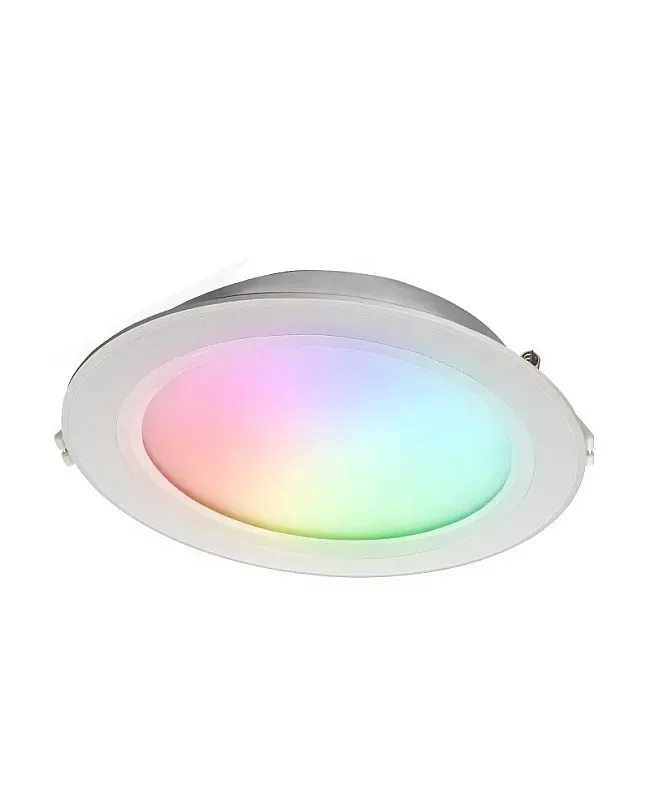

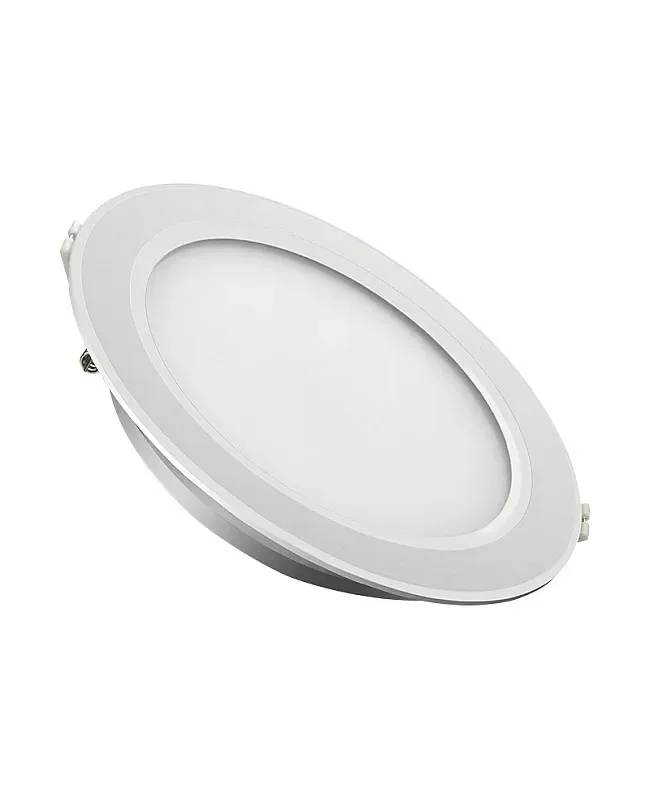

12W RGB Tunable White Dimmable LED Downlights
LumaCircuit offers 12W RGB Tunable White Dimmable LED Downlights as a configurable downlight for project builds. Typical applications include Low-voltage LED systems, Controller and strip power, Signage and display BOMs. Emitting Color: RGB + Tunable White Color Temperature Adjustable From 2700 K- 6500 K Light Efficiency: 88LM/W The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- Working Voltage: -240V, 50/60Hz
- Emitting Color: RGB + Tunable White
- Color Temperature Adjustable From 2700 K- 6500 K
- Light Efficiency: 88LM/W
- RF Remote Controllable T4, T3, WL
- Support Smartphone APP And Third-Party Voice Control: Amazon Alexa And Google Assistant(2.4G Gateway Needed)
- Auto Signal Transmitting And Modes Synchronization
- wireless controller Manual
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 240 V
- Light engine: CCT
- LumaCircuit model: LC-DL-7GNNYC
- Material: Aluminum
- Size: Φ180*40mm
- Hole Size: Φ145-150mm
- Working Voltage: -240V, 50/60Hz
- Power: 12W
- Emitting Color: RGB + Tunable White
- CRI: >
- Beam Angle: 120°
- RF Remote Controllable: T4, T3, WL
Control and installation
Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination.
Plan the installation around Low-voltage LED systems, Controller and strip power, Signage and display BOMs. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview
Quick Links
wireless controller Manual
Specifications
Model
Material: Aluminum
Size: Φ180*40mm
Hole Size: Φ145-150mm
Working Voltage: -240V, 50/60Hz
Power: 12W
Emitting Color: RGB + Tunable White
Color Temperature Adjustable From 2700 K- 6500 K
Luminous Flux: 1100LM
Light Efficiency: 88LM/W
CRI: >
Beam Angle: 120°
RF Remote Controllable T4, T3, WL
Support Smartphone APP And Third-Party Voice Control: Amazon Alexa And Google Assistant(2.4G Gateway Needed)
Control Distance: <30M
WiFi Enabled
Auto Signal Transmitting And Modes Synchronization
Highly Efficient Transmitting Cover
Stainless Steel Spring Snaps Included

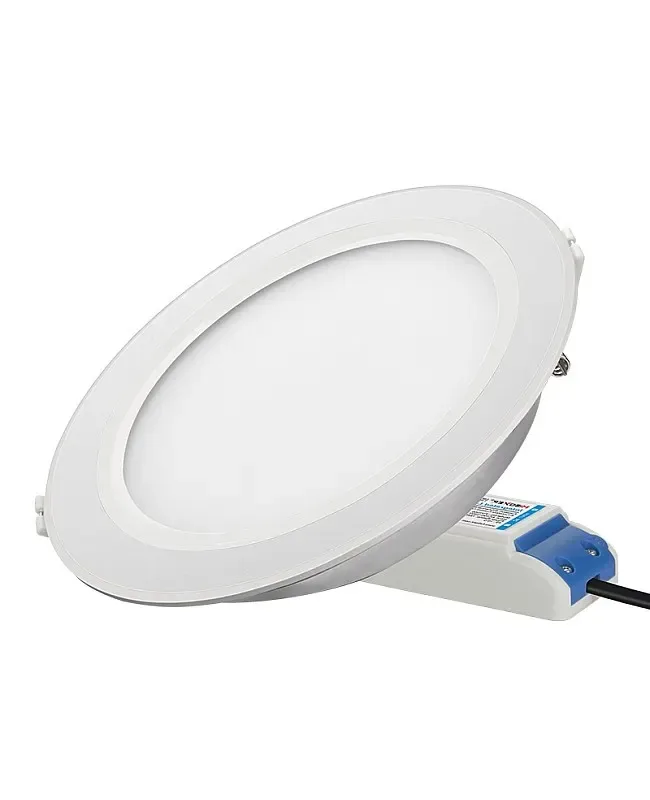

Constant Current And Voltage Driver Included
Working Temperature: -20℃-+60℃
Includes
1 * Dimmable LED Downlight
Product resources
Technical documents
Typical applications
- Low-voltage LED systems
- Controller and strip power
- Signage and display BOMs
