6W/12W Downlight Ceiling None Dimmable Warm White

Product features

The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.

• The wireless controller downlight ceiling is a non-dimmable LED fixture providing warm white light. The installer can choose 6W or 12W products, a non-dimmable light fixture that can be rotated to adjust the angle of the lamp body, making it suitable for various lighting applications. It's a recessed LED lighting system that provides a strong, direct lighting source with minimal glare.
• Models: (6W) / -12A-ND(12W)

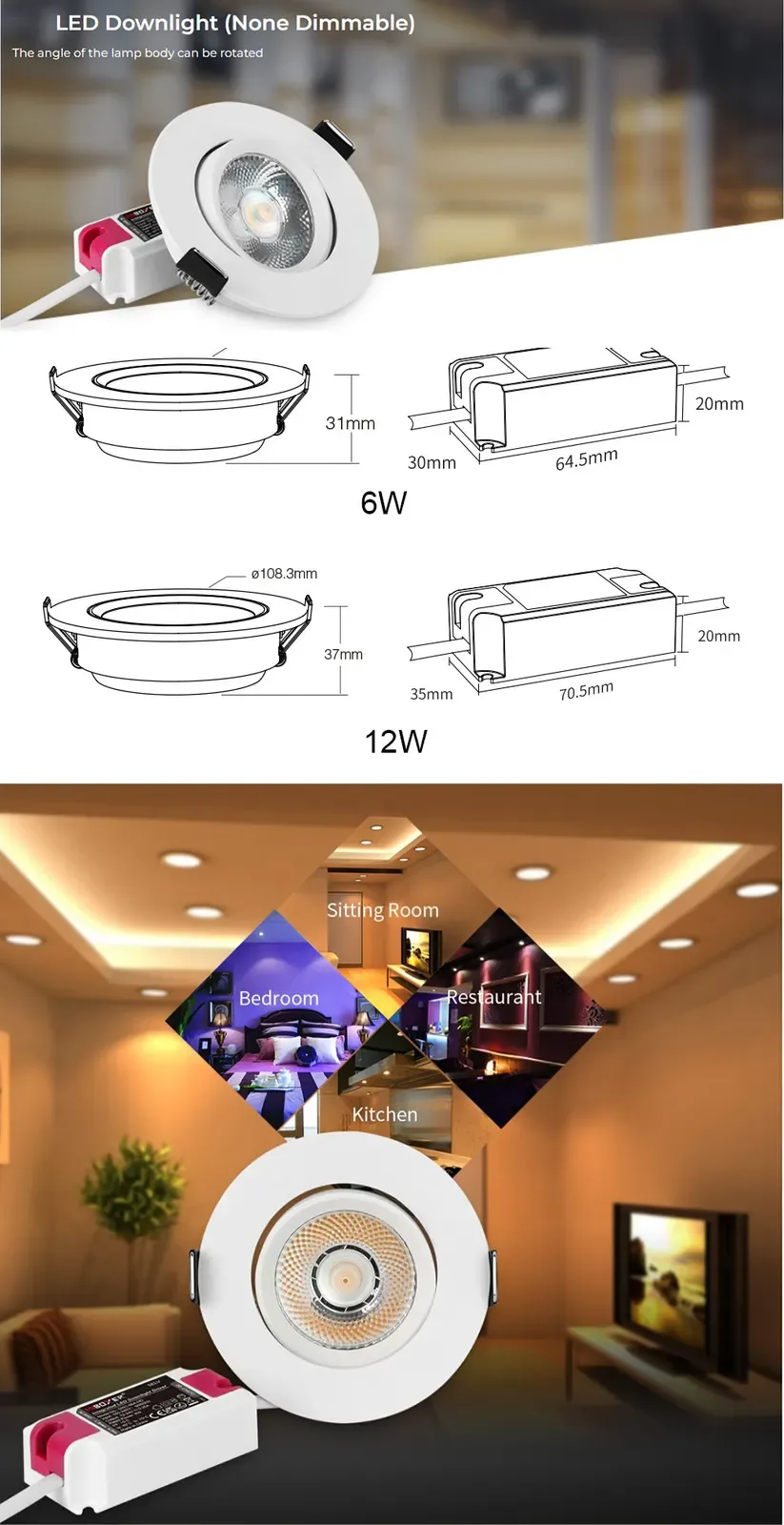

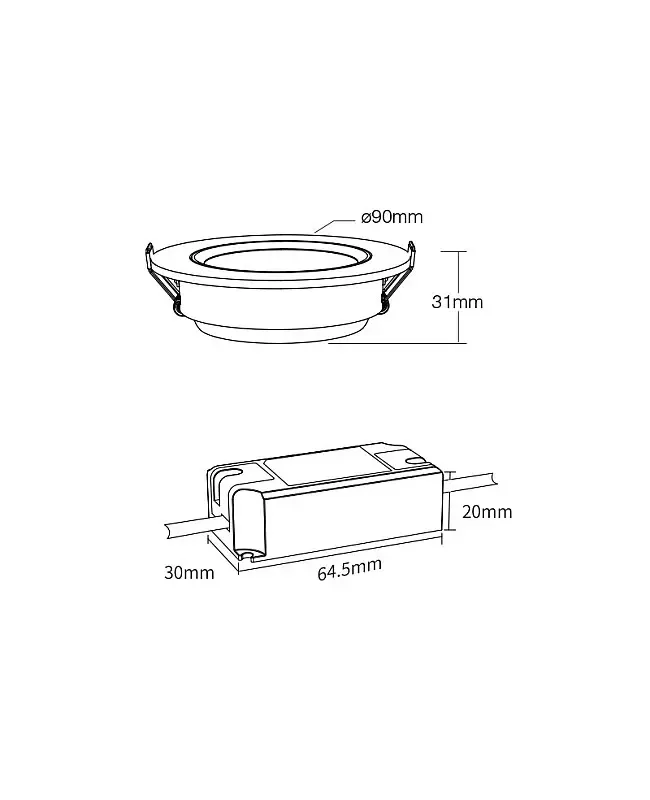

• Size Of Downlight: Φ90*31(6W) / Φ108.3*37mm(12W)

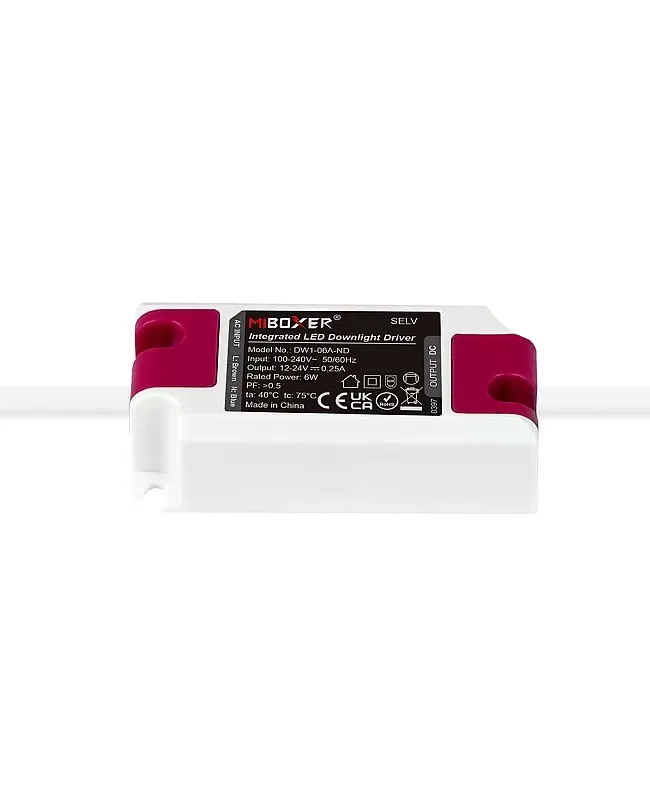

• Size Of Driver: 64.5*30*20mm(L*W*H)/70.5*35*20mm(L*W*H)
• Hole Size: Φ70~75mm(6W) / Φ91~95mm(12W)
• Input Voltage: 100-240V; 50/60Hz
• Color Temperature: 2700K(Warm White)
• Luminous Flux: 500LM(6W)/1050LM(12W)

Configuration and technical detail

To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.

• Input: 240 V
• Light engine: CCT
• Models: (6W) / -12A-ND(12W)
• Size Of Downlight: Φ90*31(6W) / Φ108.3*37mm(12W)
• Size Of Driver: 64.5*30*20mm(L*W*H)/70.5*35*20mm(L*W*H)
• Material: Aluminum
• Hole Size: Φ70~75mm(6W) / Φ91~95mm(12W)
• Input Voltage: 100-240V; 50/60Hz
• Power: 6W/12W
• Color Temperature: 2700K(Warm White)
• Beam Angle: 30°
• IP Rate: IP20 Non-waterproof

Control and installation

Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination.

Plan the installation around Everyday room lighting, Kitchen and cabinet task light, Retail and commercial fit-outs. Keep power, signal, heat path, access and service joints visible in the drawing.

Configuration support

Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.

Product overview

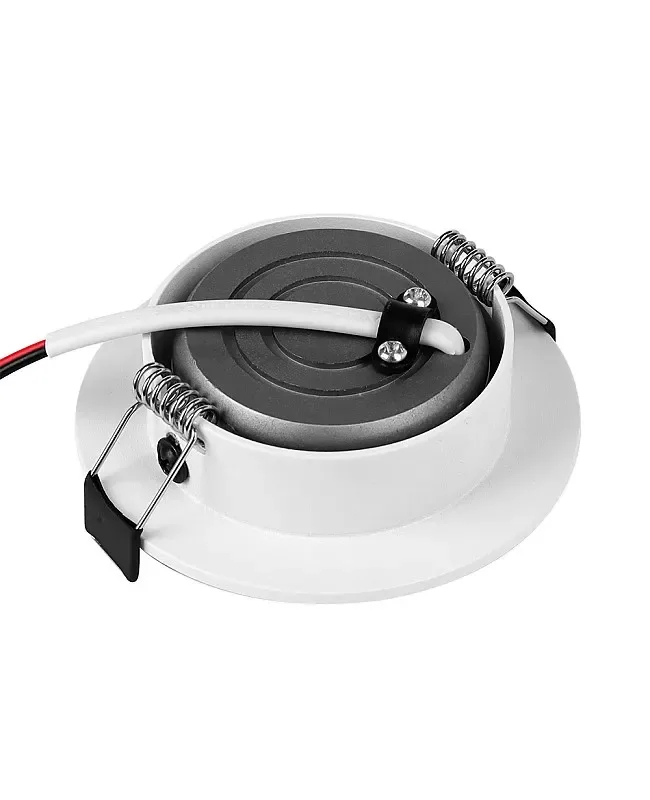

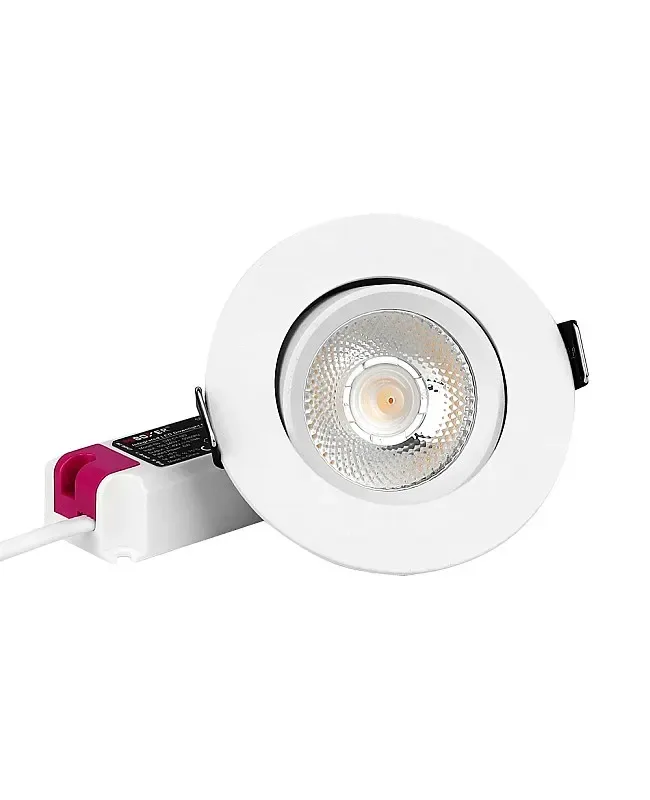

The wireless controller downlight ceiling is a non-dimmable LED fixture providing warm white light. The installer can choose 6W or 12W products, a non-dimmable light fixture that can be rotated to adjust the angle of the lamp body, making it suitable for various lighting applications. It's a recessed LED lighting system that provides a strong, direct lighting source with minimal glare. It's suited to illuminating specific areas or objects in commercial and residential settings, sitting rooms, bedrooms, restaurants, offices, malls, etc. The wireless controller downlights are available in various wattages and sizes so that the installer can find the perfect fit for your projects. The wireless controller downlight uses a high-power COB LED as the light source; the light driver is included, easy to install, and requires no maintenance. It's an excellent choice for you to be looking for modern lighting solutions that are energy-efficient and cost-effective.

Specifications

Models: (6W) / -12A-ND(12W)

Size Of Downlight: Φ90*31(6W) / Φ108.3*37mm(12W)

Size Of Driver: 64.5*30*20mm(L*W*H)/70.5*35*20mm(L*W*H)

Material: Aluminum

Hole Size: Φ70~75mm(6W) / Φ91~95mm(12W)

Input Voltage: 100-240V; 50/60Hz

Power: 6W/12W

Color Temperature: 2700K(Warm White)

Luminous Flux: 500LM(6W)/1050LM(12W)

Luminous Efficiency: 83LM/W(6W)/87LM/W(12W)

Dimmable: NO

Beam Angle: 30°

Angle Of Lamp Body Adjustable

IP Rate: IP20 Non-waterproof

Temperature: TA: 40℃；TC: 75℃

CRI: >

Includes

1 * Warm White Ceiling Downlight
