9W 2.4G RGBCCT Waterproof Recessed Light
LumaCircuit offers 9W 2.4G RGBCCT Waterproof Recessed Light as a configurable downlight for project builds. Typical applications include Everyday room lighting, Kitchen and cabinet task light, Retail and commercial fit-outs. Type: Waterproof Downlight 2.4G Model: (2.4G Version) / (Zigbee + RF Version) / (2.4G Version) / (Zigbee + RF Version) Diameter: Φ83mm ( & ) / Φ103mm ( & ) The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- The wireless controller waterproof recessed lights have an IP rating of IP54 and are designed for use in wet environments and outdoors, such as bathrooms, kitchens, and under eaves. The waterproof downlights utilize a single 9W RGBCCT high-CRI COB LED chip as the light source and come with a power adapter, making installation and use easy. They are integrated with 2.4G wireless transmission technology.
- Type: Waterproof Downlight 2.4G
- Model: (2.4G Version) / (Zigbee + RF Version) / (2.4G Version) / (Zigbee + RF Version)
- Diameter: Φ83mm ( & ) / Φ103mm ( & )
- Hole Size: Φ75mm ( & ) / Φ95mm ( & )
- Input Voltage: -240V, 50/60Hz
- Power: 9W ( & ) / 18W ( & )
- Color Temperature Adjustable Range: 2700-6500K
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 240 V
- Light engine: RGB+CCT
- LumaCircuit model: LC-DL-GMOZUN
- Size: 88*68mm(W*H)
- Diameter: Φ83mm ( & ) / Φ103mm ( & )
- Hole Size: Φ75mm ( & ) / Φ95mm ( & )
- Color: Black
- Input Voltage: -240V, 50/60Hz
- Power: 9W ( & ) / 18W ( & )
- Color Temperature Adjustable Range: 2700-6500K
- Beam Angle: 60°
- CRI: >
Control and installation
Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination.
Plan the installation around Everyday room lighting, Kitchen and cabinet task light, Retail and commercial fit-outs. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview

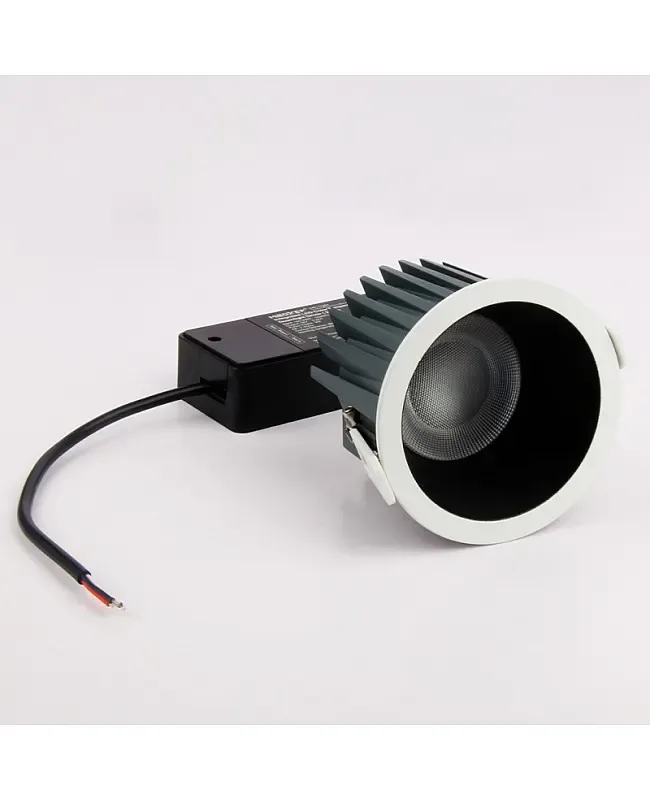

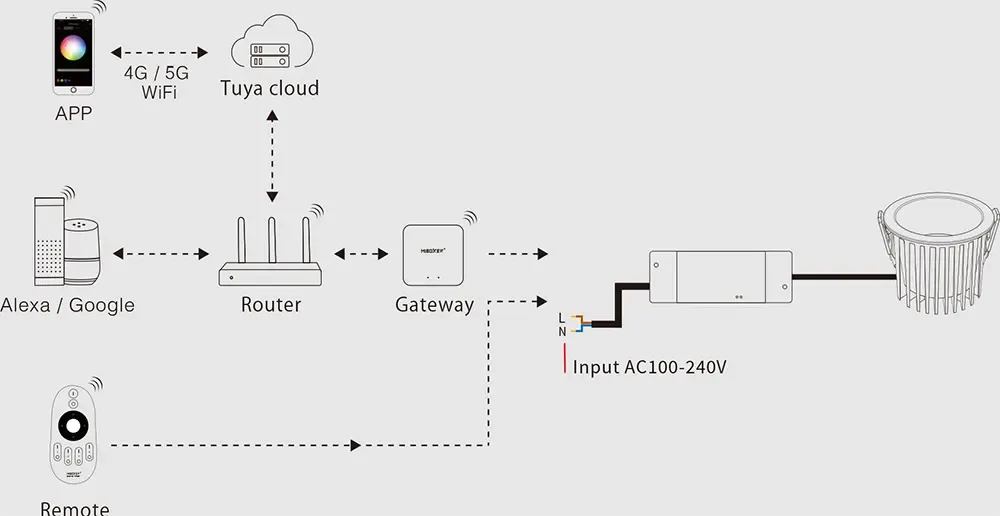

The wireless controller waterproof recessed lights have an IP rating of IP54 and are designed for use in wet environments and outdoors, such as bathrooms, kitchens, and under eaves. The waterproof downlights utilize a single 9W RGBCCT high-CRI COB LED chip as the light source and come with a power adapter, making installation and use easy. They are integrated with 2.4G wireless transmission technology. They can be controlled by wireless controller remotes to adjust changes to the color, dynamic modes, and color temperature and brightness for various scenes. The lights will receive signals from the remote and transmit them to the same model downlights within a 30-meter range, allowing all lights to work in synchronization. After pairing with a 2.4G gateway, the RGB+CCT downlights can be controlled by the Tuya Smart APP and third-party voice control to achieve additional functions, such as timer and group control.
Specifications
Type: Waterproof Downlight 2.4G
Model: (2.4G Version) / (Zigbee + RF Version) / (2.4G Version) / (Zigbee + RF Version)

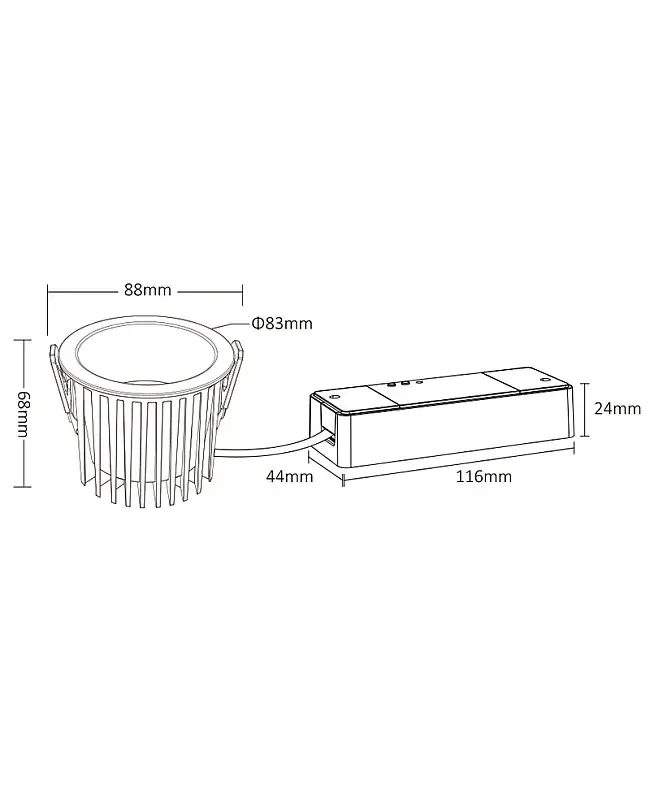

Size: 88*68mm(W*H)
Diameter: Φ83mm ( & ) / Φ103mm ( & )
Hole Size: Φ75mm ( & ) / Φ95mm ( & )
Color: Black
Input Voltage: -240V, 50/60Hz
Power: 9W ( & ) / 18W ( & )
Color Temperature Adjustable Range: 2700-6500K
Luminous Flux: 770LM ( & ) / 1600LM ( & )
Luminous Efficiency: 90LM/W
Dimming Grayscale: 4096 Levels
Dimming Range: 0.1%-100%
Dimming Curve: Logarithmic
Beam Angle: 60°
CRI:>
RF: 2.
Compatible With wireless controller 2.4G RF Remote Controls For RGB + CCT Lights
Support Tuya Smart APP Control(2.4G Gateway Needed)
Support Third-party Voice Control(2.4G Gateway Needed): Amazon Alexa, Google Assistant
Control Distance: ≤30M
IP Rate: IP54 waterproof
Radio Equipment(RED): ETSI EN 300 440.2.1
Safety Standard (LVD): EN IEC 60598-1:2021+:2022; EN 60598-2-2:2012; EN IEC 62031:2020+:2021; EN 62493:2015+:2022
Working Temperature: -10-40℃

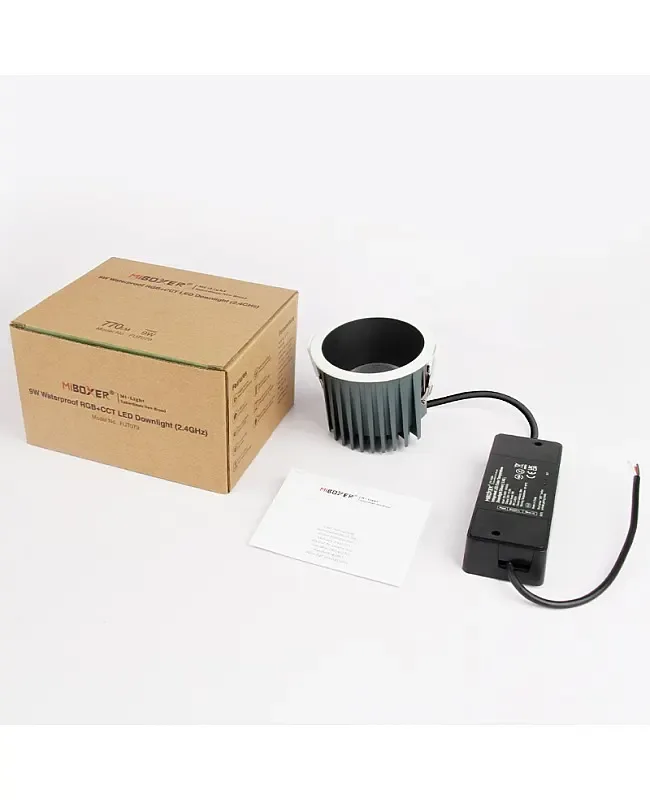

Includes
1 * Waterproof Downlight RGB + CCT
Typical applications
- Everyday room lighting
- Kitchen and cabinet task light
- Retail and commercial fit-outs
