Product details

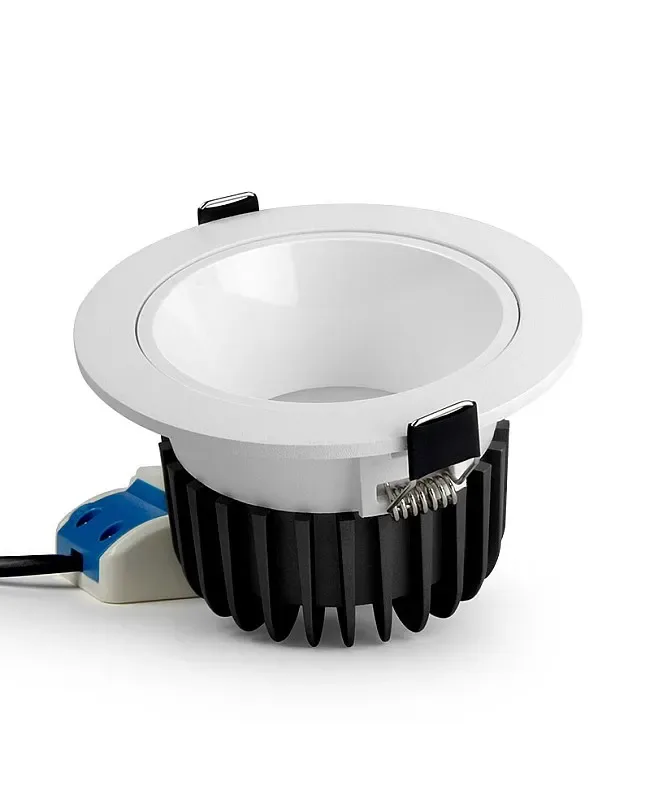

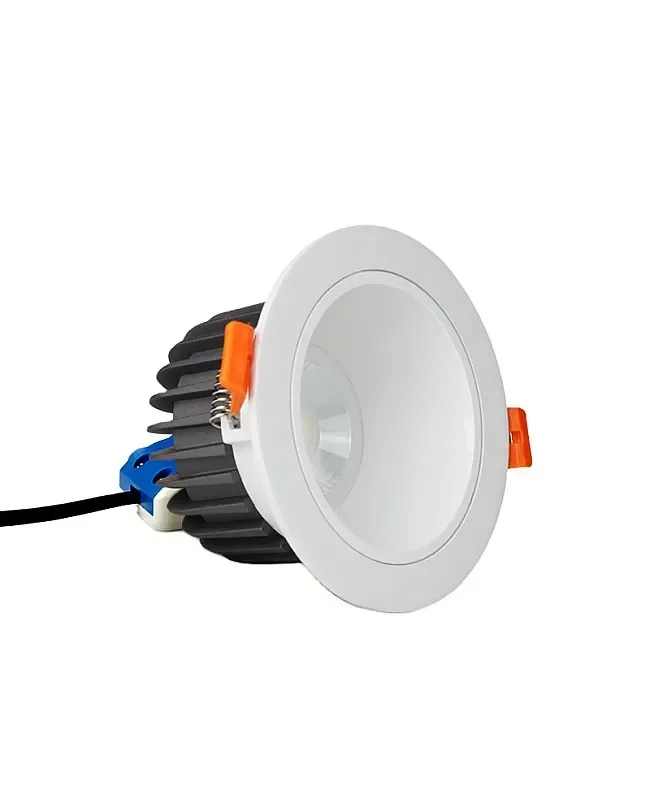

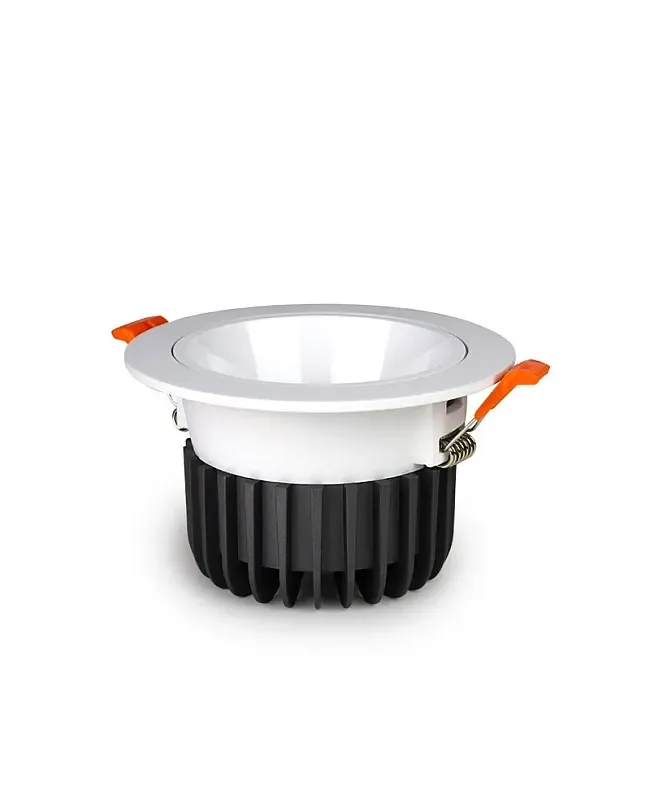

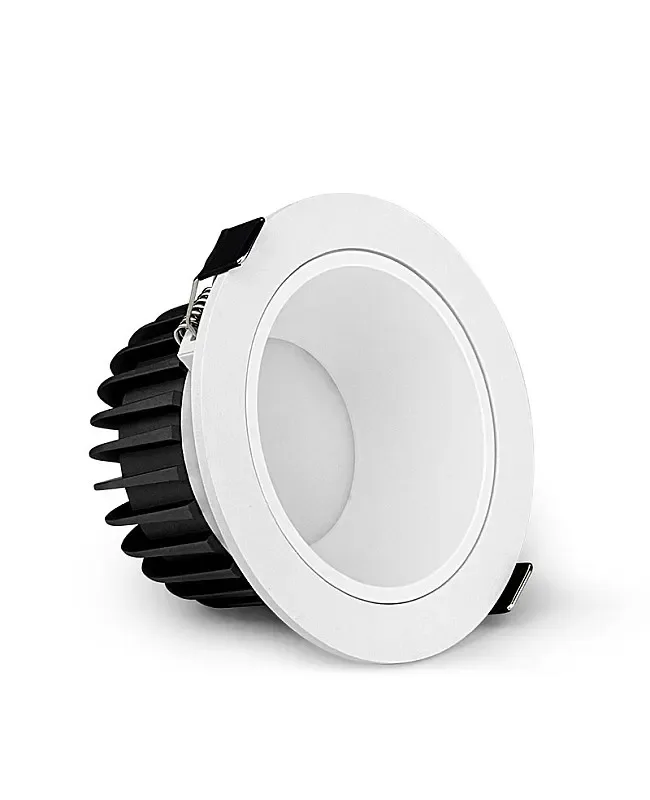

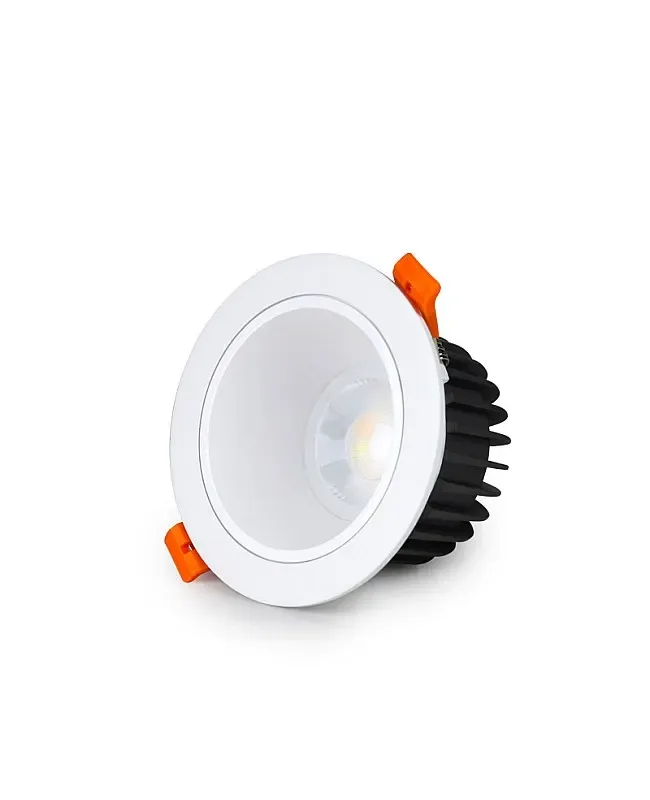

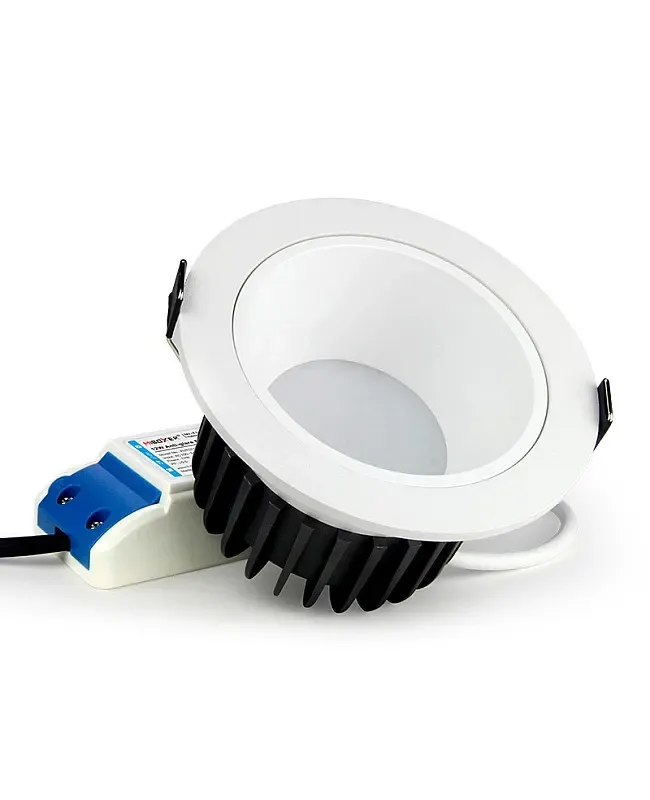

12W RGB Tunable White Smart Downlights
LumaCircuit offers 12W RGB Tunable White Smart Downlights as a configurable downlight for project builds. Typical applications include Low-voltage LED systems, Controller and strip power, Signage and display BOMs. Working Voltage: -240V, 50/60Hz Color: RGB + Tunable White Color Temperature: 2700K-6500K(Adjustable) The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- wireless controller User Manual
- Working Voltage: -240V, 50/60Hz
- Color: RGB + Tunable White
- Color Temperature: 2700K-6500K(Adjustable)
- 4G Remote Controllable T4, T3, WL
- Support Smartphone APP And Third-Party Voice Control(Amazon Alexa And Google Assistant)(2.4G Gateway Needed)
- Auto Signal Transmitting And Mode Synchronization
- Deeply Anti-Glare Design
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 240 V
- Light engine: CCT
- LumaCircuit model: LC-DL-7DPKKL
- Size: 135mm*69mm(W*H)
- Hole Size: Φ95*100mm
- Working Voltage: -240V, 50/60Hz
- Power: 12W
- Color: RGB + Tunable White
- Color Temperature: 2700K-6500K(Adjustable)
- CRI: >
- Beam Angle: 60°
- Control Distance: <30m
Control and installation
Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination.
Plan the installation around Low-voltage LED systems, Controller and strip power, Signage and display BOMs. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview
Quick Links
wireless controller User Manual
Specifications
Model
Size: 135mm*69mm(W*H)
Hole Size: Φ95*100mm
Working Voltage: -240V, 50/60Hz
Power: 12W
Color: RGB + Tunable White
Color Temperature: 2700K-6500K(Adjustable)
Luminous Flux: 1000LM
CRI: >
Beam Angle: 60°
Control Distance: <30m

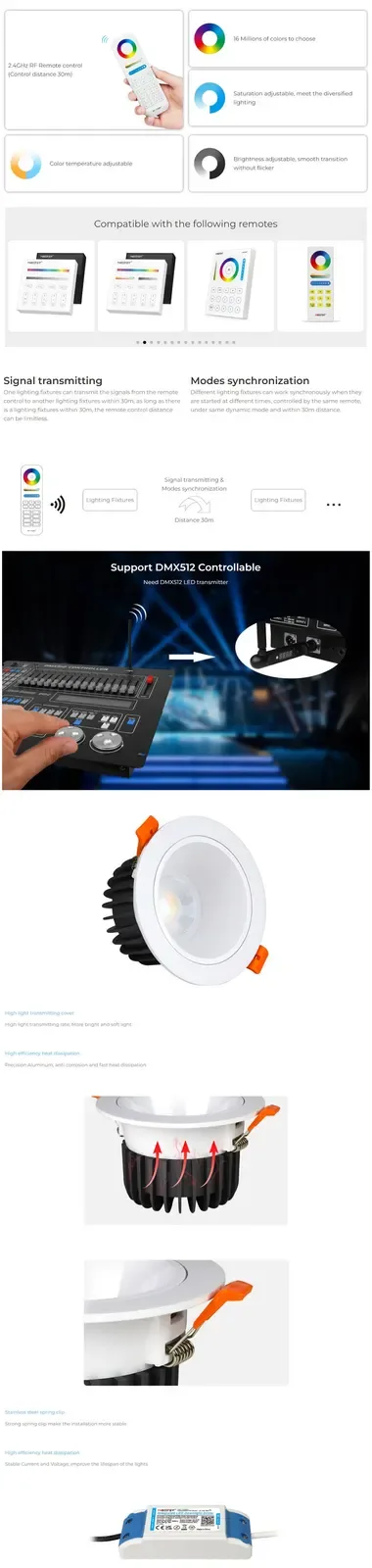

4G Remote Controllable T4, T3, WL
Support Smartphone APP And Third-Party Voice Control(Amazon Alexa And Google Assistant)(2.4G Gateway Needed)
Auto Signal Transmitting And Mode Synchronization
Deeply Anti-Glare Design
Constant Current & Voltage LED Driver Included
Stainless Steel Spring Clips Included
High-Quality Aluminum Housing For Fast Heat Dissipation
Working Temperature: -20℃-+60℃
Includes
1 * Voice Controllable RGB White Smart Downlight
Product resources
Technical documents
Typical applications
- Low-voltage LED systems
- Controller and strip power
- Signage and display BOMs
