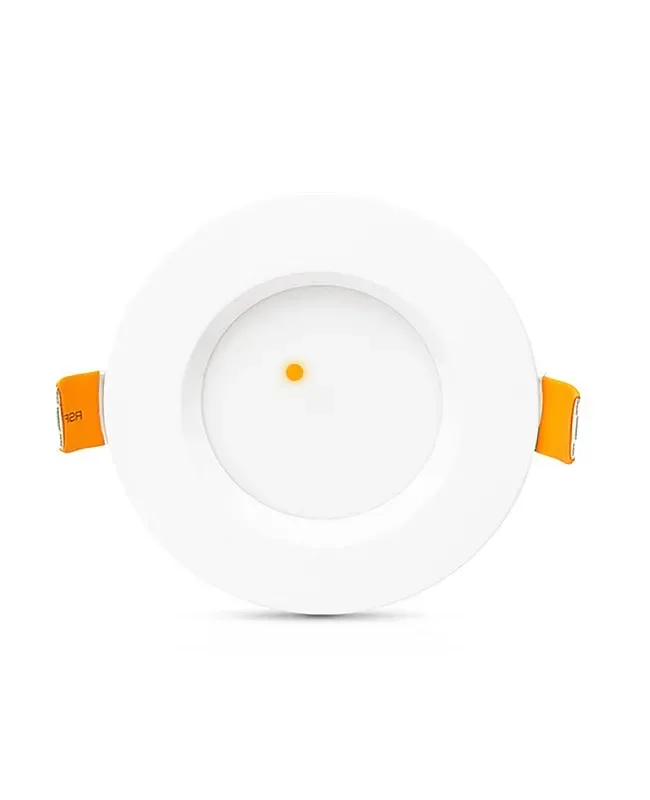

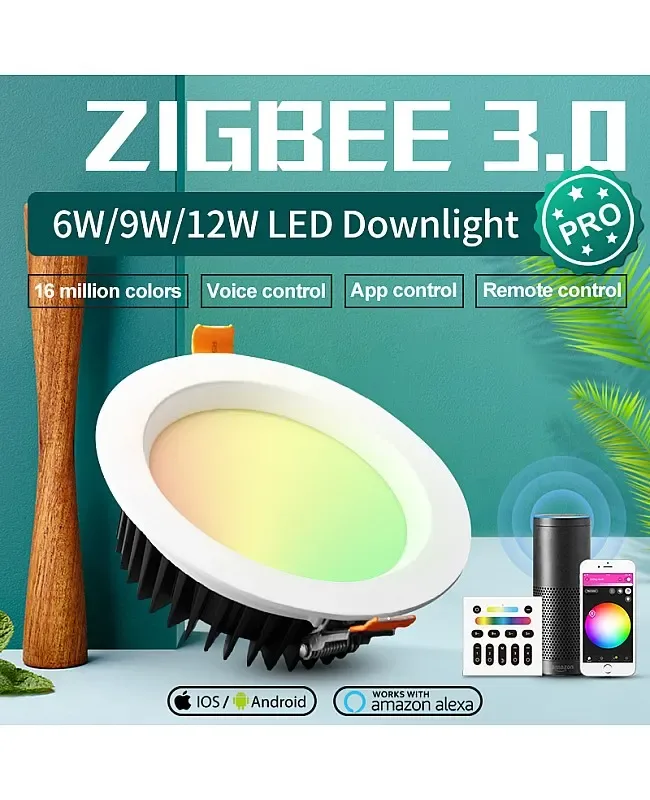

6/9/12W Zigbee Downlight Pro RGB CCT APP Voice Control
LumaCircuit offers 6/9/12W Zigbee Downlight Pro RGB CCT APP Voice Control as a configurable downlight for project builds. Typical applications include CCT and RGB+CCT rooms, Retrofit dimming, Home Assistant lighting zones. Material: Aluminum + PC Cover Size: 114*45mm(6W/9W)/160*60mm(12W) Hole Size: 100-110mm(6W/9W)/130-140mm(12W) The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- Model: (6W)/GL-D-(9W)/GL-D-(12W)
- Material: Aluminum + PC Cover
- Size: 114*45mm(6W/9W)/160*60mm(12W)
- Hole Size: 100-110mm(6W/9W)/130-140mm(12W)
- Luminous Flux: 500-550lm(6W), 800-850lm(9W), 1000-1050lm(12W)
- Color Temperature Adjustable From 2200-6500K
- Brightness Adjustable From 1% to 100%
- 4G RF Remote Control Without Zigbee Hub
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 240 V
- Light engine: CCT
- LumaCircuit model: LC-DL-LSUI89
- Material: Aluminum + PC Cover
- Size: 114*45mm(6W/9W)/160*60mm(12W)
- Hole Size: 100-110mm(6W/9W)/130-140mm(12W)
- Input Voltage: -240V
- Power: 6W, 9W, 12W
- CRI: >
- Beam Angle: 120°
- Dimensions found: 114x45mm / 160x60mm / 45mm / 60mm / 110mm / 140mm
- Model: (6W)/GL-D-(9W)/GL-D-(12W)
Control and installation
Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination.

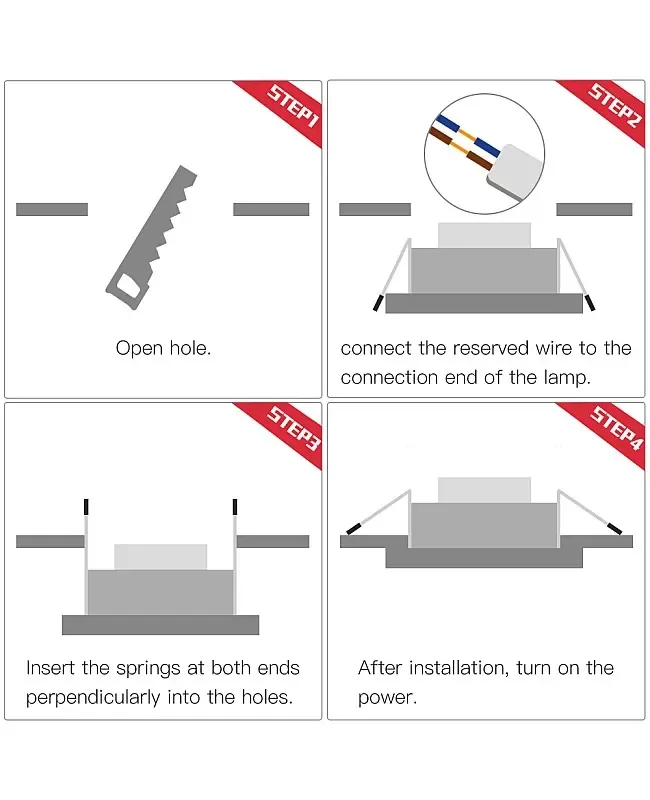

Plan the installation around CCT and RGB+CCT rooms, Retrofit dimming, Home Assistant lighting zones. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Specifications
Type: LED Downlight Pro
Model: (6W)/GL-D-(9W)/GL-D-(12W)
Material: Aluminum + PC Cover

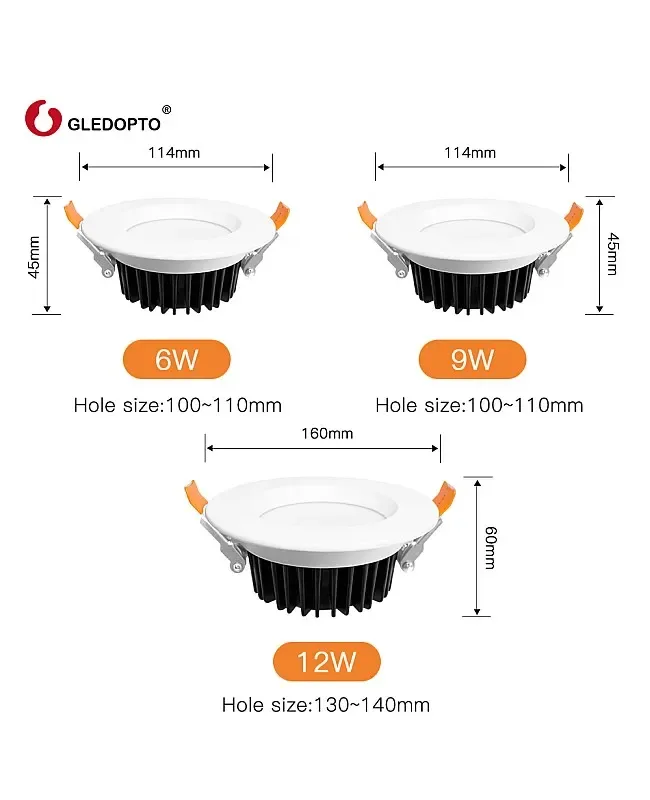

Size: 114*45mm(6W/9W)/160*60mm(12W)
Hole Size: 100-110mm(6W/9W)/130-140mm(12W)
Input Voltage: -240V
Power: 6W, 9W, 12W
Luminous Flux: 500-550lm(6W), 800-850lm(9W), 1000-1050lm(12W)
Life Efficiency: 88LM/W

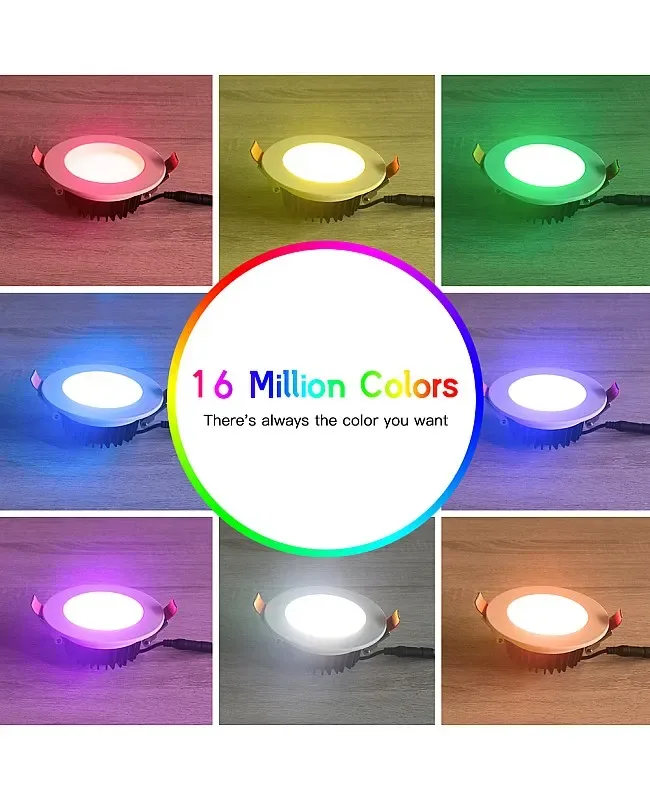

16 Million Colors Available
Color Temperature Adjustable From 2200-6500K
Brightness Adjustable From 1% to 100%
CRI: >
Beam Angle: 120°
Voice Control
Smart Phone APP Control
4G RF Remote Control Without Zigbee Hub
Works With Amazon Echo Plus
Compatible With Zigbee 3.0 Gateways For Zigbee Light Link
Includes
1 * Zigbee Downlight
1 * User Manual

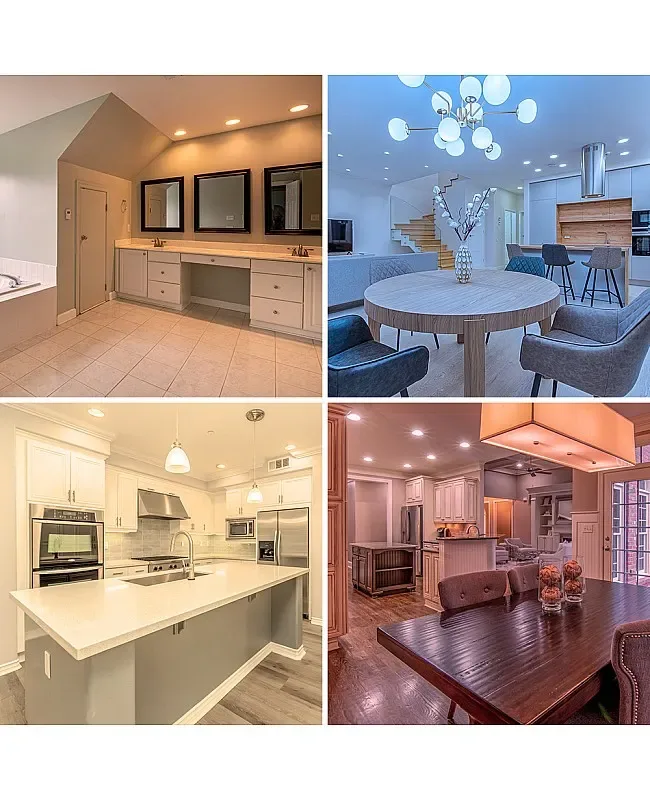

Typical applications
- CCT and RGB+CCT rooms
- Retrofit dimming
- Home Assistant lighting zones
