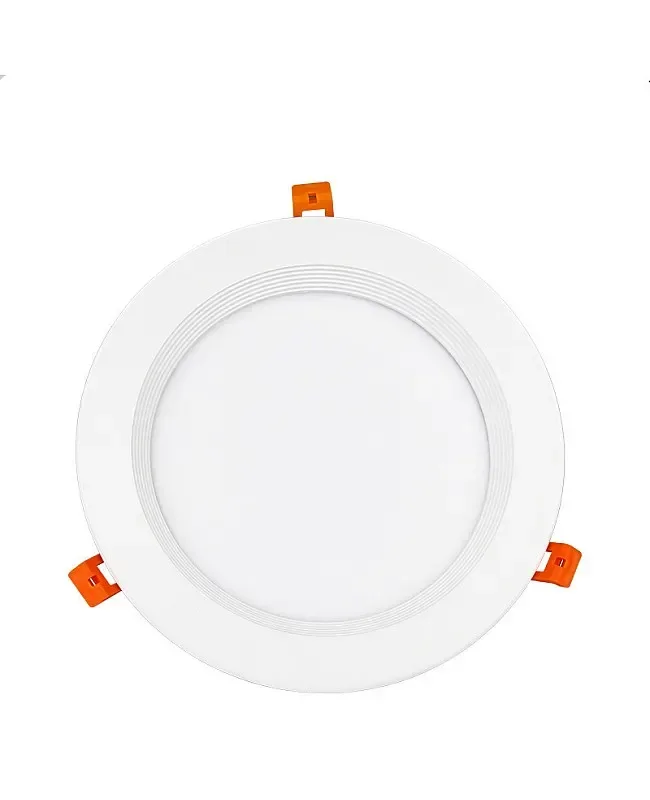

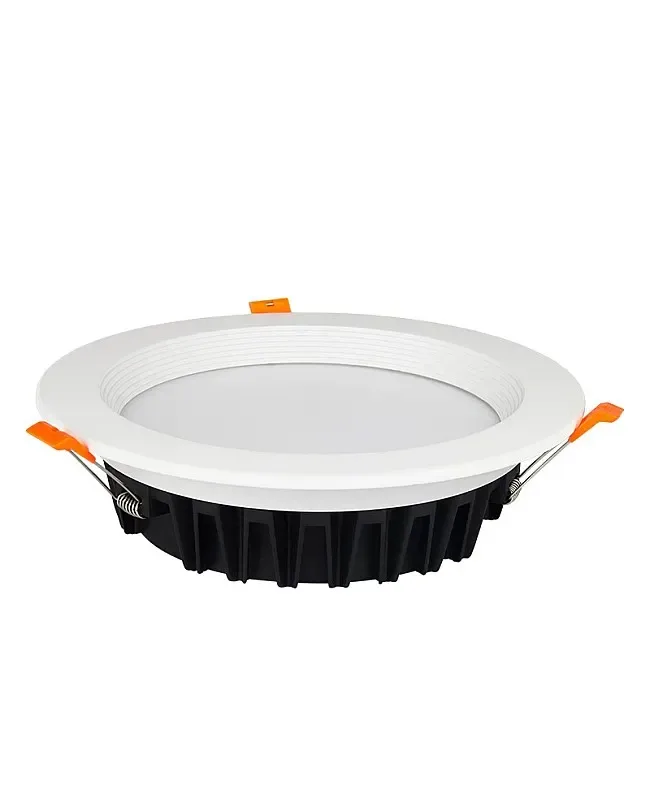

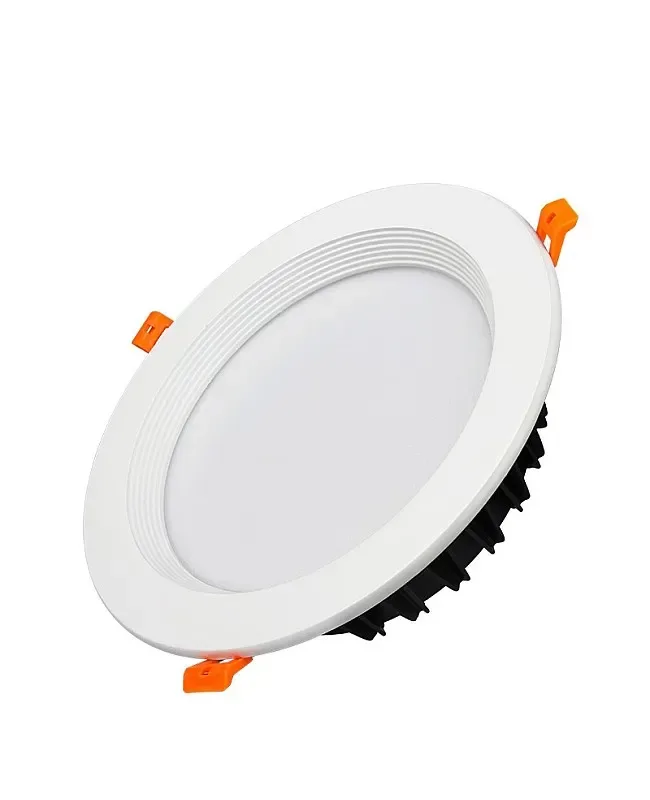

DL 25W RGBWW DALI Smart LED Downlights
LumaCircuit offers DL 25W RGBWW DALI Smart LED Downlights as a configurable downlight for project builds. Typical applications include Low-voltage LED systems, Controller and strip power, Signage and display BOMs. Working Voltage: -240V, 50/60Hz Color Temperature Adjustable: 2700 K- 6500 K Saturation, Brightness, And Color Temperature Adjustable The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- wireless controller User Manual
- Working Voltage: -240V, 50/60Hz
- Color Temperature Adjustable: 2700 K- 6500 K
- Saturation, Brightness, And Color Temperature Adjustable
- Compatible With 3-In-1 RGBWW Dimming Panel
- Light Efficiency: 80LM/W
- Constant Current & Voltage LED Driver Included
- High Light Transmitting Cover
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 240 V
- Light engine: RGBW
- LumaCircuit model: LC-DL-VXWACG
- Material: Aluminum
- Size: Φ230*60mm
- Hole Size: Φ200-210mm
- Input Signal: DALI
- Working Voltage: -240V, 50/60Hz
- Power: 25W
- Color: RGBWW
- Color Temperature Adjustable: 2700 K- 6500 K
- CRI: >
Control and installation
Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination.
Plan the installation around Low-voltage LED systems, Controller and strip power, Signage and display BOMs. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview
Quick Links
wireless controller User Manual
Specifications
Model
Material: Aluminum
Size: Φ230*60mm
Hole Size: Φ200-210mm
Input Signal: DALI
DALI Bus Standard
Working Voltage: -240V, 50/60Hz
Power: 25W
Color: RGBWW
Color Temperature Adjustable: 2700 K- 6500 K
16 Million Colors Available
Saturation, Brightness, And Color Temperature Adjustable
Compatible With 3-In-1 RGBWW Dimming Panel
Luminous Flux: 2000LM
Light Efficiency: 80LM/W
CRI: >
Dimming Range: 0-100%
Beam Angle: 120°

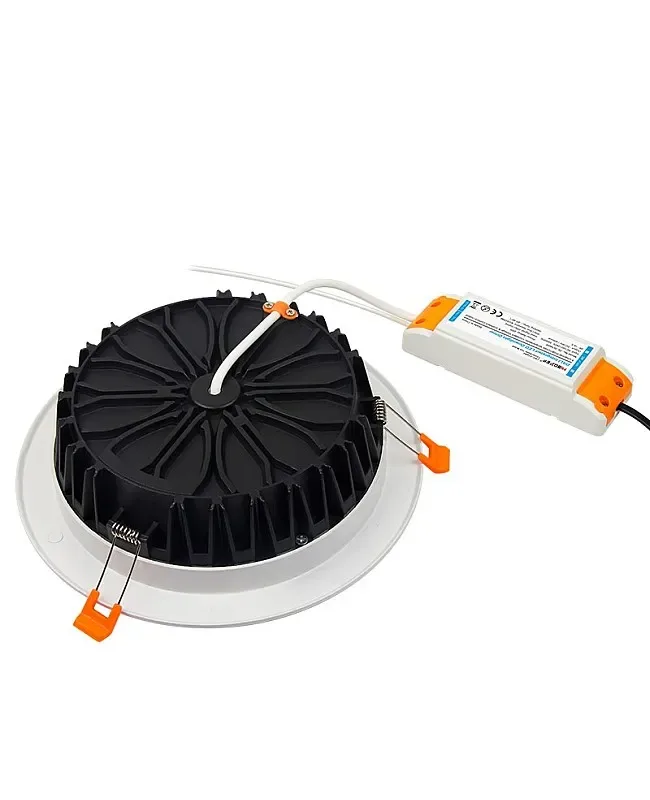

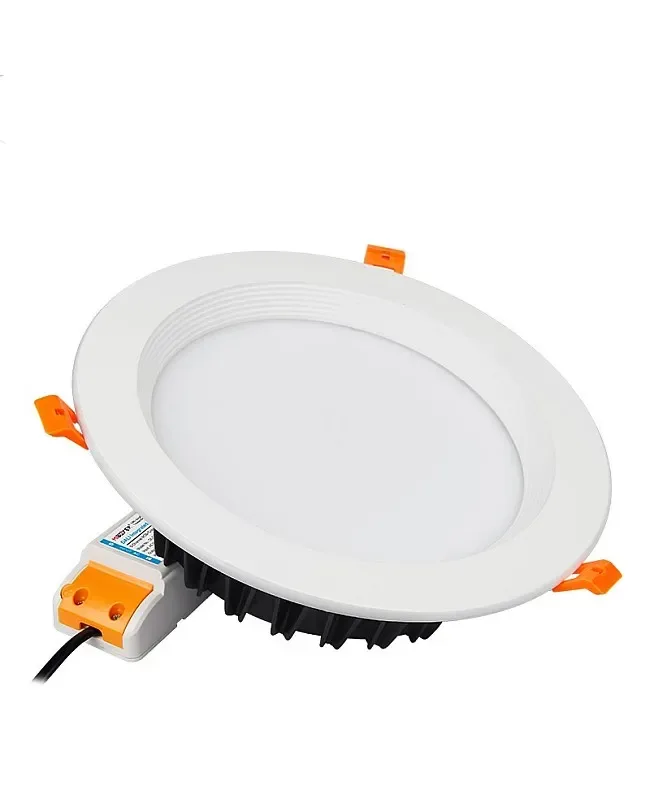

Constant Current & Voltage LED Driver Included
High Light Transmitting Cover

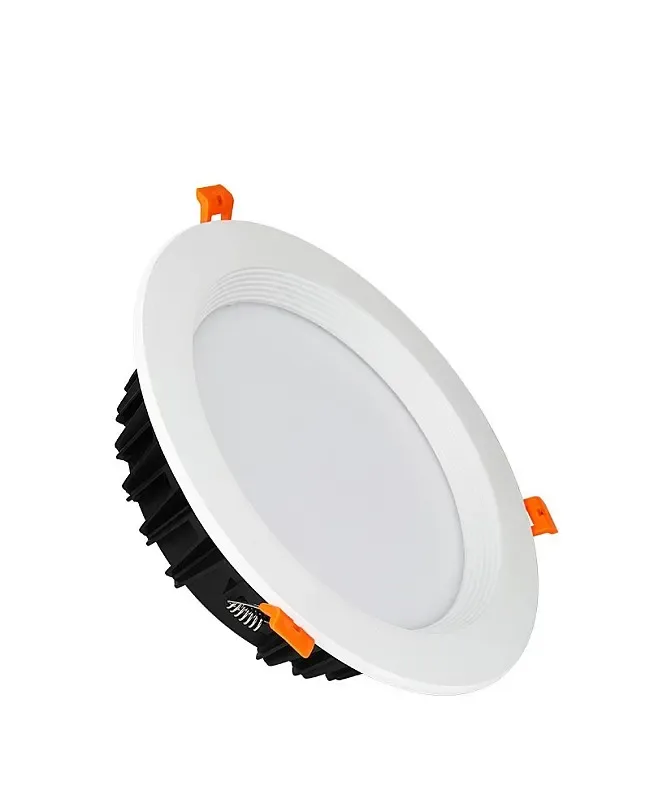

Stainless Steel Spring Clips Included
Whole Die-Casting Aluminum Housing
Working Temperature: -20℃-+60℃
Includes
1 * 25W RGB CCT DALI Smart LED Downlight
