Product details

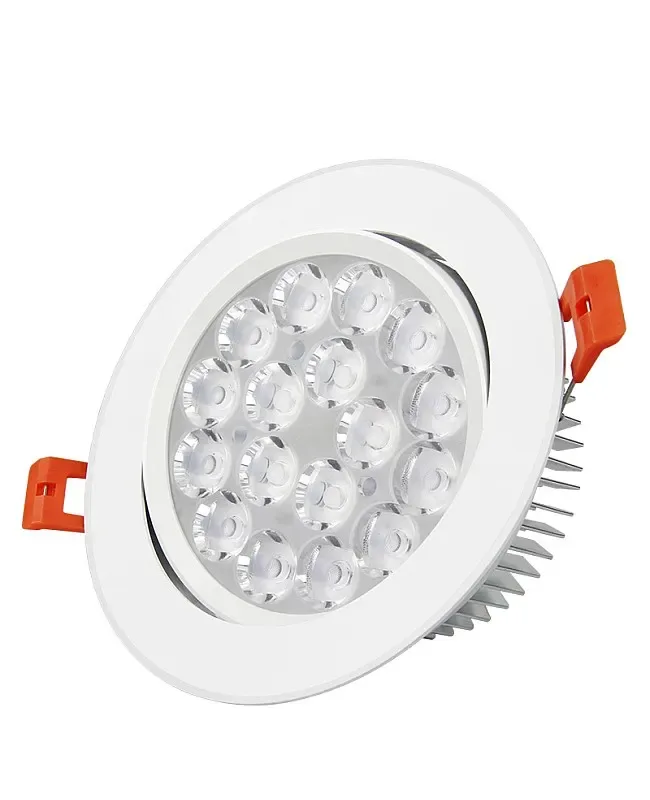

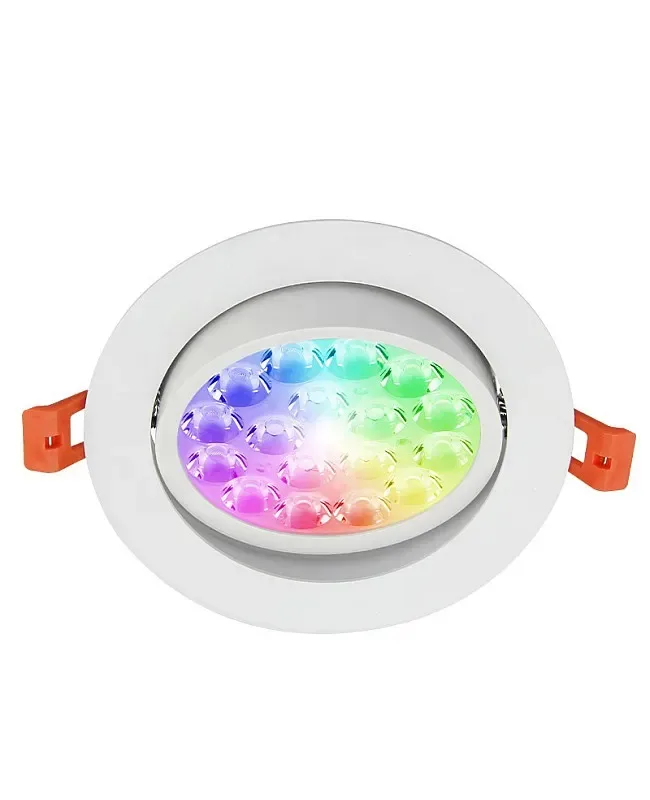

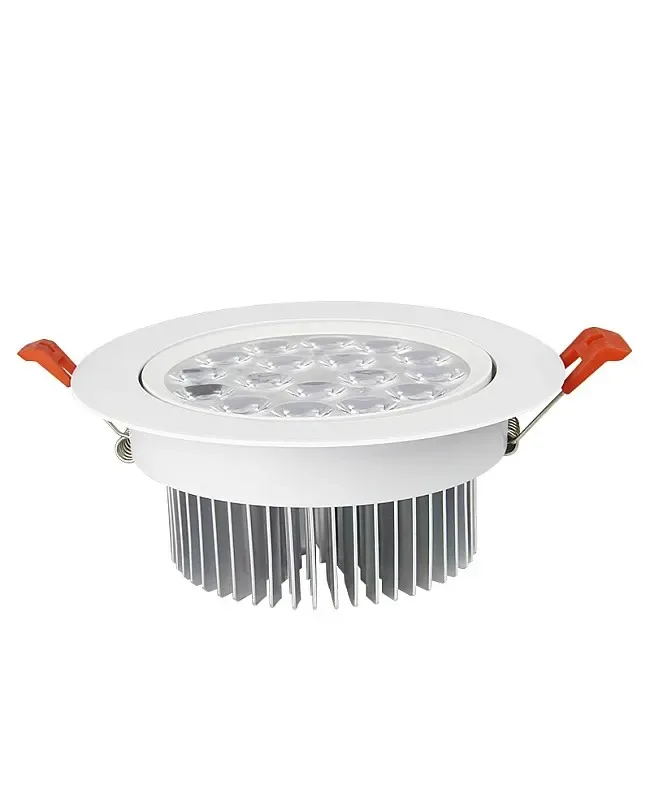

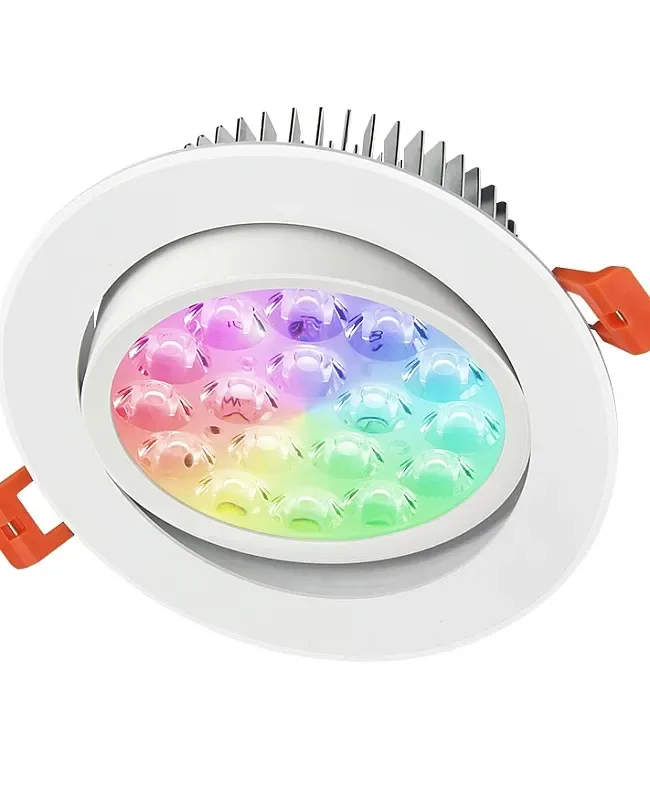

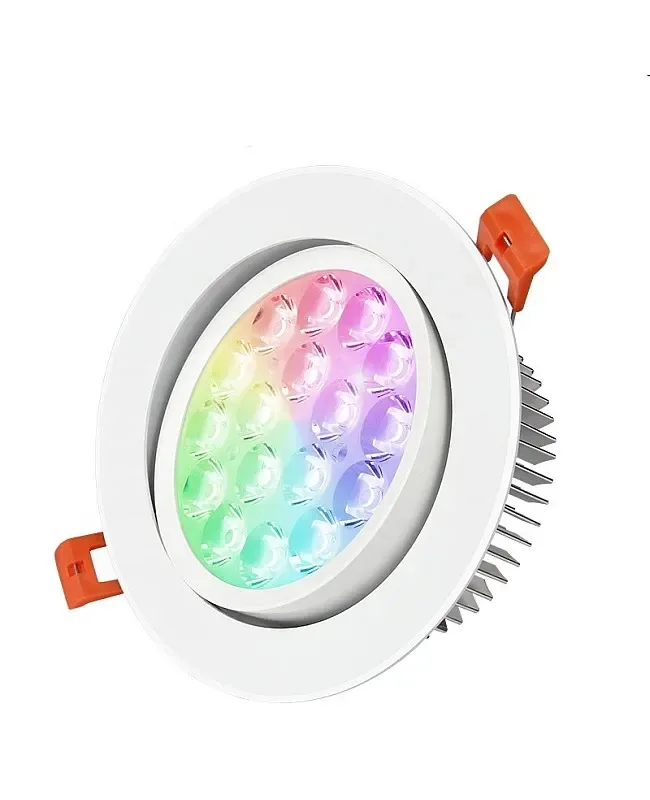

9W RGBWW Adjustable LED Recessed Downlight
LumaCircuit offers 9W RGBWW Adjustable LED Recessed Downlight as a configurable downlight for project builds. Typical applications include Low-voltage LED systems, Controller and strip power, Signage and display BOMs. Working Voltage: -240V, 50/60Hz Color Temperature: 2700 K- 6500 K 16 Million Colors Available And Brightness, Saturation, And Color Temperature Adjustable The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- wireless controller User Manual
- Working Voltage: -240V, 50/60Hz
- Color Temperature: 2700 K- 6500 K
- 16 Million Colors Available And Brightness, Saturation, And Color Temperature Adjustable
- 9 Dynamic Modes Available And Color-Changing Speed Adjustable
- Light Efficiency: 80LM/W
- 4G RF Remote Control T4, T3, WL
- Smartphone APP And Third-Party Voice Control: Amazon Alexa And Google Assistant(2.4G Gateway Needed)
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 240 V
- Light engine: RGBW
- LumaCircuit model: LC-DL-A13JV5
- Material: Aluminum
- Size: Φ135*50mm
- Hole Size: Φ120*125mm
- Working Voltage: -240V, 50/60Hz
- Power: 9W
- Emitting Color: RGBWW
- Color Temperature: 2700 K- 6500 K
- CRI: >
- Beam Angle: 15°
Control and installation
Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination.
Plan the installation around Low-voltage LED systems, Controller and strip power, Signage and display BOMs. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview
Quick Links
wireless controller User Manual
Specifications
Model
Material: Aluminum
Size: Φ135*50mm
Hole Size: Φ120*125mm
Working Voltage: -240V, 50/60Hz
Power: 9W
Emitting Color: RGBWW
Color Temperature: 2700 K- 6500 K
16 Million Colors Available And Brightness, Saturation, And Color Temperature Adjustable
9 Dynamic Modes Available And Color-Changing Speed Adjustable
Luminous Flux: 700LM
Light Efficiency: 80LM/W
CRI: >
Beam Angle: 15°
Rotation Angle: 30°
4G RF Remote Control T4, T3, WL
Smartphone APP And Third-Party Voice Control: Amazon Alexa And Google Assistant(2.4G Gateway Needed)
Control Distance: <30M
Anti-Fog And Anti-Glare

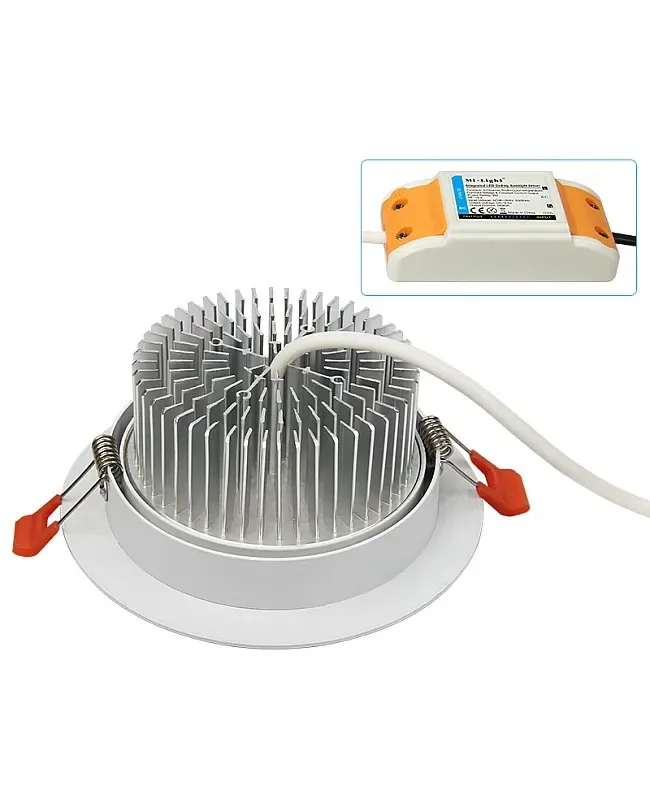

Constant Current & Voltage LED Driver Included
Stainless Steel Spring Clips Included
Working Temperature: -20℃-+60℃
Includes
1 * LED Recessed Downlight
Product resources
Technical documents
Typical applications
- Low-voltage LED systems
- Controller and strip power
- Signage and display BOMs
