CCT Black Recessed Lighting 9W Zigbee
LumaCircuit offers CCT Black Recessed Lighting 9W Zigbee as a configurable downlight for project builds. Typical applications include Everyday room lighting, Kitchen and cabinet task light, Retail and commercial fit-outs. Type: 9W Deep Anti-Glare LED Downlight Models: (Zigbee 3.0+2.4G) / (2.4G) Size: 89.5*80mm(Width*Height) The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- The wireless controller black recessed lighting has Zigbee 3.0 + 2.4G and 2.4G only versions available, can be controlled by remote control, smartphone APP, and third-party voice commands to adjust the color temperature and brightness to create different lighting scenes and provide optimal illumination. With a deep plastic enclosure with the best anti-glare performance, the UGR value is less than 16.
- Type: 9W Deep Anti-Glare LED Downlight
- Models: (Zigbee 3.0+2.4G) / (2.4G)
- Size: 89.5*80mm(Width*Height)
- Input Voltage: -240V, 50/60Hz
- Color Temperature Adjustable Range: 2700-6500K
- Dimming Grayscale; 4096 Levels
- Dimming Range: 0.1%-100%
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 240 V
- Light engine: CCT
- Models: (Zigbee 3.0+2.4G) / (2.4G)
- Size: 89.5*80mm(Width*Height)
- Diameter: 84mm
- Hole Size: 75mm
- Color: Black
- Input Voltage: -240V, 50/60Hz
- Power: 9W
- CRI: >90
- Color Temperature Adjustable Range: 2700-6500K
- Beam Angle: 15°
Control and installation
Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination.
Plan the installation around Everyday room lighting, Kitchen and cabinet task light, Retail and commercial fit-outs. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview

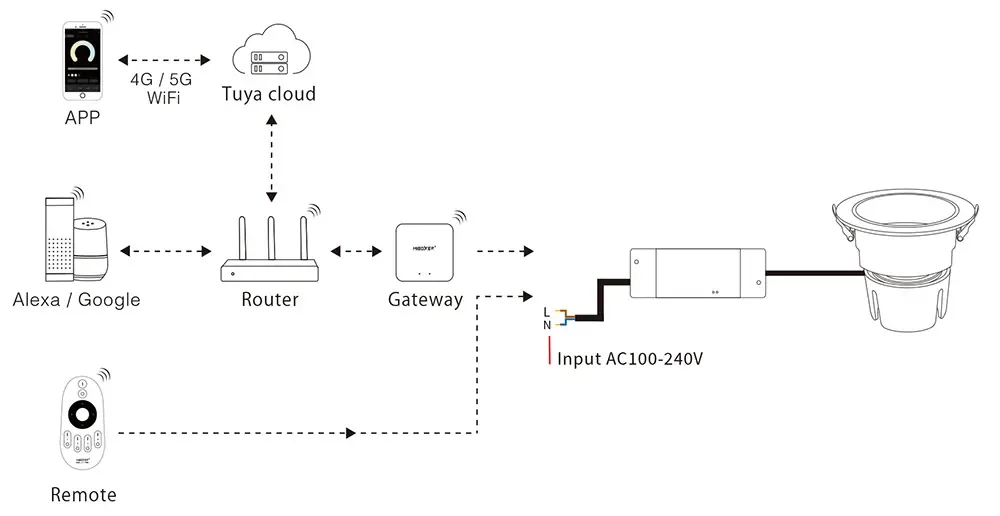

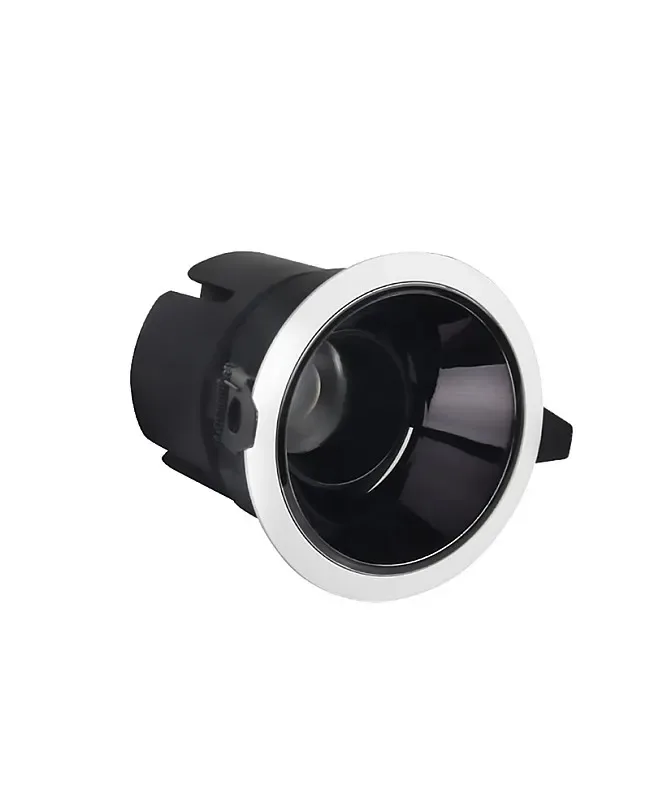

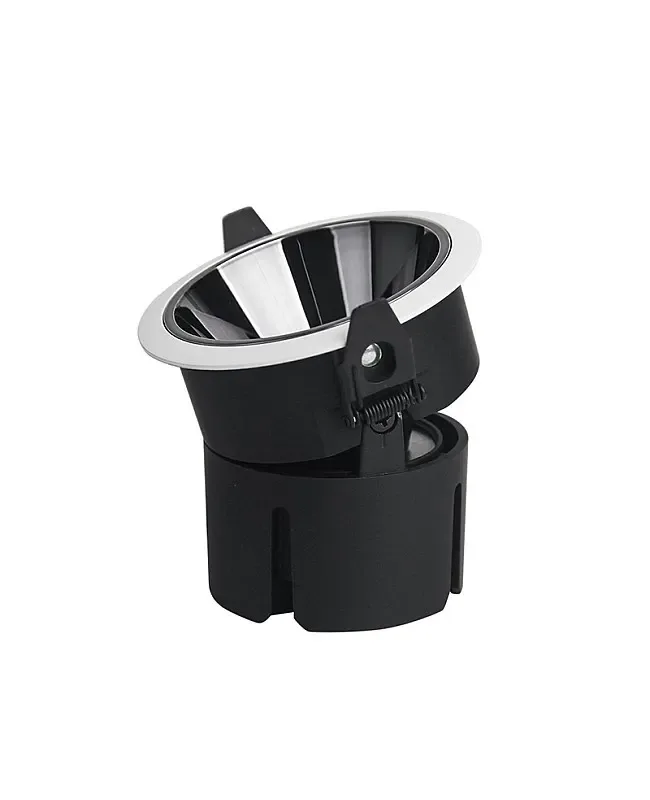

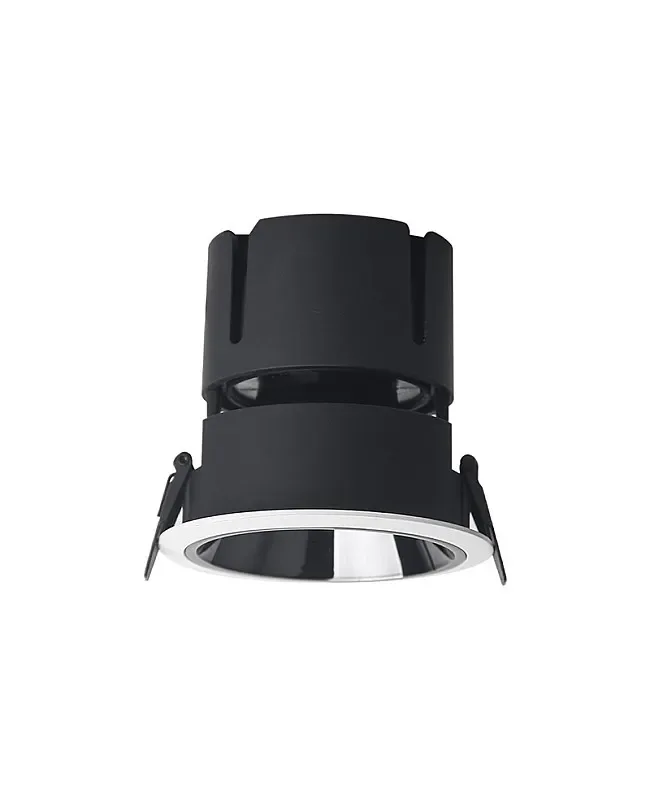

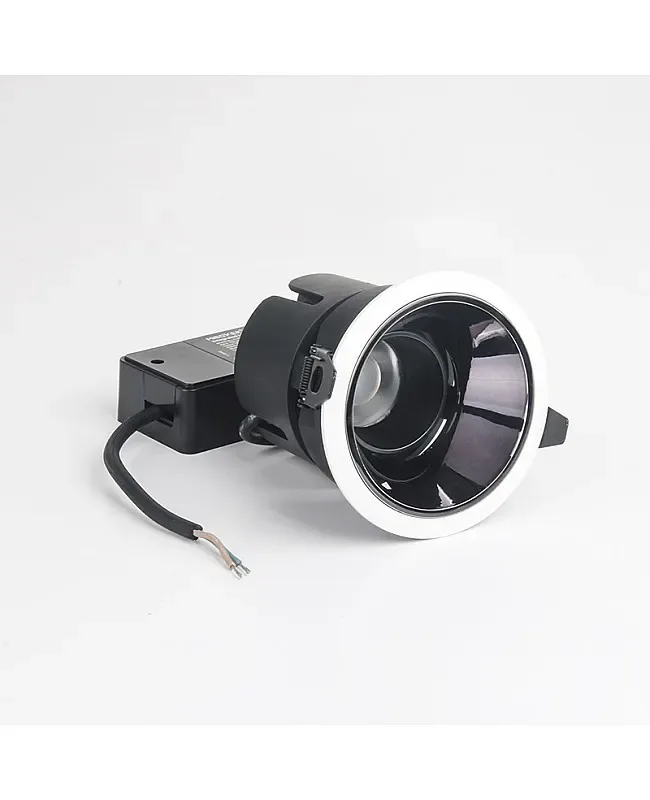

The wireless controller black recessed lighting has Zigbee 3.0 + 2.4G and 2.4G only versions available, can be controlled by remote control, smartphone APP, and third-party voice commands to adjust the color temperature and brightness to create different lighting scenes and provide optimal illumination. With a deep plastic enclosure with the best anti-glare performance, the UGR value is less than 16. The color temperature is adjustable from 2700K warm white to 6500K cool white; the installer can adjust it freely for the best performance in your rooms. The angle of the lamp body is rotatable, and the installer can rotate it to change the lighting direction. The downlights integrate 2.4G wireless transmission technology or 2.4G plus Zigbee 3.0, low power consumption, a mesh network with strong anti-interference ability. After being paired with wireless controller Zigbee gateways, they have functions like wireless dimming, remote control, timer, group control, music rhythm, etc. The Ziegbee downlights can enter Philips Hue, IKEA TRADFRI, Amazon Echo Plus, Echo, Echo Studio, and Echo Show standard Zigbee 3.0 gateways.
Specifications
Type: 9W Deep Anti-Glare LED Downlight
Models: (Zigbee 3.0+2.4G) / (2.4G)

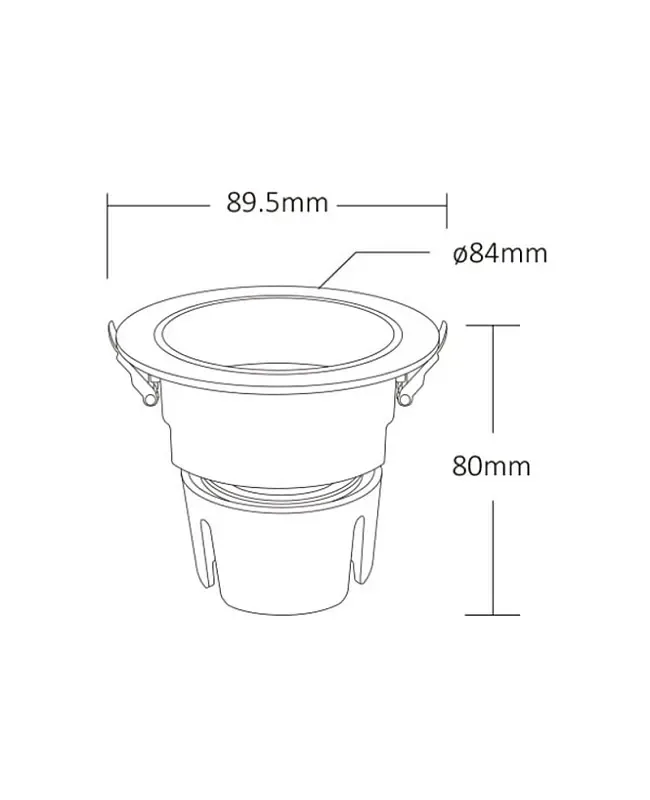

Size: 89.5*80mm(Width*Height)
Diameter: 84mm
Hole Size: 75mm
Color: Black
Input Voltage: -240V, 50/60Hz
Power: 9W
Color Temperature Adjustable Range: 2700-6500K
Dimming Grayscale; 4096 Levels
Dimming Range: 0.1%-100%
Dimming Curve: Logarithmic
Luminous Flux: 700LM
Luminous Efficiency: 78LM/W
Beam Angle: 15°
Communication Protocols: Zigbee 3.0 +2.4G RF Or 2.4G RF
Support "Tuya Smart" APP Control（Zigbee 3.0 Gateway Needed)
Compatible With 2.4G Remote Controls T1, T2, +, W, B
Support Third-party Voice Control: Amazon Alexa, Google Assistant(Zigbee 3.0 Gateway Needed)
Control Distance: Zigbee: ≤50m(Open Area) / 2.4G: ≤30m
IP Rating: IP20 Non-waterproof
Working Temperature: -10-40℃

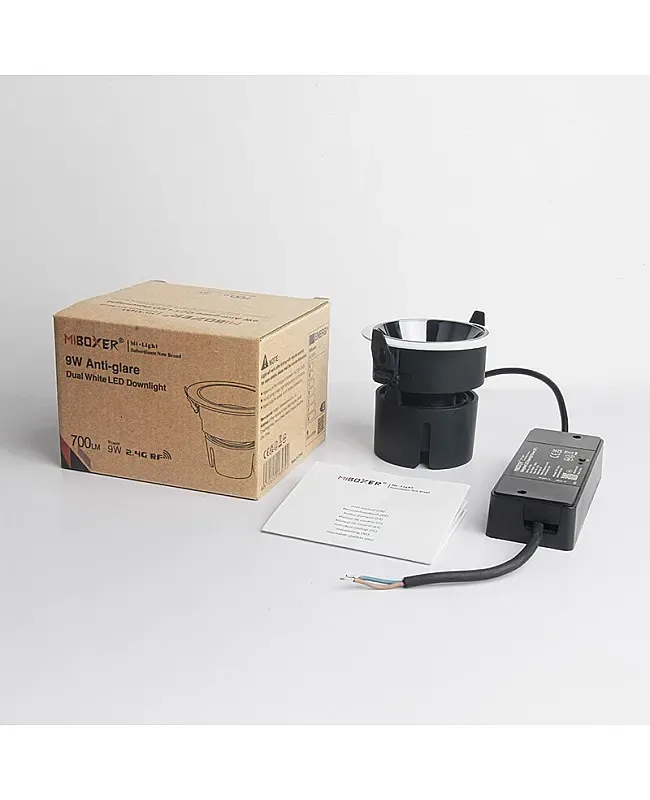

Includes
1 * 9W Anti-glare Black Recessed Lighting
Typical applications
- Everyday room lighting
- Kitchen and cabinet task light
- Retail and commercial fit-outs
