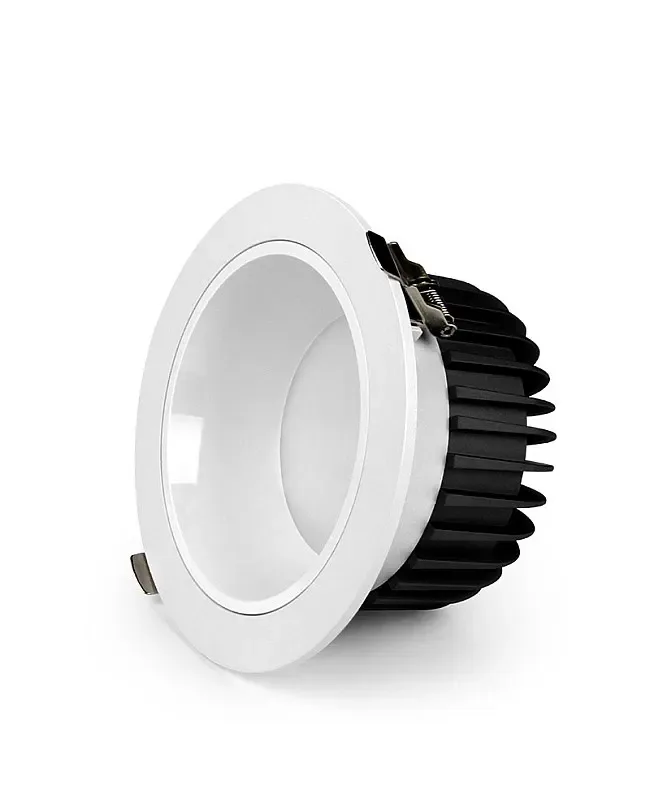

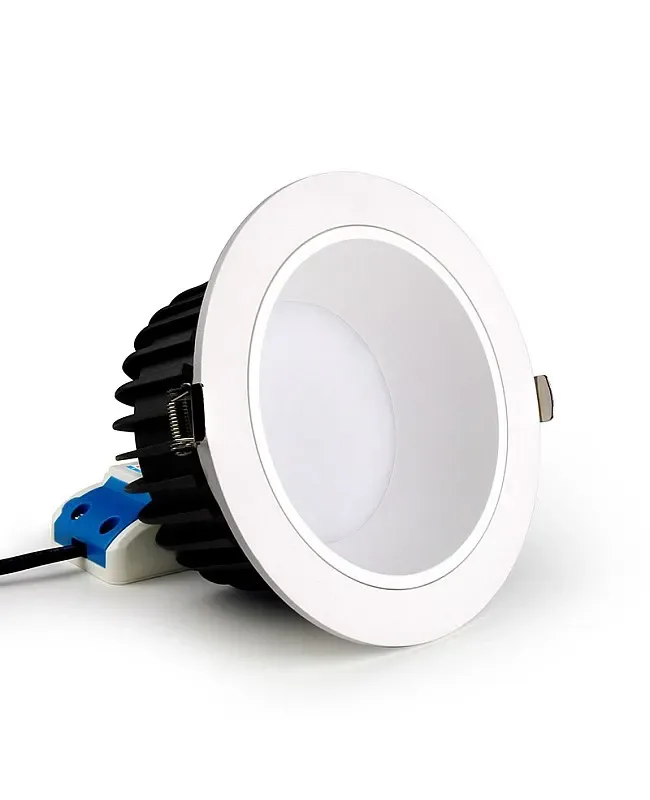

18W Anti Glare RGB CCT Ceiling Down Lights
LumaCircuit offers 18W Anti Glare RGB CCT Ceiling Down Lights as a configurable downlight for project builds. Typical applications include Low-voltage LED systems, Controller and strip power, Signage and display BOMs. Working Voltage: -240V, 50/60Hz Color Temperature Range: 2700 K- 6500 K Saturation, Brightness, Color Temperature, And Color-Changing Speed Adjustable The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- wireless controller User Manual
- Working Voltage: -240V, 50/60Hz
- Color Temperature Range: 2700 K- 6500 K
- Saturation, Brightness, Color Temperature, And Color-Changing Speed Adjustable
- 4G RF Remote Controllable T4, T3, WL
- Support Smartphone APP Control And Third-Party Voice Control
- Auto-Sync And Auto Transmitting
- Constant Current And Voltage LED Driver Included
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 240 V
- Light engine: RGB+CCT
- LumaCircuit model: LC-DL-9M95ED
- Material: Aluminum
- Size: Φ140*97mm
- Hole Size: Φ120*125mm
- Working Voltage: -240V, 50/60Hz
- Color: RGB + CCT
- Color Temperature Range: 2700 K- 6500 K
- CRI: >
- Beam Angle: 60°
- 2.4G RF Remote Controllable: T4, T3, WL
Control and installation
Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination.
Plan the installation around Low-voltage LED systems, Controller and strip power, Signage and display BOMs. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview
Quick Links
wireless controller User Manual
Specifications
Model
Material: Aluminum
Size: Φ140*97mm
Hole Size: Φ120*125mm
Working Voltage: -240V, 50/60Hz
Color: RGB + CCT
Color Temperature Range: 2700 K- 6500 K
16 Million Colors Available
9 Dynamic Modes Available
Saturation, Brightness, Color Temperature, And Color-Changing Speed Adjustable
Luminous Flux: 1200LM
CRI: >
Beam Angle: 60°
4G RF Remote Controllable T4, T3, WL
Support Smartphone APP Control And Third-Party Voice Control
Auto-Sync And Auto Transmitting
Control Distance: <30m
Anti-Flare Design

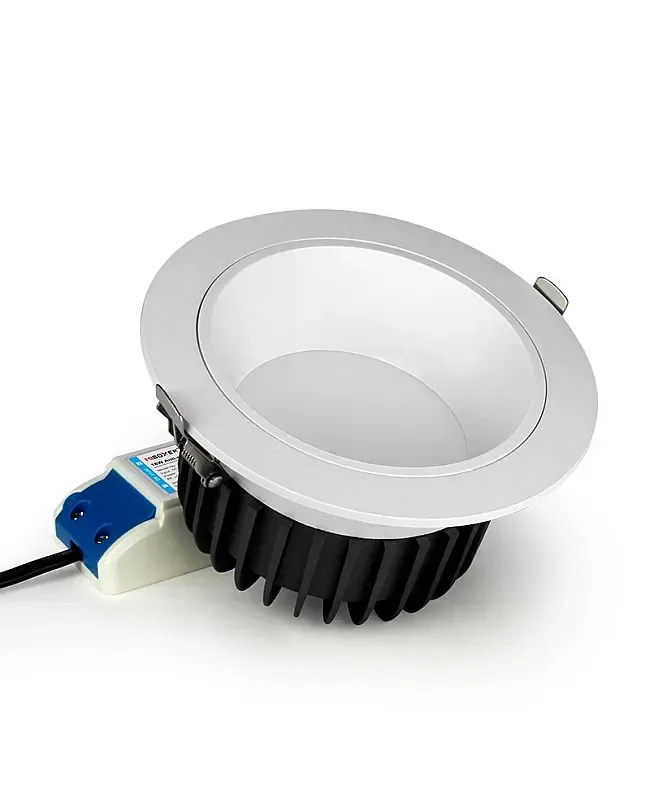

Constant Current And Voltage LED Driver Included

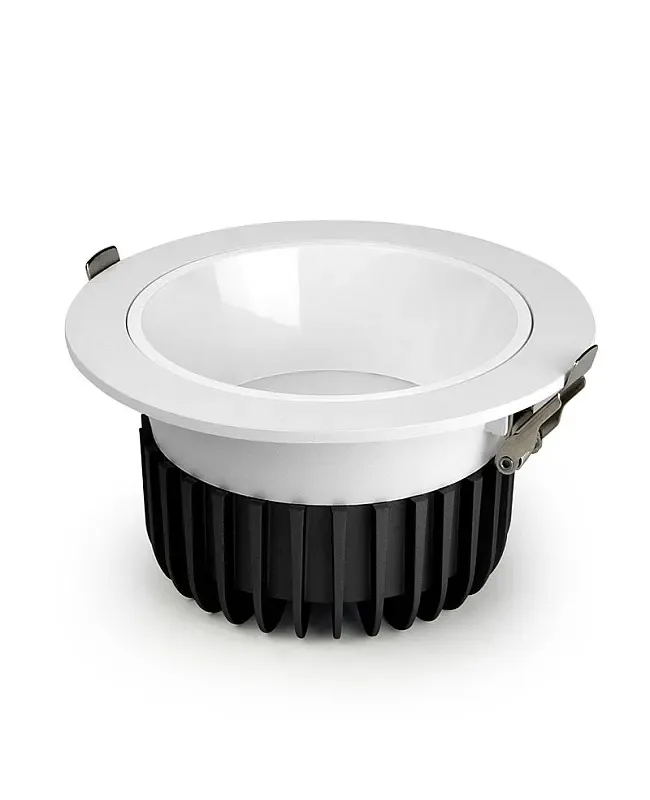

Stainless Steel Spring Clips Included
High-Quality Aluminum Housing
Working Temperature: -20℃-+60℃
Includes
1 * RGB CCT Ceiling Down Light
Product resources
Technical documents
Typical applications
- Low-voltage LED systems
- Controller and strip power
- Signage and display BOMs
