Product details
9W CCT Black Recessed Downlights
LumaCircuit offers 9W CCT Black Recessed Downlights as a configurable downlight for project builds. Typical applications include Everyday room lighting, Kitchen and cabinet task light, Retail and commercial fit-outs. Type: 9W Black Recessed Downlight With Deep Anti-Glare Design Model: ( 2.4G ) / ( Zigbee 3.0 +2.4G ) Input Voltage: -240V, 50/60Hz The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.

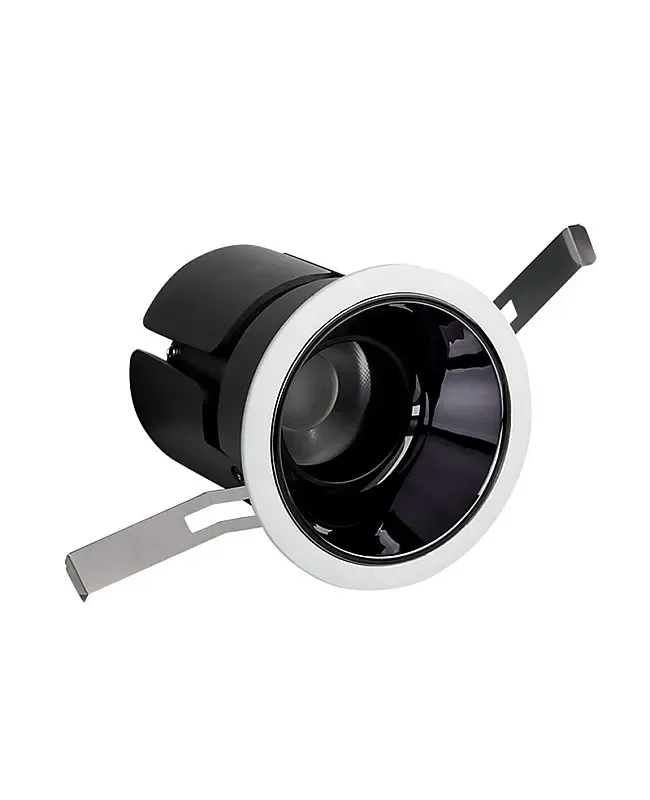

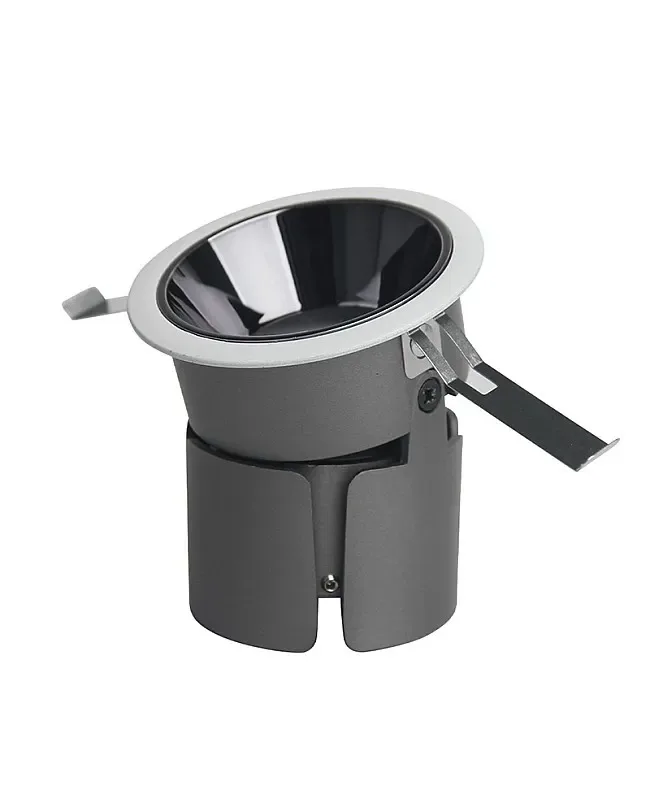

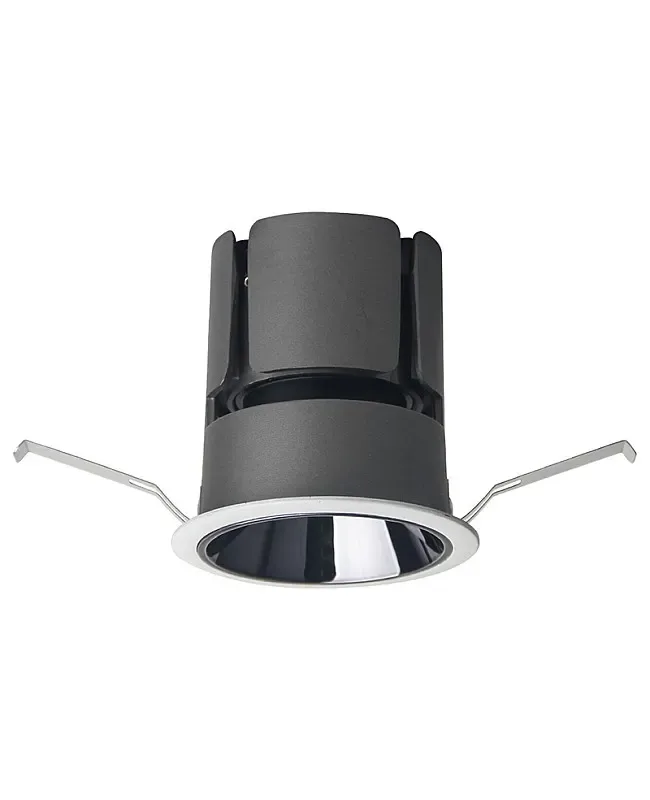

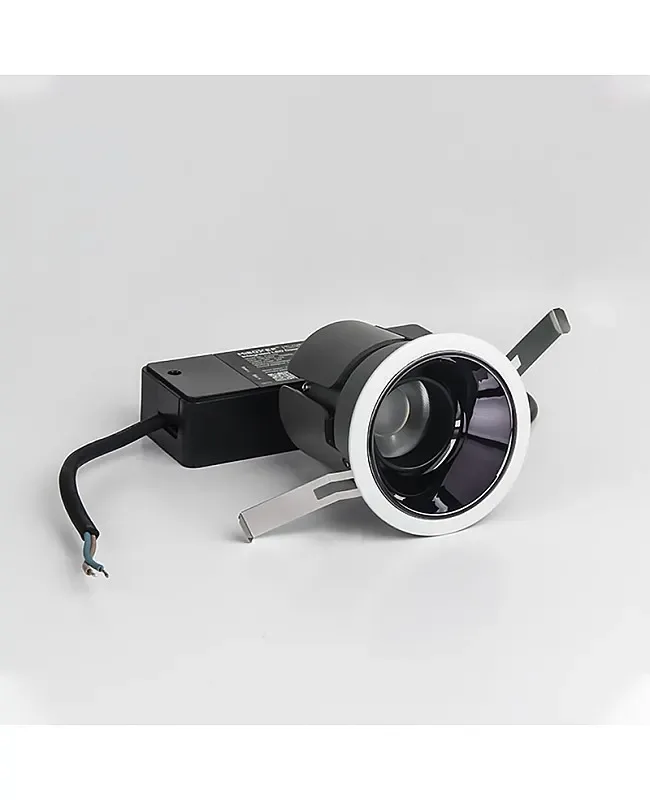

- The wireless controller series 9W CCT Black Recessed Downlights are available in 2.4 G and Zigbee 3.0 + 2.4G versions. They can be controlled by a Remote Control, a smartphone app, or voice commands to turn on and off, as well as adjust the brightness and color temperature for various scenes. The Black Down Lights feature a deep plastic enclosure for optimal anti-glare performance, and the lamp body's view angle can be rotated.
- Type: 9W Black Recessed Downlight With Deep Anti-Glare Design
- Model: ( 2.4G ) / ( Zigbee 3.0 +2.4G )
- Input Voltage: -240V, 50/60Hz
- Color Temperature Adjustable Range: 2700-6500K
- Luminous Efficiency: 78LM/W
- Dimming Grayscale: 4096 Levels
- Dimming Range: 0.1%-100%
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 240 V
- Light engine: CCT
- LumaCircuit model: LC-DL-U2KYGG

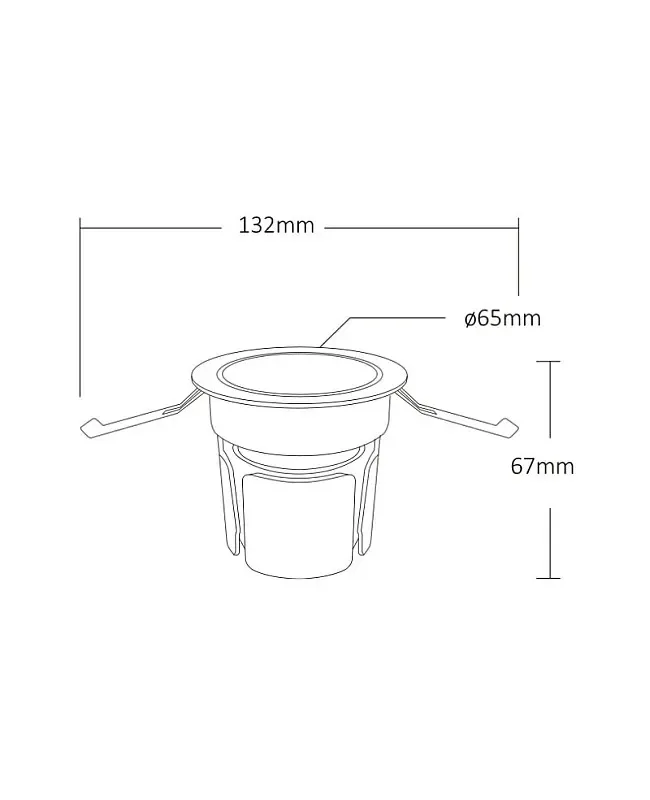

- Size: 132*67mm(W*H)
- Diameter: Φ65mm
- Hole Size: 60mm
- Input Voltage: -240V, 50/60Hz
- Power: 9W
- Color Temperature Adjustable Range: 2700-6500K
- Beam Angle: 15°
- CRI: >
- Compatible With Dual White Remote Controls: T1, T2,
Control and installation
Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination.
Plan the installation around Everyday room lighting, Kitchen and cabinet task light, Retail and commercial fit-outs. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview

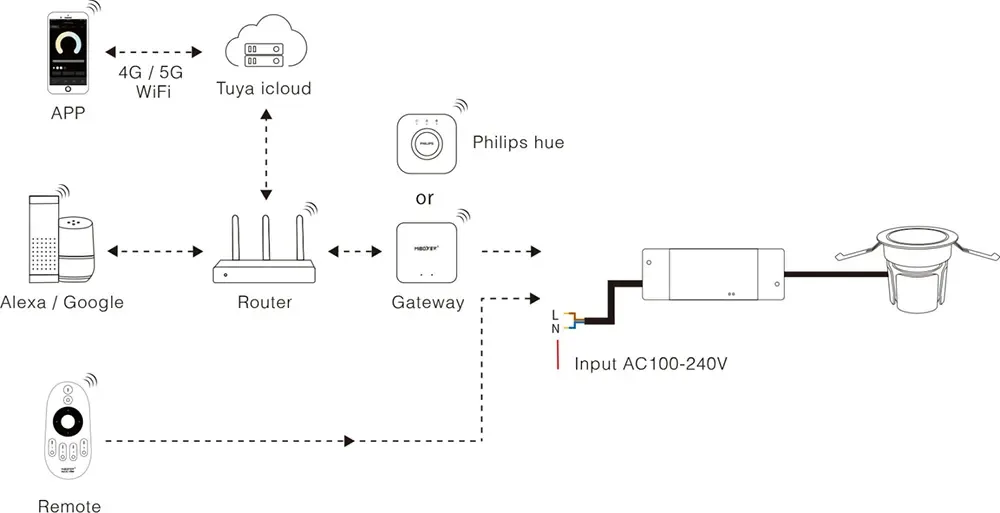

The wireless controller series 9W CCT Black Recessed Downlights are available in 2.4 G and Zigbee 3.0 + 2.4G versions. They can be controlled by a Remote Control, a smartphone app, or voice commands to turn on and off, as well as adjust the brightness and color temperature for various scenes. The Black Down Lights feature a deep plastic enclosure for optimal anti-glare performance, and the lamp body's view angle can be rotated. The 2.4G version integrates 2.4G wireless transmission technology and Zigbee 3.0+2.4G integrates 2.4G wireless and Zigbee 3.0 standard transmission technology with low power consumption, mesh network with strong ability for anti-interference. The installer can control the color temperature from 2700K warm white to 6500K cool white, and the dimmable range from 0.1% to 100%. The Anti-glare Downlight will transmit the signal from the Remote Control to the same model Lights within 30 meters, and all of the Lights will work in sync. After pairing with 2.4G Gateways or Zigbee 3.0 Gateways, the Tunable White Downlights can be controlled by the Tuya Smart APP or third-party voice commands, such as Amazon Alexa, Google Assistant, and Yandex Alice. Those Lights are non-waterproof, and the installer can use them to create different lighting scenes and enhance the lighting experience in homes, hotels, restaurants, shopping malls, hospitals, and other settings.
Specifications
Type: 9W Black Recessed Downlight With Deep Anti-Glare Design
Model: ( 2.4G ) / ( Zigbee 3.0 +2.4G )
Size: 132*67mm(W*H)
Diameter: Φ65mm
Hole Size: 60mm
Input Voltage: -240V, 50/60Hz
Power: 9W
Color Temperature Adjustable Range: 2700-6500K
Luminous Flux: 700LM
Luminous Efficiency: 78LM/W
Dimming Grayscale: 4096 Levels
Dimming Range: 0.1%-100%
Dimming Curve: Logarithmic
Beam Angle: 15°
CRI: >
Deep Plastic Enclosure With Best Anti-glare Performance: UGR≤16
Support Tuya Smart APP Control(Zigbee 3.0 Gateway Or 2.4G Gateway Needed)
Support Third-Party Voice Control: Amazon Alexa, Google Assistant, Yandex Alice, etc (Zigbee 3.0 Gateway Or 2.4G Gateway Needed)
RF: 2.
Compatible With Dual White Remote Controls T1, T2,
Control Distance: ≤30m(2.4G); ≤50m(Zigbee 3.0)
IP Rate: IP20 Non-waterproof
Working Temperature: -10-40℃

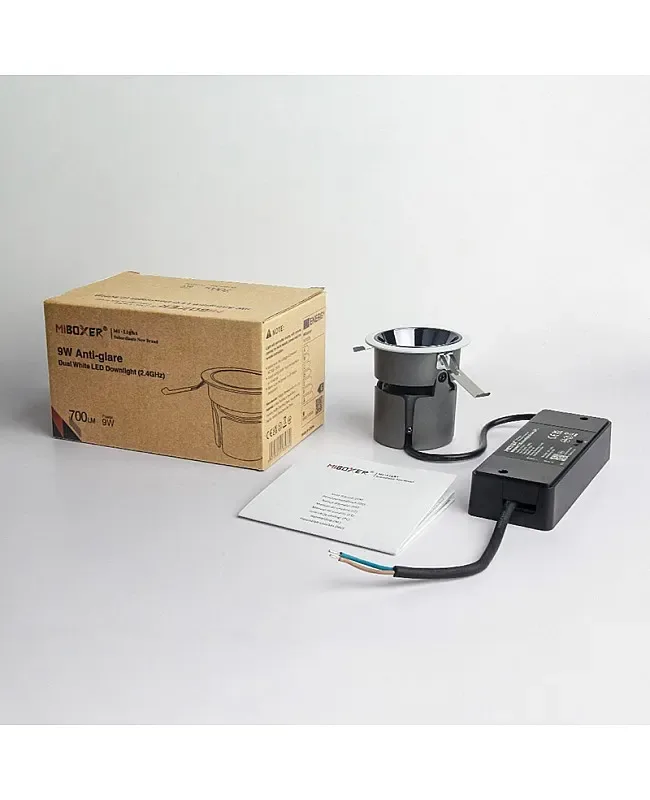

Includes
9W Black Recessed Downlight
Typical applications
- Everyday room lighting
- Kitchen and cabinet task light
- Retail and commercial fit-outs
