Product details

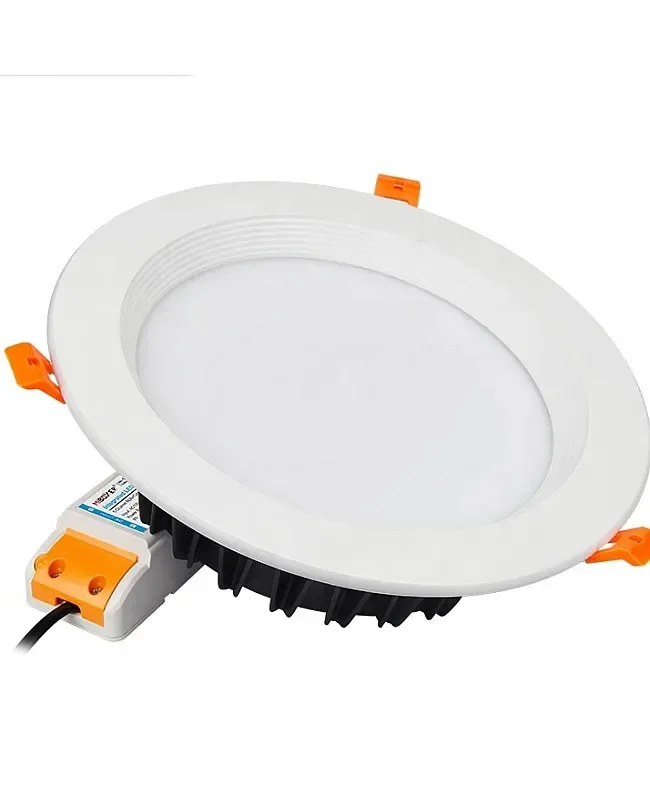

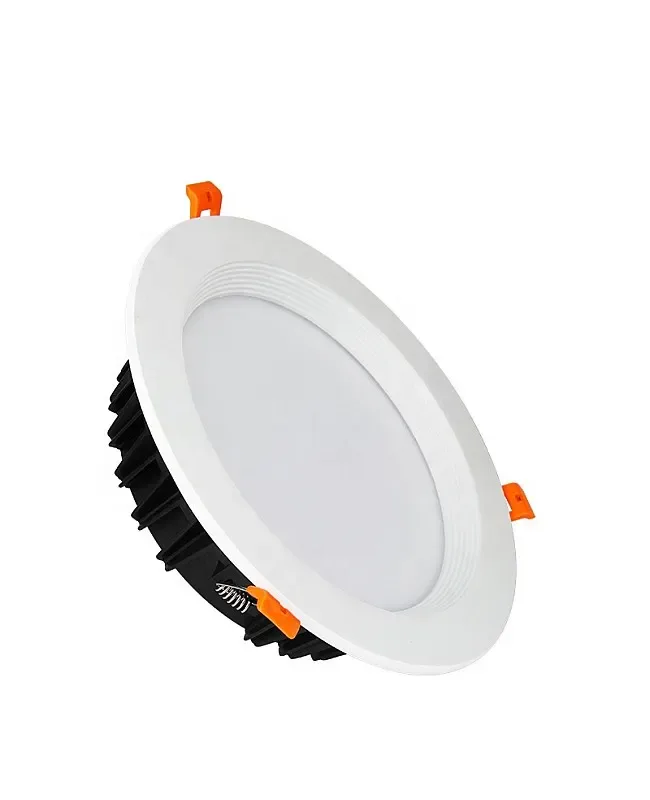

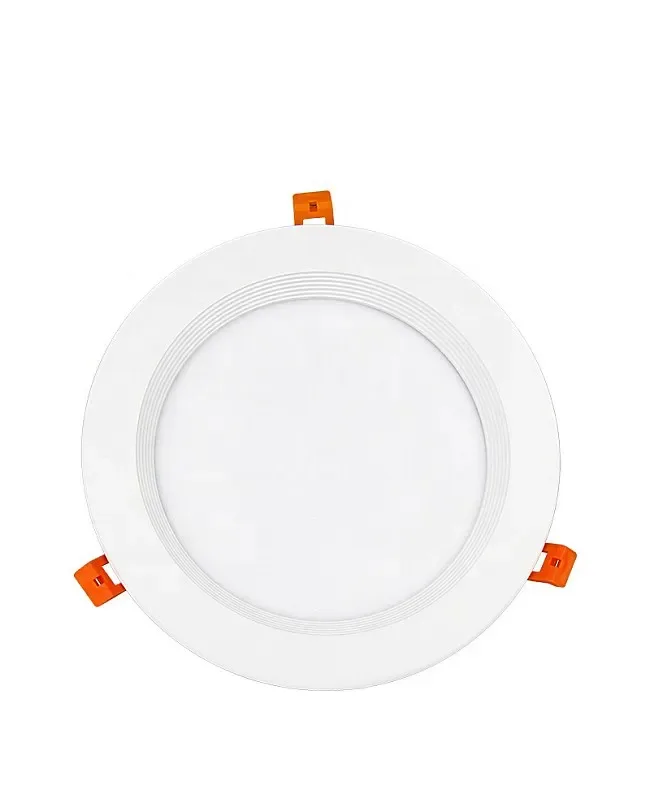

25W RGBWW LED Recessed Light
LumaCircuit offers 25W RGBWW LED Recessed Light as a configurable downlight for project builds. Typical applications include Low-voltage LED systems, Controller and strip power, Signage and display BOMs. Emitting Colors: RGB + CCT Color Temperature: 2700 K- 6500 K Light Efficiency: 80LM/W The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- Input Voltage: -240V, 50/60Hz
- Emitting Colors: RGB + CCT
- Color Temperature: 2700 K- 6500 K
- Light Efficiency: 80LM/W
- 16 Million Colors Available And Saturation, Color Temperature, And Brightness Adjustable
- 9 Dynamic Modes Available And Color-Changing Speed Adjustable
- 4G RF Remote Control T4, T3, WL
- Smartphone APP Control(2.4G Gateway Needed)
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 240 V
- Light engine: RGB+CCT
- Material: Aluminum
- LumaCircuit model: LC-DL-YY0GPK
- Size: Φ230*60mm
- Hole Size: Φ200*210mm
- Input Voltage: -240V, 50/60Hz
- Power: 25W
- Emitting Colors: RGB + CCT
- Color Temperature: 2700 K- 6500 K
- CRI: >
- Beam Angle: 120°
Control and installation
Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination.
Plan the installation around Low-voltage LED systems, Controller and strip power, Signage and display BOMs. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Specifications
Material: Aluminum
Model
Size: Φ230*60mm
Hole Size: Φ200*210mm
Input Voltage: -240V, 50/60Hz
Power: 25W
Emitting Colors: RGB + CCT
Color Temperature: 2700 K- 6500 K
Luminous Flux: 2000LM
Light Efficiency: 80LM/W
CRI: >
Beam Angle: 120°
16 Million Colors Available And Saturation, Color Temperature, And Brightness Adjustable
9 Dynamic Modes Available And Color-Changing Speed Adjustable
4G RF Remote Control T4, T3, WL
Smartphone APP Control(2.4G Gateway Needed)
Third-Party Voice Control: Amazon Alexa And Google Assistant(2.4G Gateway Needed)
Control Distance: <30M
Auto Signal Transmitting And Modes Synchronization

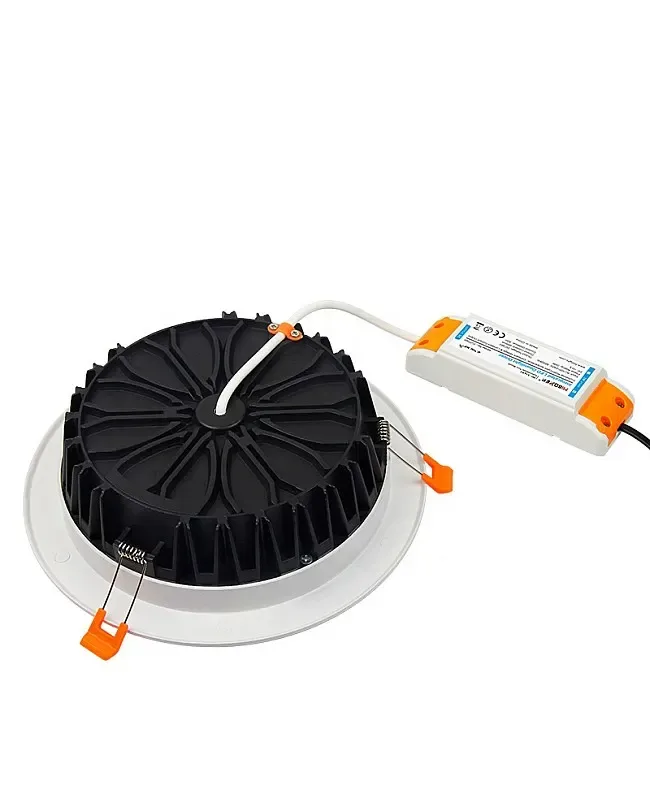

Stainless Steel Spring Clips Included

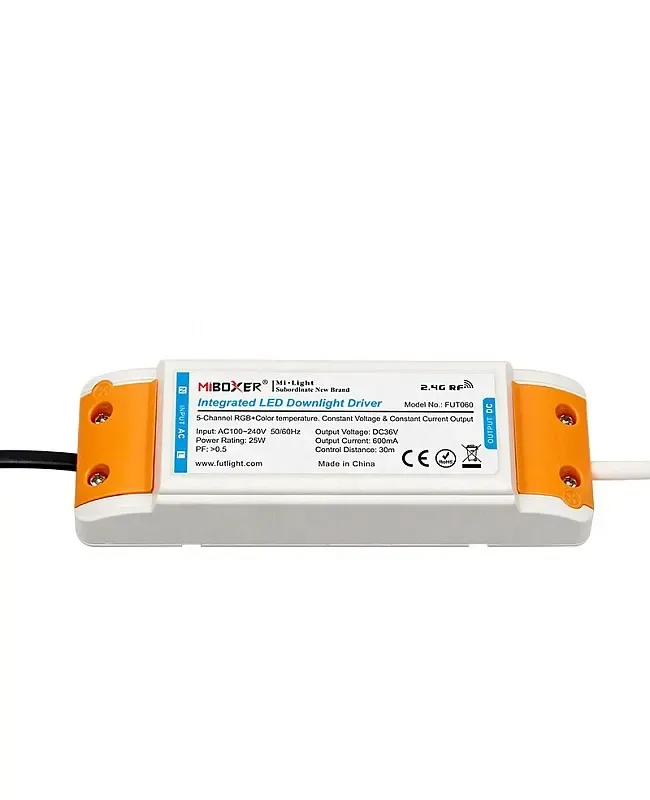

Constant Current & Voltage Driver Included
Working Temperature: -20℃-+45℃
Includes
1 * wireless controller RGB + CCT LED Recessed Light
Typical applications
- Low-voltage LED systems
- Controller and strip power
- Signage and display BOMs
