Product details

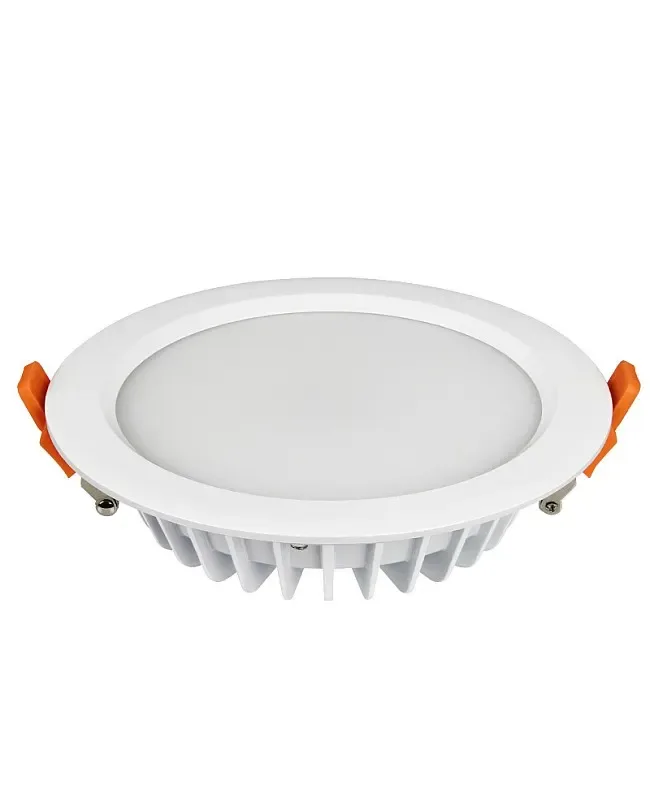

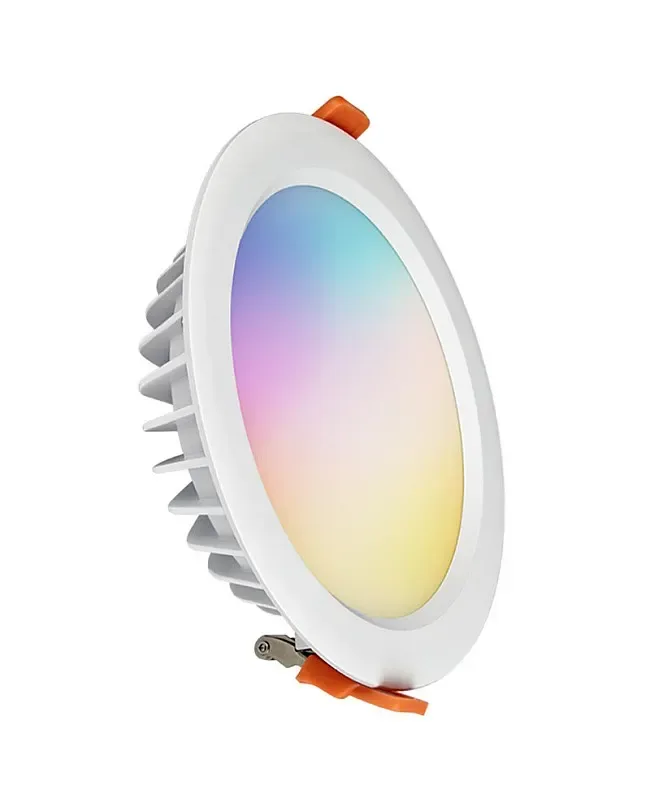

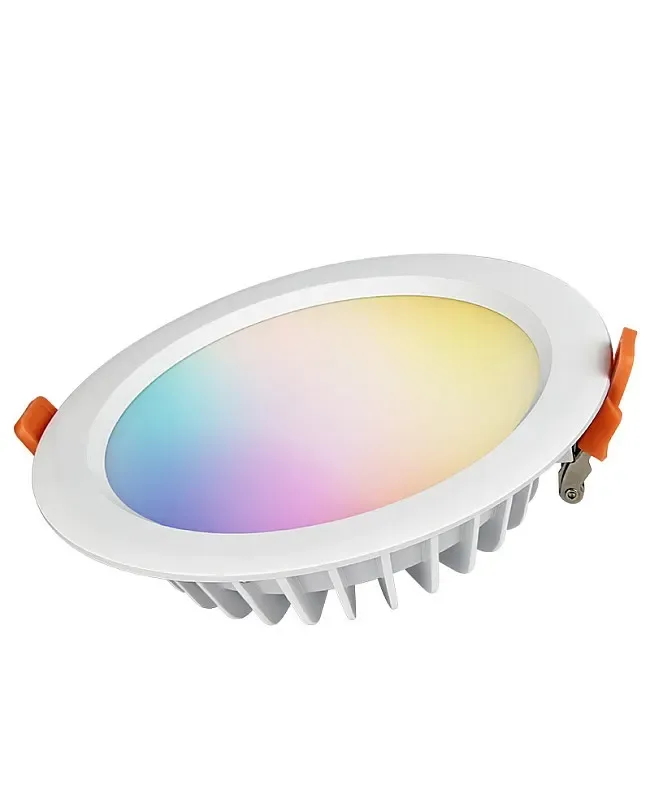

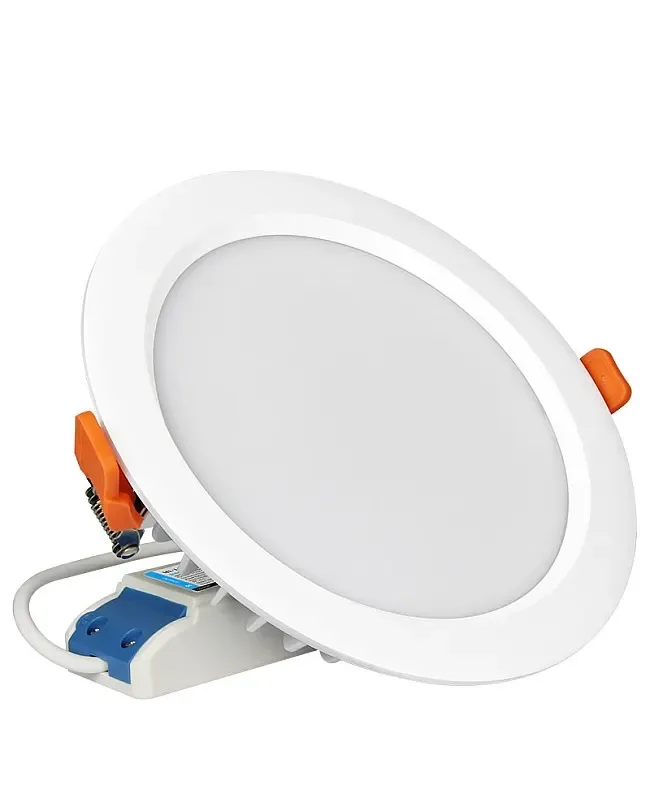

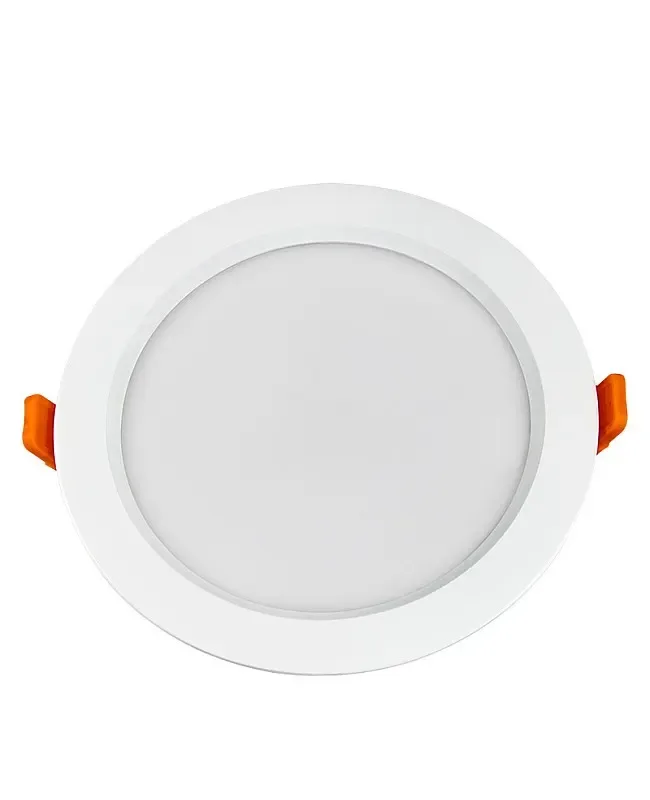

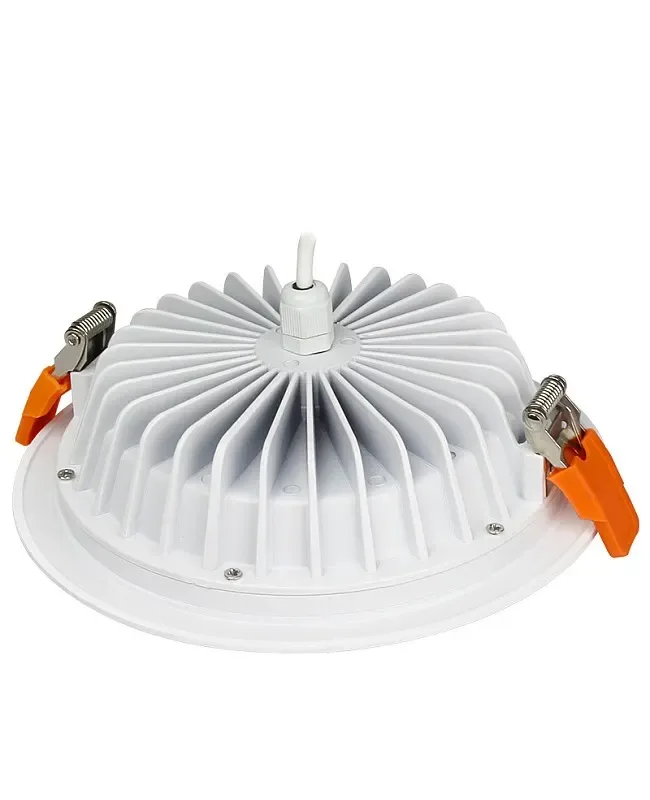

15W RGB CCT Waterproof Downlight Ceiling Light
LumaCircuit offers 15W RGB CCT Waterproof Downlight Ceiling Light as a configurable downlight for project builds. Typical applications include Everyday room lighting, Kitchen and cabinet task light, Retail and commercial fit-outs. Working Voltage: -240V, 50/60Hz Emitting Colors: RGB + CCT Color Temperature: 2700 K- 6500 K The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- wireless controller Instruction
- Working Voltage: -240V, 50/60Hz
- Emitting Colors: RGB + CCT
- Color Temperature: 2700 K- 6500 K
- 16 Million Colors Available And Saturation, CCT, And Brightness Adjustable
- 9 Dynamic Modes And Color-Changing Speed Adjustable
- Light Efficiency: 80LM/W
- Smartphone APP And Third-Party Voice Control(2.4G Gateway Needed)
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 240 V
- Light engine: RGB+CCT
- LumaCircuit model: LC-DL-VN2WZE
- Material: Aluminum
- Size: Φ190*50mm
- Hole Size: Φ175-180mm
- Working Voltage: -240V, 50/60Hz
- Power: 15W
- Emitting Colors: RGB + CCT
- Color Temperature: 2700 K- 6500 K
- CRI: >
- Beam Angle: 120°
Control and installation
Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination.
Plan the installation around Everyday room lighting, Kitchen and cabinet task light, Retail and commercial fit-outs. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview
Quick Links
wireless controller Instruction
Specifications
Model
Material: Aluminum
Size: Φ190*50mm
Hole Size: Φ175-180mm
Working Voltage: -240V, 50/60Hz
Power: 15W
Emitting Colors: RGB + CCT
Color Temperature: 2700 K- 6500 K
16 Million Colors Available And Saturation, CCT, And Brightness Adjustable
9 Dynamic Modes And Color-Changing Speed Adjustable
Luminous Flux: 1200LM
Light Efficiency: 80LM/W
CRI: >
Beam Angle: 120°
4G Remote Control
Smartphone APP And Third-Party Voice Control(2.4G Gateway Needed)
Control Distance: <30M
IP Rate: IP54
Waterproof & Moistureproof
Anti-Flicking Polished Cover
Stainless Steel Spring Clips Included
High-Quality Die-Casting Aluminum Housing
Constant Current And Voltage Power Supply Included
Working Temperature: -20℃-+60℃
Includes
1 * RGB CCT Bathroom Downlight Ceiling Light
Product resources
Technical documents
Typical applications
- Everyday room lighting
- Kitchen and cabinet task light
- Retail and commercial fit-outs
