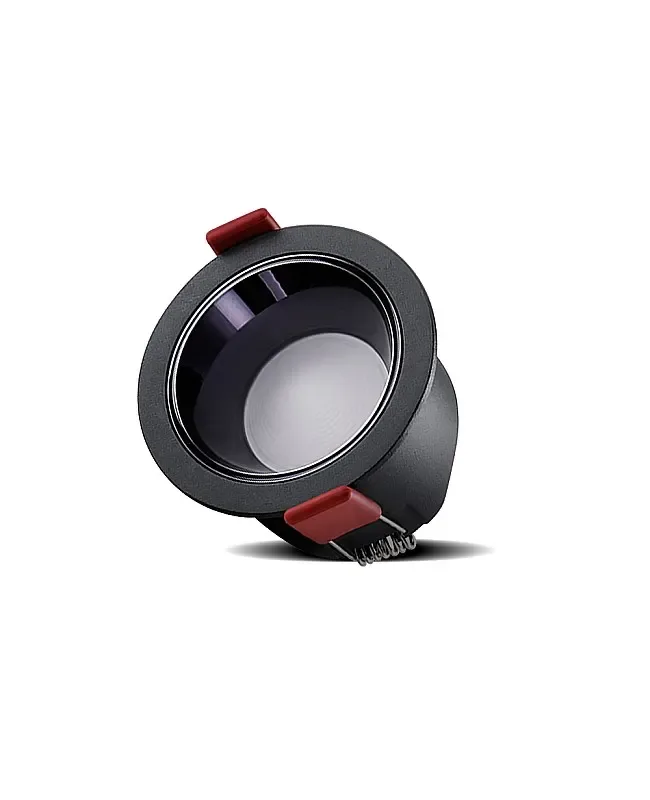

6W RGB+CCT Smart Zigbee Recessed Ceiling Light

Product features

The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.

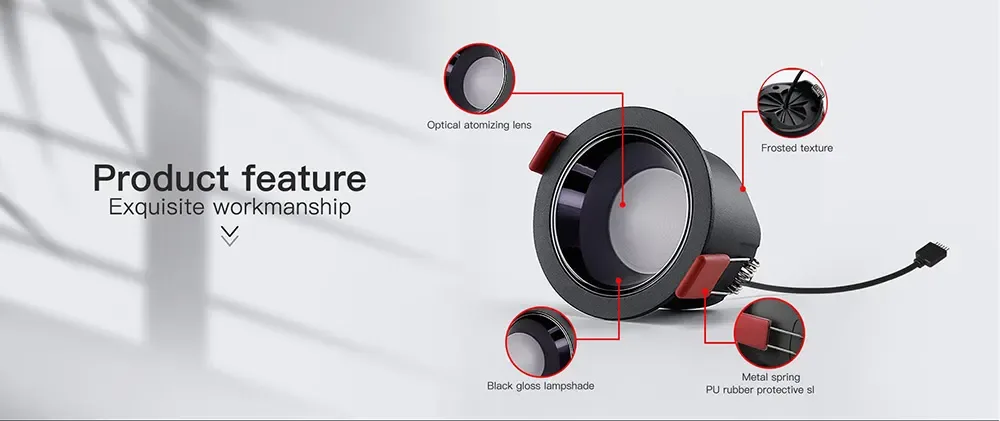

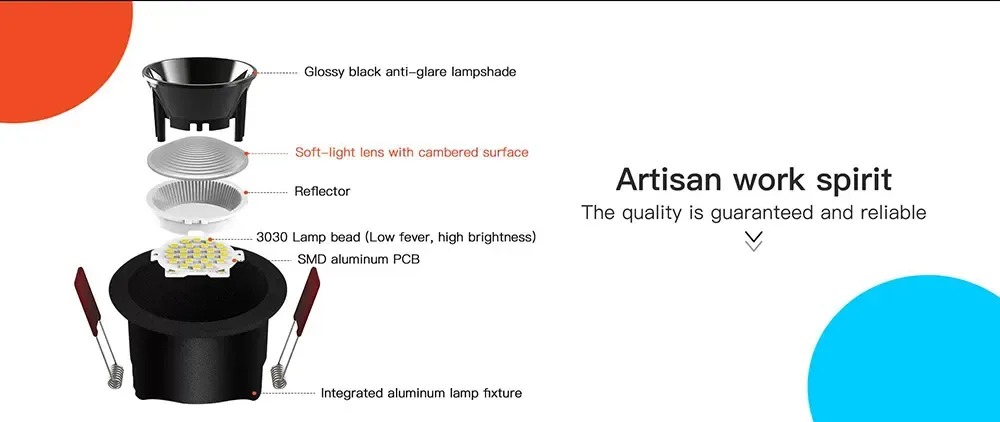

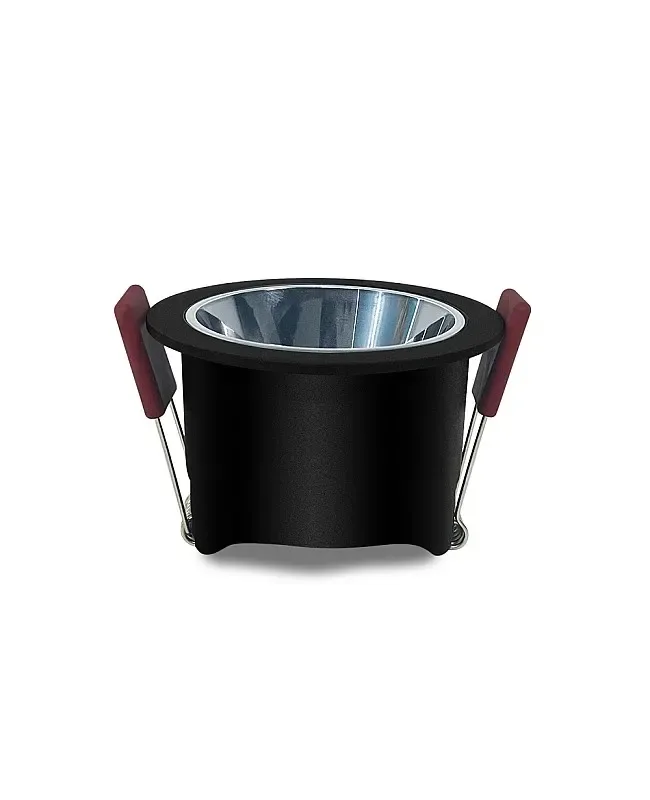

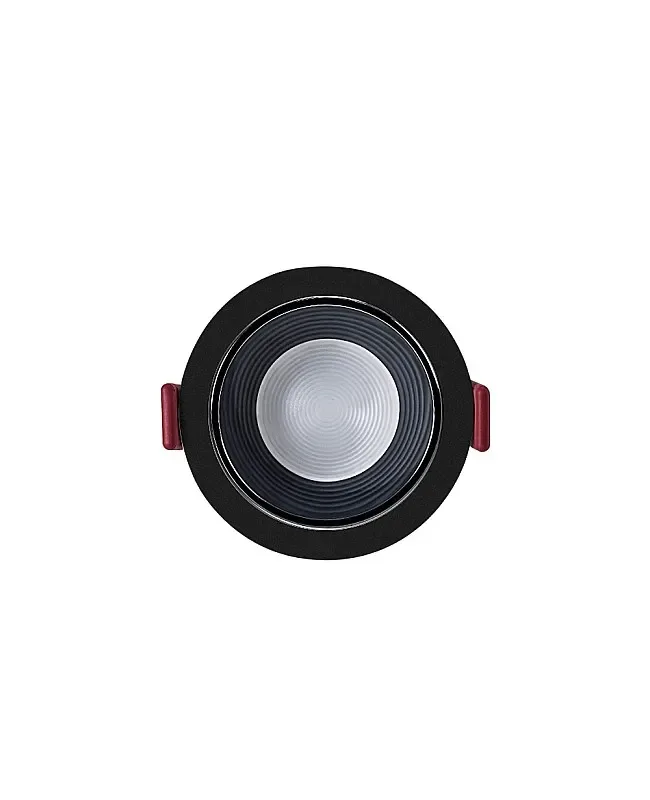

• The smart indoor recessed ceiling light has an anti-glare design, and the light source is deeply hidden to protect your eyes uses high-quality 3030 SMD LEDs as the light source, with low fever and high brightness, and the surface has a glossy black lampshade for anti-glare. The LEDs are mounted on an aluminum PCB, and the outside has an integrated aluminum lamp fixture for better heat dissipation. The sides have metal springs easily recessed into the ceiling or wall for indoor lighting projects.
• Hole Size: 75-88mm(2.95-3.)
• Color Temperature Adjustable From 2200K To 6500K
• Luminous Flux: 350-450LM
• Light Efficiency: 70LM/W
• Dimmable from 1% To 100%
• Installation Method: Recessed
• Zigbee 3.0 Gateways Compatible: Philips HUE, SmartThings, Conbee, Tuya, Amazon Echo Studio

Configuration and technical detail

To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.

• Input: 240 V
• Light engine: RGB+CCT
• LumaCircuit model: LC-LIN-NTJX53

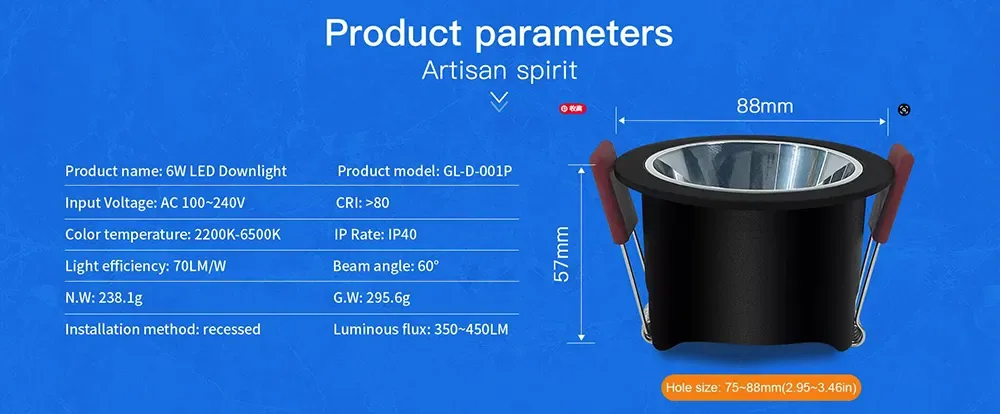

• Size: 88*57mm(W*H)
• Hole Size: 75-88mm(2.95-3.)
• Input Voltage: -240V
• Power: 6W
• Color: RGB+CCT
• CRI: >
• Beam Angle: 60°
• IP Rate: IP40
• Installation Method: Recessed

Control and installation

Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination.

Plan the installation around Everyday room lighting, Kitchen and cabinet task light, Retail and commercial fit-outs. Keep power, signal, heat path, access and service joints visible in the drawing.

Configuration support

Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.

Product overview

The smart indoor recessed ceiling light has an anti-glare design, and the light source is deeply hidden to protect your eyes uses high-quality 3030 SMD LEDs as the light source, with low fever and high brightness, and the surface has a glossy black lampshade for anti-glare. The LEDs are mounted on an aluminum PCB, and the outside has an integrated aluminum lamp fixture for better heat dissipation. The sides have metal springs easily recessed into the ceiling or wall for indoor lighting projects. The smart downlight uses CW, WW and RGB LEDs as the light source, there are 16 million colors available, the color temperature is adjustable from 2200K to 6500K, the installer can use the APP, RF remote controls or Voice Commands to set the static color, adjust the color temperature and brightness for various scenes. The downlights are compatible with Zigbee 3.0 gateways; the installer can download the phone APP and control the Lamps on your phone. The group control function allows you to manage the lights in rooms conveniently. The installer can use them in living rooms, bedrooms, game rooms, etc.

Specifications

Model

Size: 88*57mm(W*H)

Hole Size: 75-88mm(2.95-3.)

Input Voltage: -240V

Power: 6W

Color: RGB+CCT

Color Temperature Adjustable From 2200K To 6500K

Luminous Flux: 350-450LM

Light Efficiency: 70LM/W

CRI: >

Beam Angle: 60°

Dimmable from 1% To 100%

IP Rate: IP40

Installation Method: Recessed

No Flickering

4G RF Remote Control

Voice Control

Zigbee 3.0 Gateways Compatible: Philips HUE, SmartThings, Conbee, Tuya, Amazon Echo Studio

Includes

1 * Smart Recessed Light

1 * Light Driver

1 * User Manual
