Product details
70W Street Light LED
LumaCircuit offers 70W Street Light LED as a configurable linear LED light for project builds. Typical applications include Everyday room lighting, Kitchen and cabinet task light, Retail and commercial fit-outs. Power supply consumption: 68- 72W Colors: pure white(5000-7000k);warm white(3000-4000k) Light body And Lamps had material: kylin tablets and PC The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- 70W street light LED uses 70pcs high-quality and brightness Epistar LEDs as the light source, with patented aluminum alloy, unidirectional, no light diffusion, ensuring luminous efficiency light efficiency reaches 80lm/w, luminous efficiency is stronger than high-pressure sodium lamps. Lumen depreciation is less than 3% per year, still reaching the demand of road illumination.
- Power supply consumption: 68- 72W
- Colors: pure white(5000-7000k);warm white(3000-4000k)
- Light body And Lamps had material: kylin tablets and PC

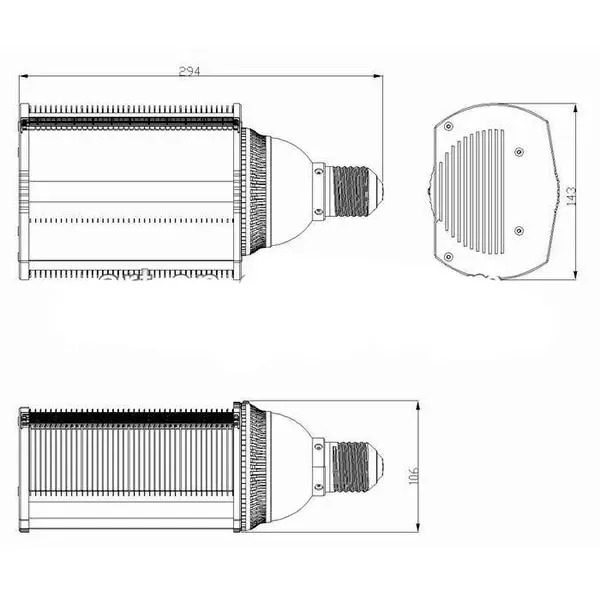

- Dimension: Ф106x143x294mm(L)
- A production-ready linear family with a replaceable Zigbee control path.
- The configured light engine is CCT.
- The recorded electrical input is 5 V.
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 5 V
- Light engine: CCT
- LumaCircuit model: LC-LIN-92A2AF
- Input Voltage: -305V
- Working Voltage: -35V
- LED consumption: 72W
- Power supply consumption: 68- 72W
- Power factor: ≥0.95
- Colors: pure white(5000-7000k);warm white(3000-4000k)
- Light body And Lamps had material: kylin tablets and PC
- Dimension: Ф106x143x294mm(L)
- Dimensions found: 106x143x294mm
Control and installation
Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination.
Plan the installation around Everyday room lighting, Kitchen and cabinet task light, Retail and commercial fit-outs. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview

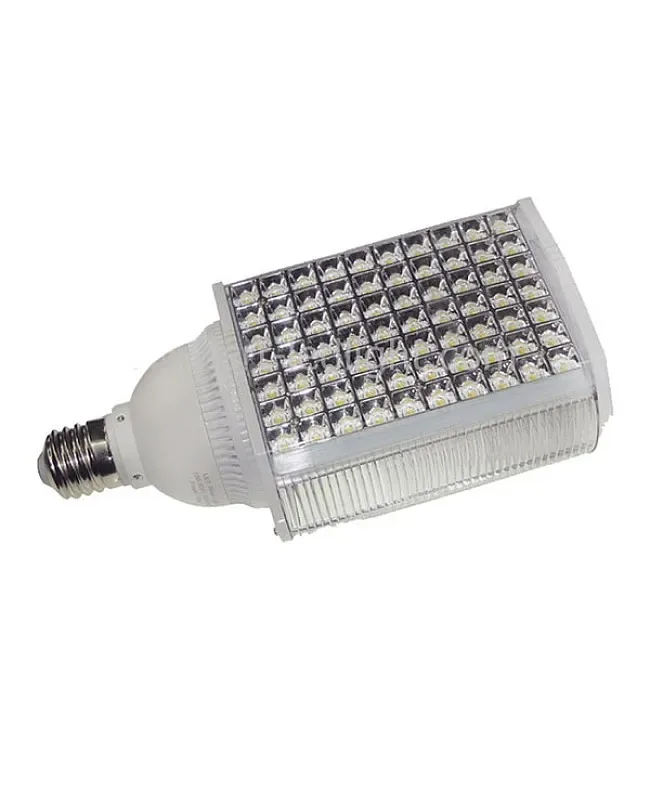

70W street light LED uses 70pcs high-quality and brightness Epistar LEDs as the light source, with patented aluminum alloy, unidirectional, no light diffusion, ensuring luminous efficiency light efficiency reaches 80lm/w, luminous efficiency is stronger than high-pressure sodium lamps. Lumen depreciation is less than 3% per year, still reaching the demand of road illumination. Longer lifespans can reach 30000 to 50000 hours, replacing metal halide lamps, sodium lamps, mercury lamps, fluorescent lamps, and energy-saving lamps. The new high-power street light LED can be used in streets, highways, roadways, bridges, housing projects, packing yards, expressways, sub-roads, sidewalks, squares, sports grounds, industrial plants, and so on.
Specifications
Model: SD-818-70W
Input Voltage: -305V
Working Voltage: -35V
LED consumption: 72W
Power supply consumption: 68- 72W
Electric current
Luminous: 5200-6300lm
Power factor: ≥0.95
Colors: pure white(5000-7000k);warm white(3000-4000k)
Light body And Lamps had material: kylin tablets and PC
Dimension: Ф106x143x294mm(L)
Weight
1*70W Street Light LED
Typical applications
- Everyday room lighting
- Kitchen and cabinet task light
- Retail and commercial fit-outs
