Product details
72W DMX512 RGBW LED Wall Washer Lights Outdoor
LumaCircuit offers 72W DMX512 RGBW LED Wall Washer Lights Outdoor as a configurable linear LED light for project builds. Typical applications include Everyday room lighting, Kitchen and cabinet task light, Retail and commercial fit-outs. wireless controller User Manual Size: 1020*64*62mm(L*W*H) Input Voltage: -240V, 50/60Hz The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Use this product on the WLED ambient route. Match the controller to the exact LED IC and channel order, voltage, data direction and total load; long runs also need a fuse and power-injection plan. WLED, Home Assistant and any show-control bridge remain separate validation points. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- The wireless controller RGBW LED wall washer lights, which comply with DMX512, DMX512(1990), DMX512-A, and RDM.0 international standard agreement, allow you to change RGBW colors freely to make a bright lighting atmosphere. There are 2 optional dimming curves: logarithmic and linear. The waterproof level is IP66, which allows it to be installed in water locations and used on rainy days.
- wireless controller User Manual
- Size: 1020*64*62mm(L*W*H)
- Input Voltage: -240V, 50/60Hz
- Luminous Flux: 560LM(Red), 1080LM(Green), 300LM(Blue), 2600LM(Warm White)
- Color Temperature Adjustable: 2700 K- 3000 K
- Comply With DMX512, DMX512(1990), DMX512-A, RDM.0(20-2006 ESTA Standard) International Standard Agreement
- Compatible With wireless controller X4 DMX RGBW Control Panel
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 240 V
- Light engine: RGBW
- LumaCircuit model: LC-LIN-60N26B
- Size: 1020*64*62mm(L*W*H)
- Input Voltage: -240V, 50/60Hz
- Power: 72W
- Emitting Color: RGBW
- Color Temperature Adjustable: 2700 K- 3000 K
- CRI: >
- Beam Angle: 15*60°
- IP Rate: IP66
- Working Temperature: -20℃-+45℃
Control and installation
Use this product on the WLED ambient route. Match the controller to the exact LED IC and channel order, voltage, data direction and total load; long runs also need a fuse and power-injection plan. WLED, Home Assistant and any show-control bridge remain separate validation points.
Plan the installation around Everyday room lighting, Kitchen and cabinet task light, Retail and commercial fit-outs. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview

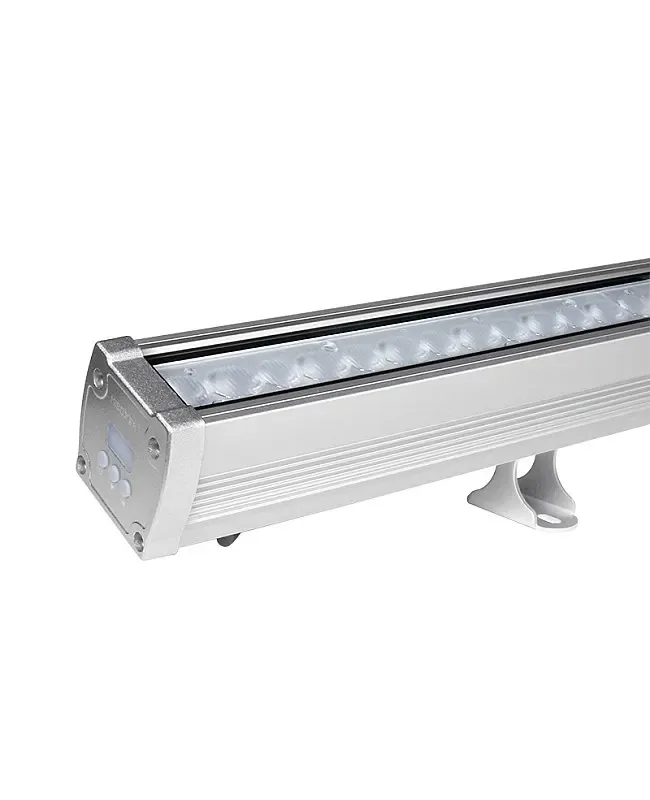

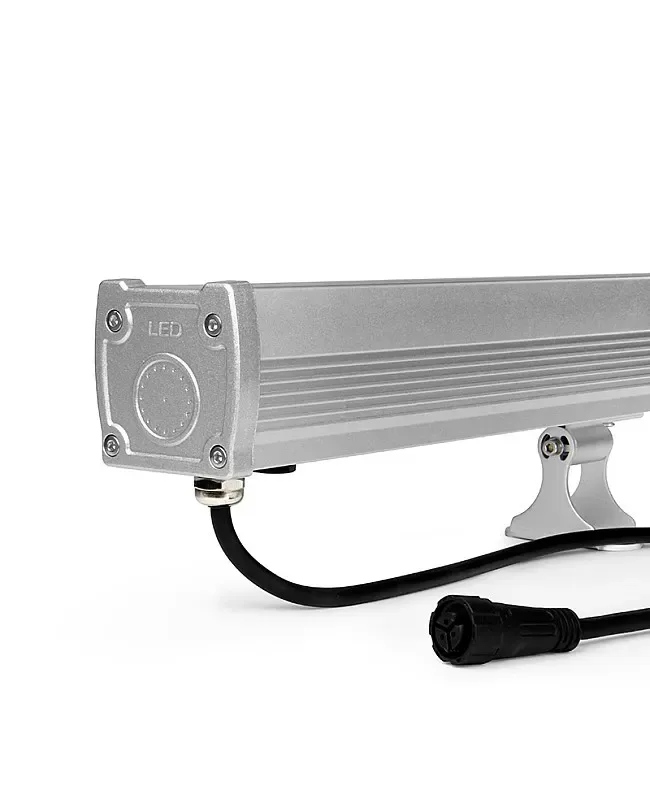

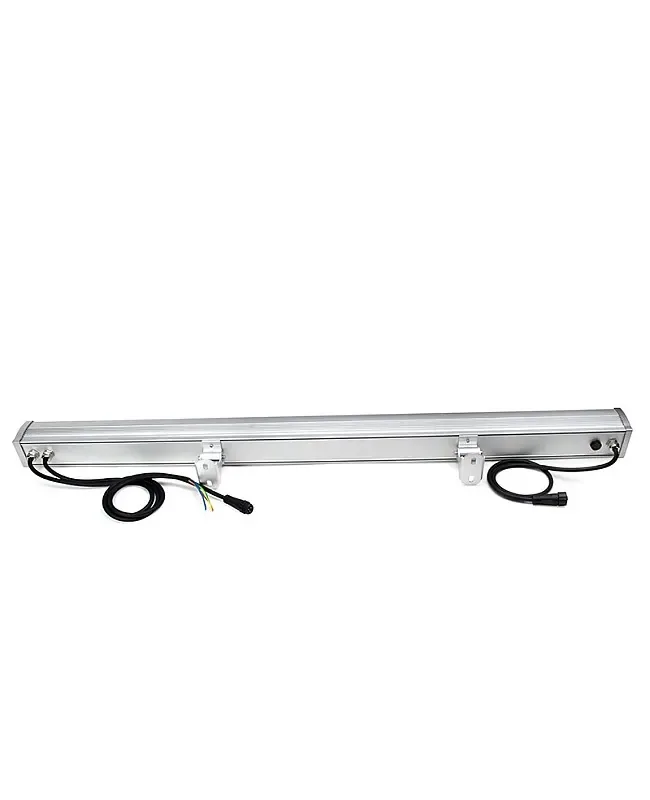

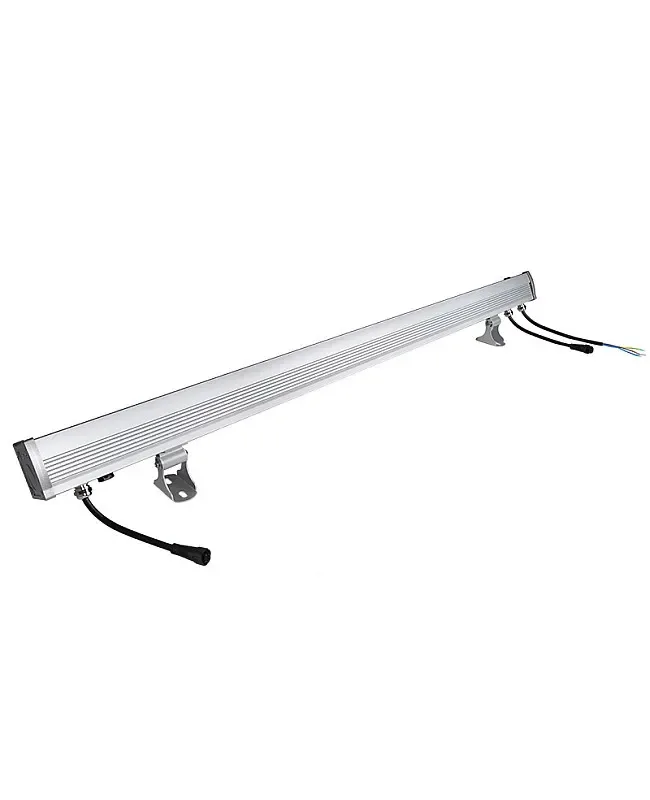

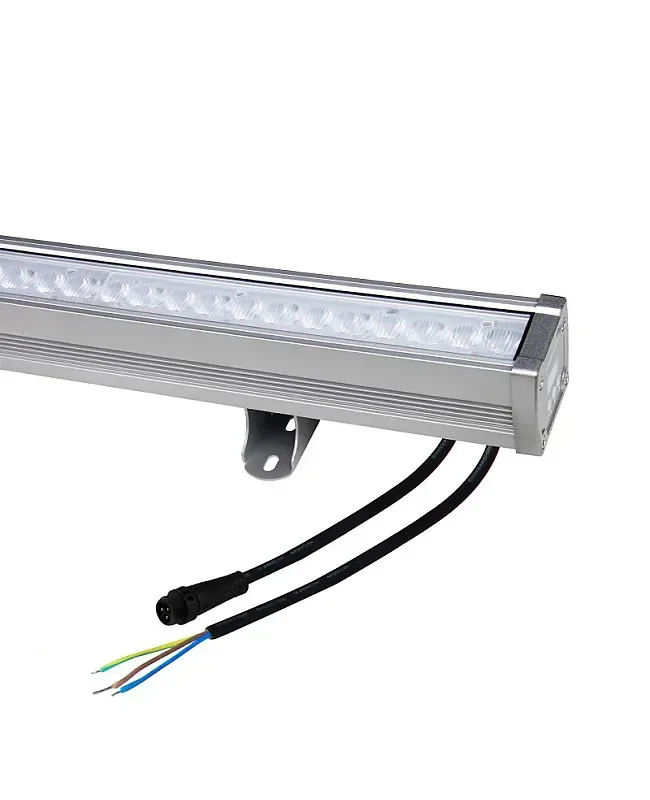

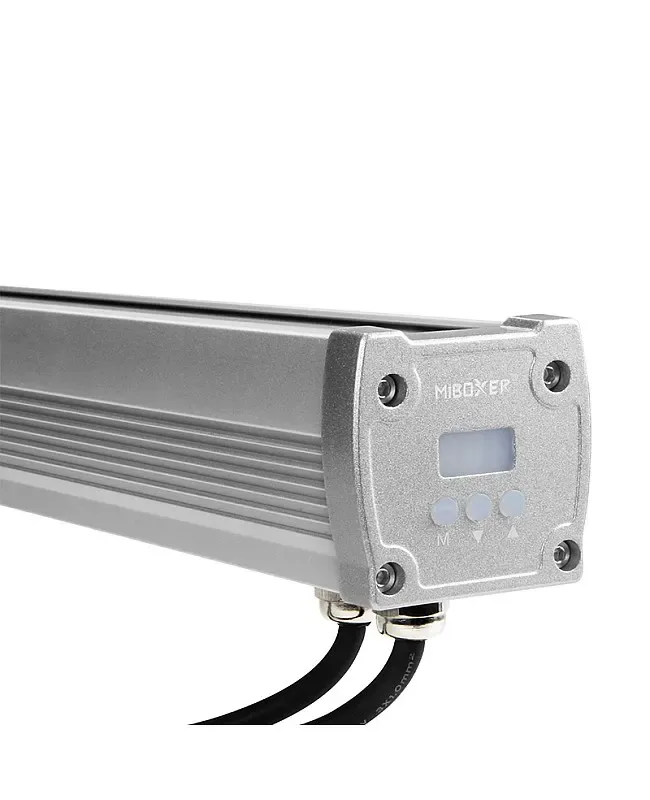

The wireless controller RGBW LED wall washer lights, which comply with DMX512, DMX512(1990), DMX512-A, and RDM.0 international standard agreement, allow you to change RGBW colors freely to make a bright lighting atmosphere. There are 2 optional dimming curves: logarithmic and linear. The waterproof level is IP66, which allows it to be installed in water locations and used on rainy days. The 180° rotatable brackets are included for easy installation, and are adjustable randomly, and the installer can adjust the beam angle freely. The wall washer lighting uses high-quality LED chips as a light source, with low power consumption, decreased luminance, bright color, and high brightness. The surface has an optical lens for high lighting-transmitting rate, wide beam angle, and long illumination distance. The high-quality aluminum alloy housing provides fast heat dissipation and anti-corrosion. There side with a digital display and 3 buttons that allow setting the DMX address or choosing a dimming curve. The installer can connect them to a DMX 512 console or the wireless controller X4 DMX Dimming Panel to change the color and set the dynamic mode. The installer can use them for hotels, restaurants, buildings, bridges, parking, etc.
Quick Links
wireless controller User Manual
Specifications
Model
Size: 1020*64*62mm(L*W*H)
Input Voltage: -240V, 50/60Hz
Power: 72W
Emitting Color: RGBW
Luminous Flux: 560LM(Red), 1080LM(Green), 300LM(Blue), 2600LM(Warm White)
Color Temperature Adjustable: 2700 K- 3000 K
CRI: >
Beam Angle: 15*60°
Comply With DMX512, DMX512(1990), DMX512-A, RDM.0(20-2006 ESTA Standard) International Standard Agreement
Occupy 4 DMX Address
Support RDM Function
Optional Dimming Curve
IP Rate: IP66
Compatible With wireless controller X4 DMX RGBW Control Panel
Working Temperature: -20℃-+45℃
Includes
1 * RGBW LED Wall Washer
Product resources
Technical documents
Typical applications
- Everyday room lighting
- Kitchen and cabinet task light
- Retail and commercial fit-outs
