Product details

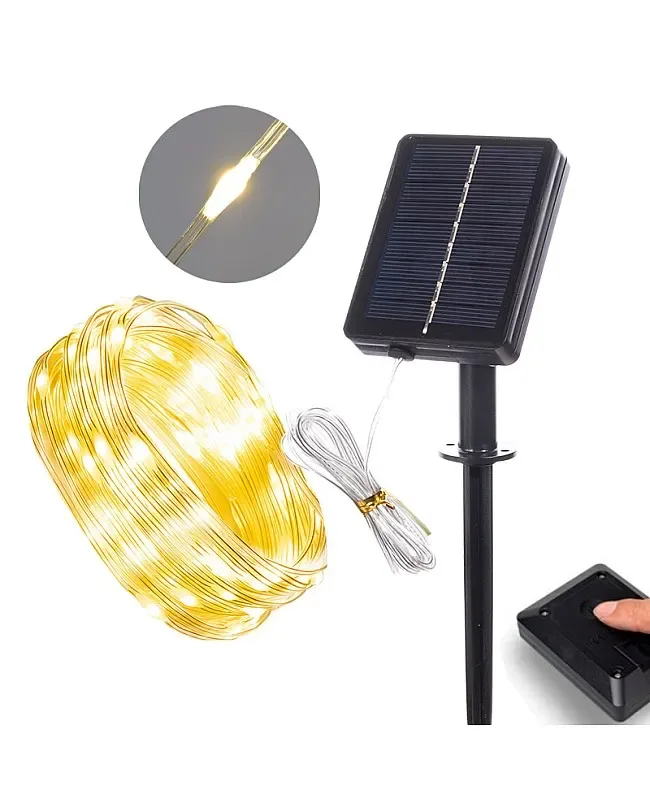

Solar Powered Rope Lights With Touch Switch
LumaCircuit offers Solar Powered Rope Lights With Touch Switch as a configurable linear LED light for project builds. Typical applications include Everyday room lighting, Kitchen and cabinet task light, Retail and commercial fit-outs. LED Quantity: 50PCS, 100PCS, 200PCS Emitting Colors: Warm White, Cool White, Blue, RGBY(Red/Green/Blue/Yellow) Working Modes: 8 Modes: Combination/In Waves/Sequential/SLO-GLO/(Chasing/Flash)/Slow Fade/(Twinkle/Flash)/Steady On The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- The solar-powered rope lights have a polysilicon solar panel and a lithium rechargeable battery. The battery will be charged in daylight and discharged at night to light up the rope string lights. It will be fully charged in 4 hours under sunshine and can discharge continuously for over 20 hours. The rope lights use high-quality 2025 LEDs as a light source, brighter than traditional LEDs. The LEDs are sealed in glue and installed into a clear rope to be waterproof and dustproof.
- LED Quantity: 50PCS, 100PCS, 200PCS
- Emitting Colors: Warm White, Cool White, Blue, RGBY(Red/Green/Blue/Yellow)
- Working Modes: 8 Modes: Combination/In Waves/Sequential/SLO-GLO/(Chasing/Flash)/Slow Fade/(Twinkle/Flash)/Steady On
- Wire Length Between LEDs: 10cm
- Length Of Lead Cable: 2M
- Solar Panel: Polysilicon 4.5V
- Rechargeable Battery: Lithium Battery 3.7V
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 5 V
- Light engine: CCT
- LED Type: 2025
- LED Quantity: 50PCS, 100PCS, 200PCS
- Length: 5M, 10M, 20M
- Emitting Colors: Warm White, Cool White, Blue, RGBY(Red/Green/Blue/Yellow)
- Working Modes: 8 Modes: Combination/In Waves/Sequential/SLO-GLO/(Chasing/Flash)/Slow Fade/(Twinkle/Flash)/Steady On
- Wire Length Between LEDs: 10cm
- Length Of Lead Cable: 2M
- IP Rate: IP65 Waterproof
- LumaCircuit model: LC-LIN-OPAZAJ
- Dimensions found: 5M / 10M / 20M / 2M
Control and installation
Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination.
Plan the installation around Everyday room lighting, Kitchen and cabinet task light, Retail and commercial fit-outs. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview

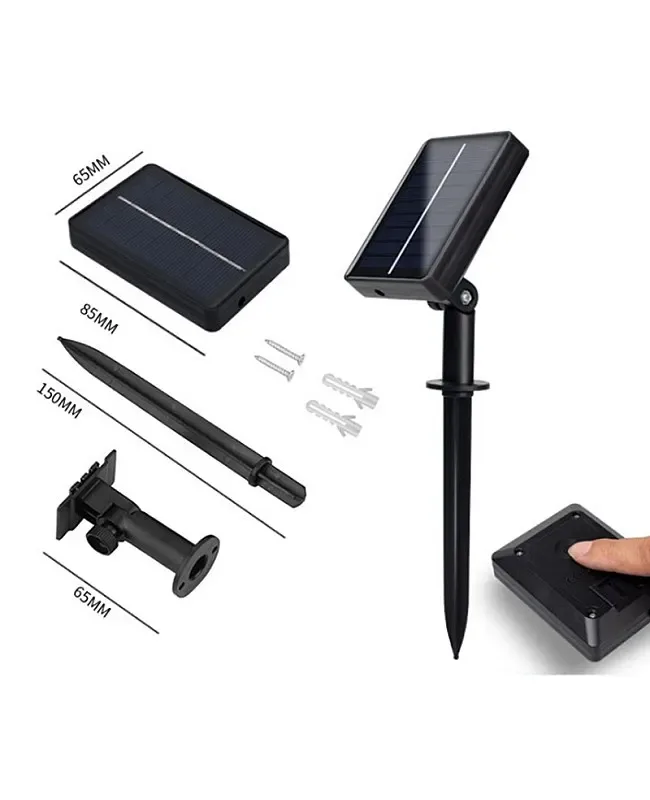

The solar-powered rope lights have a polysilicon solar panel and a lithium rechargeable battery. The battery will be charged in daylight and discharged at night to light up the rope string lights. It will be fully charged in 4 hours under sunshine and can discharge continuously for over 20 hours. The rope lights use high-quality 2025 LEDs as a light source, brighter than traditional LEDs. The LEDs are sealed in glue and installed into a clear rope to be waterproof and dustproof. The IP rating is IP65; the installer can use them for indoor and outdoor decoration. The solar panel with a touch switch, touch the button 2-3 seconds to turn on or turn off the LED lights or switch the working mode, there are 8 working modes available, the switch has a memory function, each time it powers on, it will remember the last working mode it was in. The installer can use them for Christmas, Halloween, Weddings, parties and other decorations there are various LEDs, Lengths and colors products available, come with inserted pole and wall-mounted accessories, the installer can install them on the wall, garden, patio, yard, garden, lawn, etc.
Specifications
LED Type: 2025
LED Quantity: 50PCS, 100PCS, 200PCS
Length: 5M, 10M, 20M
Emitting Colors: Warm White, Cool White, Blue, RGBY(Red/Green/Blue/Yellow)
Working Modes: 8 Modes: Combination/In Waves/Sequential/SLO-GLO/(Chasing/Flash)/Slow Fade/(Twinkle/Flash)/Steady On
Wire Length Between LEDs: 10cm
Length Of Lead Cable: 2M
Solar Panel: Polysilicon 4.5V
Rechargeable Battery: Lithium Battery 3.7V
With Touch Switch
Charging Time: 4 Hours Under Sunshine
Discharging Time: > 20 hours
IP Rate: IP65 Waterproof
Memory Function: YES

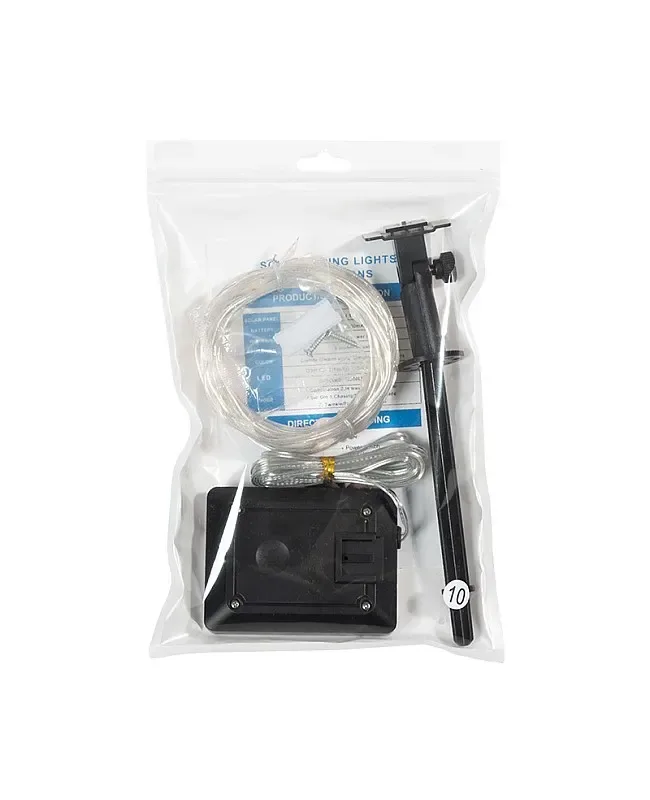

Includes
1 * Solar Powered Rope Light
Typical applications
- Everyday room lighting
- Kitchen and cabinet task light
- Retail and commercial fit-outs
