Product details
Outdoor 24V Dimmable Wall Washer Lights With Optical Lens
LumaCircuit offers Outdoor 24V Dimmable Wall Washer Lights With Optical Lens as a configurable linear LED light for project builds. Typical applications include Everyday room lighting, Kitchen and cabinet task light, Retail and commercial fit-outs. Low-voltage Safety: They operate at 24V DC, reducing electrical risks while maintaining high efficiency. Seamless Dimming Control: Compatible with PWM dimming systems for adjustable brightness. Optical Lens: Has 30° optical lenses for even light distribution without hotspots. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.

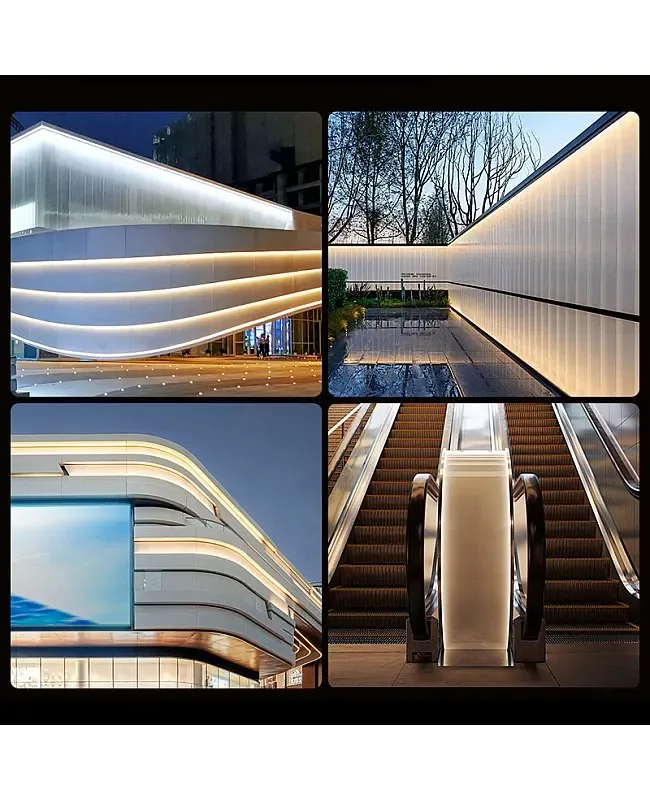

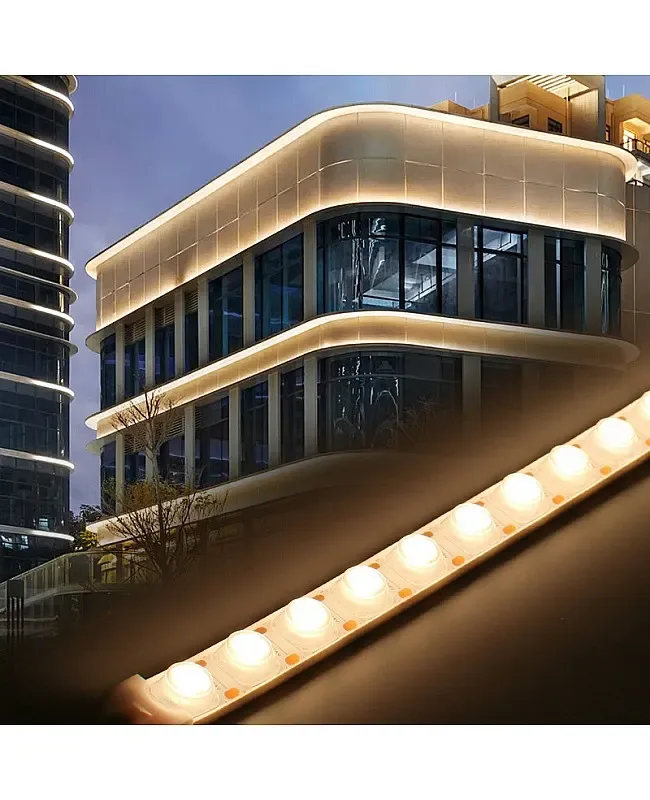

- Wall washer lights are a cost-effective solution for producing a smooth, uniform light wash on the walls. They are suited to highlighting architectural details, landscapes, and commercial facades. They are 5 meters per roll, flexible, and cuttable; the minimum cutting length is 23mm only. The wall washer strip lights are sealed in silicone tubes for waterproofing and dust proofing. The IP rating is up to IP67. The back has strong double-sided adhesive tape for easy installation.
- Low-voltage Safety: They operate at 24V DC, reducing electrical risks while maintaining high efficiency.
- Seamless Dimming Control: Compatible with PWM dimming systems for adjustable brightness.

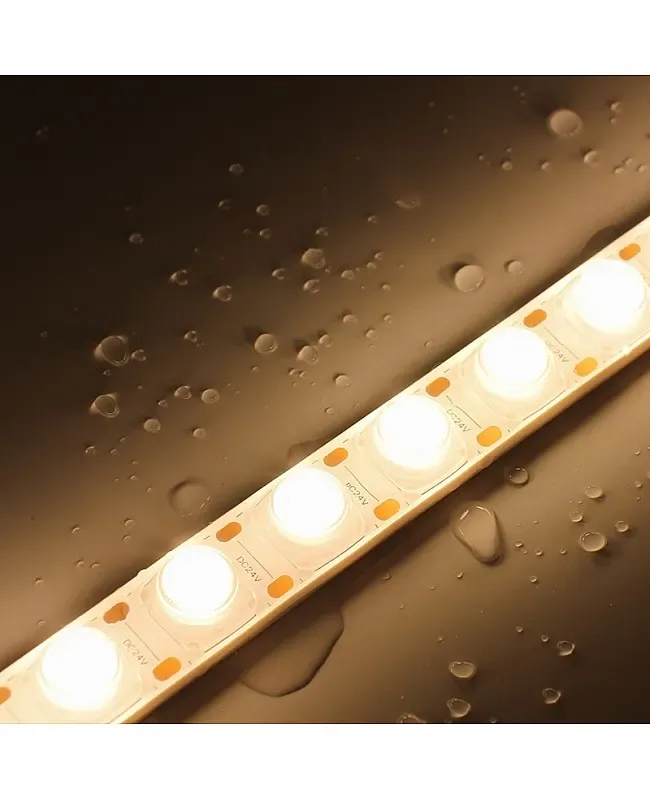

- Optical Lens: Has 30° optical lenses for even light distribution without hotspots.
- Size( W * H): 20mm * 10mm / 0.79" * 0.39"

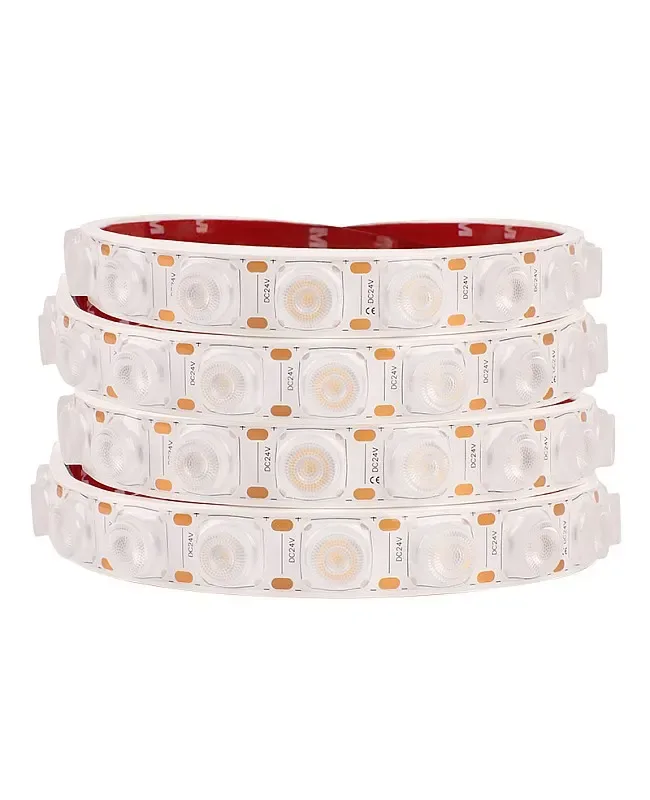

- Length: 5 Meters/16.4ft per roll

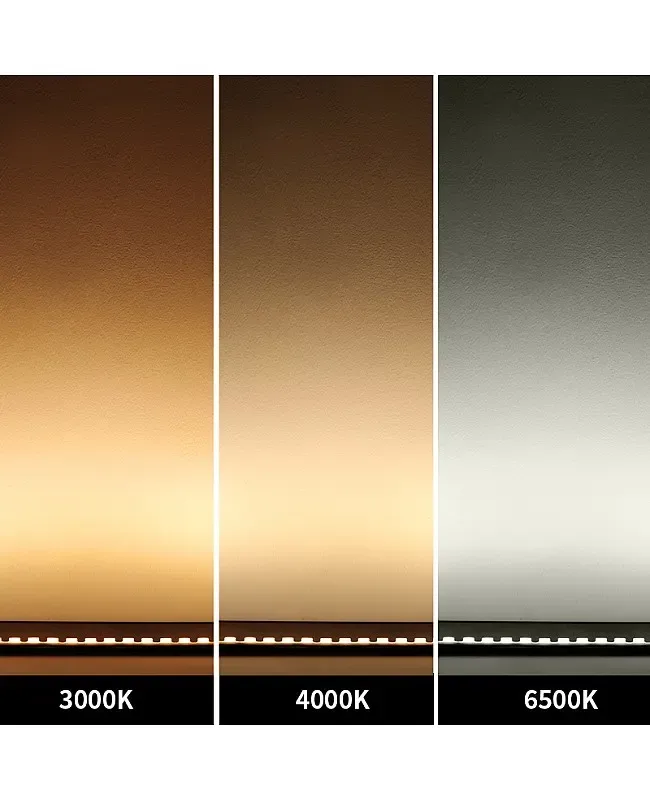

- Colors: 3000K Warm White, 4000K Neutral White, 6500K Cool White
- Waterproof Level: IP67 Waterproof
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 24 V
- Light engine: CCT
- Size( W * H): 20mm * 10mm / 0.79" * 0.39"
- Length: 5 Meters/16.4ft per roll
- LED QTY: 42PCS/M
- Working Voltage: DC24V
- Power: 18W/M
- Colors: 3000K Warm White, 4000K Neutral White, 6500K Cool White
- Beam Angle: 30°
- Minimum Cutting Length: 23mm
- Working Temperature: -20℃-+45℃
- Storage Temperature: -20℃-+60℃
Control and installation
Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination.
Plan the installation around Everyday room lighting, Kitchen and cabinet task light, Retail and commercial fit-outs. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview
Wall washer lights are a cost-effective solution for producing a smooth, uniform light wash on the walls. They are suited to highlighting architectural details, landscapes, and commercial facades. They are 5 meters per roll, flexible, and cuttable; the minimum cutting length is 23mm only. The wall washer strip lights are sealed in silicone tubes for waterproofing and dust proofing. The IP rating is up to IP67. The back has strong double-sided adhesive tape for easy installation. Various white products are available. The installer can choose warm white, natural white, or cool white.
Key Features
Low-voltage Safety: They operate at 24V DC, reducing electrical risks while maintaining high efficiency.
Seamless Dimming Control: Compatible with PWM dimming systems for adjustable brightness.
Optical Lens: Has 30° optical lenses for even light distribution without hotspots.
Flexible and bendable.
Specifications
Size( W * H): 20mm * 10mm / 0.79" * 0.39"
Length: 5 Meters/16.4ft per roll
LED QTY: 42PCS/M
Working Voltage: DC24V
Power: 18W/M
Colors: 3000K Warm White, 4000K Neutral White, 6500K Cool White
Waterproof Level: IP67 Waterproof
Beam Angle: 30°
Minimum Cutting Length: 23mm
Flexible and bendable
The back has double-sided adhesive tape
Working Temperature: -20℃-+45℃
Storage Temperature: -20℃-+60℃
Applications: Curved architectural lighting
Includes
1* Dimmable Wall Washer Light
Typical applications
- Everyday room lighting
- Kitchen and cabinet task light
- Retail and commercial fit-outs
