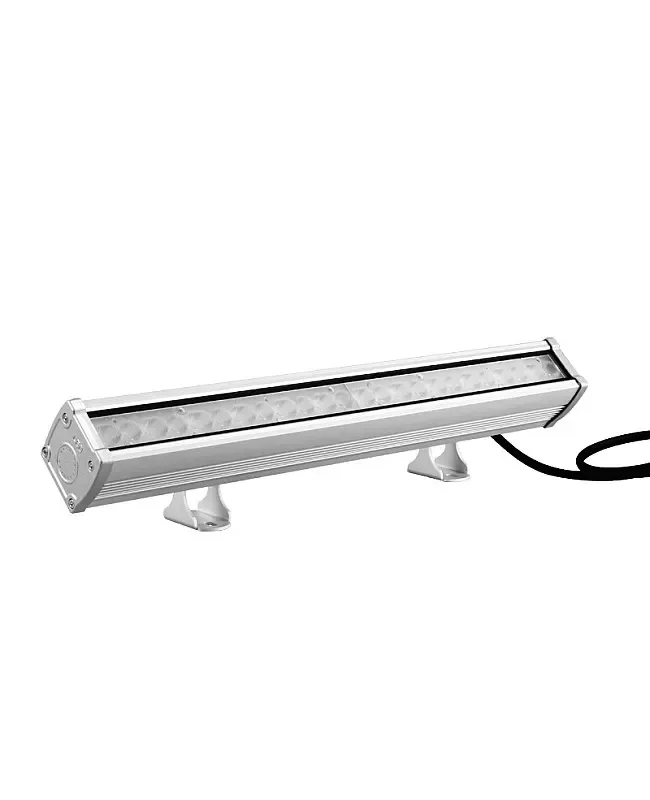

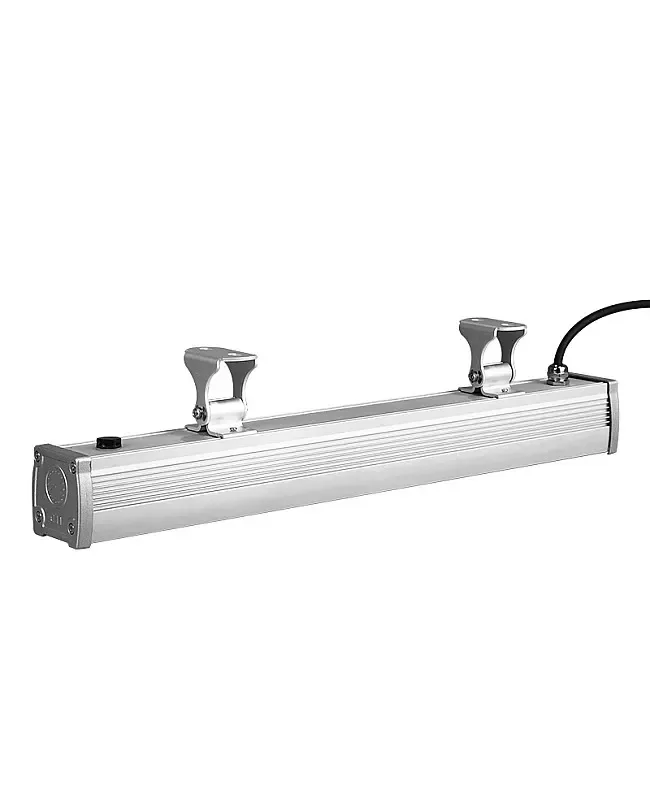

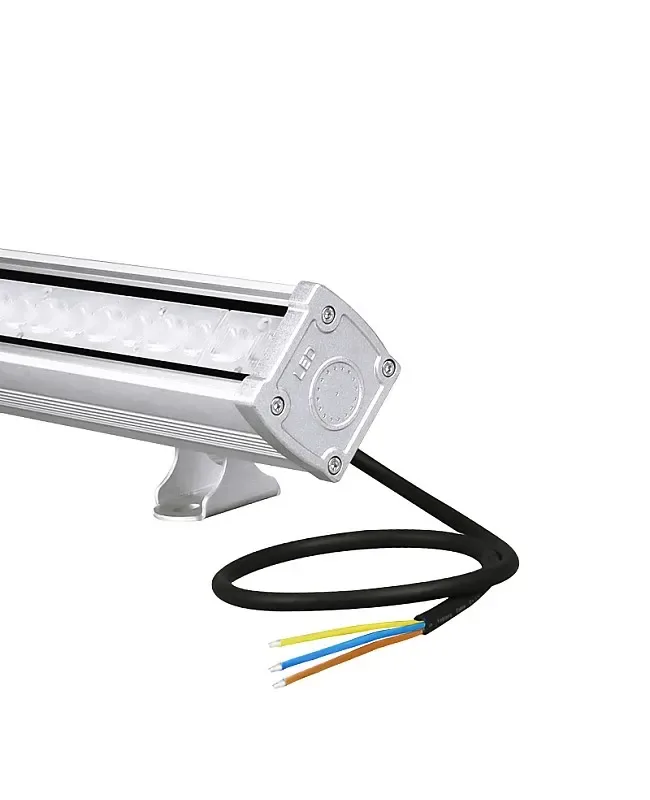

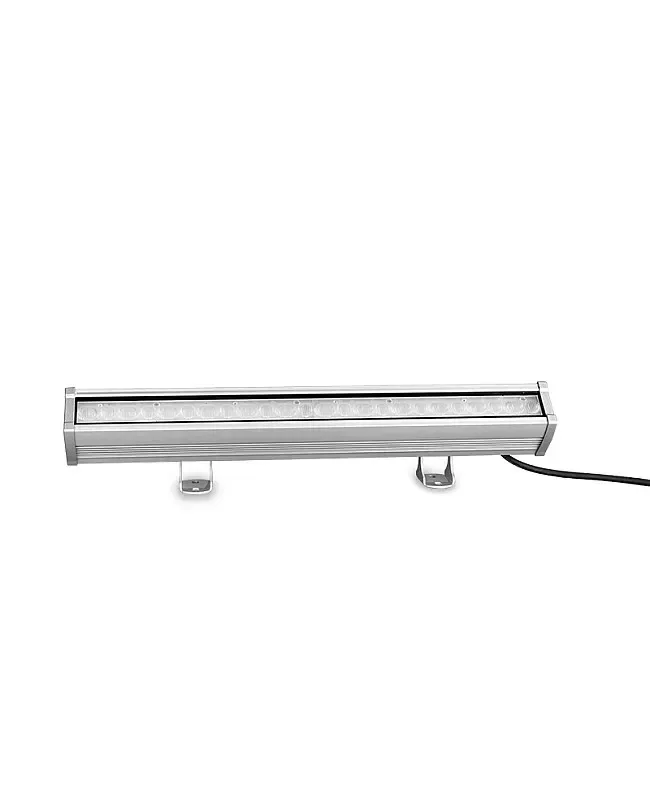

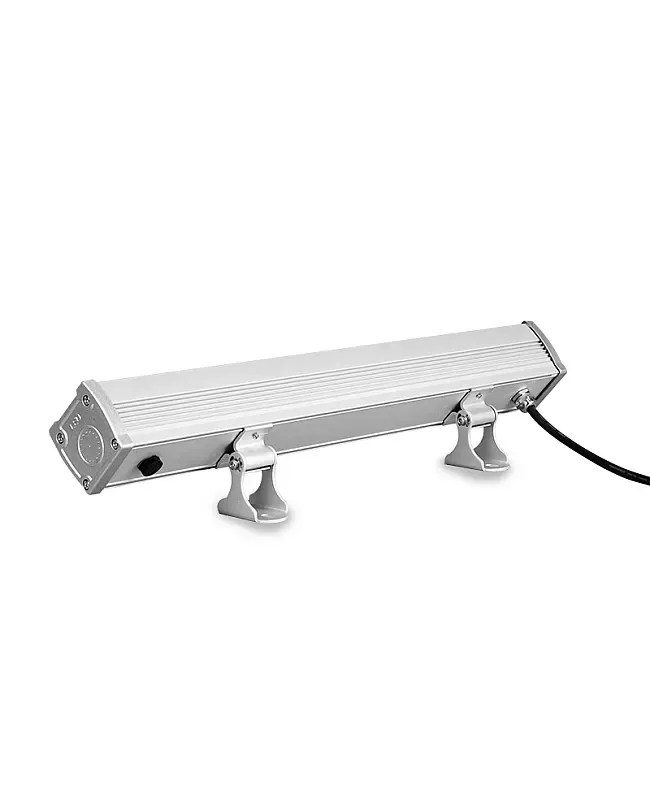

Voice Control 24W RGB CCT Linear Wall Washer Lights
LumaCircuit offers Voice Control 24W RGB CCT Linear Wall Washer Lights as a configurable linear LED light for project builds. Typical applications include Everyday room lighting, Kitchen and cabinet task light, Retail and commercial fit-outs. Material: Die-Cast Aluminum + Stalinite Size: 521*64*62mm(L*W*H) Working Voltage: -240V, 50/60Hz The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- The 24W RGB CCT linear wall washer lights wireless controller is a lighting system that provides a bright and even wash of light across a large area. 2.4 G remote controls can control it to choose the static color or dynamic mode and adjust the brightness, color temperature, and saturation to fulfill your needs. There are 16 million colors and 9 dynamic modes available. The brightness can be adjusted from 1% to 100%, and the color temperature from 2700K warm white to 6500K cool white.
- Material: Die-Cast Aluminum + Stalinite
- Size: 521*64*62mm(L*W*H)
- Working Voltage: -240V, 50/60Hz
- Emitting Color: RGB + CCT
- Color Temperature Adjustable: 2700 K- 6500 K
- Saturation, Brightness, Color Temperature, And Color-Changing Speed Adjustable
- Illumination Distance: >15m
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 240 V
- Light engine: RGB+CCT
- LumaCircuit model: LC-LIN-XY5JJ1
- Material: Die-Cast Aluminum + Stalinite
- Size: 521*64*62mm(L*W*H)
- Working Voltage: -240V, 50/60Hz
- Power: 24W
- Emitting Color: RGB + CCT
- Color Temperature Adjustable: 2700 K- 6500 K
- CRI: >
- Beam Angle: 15*60°
- IP Rate: IP66
Control and installation
Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination.
Plan the installation around Everyday room lighting, Kitchen and cabinet task light, Retail and commercial fit-outs. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview
The 24W RGB CCT linear wall washer lights wireless controller is a lighting system that provides a bright and even wash of light across a large area. 2.4 G remote controls can control it to choose the static color or dynamic mode and adjust the brightness, color temperature, and saturation to fulfill your needs. There are 16 million colors and 9 dynamic modes available. The brightness can be adjusted from 1% to 100%, and the color temperature from 2700K warm white to 6500K cool white. After pairing with a 2.4G gateway, a smartphone APP and third-party voice commands can control it. The waterproof level is IP66, can be installed in a damp or rainy location, and usually works on rainy days. The linear washer lighting will receive the signal from the remote and automatically transmit to the same model LED lights within 30 meters, and all of them will work in synchronization. The Wall Wash Linear Lighting uses high-lumen LED chips as a light source, low power consumption, luminance decrease, bright color, high brightness, high-quality aluminum alloy housing, strong hardness, anti-corrosion, and fast heat dissipation. The surface has an optical lens for a high light-transmitting rate, a wide beam angle, and a longer illumination distance. The 180° rotatable brackets are included, allowing the beam angle to be adjusted freely. The installer can use them for decorative lighting in hotels, restaurants, bridges, parks, etc.
Specifications
Model
Material: Die-Cast Aluminum + Stalinite
Size: 521*64*62mm(L*W*H)
Working Voltage: -240V, 50/60Hz
Power: 24W
Emitting Color: RGB + CCT
Color Temperature Adjustable: 2700 K- 6500 K
16 Million Colors And 9 Dynamic Modes Available
Saturation, Brightness, Color Temperature, And Color-Changing Speed Adjustable
Luminous Flux: 1600LM
CRI: >
Beam Angle: 15*60°
Illumination Distance: >15m
IP Rate: IP66
4G Remote Control Controllable T4, T3, WL
Support Smartphone APP Control And Third-Party Voice Control(WL- 2.4G Gateway Needed)
Auto Signal Transmitting And Modes Synchronization
Control Distance: ≤30m
Working Temperature: -20℃-+45℃
Includes
1 * Voice Control RGBWW Linear Wall Washer Light
Typical applications
- Everyday room lighting
- Kitchen and cabinet task light
- Retail and commercial fit-outs
