Product details
24V Waterproof White Wall Washer Lamps With Optical Lens
LumaCircuit offers 24V Waterproof White Wall Washer Lamps With Optical Lens as a configurable linear LED light for project builds. Typical applications include Everyday room lighting, Kitchen and cabinet task light, Retail and commercial fit-outs. Works at DC24V: suited to indoor and outdoor use, ensuring energy efficiency and user safety. IP67 Rating: Fully protected against dust and water, suited to outdoor environments, gardens, facades, etc. Optical Lens: Provides a smooth, uniform light wash without hotspots, enhancing architectural details. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.

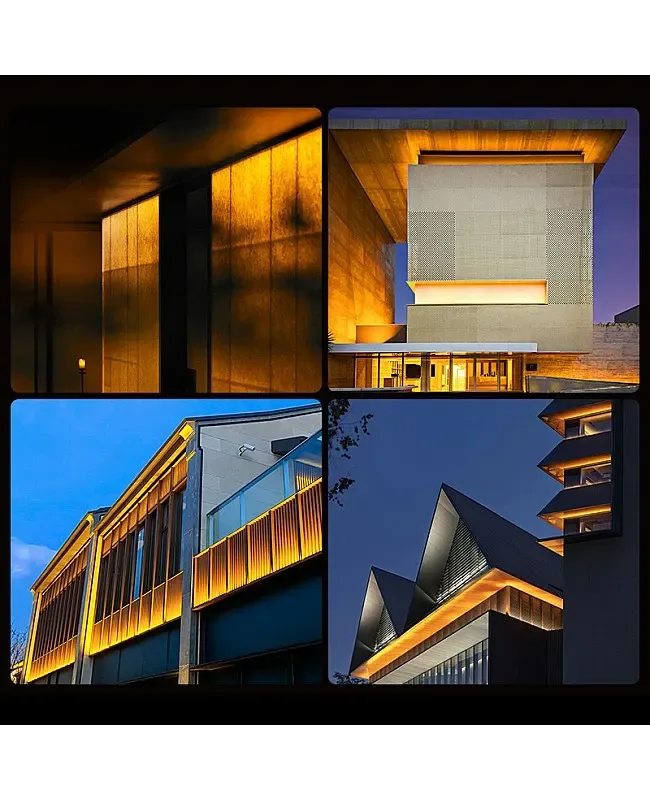

- The 24V wall washer lamps are designed for architectural lighting, especially exterior wall facade lighting. They feature 30° optical lenses to deliver uniform wall washing lighting on facades. They are engineered to provide even illumination for commercial and residential applications to enhance architectural features. The white wall washer strips use high-quality SMD LEDs as the light source and are sealed in silicone tubes for waterproofing and dustproofing.
- Works at DC24V: suited to indoor and outdoor use, ensuring energy efficiency and user safety.
- IP67 Rating: Fully protected against dust and water, suited to outdoor environments, gardens, facades, etc.
- Optical Lens: Provides a smooth, uniform light wash without hotspots, enhancing architectural details.
- Pure White Light: the installer can choose from warm white to cool white for different ambiance needs.
- Easy Installation: The back has strong double-sided adhesive tapes.
- 5 meters per roll and cuttable.
- Size( W * H): 16mm * 16mm / 0.63" * 0.63"
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 24 V
- Light engine: CCT
- Size( W * H): 16mm * 16mm / 0.63" * 0.63"

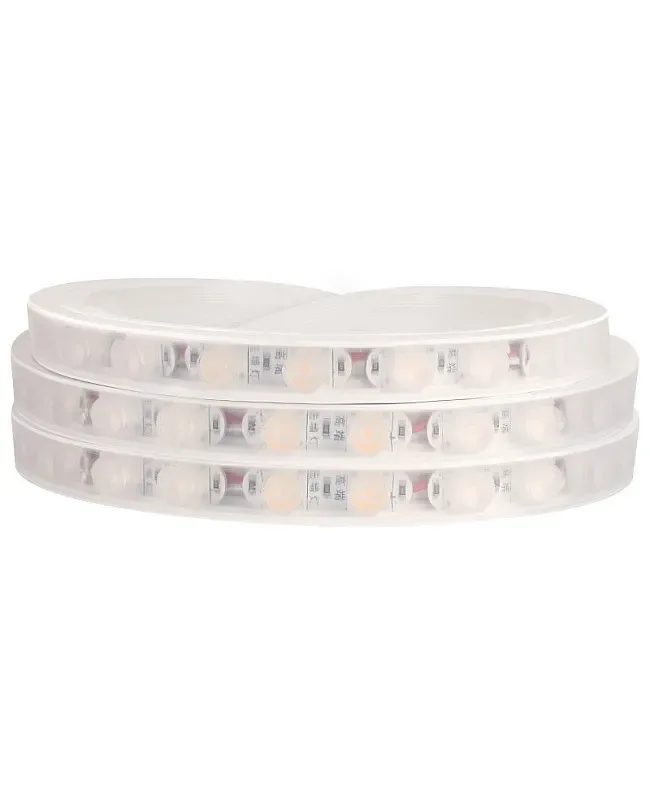

- Length: 5 Meters/16.4ft per roll
- LED QTY: 47PCS/M
- Working Voltage: DC24V
- Power: 18W/M

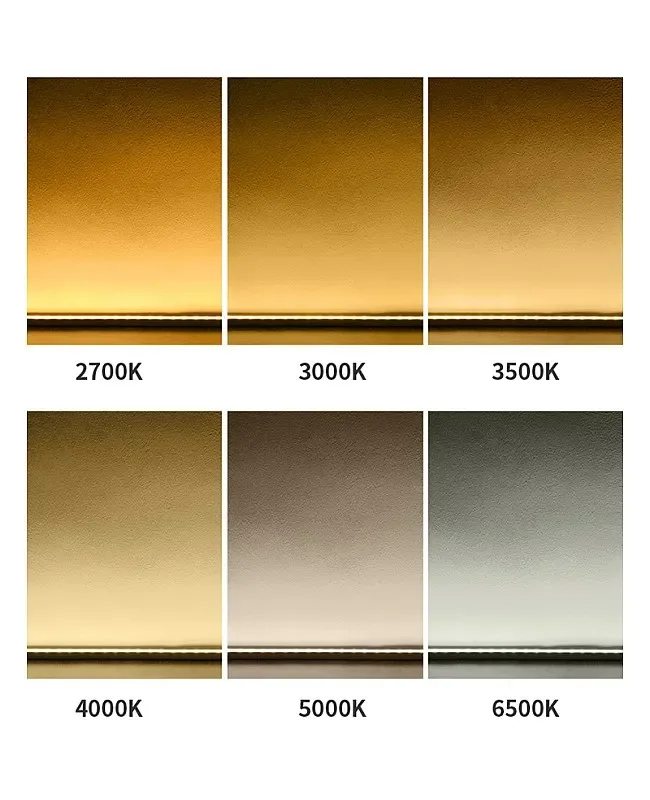

- Colors: 2700K Warm White, 3000K Warm White, 4000K Neutral White, 6500K Cool White, 5000K Daylight, Gold Yellow, Ice Blue, Red, Blue, Green

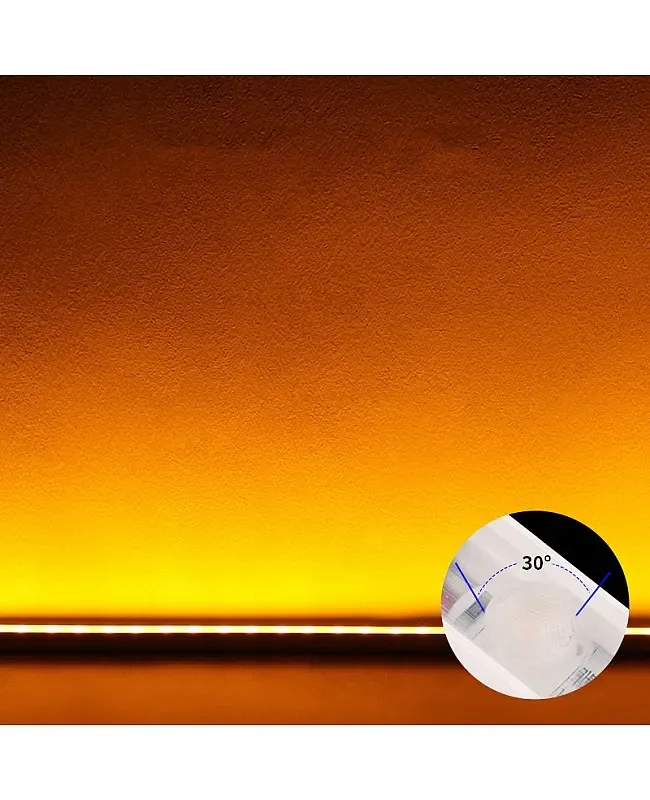

- Beam Angle: 30°
- Minimum Cutting Length: 45mm
- Working Temperature: -20℃-+45℃
- Storage Temperature: -20℃-+60℃
Control and installation
Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination.
Plan the installation around Everyday room lighting, Kitchen and cabinet task light, Retail and commercial fit-outs. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview
The 24V wall washer lamps are designed for architectural lighting, especially exterior wall facade lighting. They feature 30° optical lenses to deliver uniform wall washing lighting on facades. They are engineered to provide even illumination for commercial and residential applications to enhance architectural features. The white wall washer strips use high-quality SMD LEDs as the light source and are sealed in silicone tubes for waterproofing and dustproofing. They have an IP rating of up to IP67, suited to outdoor and damp environments. The standard length is 5 meters per roll, and the minimum cutting length is 45mm. The back has strong double-sided adhesive tape and is easy to stick where you want to install it.
Key Features
Works at DC24V: suited to indoor and outdoor use, ensuring energy efficiency and user safety.

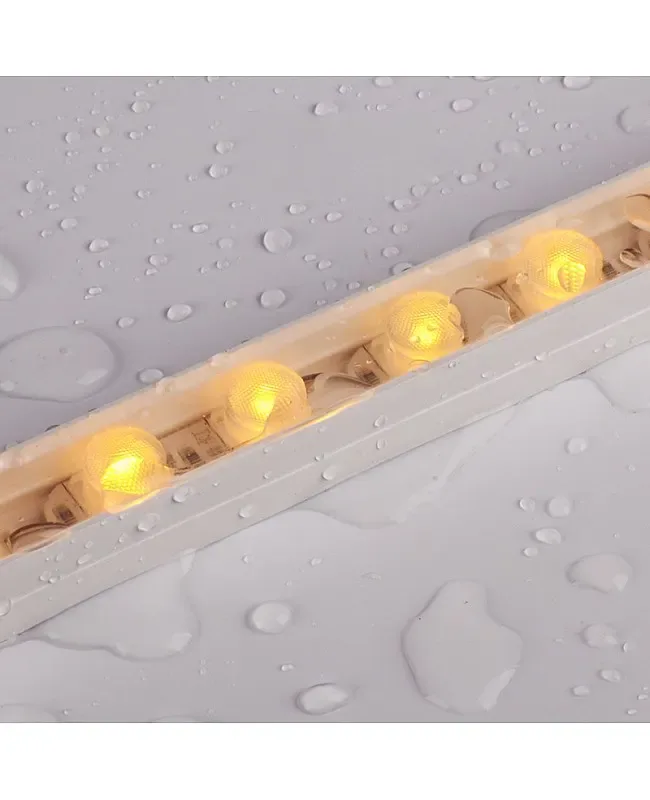

IP67 Rating: Fully protected against dust and water, suited to outdoor environments, gardens, facades, etc.
Optical Lens: Provides a smooth, uniform light wash without hotspots, enhancing architectural details.
Pure White Light: the installer can choose from warm white to cool white for different ambiance needs.
Easy Installation: The back has strong double-sided adhesive tapes.
5 meters per roll and cuttable.
Flexible and bendable.
Specifications
Size( W * H): 16mm * 16mm / 0.63" * 0.63"
Length: 5 Meters/16.4ft per roll
LED QTY: 47PCS/M
Working Voltage: DC24V
Power: 18W/M
Colors: 2700K Warm White, 3000K Warm White, 4000K Neutral White, 6500K Cool White, 5000K Daylight, Gold Yellow, Ice Blue, Red, Blue, Green
Waterproof Level: IP67 Waterproof
Beam Angle: 30°
Minimum Cutting Length: 45mm
Flexible and bendable
The back has double-sided adhesive tape
Working Temperature: -20℃-+45℃
Storage Temperature: -20℃-+60℃
Includes
1*Wall Washer Lamps
Typical applications
- Everyday room lighting
- Kitchen and cabinet task light
- Retail and commercial fit-outs
