Product details
LoRa 24W RGBWW Outdoor LED Wall Washer Lights
LumaCircuit offers LoRa 24W RGBWW Outdoor LED Wall Washer Lights as a configurable linear LED light for project builds. Typical applications include CCT and RGB+CCT rooms, Retrofit dimming, Home Assistant lighting zones. Size: 1017*64*62mm(L*W*H) Working Voltage: -240V, 50/60Hz Emitting Color: RGB + CCT The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- The wireless controller outdoor LED wall washer Lights are a powerful, durable outdoor lighting solution for long-term use. It's an excellent choice for illuminating outdoor spaces, providing a beautiful, energy-efficient lighting solution. It features LoRa SPSP modem technology and wireless transmitting technology, a max control distance of up to 2000 meters, and can be controlled by a remote control. After adding the Gateway, it can be controlled by a smartphone APP and third-party voice commands.
- Size: 1017*64*62mm(L*W*H)
- Working Voltage: -240V, 50/60Hz
- Emitting Color: RGB + CCT
- Color Temperature Adjustable: 2700 K- 6500 K
- Saturation, Brightness, Color Temperature, And Color-Changing Speed Adjustable
- Light Efficiency: 75LM/W
- Remote Controller Control
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 240 V
- Light engine: RGB+CCT
- LumaCircuit model: LC-LIN-VZO7GK
- Size: 1017*64*62mm(L*W*H)
- Working Voltage: -240V, 50/60Hz
- Power: 24W
- Emitting Color: RGB + CCT
- Color Temperature Adjustable: 2700 K- 6500 K
- CRI: >
- Control Distance: 2000M
- Beam Angle: 15*60°
- IP Rate: IP66
Control and installation
Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination.
Plan the installation around CCT and RGB+CCT rooms, Retrofit dimming, Home Assistant lighting zones. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview
The wireless controller outdoor LED wall washer Lights are a powerful, durable outdoor lighting solution for long-term use. It's an excellent choice for illuminating outdoor spaces, providing a beautiful, energy-efficient lighting solution. It features LoRa SPSP modem technology and wireless transmitting technology, a max control distance of up to 2000 meters, and can be controlled by a remote control. After adding the Gateway, it can be controlled by a smartphone APP and third-party voice commands. There are 16 million colors and 9 dynamic modes available. The saturation, brightness, color temperature, and color-changing speed are adjustable for various scenes. The aluminum alloy housing has strong hardness, anti-corrosion, and fast heat dissipation. The surface has an optical lens for high lighting, transmitting rate, wide beam angle, and long illumination distance. The 180° rotatable brackets are included, allowing for easy beam angle adjustment. The waterproof level is IP66, which allows for installation in a damp location and can be used on rainy days. The installer can use them as commercial and architectural lighting for hotels, shopping malls, restaurants, museums, bars, etc.
Specifications
Model
Size: 1017*64*62mm(L*W*H)
Working Voltage: -240V, 50/60Hz
Power: 24W
Emitting Color: RGB + CCT
Color Temperature Adjustable: 2700 K- 6500 K
16 Million Colors Available And 9 Dynamic Modes Available
Saturation, Brightness, Color Temperature, And Color-Changing Speed Adjustable
Luminous Flux: 1800LM
Light Efficiency: 75LM/W
CRI: >
RF
Remote Controller Control
Support Smartphone APP Control And Third-Party Voice Control( Gateway Needed)
Modulation Method: LoRa Spread Spectrum
Control Distance: 2000M
Beam Angle: 15*60°
Illumination Distance: >15m
IP Rate: IP66

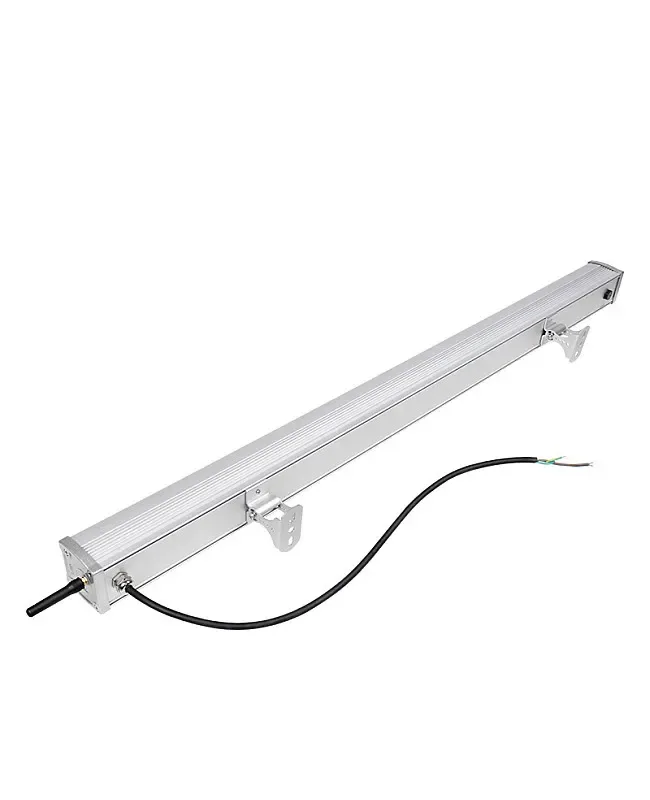

180° Rotatable Brackets Included
Working Temperature: -20℃-+60℃
Includes
1 * Outdoor LED Wall Washer Light
Typical applications
- CCT and RGB+CCT rooms
- Retrofit dimming
- Home Assistant lighting zones
