Product details
9W Dual White Magnetic Rail Pendant Light
LumaCircuit offers 9W Dual White Magnetic Rail Pendant Light as a configurable linear LED light for project builds. Typical applications include Everyday room lighting, Kitchen and cabinet task light, Retail and commercial fit-outs. Type: Magnetic Rail Pendant Lighting Model: (Zigbee 3.0+2.4G) / RF(2.4G) Lamp's Size: 300m(H)*50mm( Φ) The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.

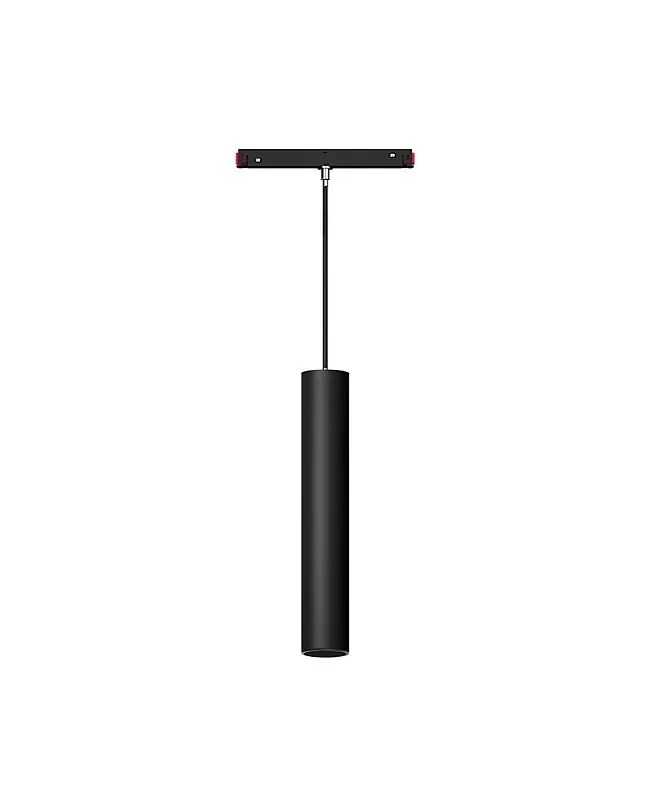

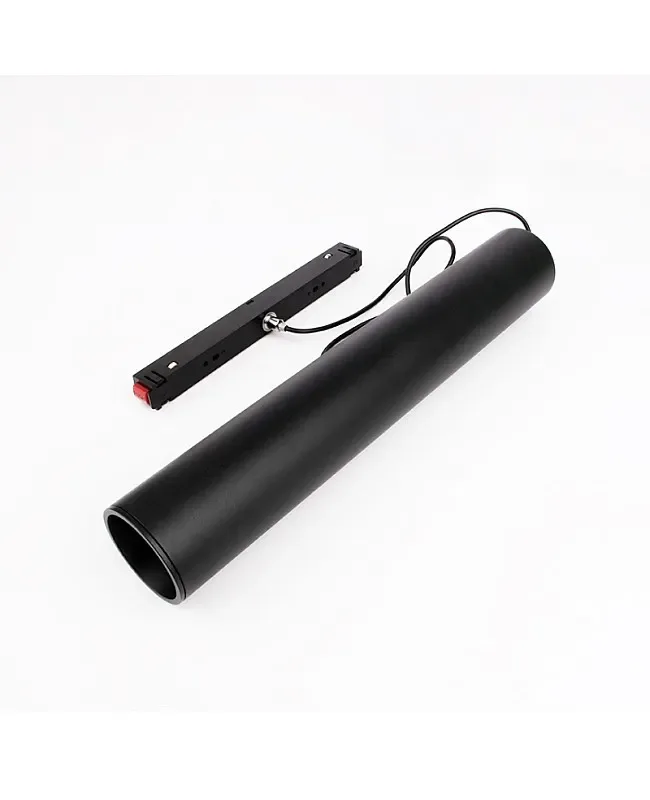

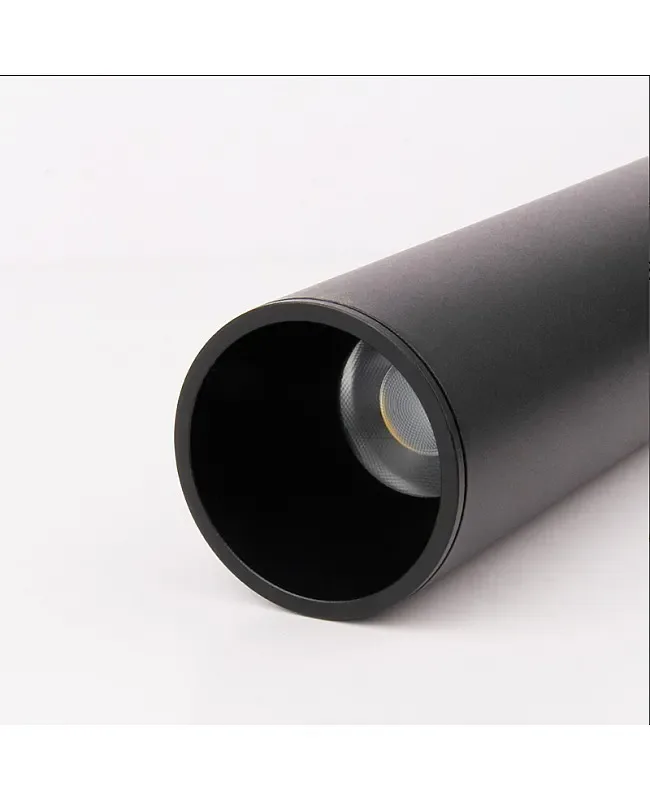

- The 9W dual white magnetic rail pendant light is a modern, sleek task lighting option for offices, shops, restaurants, and other interior areas. It features an input power module and a 65cm cable, which allows it to be easily attached to a 48V magnetic rail system. It uses one piece of high-CRI COB LED chip as the light source, and the color temperature and brightness are adjustable for various scenes. There are two versions available: Zigbee 3.0+2.4G and 2.4 G.
- Type: Magnetic Rail Pendant Lighting
- Model: (Zigbee 3.0+2.4G) / RF(2.4G)
- Lamp's Size: 300m(H)*50mm( Φ)
- Color Temperature Range: 2700-6500K
- Luminous Efficiency: 66LM/W
- RF: Zigbee 3.0 +2.4G RF Or 2.4G RF Only
- Support Tuya Smart APP Control(Zigbee 3.0 Or 2.4G Gateway Needed)
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 48 V
- Light engine: CCT
- LumaCircuit model: LC-LIN-OQNAGI
- Housing Color: Black
- Lamp's Size: 300m(H)*50mm( Φ)
- Input Voltage: DC48V
- Power: 9W
- CRI: >
- Color Temperature Range: 2700-6500K
- Beam Angle: 15°
- Control Distance: Zigbee: ≤50m(Open Area) / 2.4G RF: ≤30m(Open Area)
- IP Rate: IP20 Non-waterproof(Indoors Only)
Control and installation
Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination.
Plan the installation around Everyday room lighting, Kitchen and cabinet task light, Retail and commercial fit-outs. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview

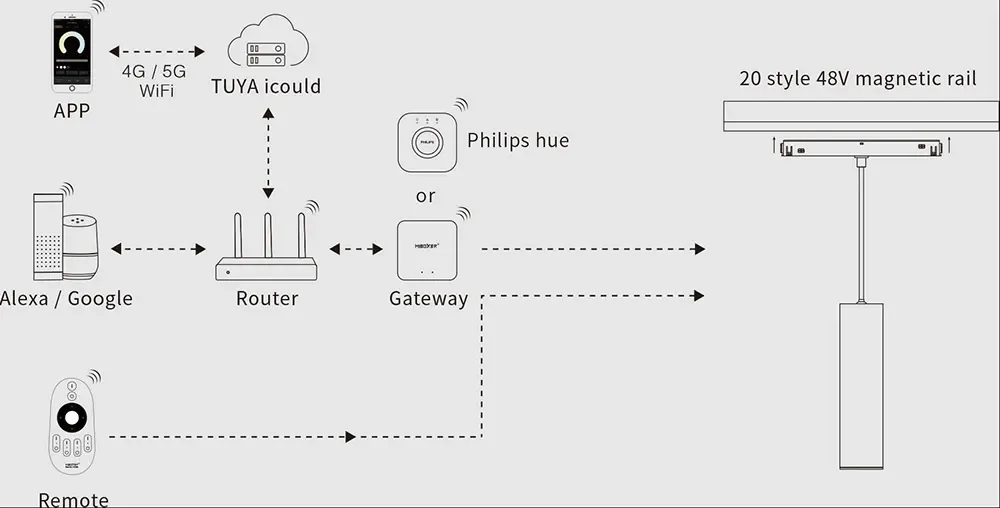

The 9W dual white magnetic rail pendant light is a modern, sleek task lighting option for offices, shops, restaurants, and other interior areas. It features an input power module and a 65cm cable, which allows it to be easily attached to a 48V magnetic rail system. It uses one piece of high-CRI COB LED chip as the light source, and the color temperature and brightness are adjustable for various scenes. There are two versions available: Zigbee 3.0+2.4G and 2.4 G. A remote control can control it to set the color temperature from 2700K warm white to 6500K cool white or adjust the brightness from 0.1% to 0.1%; there are 4096 smooth dimming levels. The Pendant Lamps will transfer signals from remote controls to the same light fixtures within 30 meters for unlimited control distance. After pairing with a Zigbee 3.0 or 2.4G Gateway, the magnetic pendant lighting can be controlled by the Tuya Smart APP or support third-party voice commands. The installer can achieve more functions on the app, such as wireless dimming, timer, group control, music rhythm, etc.
Specifications
Type: Magnetic Rail Pendant Lighting
Model: (Zigbee 3.0+2.4G) / RF(2.4G)
Housing Color: Black

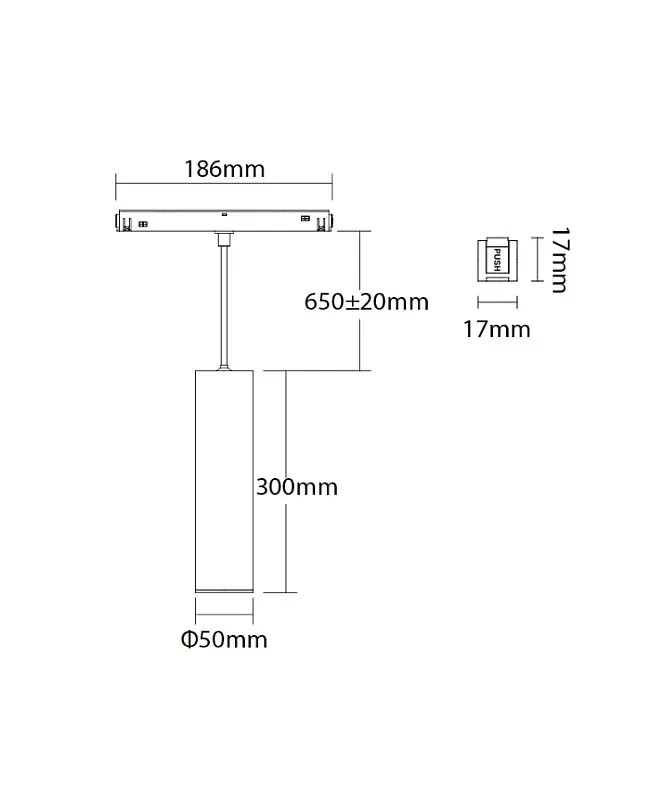

Lamp's Size: 300m(H)*50mm( Φ)
Input Voltage: DC48V
Power: 9W
CRI: >
Color Temperature Range: 2700-6500K
Luminous Flux: 600LM
Luminous Efficiency: 66LM/W

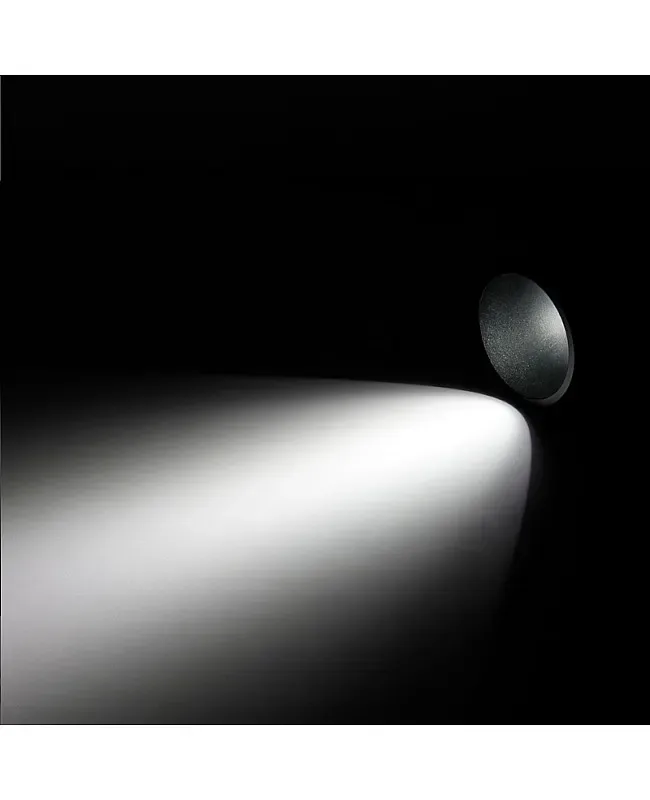

Beam Angle: 15°
RF: Zigbee 3.0 +2.4G RF Or 2.4G RF Only
Support Tuya Smart APP Control(Zigbee 3.0 Or 2.4G Gateway Needed)
Support Third Party Voice Control: Amazon Alexa, Google Assistant, Yandex Alice, voice assistant, Bai Du, voice assistant(Zigbee 3.0 Or 2.4G Gateway Needed)
Control Distance: Zigbee: ≤50m(Open Area) / 2.4G RF: ≤30m(Open Area)
IP Rate: IP20 Non-waterproof(Indoors Only)
Working Temperature: -10-40℃
Dimming Grayscale: 4096 Levels
Dimming Range: 0.1%-100%
Dimming Curve: Logarithmic

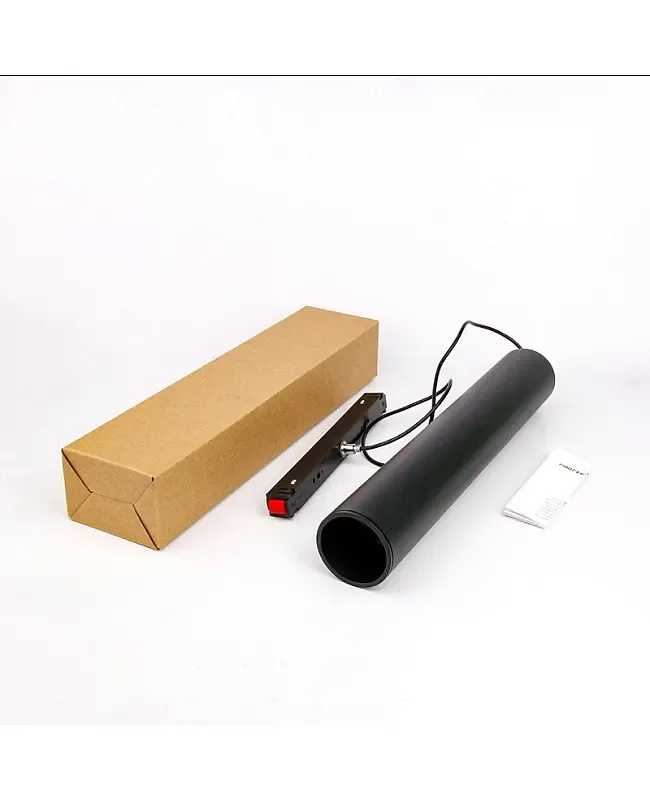

Includes
1 * Magnetic Rail Pendant Lamp
Typical applications
- Everyday room lighting
- Kitchen and cabinet task light
- Retail and commercial fit-outs
