Product details
Low Voltage 24W SYS White RGB Wall Washer Lightings
LumaCircuit offers Low Voltage 24W SYS White RGB Wall Washer Lightings as a configurable linear LED light for project builds. Typical applications include Everyday room lighting, Kitchen and cabinet task light, Retail and commercial fit-outs. Material: Die-Cast Aluminum + Stalinite Size: 1017*64*62mm(L*W*H) Emitting Color: White + RGB The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- The wireless controller White RGB wall washer lightings, which need to work with SYS-T1 1 channel host controller to fulfill the wireless remote control function, can be controlled by 2.4G remote controls to choose the static color, adjust the saturation, brightness, and color temperature for various scenes. There are 16 million colors available. The IP rate is IP66, and they are excellent waterproof and dustproof. The installer can install them in a damp location and use them on rainy days.
- Material: Die-Cast Aluminum + Stalinite
- Size: 1017*64*62mm(L*W*H)
- Emitting Color: White + RGB
- Color Temperature Adjustable: 2700 K- 6500 K
- Saturation, Brightness And CCT Adjustable
- Need To Work With SYS-T1 Host Controller To Fulfill The Wireless Remote Control
- Light Efficiency: 75LM/W
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 24 V
- Light engine: CCT
- LumaCircuit model: LC-LIN-FO8MY6
- Material: Die-Cast Aluminum + Stalinite
- Size: 1017*64*62mm(L*W*H)
- Working Voltage: DC24V
- Power: 24W
- Emitting Color: White + RGB
- Color Temperature Adjustable: 2700 K- 6500 K
- CRI: >
- Beam Angle: 15*60°
- IP Rate: IP66
Control and installation
Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination.
Plan the installation around Everyday room lighting, Kitchen and cabinet task light, Retail and commercial fit-outs. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview

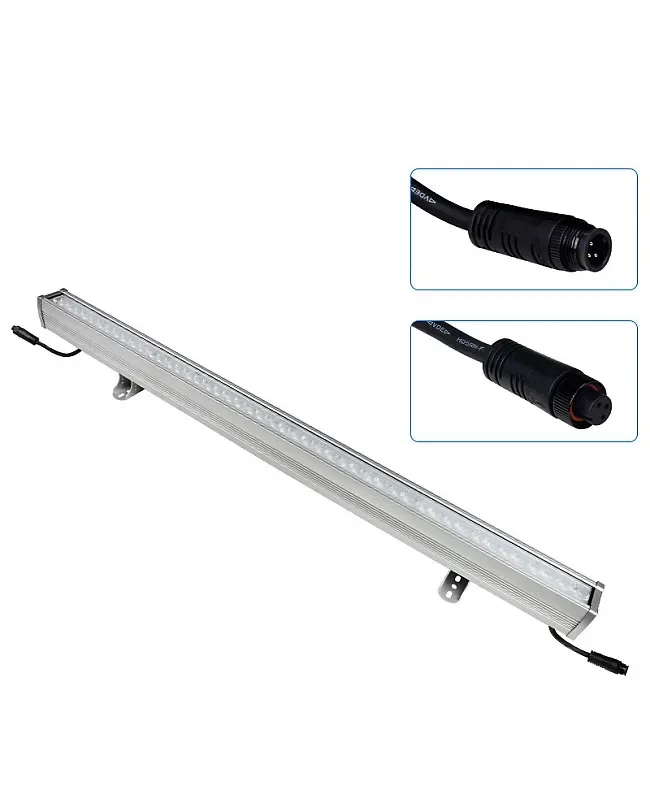

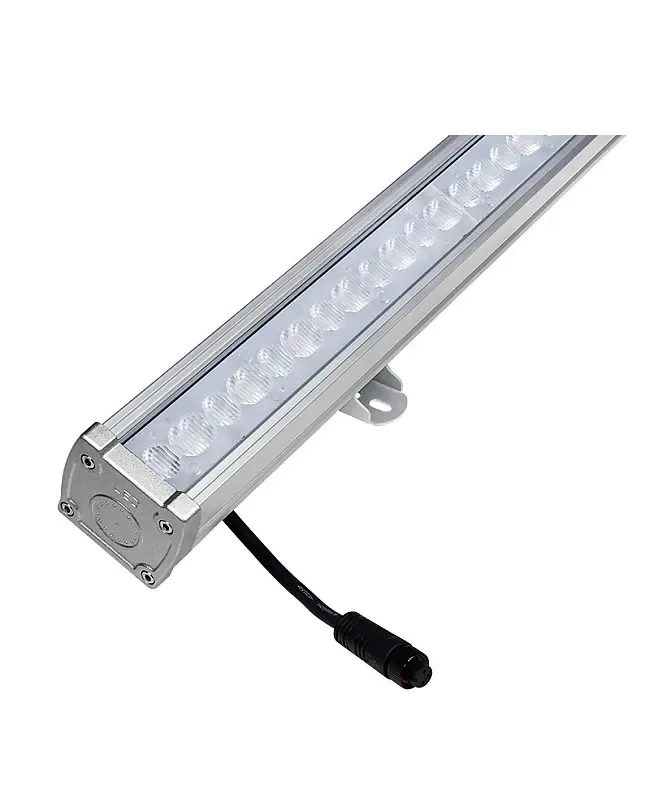

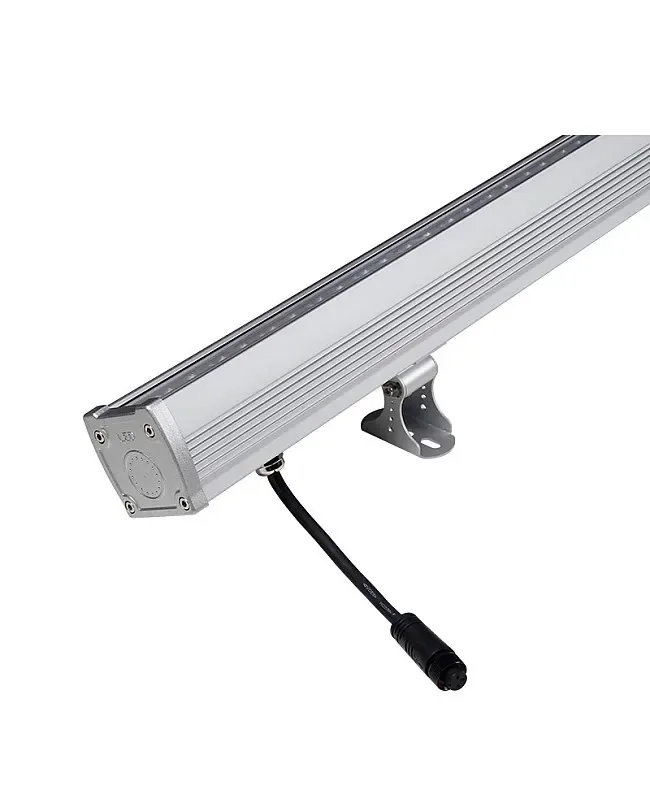

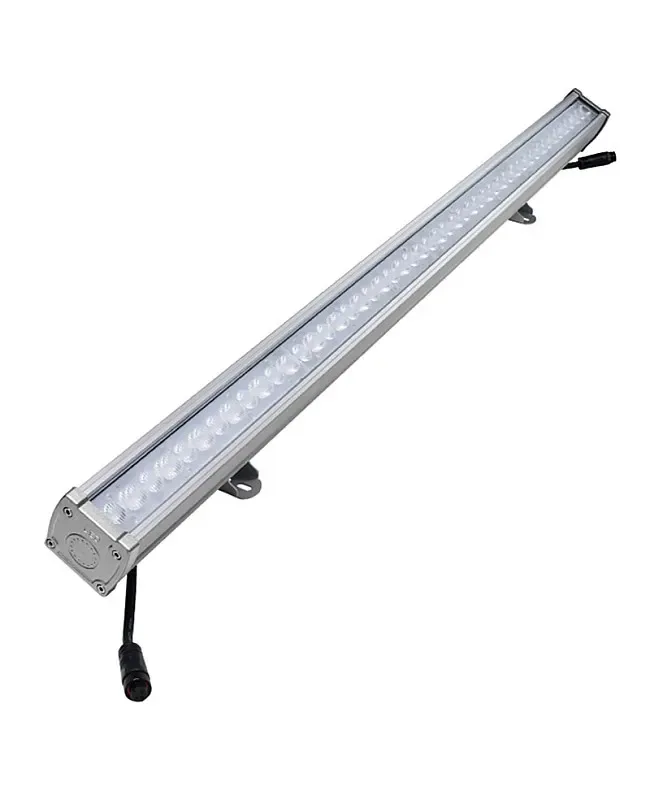

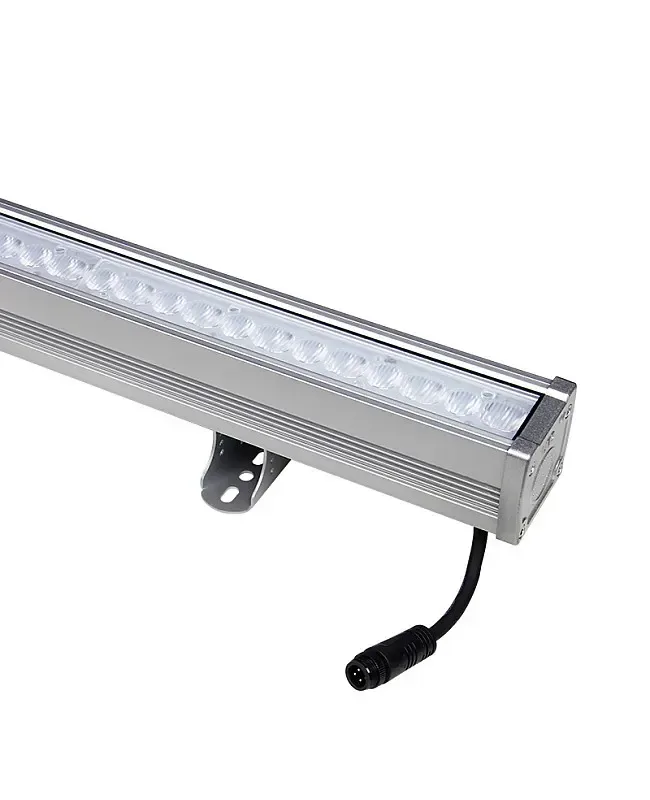

The wireless controller White RGB wall washer lightings, which need to work with SYS-T1 1 channel host controller to fulfill the wireless remote control function, can be controlled by 2.4G remote controls to choose the static color, adjust the saturation, brightness, and color temperature for various scenes. There are 16 million colors available. The IP rate is IP66, and they are excellent waterproof and dustproof. The installer can install them in a damp location and use them on rainy days. The RGB white wall washer light has a high-quality aluminum alloy housing, high hardness, anti-corrosion, and fast heat dissipation. The surface has an optical lens for high lighting, transmitting rate, wide beam angle, and long illumination distance. The 180° rotatable brackets allow for the free beam angle adjustment. The installer can purchase the 1 Channel Amplifier separately and add more Wall Washer Lights to your project, all working with synchronization. The installer can use them for commercial lighting in hotels, restaurants, bars, malls, bridges, etc.
Specifications
Model
Material: Die-Cast Aluminum + Stalinite
Size: 1017*64*62mm(L*W*H)
Working Voltage: DC24V
Power: 24W
Emitting Color: White + RGB
Color Temperature Adjustable: 2700 K- 6500 K
16 Million Colors Available
Saturation, Brightness And CCT Adjustable
Need To Work With SYS-T1 Host Controller To Fulfill The Wireless Remote Control
Luminous Flux: 1800LM
Light Efficiency: 75LM/W
CRI: >
Beam Angle: 15*60°
Illumination Distance: >15m
IP Rate: IP66

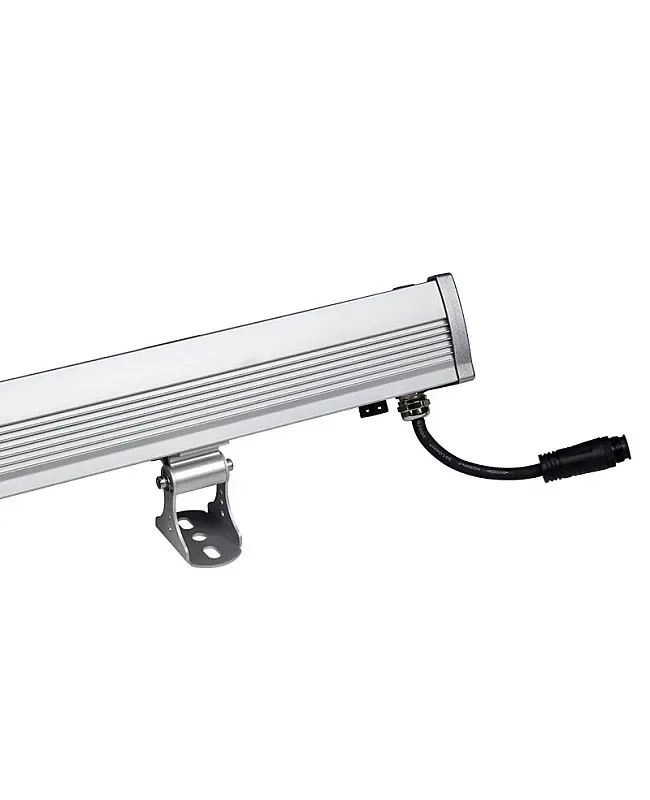

180° Rotatable Brackets Included
High Lumen LED Chips
Optical Lens And Stalinite Cover
High-Quality Aluminum Alloy Housing
Working Temperature: -20℃-+60℃
Includes
1 * White RGB Wall Washer Lighting
Typical applications
- Everyday room lighting
- Kitchen and cabinet task light
- Retail and commercial fit-outs
