Product details
5050 Waterproof 3 LED Module
LumaCircuit offers 5050 Waterproof 3 LED Module as a configurable LED module for project builds. Typical applications include Lighting system BOMs, OEM and ODM configurations, Replacement and service parts. Output Power Wattage: 0.72W Emitting Colors: RGB, Warm White, White, Blue, Red, Green, Yellow, Pink Back With Double-Sided 3M Tape The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- The 5050 waterproof 3 LED modules use three pieces of high-quality 5050 SMD LEDs as the light source, with different emitting colors available. The 3 LED modules work at DC12V, and the SMD LEDs are mounted on the aluminum PCB board; the surface is epoxy-coated, the waterproof level can reach IP65, and they can work in outdoor projects. The 5050 3 LED modules come back with 3M double-sided tape, making them easy to install and use.
- Output Power Wattage: 0.72W
- Emitting Colors: RGB, Warm White, White, Blue, Red, Green, Yellow, Pink
- Back With Double-Sided 3M Tape
- 1 * 5050 Waterproof 3 LED Module(20PCS/String)
- The 5050 Waterproof 3 LED Modules use 3pcs high-quality 5050 SMD LEDs as the light source working in DC12V, the surface with epoxy coated and can be used in outdoor projects.
- A serviceable module component for a complete lighting BOM.
- The configured light engine is CCT.
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 12 V
- Light engine: CCT
- LumaCircuit model: LC-MOD-KVT6TT
- Size: 45*12mm
- LED Type: 5050
- LED Quantity: 3PCS
- Working Voltage: DC12V
- Output Power Wattage: 0.72W
- Lumen: 42-48mm
- Emitting Colors: RGB, Warm White, White, Blue, Red, Green, Yellow, Pink
- Dimensions found: 45x12mm / 12mm / 48mm
Control and installation
Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM.
Plan the installation around Lighting system BOMs, OEM and ODM configurations, Replacement and service parts. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview

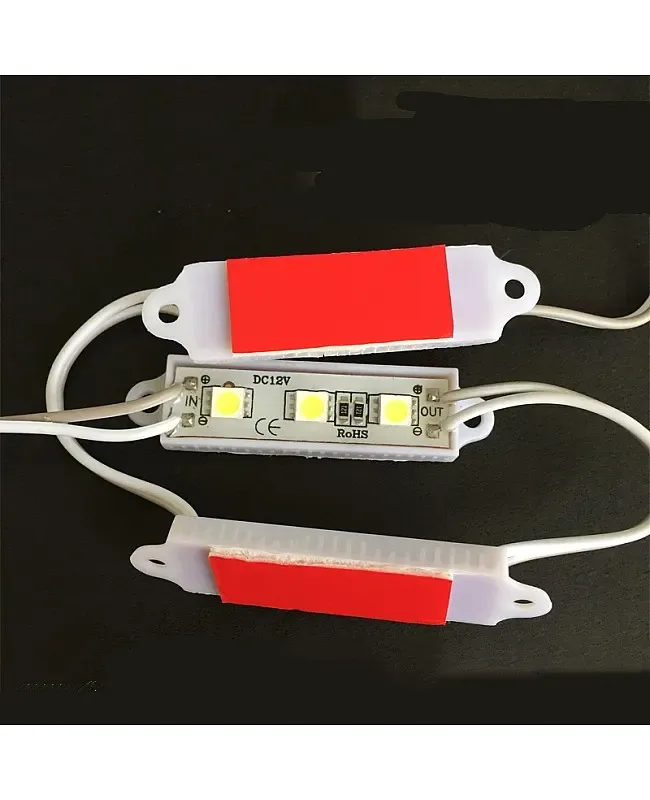

The 5050 waterproof 3 LED modules use three pieces of high-quality 5050 SMD LEDs as the light source, with different emitting colors available. The 3 LED modules work at DC12V, and the SMD LEDs are mounted on the aluminum PCB board; the surface is epoxy-coated, the waterproof level can reach IP65, and they can work in outdoor projects. The 5050 3 LED modules come back with 3M double-sided tape, making them easy to install and use. The installer can choose the RGB or single color LED modules, connect to an LED controller or LED dimmer to adjust the lighting style or brightness.

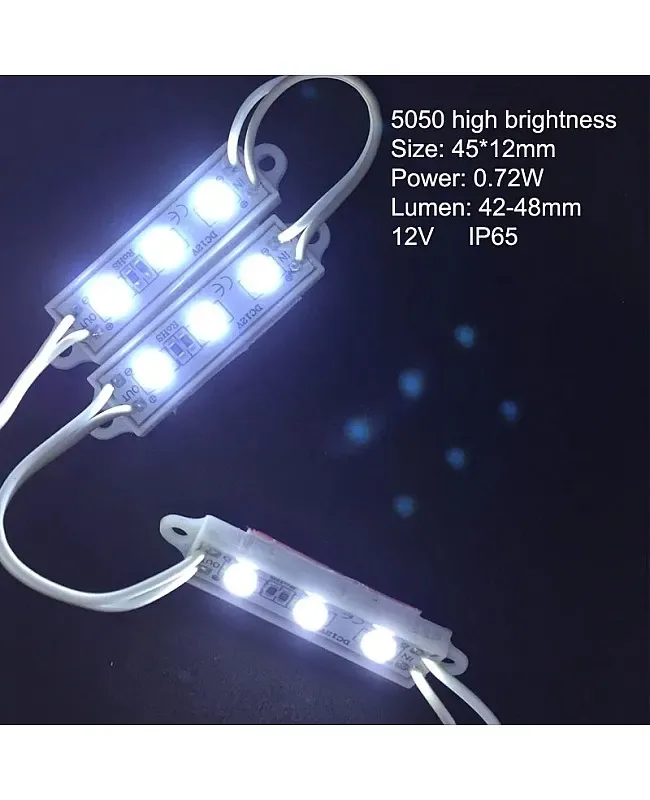

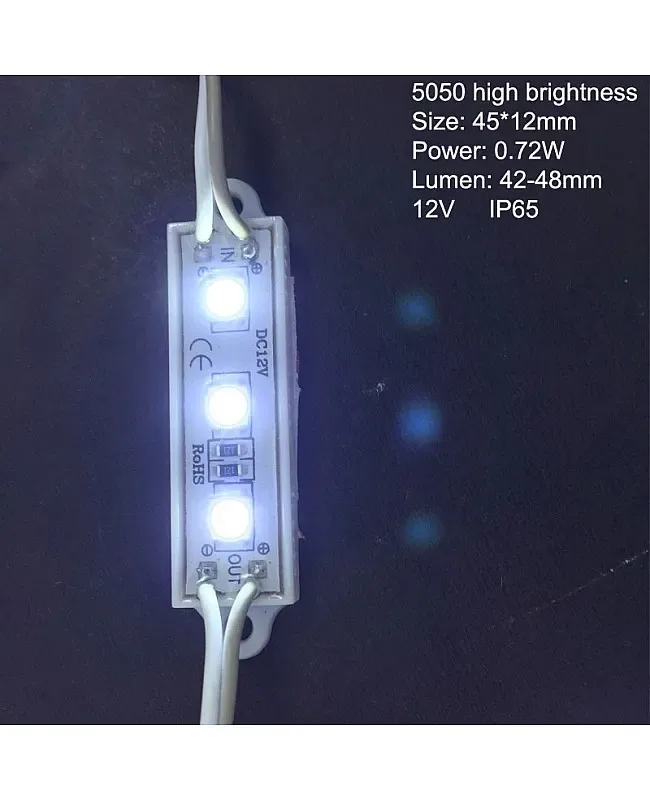

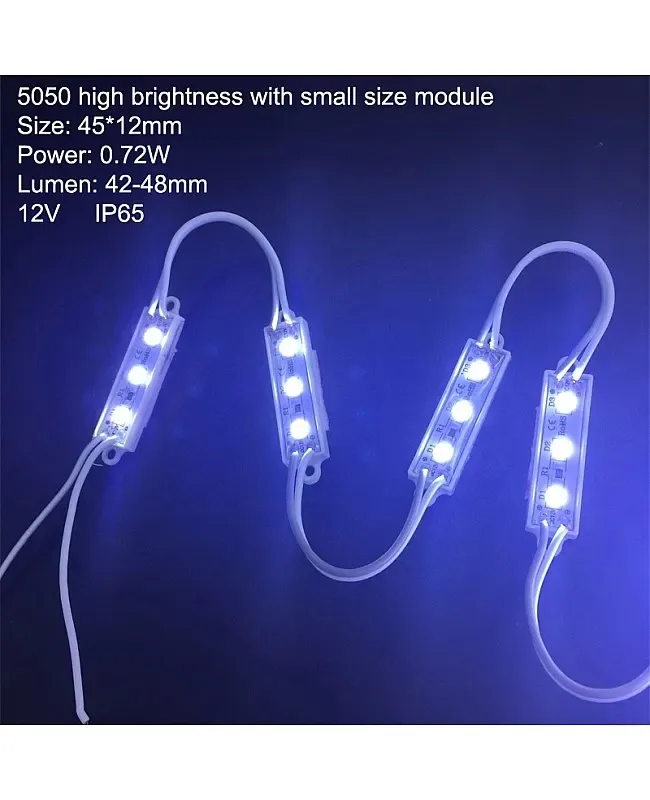

Specifications
Model
Size: 45*12mm
LED Type: 5050
LED Quantity: 3PCS
Working Voltage: DC12V
Output Power Wattage: 0.72W
Lumen: 42-48mm
Emitting Colors: RGB, Warm White, White, Blue, Red, Green, Yellow, Pink
Waterproof Level: IP65
Back With Double-Sided 3M Tape
Includes

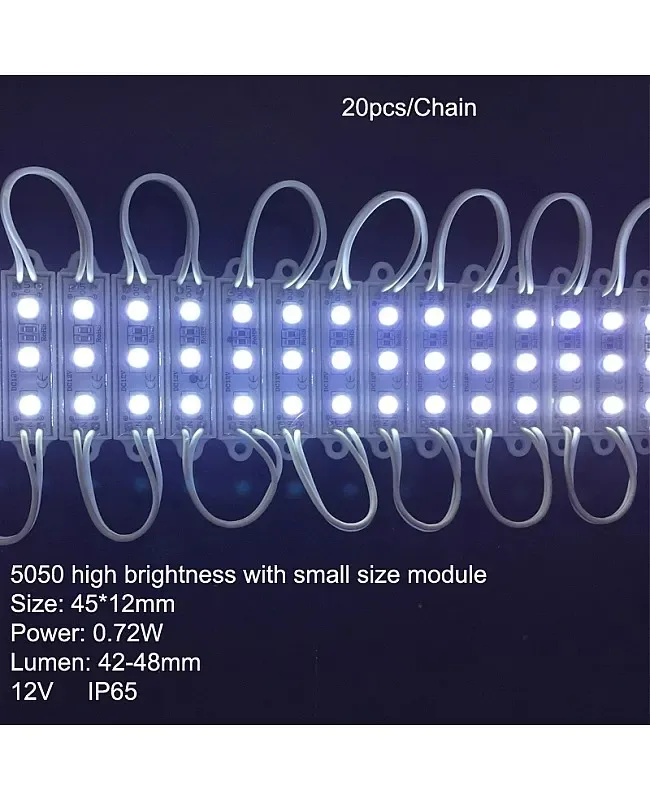

1 * 5050 Waterproof 3 LED Module(20PCS/String)
Typical applications
- Lighting system BOMs
- OEM and ODM configurations
- Replacement and service parts
