Product details
12V SMD Waterproof 3 LED Modules
LumaCircuit offers 12V SMD Waterproof 3 LED Modules as a configurable LED module for project builds. Typical applications include Lighting system BOMs, OEM and ODM configurations, Replacement and service parts. Color Temperature: Warm White(3000-3500K)/Cool White(10000-12000K)/Neutral White(6000-6500K)/Red(620-625nm)/Green(520-530nm)/Blue(465-470nm)/Yellow(585-590nm) Optical Attenuation: >2% Back With 3M Double-Sided Tape The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.

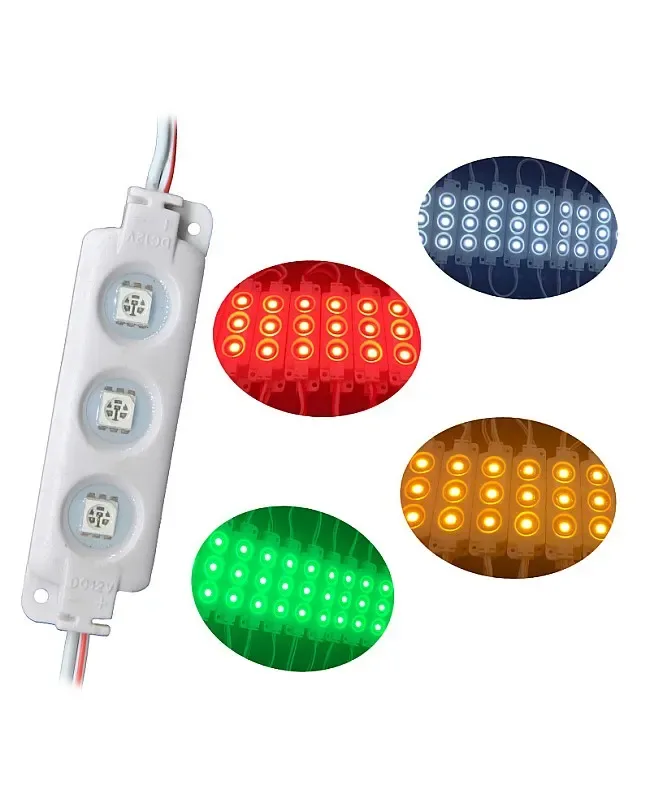

- Emitting Colors: Warm White, White, Red, Green, Blue, Yellow, RGB
- Color Temperature: Warm White(3000-3500K)/Cool White(10000-12000K)/Neutral White(6000-6500K)/Red(620-625nm)/Green(520-530nm)/Blue(465-470nm)/Yellow(585-590nm)
- Optical Attenuation: >2%

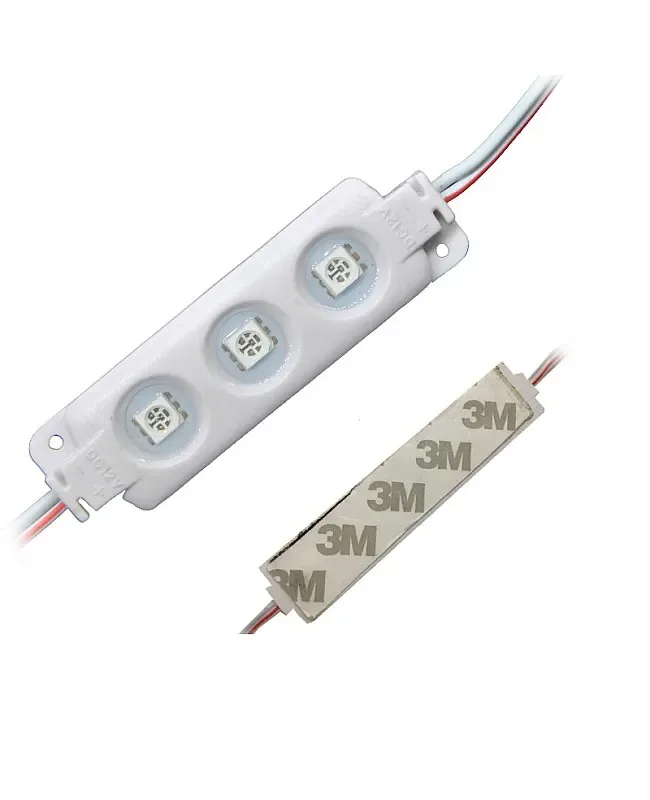

- Back With 3M Double-Sided Tape
- Both Ends With Screw Holes
- Wire Length Between 2PCS 5050 Modules: 5cm
- Cuttable And Reconnectable
- Working Temperature: -40°-50°
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 12 V
- Light engine: CCT

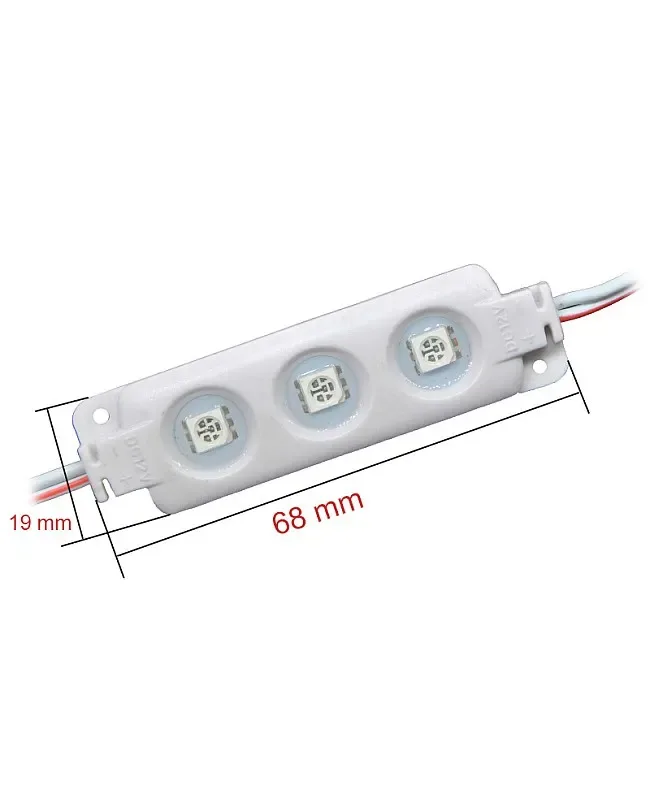

- Size: 68*19mm(L*W)

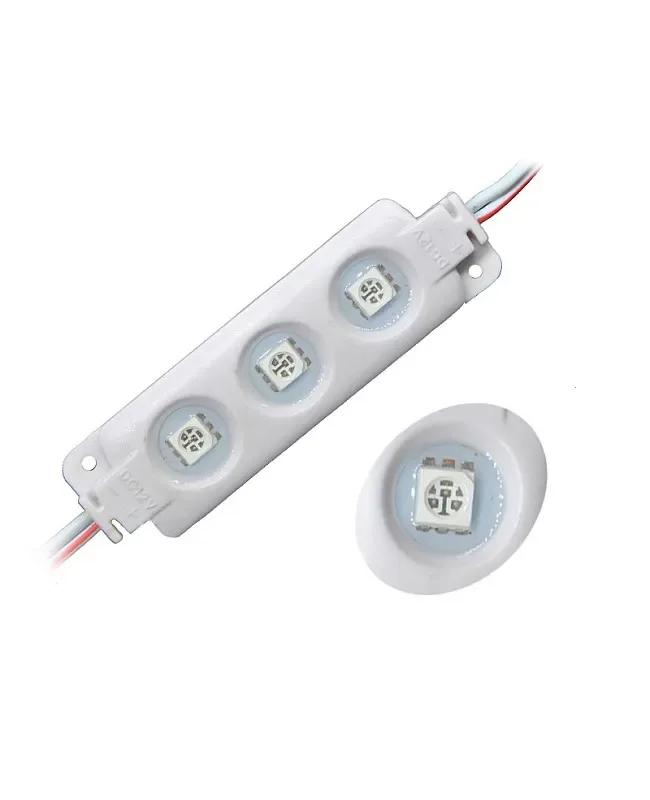

- LED Type: 5050 SMD LEDs
- LED Quantity: 3PCS
- Working Voltage: DC12V
- Emitting Colors: Warm White, White, Red, Green, Blue, Yellow, RGB
- Color Temperature: Warm White(3000-3500K)/Cool White(10000-12000K)/Neutral White(6000-6500K)/Red(620-625nm)/Green(520-530nm)/Blue(465-470nm)/Yellow(585-590nm)
- Power: 0.72W/PC
- Beam Angle: 120°
- Optical Attenuation: >2%
- Wire Length Between 2PCS 5050 Modules: 5cm
Control and installation
Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM.
Plan the installation around Lighting system BOMs, OEM and ODM configurations, Replacement and service parts. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Specifications
Size: 68*19mm(L*W)
LED Type: 5050 SMD LEDs
LED Quantity: 3PCS
Working Voltage: DC12V
Emitting Colors: Warm White, White, Red, Green, Blue, Yellow, RGB
Color Temperature: Warm White(3000-3500K)/Cool White(10000-12000K)/Neutral White(6000-6500K)/Red(620-625nm)/Green(520-530nm)/Blue(465-470nm)/Yellow(585-590nm)
Power: 0.72W/PC
Waterproof Level: IP65
Color Rendering Index
Beam Angle: 120°
Optical Attenuation: >2%
Back With 3M Double-Sided Tape
Both Ends With Screw Holes
Wire Length Between 2PCS 5050 Modules: 5cm
Cuttable And Reconnectable
Working Temperature: -40°-50°
Weight: 200g
Includes
1 * 3 LED Modules(20PCS/String)
Typical applications
- Lighting system BOMs
- OEM and ODM configurations
- Replacement and service parts
