SK6812 RGBW Replacement SMD LED Chips With IC
LumaCircuit offers SK6812 RGBW Replacement SMD LED Chips With IC as a configurable LED module for project builds. Typical applications include Everyday room lighting, Kitchen and cabinet task light, Retail and commercial fit-outs. Link: SK6812 RGBW LED Strips Current: Per Color, Total Colors: RGBW: RGB+White(6000-7000K), RGBWW: RGB+Warm White(2700-3000K), RGBNW: RGB+Natural White(4000-4500K) The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Use this product on the WLED ambient route. Match the controller to the listed SK6812 LED type, voltage, data direction and total load; long runs also need a fuse and power-injection plan. WLED, Home Assistant and any show-control bridge remain separate validation points. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- The SK6812 RGBW replacement SMD LED chips are built with an SK6812 IC; the SMD LEDs include red, blue, and green LED chips, plus white LED chips. The installer can choose warm white, natural white, and cool white for various scenes. This compact SMD LED blends your four source colors while reducing hot spots, glare, and shadows. The red, green, and blue chips have 630nm, 525nm, 470nm, and color temperatures from 2700K to 7000 K. The SMD LEDs emit a wide 120° viewing angle.
- Link: SK6812 RGBW LED Strips
- Current: Per Color, Total
- Colors: RGBW: RGB+White(6000-7000K), RGBWW: RGB+Warm White(2700-3000K), RGBNW: RGB+Natural White(4000-4500K)
- Wavelengths: Red(620-630nm), Green(515-525nm), Blue(460-470nm), Warm White(2700-3000K), Cool White(6000-7000K), Natural White(4000-4500K)
- IC Type: SK6812 Built-In
- NO.1 Symbol: VDD Function Description: Power Supply LED
- NO.2 Symbol: DOUT Function Description: Control Data Signal Output
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 5 V
- Light engine: RGBW
- WLED chip: SK6812
- Size: 5.5*5.0*1.6mm
- Power: 0.3W
- Current: Per Color, Total
- Colors: RGBW: RGB+White(6000-7000K), RGBWW: RGB+Warm White(2700-3000K), RGBNW: RGB+Natural White(4000-4500K)
- Wavelengths: Red(620-630nm), Green(515-525nm), Blue(460-470nm), Warm White(2700-3000K), Cool White(6000-7000K), Natural White(4000-4500K)
- Power Supply Voltage Symbol: VDD Range: +3.5V-+5.5V
- Logic Input Voltage Symbol: V(IN) Range: -0.5-VDD+0.5V
- Working Temperature Symbol: Topt Range: -40-+85℃
- Storage Temperature Symbol: Tstg Range: -50-+150℃
Control and installation
Use this product on the WLED ambient route. Match the controller to the listed SK6812 LED type, voltage, data direction and total load; long runs also need a fuse and power-injection plan. WLED, Home Assistant and any show-control bridge remain separate validation points.
Plan the installation around Everyday room lighting, Kitchen and cabinet task light, Retail and commercial fit-outs. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview

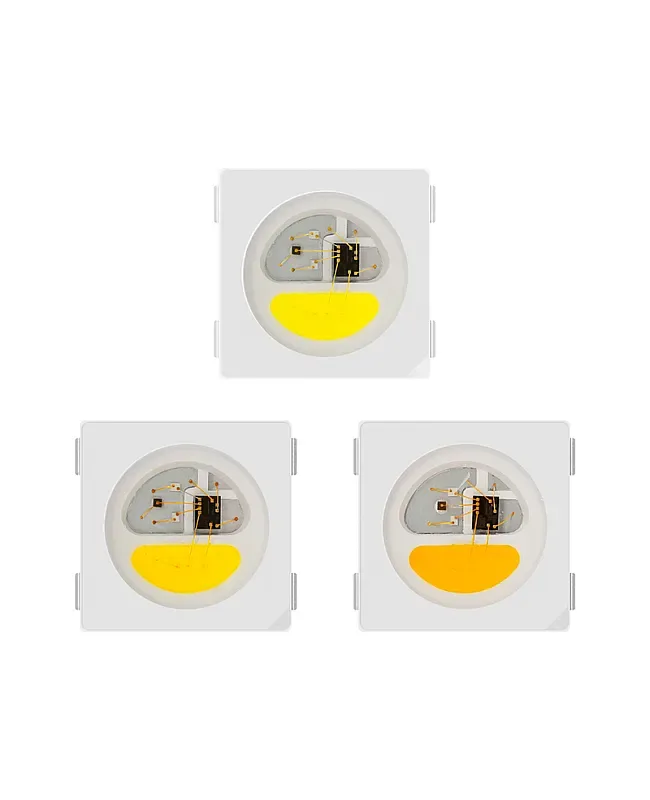

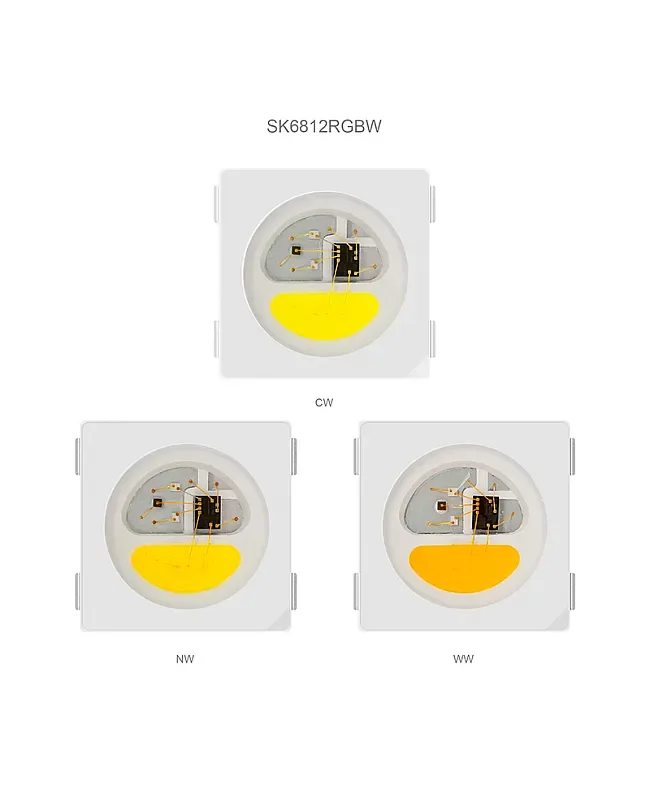

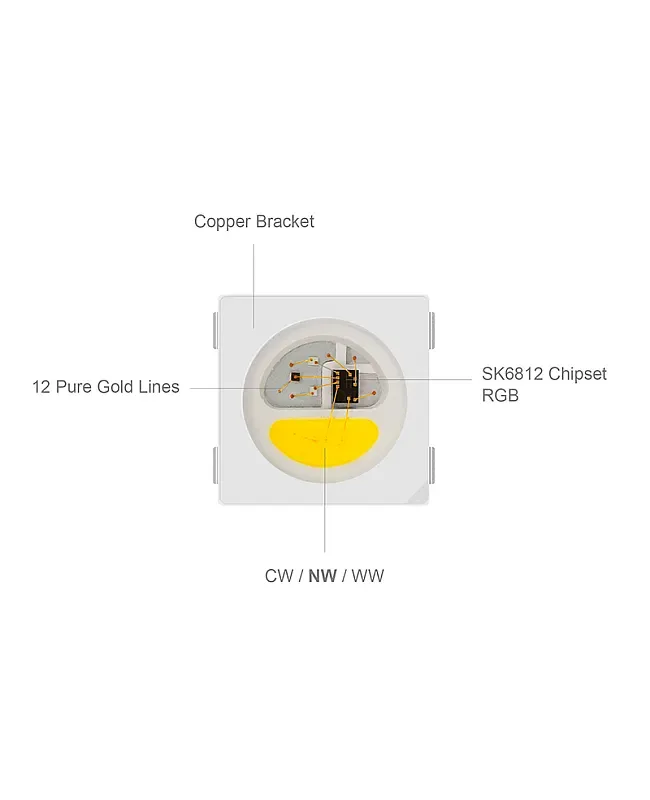

The SK6812 RGBW replacement SMD LED chips are built with an SK6812 IC; the SMD LEDs include red, blue, and green LED chips, plus white LED chips. The installer can choose warm white, natural white, and cool white for various scenes. This compact SMD LED blends your four source colors while reducing hot spots, glare, and shadows. The red, green, and blue chips have 630nm, 525nm, 470nm, and color temperatures from 2700K to 7000 K. The SMD LEDs emit a wide 120° viewing angle. The installer can use them to replace broken LEDs in LED lights or for DIY lighting projects.
Link: SK6812 RGBW LED Strips
Specifications
Voltage
Size: 5.5*5.0*1.6mm
Power: 0.3W
Current: Per Color, Total
Colors: RGBW: RGB+White(6000-7000K), RGBWW: RGB+Warm White(2700-3000K), RGBNW: RGB+Natural White(4000-4500K)
Wavelengths: Red(620-630nm), Green(515-525nm), Blue(460-470nm), Warm White(2700-3000K), Cool White(6000-7000K), Natural White(4000-4500K)
IC Type: SK6812 Built-In

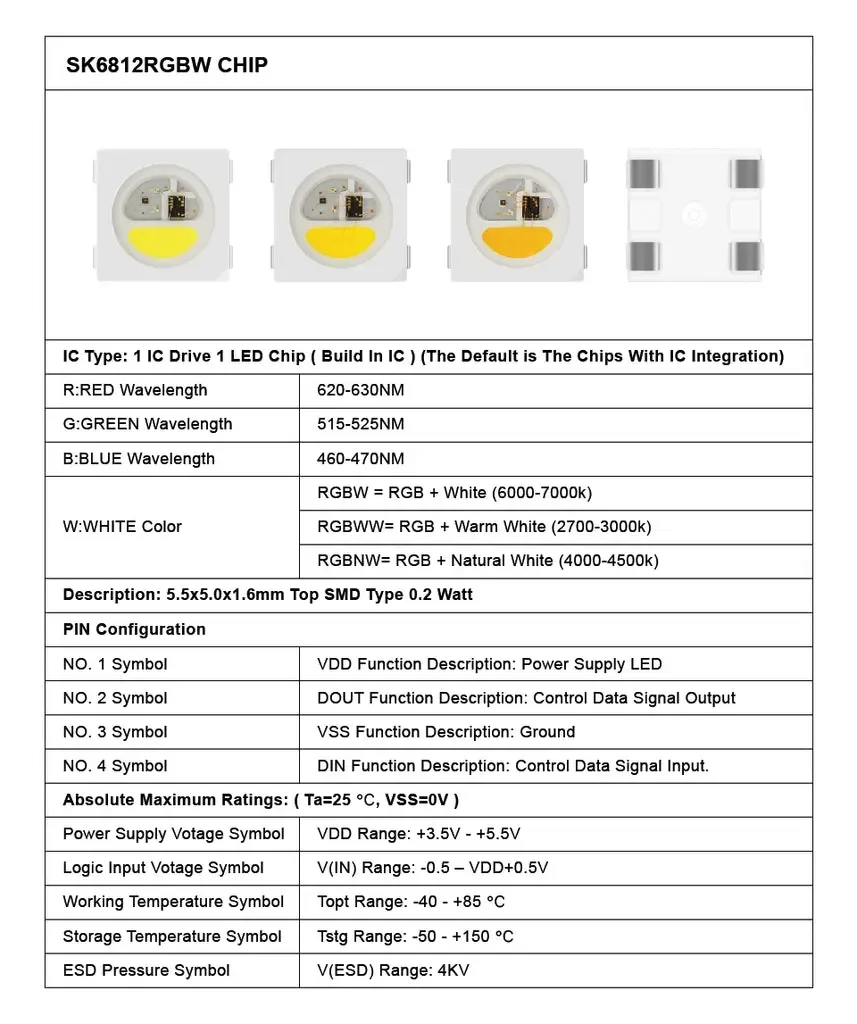

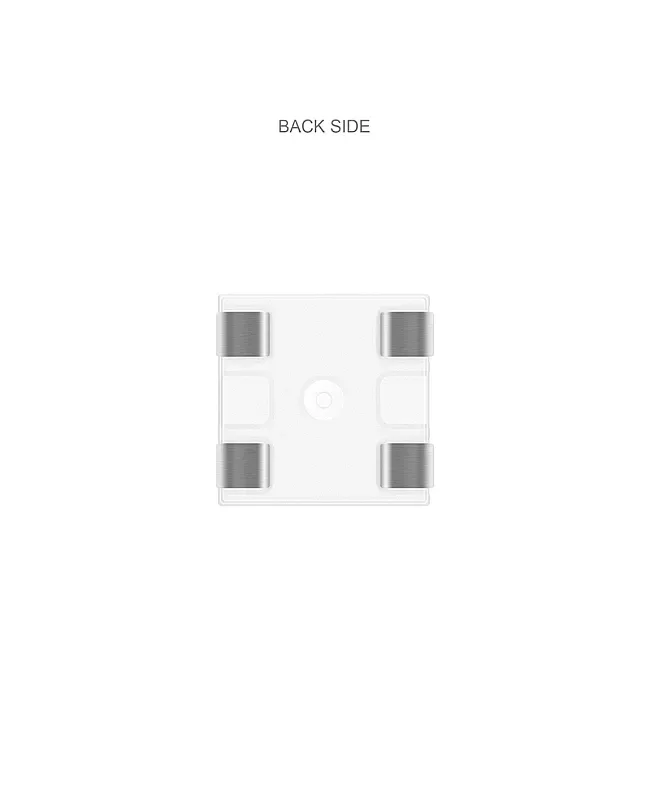

Pin Configuration
NO.1 Symbol: VDD Function Description: Power Supply LED
NO.2 Symbol: DOUT Function Description: Control Data Signal Output
NO.3 Symbol: VSS Function Description: Ground
NO.4 Symbol: DIN Function Description: Control Data Signal Input
Absolute Max Ratings:(Ta=25℃，VSS=0V)
Power Supply Voltage Symbol: VDD Range: +3.5V-+5.5V
Logic Input Voltage Symbol: V(IN) Range: -0.5-VDD+0.5V
Working Temperature Symbol: Topt Range: -40-+85℃
Storage Temperature Symbol: Tstg Range: -50-+150℃
ESD Pressure Symbol: V(ESD) Range
View Angle: 120°
Includes
1 * RGBW SMD LED Chips With SK6812 IC
Typical applications
- Everyday room lighting
- Kitchen and cabinet task light
- Retail and commercial fit-outs
