Injection COB 12V Light Modules For LED Advertise Signs
LumaCircuit offers Injection COB 12V Light Modules For LED Advertise Signs as a configurable LED module for project builds. Typical applications include Lighting system BOMs, OEM and ODM configurations, Replacement and service parts. Material: PVC + Aluminum Board Working Voltage: DC12V DC24V Colors: White, Warm White, Yellow, Red, Green, Blue, Pink, Ice Blue The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- The COB 12V light modules for LED advertising signs are designed to provide a bright, consistent light source for LED signs. These LED modules use a high-power chip-on-board(COB) LED Light source. LEDs are mounted on a high-quality aluminum board for better heat dissipation, with a surface with a PMMA lens for a wide beam angle, no visible light spot, and no dark area. The IP rate is IP65, which can be used for indoor and outdoor applications.
- Material: PVC + Aluminum Board
- Working Voltage: DC12V DC24V

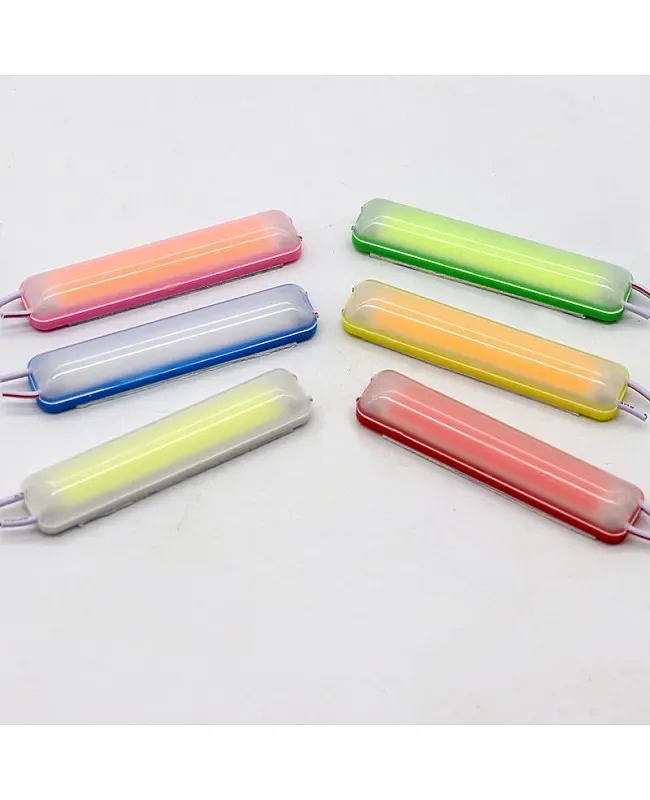

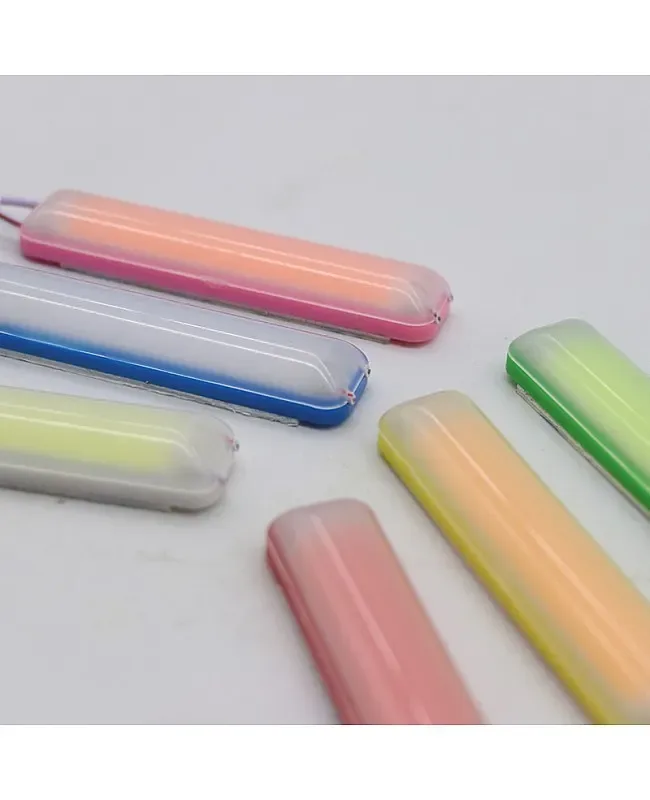

- Colors: White, Warm White, Yellow, Red, Green, Blue, Pink, Ice Blue
- Luminous Flux: 120-140lm
- Back With Double-sided Adhesive Tape
- Cuttable And Reconnectable
- Working Temperature: -20℃-+40℃
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 12 V / 24 V
- Light engine: CCT
- LumaCircuit model: LC-MOD-5XTTX7
- Material: PVC + Aluminum Board
- Size: 75*16mm(L*W)
- LED Type: COB
- LED Quantity: 9PCS
- Working Voltage: DC12V DC24V
- Working Wattage: 2.4W
- Colors: White, Warm White, Yellow, Red, Green, Blue, Pink, Ice Blue
- Beam Angle: 120°
- IP Rating: IP65
Control and installation
Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM.
Plan the installation around Lighting system BOMs, OEM and ODM configurations, Replacement and service parts. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview
The COB 12V light modules for LED advertising signs are designed to provide a bright, consistent light source for LED signs. These LED modules use a high-power chip-on-board(COB) LED Light source. LEDs are mounted on a high-quality aluminum board for better heat dissipation, with a surface with a PMMA lens for a wide beam angle, no visible light spot, and no dark area. The IP rate is IP65, which can be used for indoor and outdoor applications. The COB light modules work on DC12V or DC24V, making it easy to connect to the LED adapters to light up or connect to the LED light dimmer to adjust the brightness. 20PCS per string, cuttable and reconnectable. The installer can cut to any quantity and reconnect them for your project. The 12V COB light modules are easy to install; the back has double-sided adhesive tape. Removing the protective paper from the tape and sticking it where you want to install it is easy. The installer can use them as the backlight of channel letters, signs, billboards, holiday decorations, sign lighting, under-cabinet lighting, window lighting, display lighting, trade show lighting, etc. There are various emitting color products available to meet your needs.
Specifications
Model: 7516
Material: PVC + Aluminum Board
Size: 75*16mm(L*W)
LED Type: COB
LED Quantity: 9PCS
Working Voltage: DC12V DC24V
Working Wattage: 2.4W
Colors: White, Warm White, Yellow, Red, Green, Blue, Pink, Ice Blue
Luminous Flux: 120-140lm
Beam Angle: 120°
IP Rating: IP65
20PCS Per String
Back With Double-sided Adhesive Tape
Cuttable And Reconnectable
Color Rendering Index
Working Temperature: -20℃-+40℃
Includes
1 * COB Light Modules(20PCS/String)
Typical applications
- Lighting system BOMs
- OEM and ODM configurations
- Replacement and service parts
