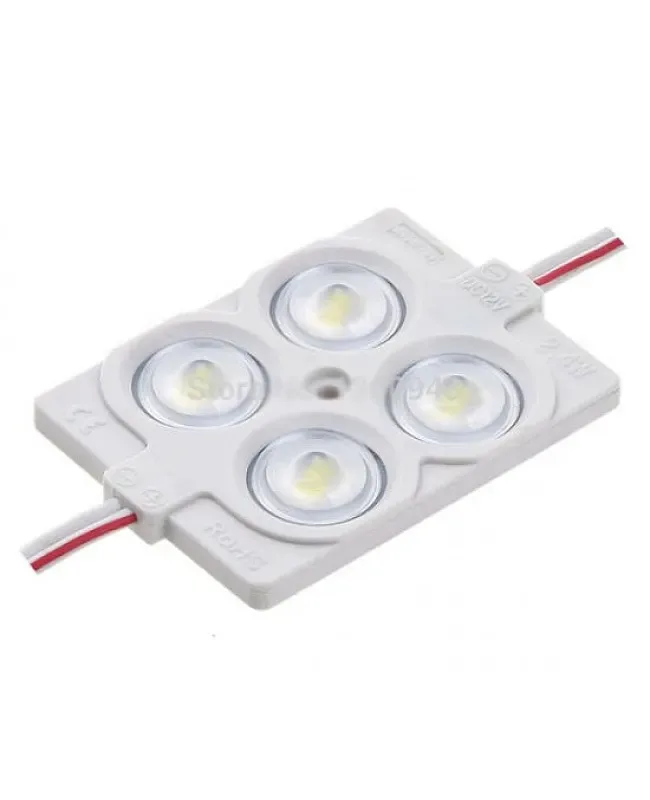

Square 2835 High Power LED Module
LumaCircuit offers Square 2835 High Power LED Module as a configurable LED module for project builds. Typical applications include Lighting system BOMs, OEM and ODM configurations, Replacement and service parts. Color: Warm White/Pure White/Cool White Color Rendering Index: 80 Size: 52 mm*36 mm*7.3 mm The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- 2835 high power LED module working in DC12V, uses the super bright 2835 SMD LEDs as a light source, with a high luminous flux 20 times that of 3528 LEDs, with a high light transmittance PMMA lens. The LED module with the lens has a 160-degree wide beam angle. The LED light module with the constant current driver keeps all LED lighting modules at the same brightness. The module LED is waterproof, with a waterproof level of IP65, and can be installed in wet locations.
- Color: Warm White/Pure White/Cool White
- Color Rendering Index: 80
- Size: 52 mm*36 mm*7.3 mm
- 1 * 2835 high power LED module(20PCS/Set)
- 2835 square high power LED module, working in DC12V, use 4 pieces high power 2835 SMD LEDs as light source, IP65 waterproof.
- A serviceable module component for a complete lighting BOM.
- The configured light engine is CCT.
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 12 V
- Light engine: CCT
- LumaCircuit model: LC-MOD-9KZZ80
- Color: Warm White/Pure White/Cool White
- LED: 2835 SMD LEDs
- LED Quantity: 4pcs
- Voltage: DC12V
- Power: 2.4W
- Lumen: 190lm
- Color Rendering Index: 80
- Size: 52 mm*36 mm*7.3 mm
- Beam Angle: 160 degrees
Control and installation
Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM.
Plan the installation around Lighting system BOMs, OEM and ODM configurations, Replacement and service parts. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview
2835 high power LED module working in DC12V, uses the super bright 2835 SMD LEDs as a light source, with a high luminous flux 20 times that of 3528 LEDs, with a high light transmittance PMMA lens. The LED module with the lens has a 160-degree wide beam angle. The LED light module with the constant current driver keeps all LED lighting modules at the same brightness. The module LED is waterproof, with a waterproof level of IP65, and can be installed in wet locations. Nice structure and design in the PC process, the whole unit is formed in one-time injection molding. It can be used on signs, logos, letters, backlighting, advertisement light boxes, billboard backlighting, etc.
Specifications
LB-2835
Manufacturer
Color: Warm White/Pure White/Cool White
LED: 2835 SMD LEDs
LED Quantity: 4pcs
Voltage: DC12V
Power: 2.4W
IP Rating
Lumen: 190lm
Color Rendering Index: 80
Size: 52 mm*36 mm*7.3 mm
Beam Angle: 160 degrees
1 * 2835 high power LED module(20PCS/Set)
Typical applications
- Lighting system BOMs
- OEM and ODM configurations
- Replacement and service parts
