Product details

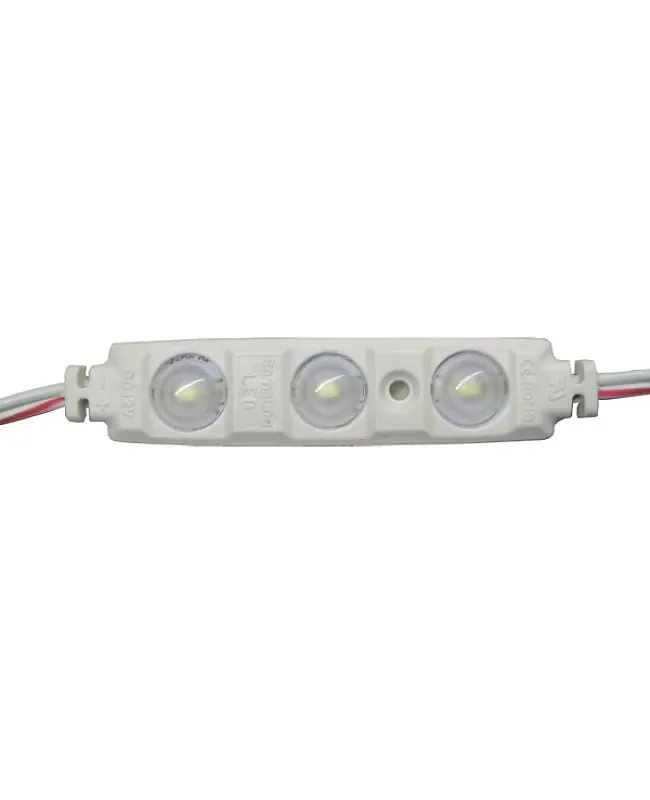

5730 Injection LED Sign Lighting Module
LumaCircuit offers 5730 Injection LED Sign Lighting Module as a configurable LED module for project builds. Typical applications include Lighting system BOMs, OEM and ODM configurations, Replacement and service parts. Color Temperature: 12000-15000(white) Size: 75 mm*15.8 mm*9 mm 1 * LED sign lighting modules(20PCS/Pack) The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.

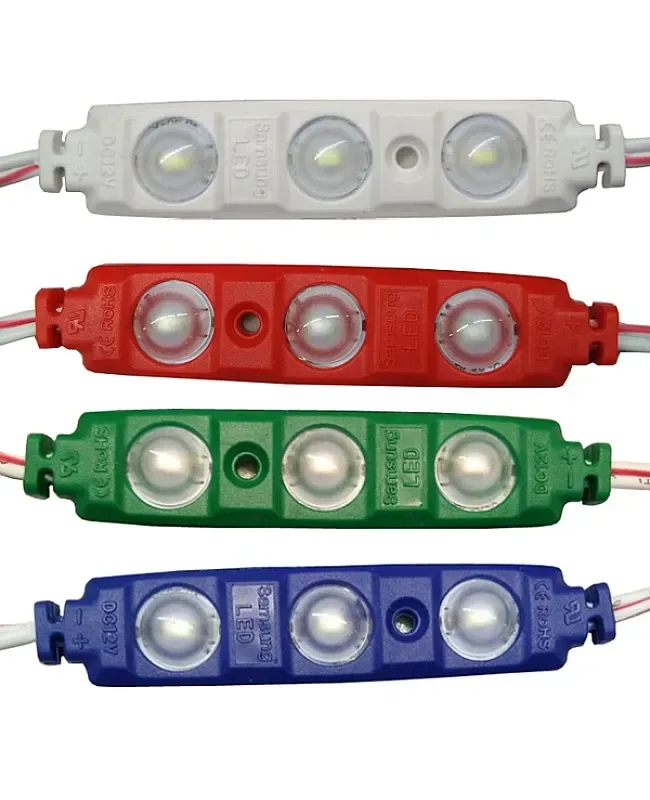

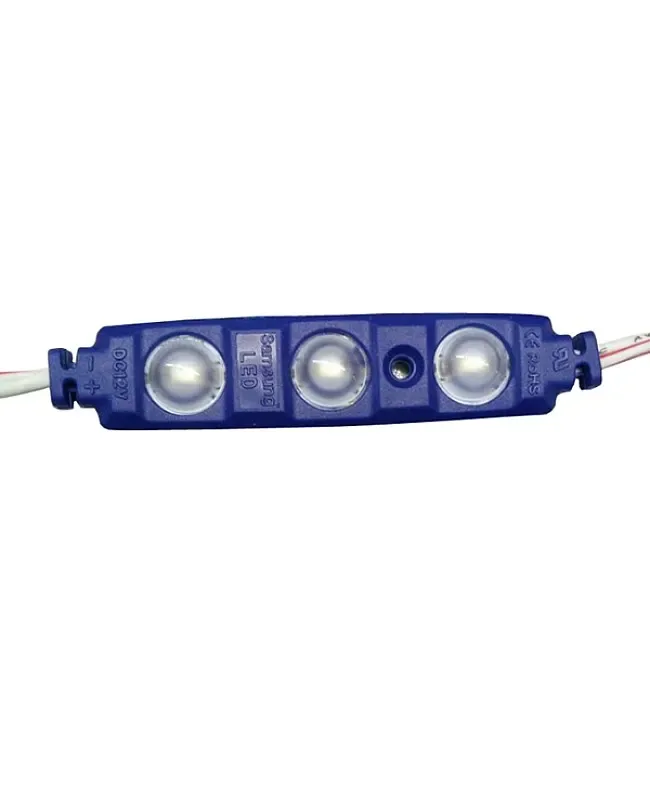

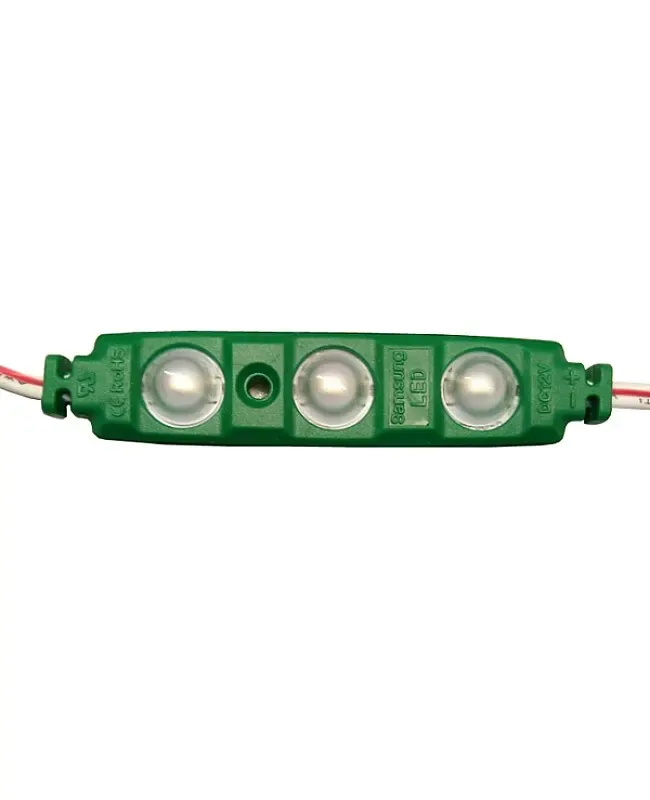

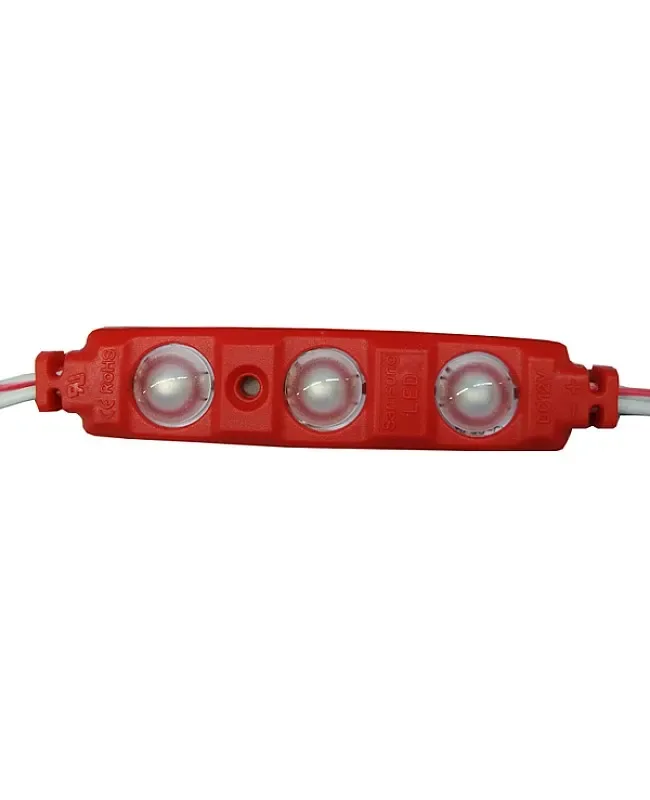

- Color: White, Blue, Red, Green
- Color Temperature: 12000-15000(white)
- Size: 75 mm*15.8 mm*9 mm
- 1 * LED sign lighting modules(20PCS/Pack)
- 5730 injection LED sign lighting module, use 5730 LEDs as light source, waterproof level IP65, 20pcs per string.
- A serviceable module component for a complete lighting BOM.
- The configured light engine is System component.
- The recorded electrical input is 12 V.
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 12 V
- LumaCircuit model: LC-MOD-4I6XGT
- Color: White, Blue, Red, Green
- LED: 5730 SMD LEDs
- LED Quantity: 3pcs
- Voltage: DC12V
- Power: 1.44w
- IP Rating: IP65
- Lumen: 15-20lm
- Color Temperature: 12000-15000(white)
- Size: 75 mm*15.8 mm*9 mm
- Beam angle: 120 degrees
Control and installation
Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM.
Plan the installation around Lighting system BOMs, OEM and ODM configurations, Replacement and service parts. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Specifications
TY
Manufacturer
Color: White, Blue, Red, Green
LED: 5730 SMD LEDs
LED Quantity: 3pcs
Voltage: DC12V
Power: 1.44w
IP Rating: IP65
Lumen: 15-20lm
Color Temperature: 12000-15000(white)
Size: 75 mm*15.8 mm*9 mm
Beam angle: 120 degrees
1 * LED sign lighting modules(20PCS/Pack)
Typical applications
- Lighting system BOMs
- OEM and ODM configurations
- Replacement and service parts
