2835 LED Modules With Lens
LumaCircuit offers 2835 LED Modules With Lens as a configurable LED module for project builds. Typical applications include Lighting system BOMs, OEM and ODM configurations, Replacement and service parts. Working Temperature: -40°-+60° Size: 30mm*12mm*4mm(L*W*H) Color Rendering Index: 80 The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.

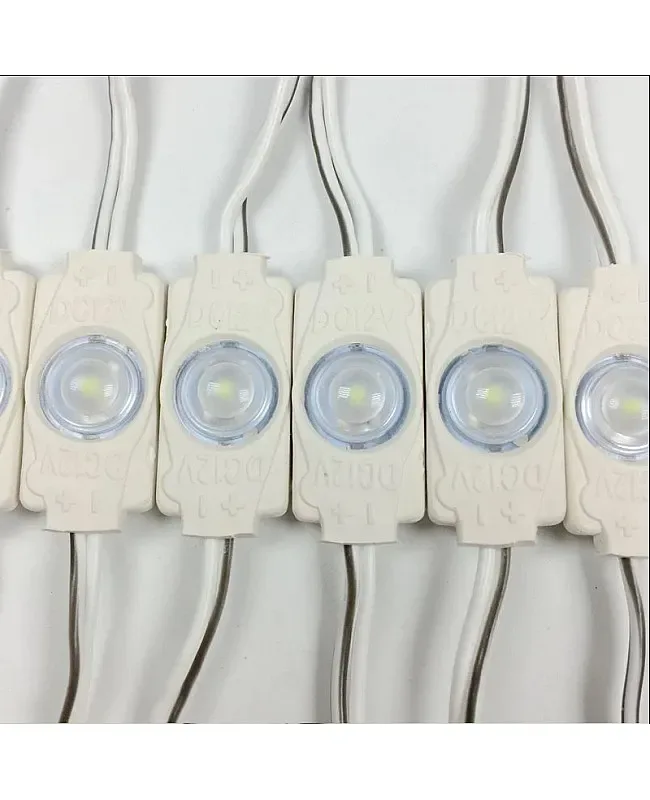

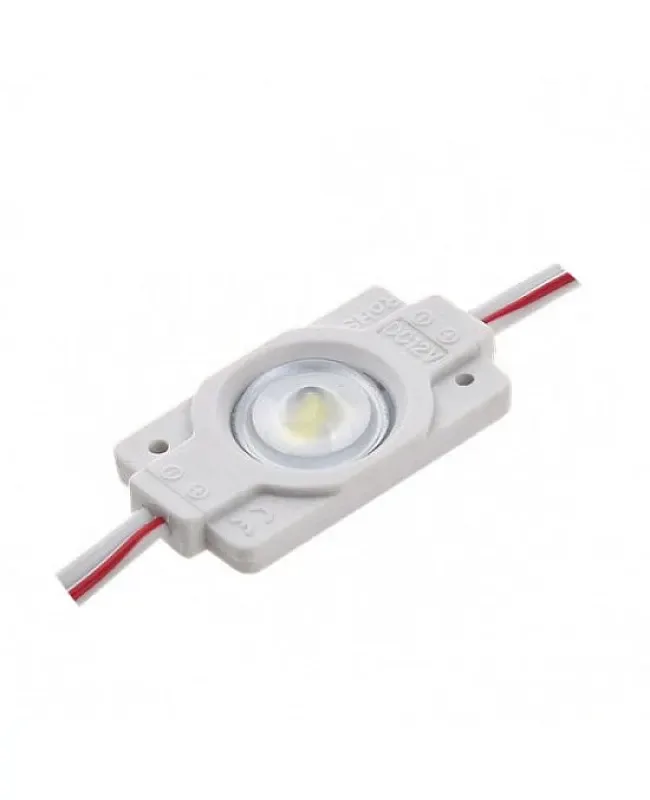

- The 2835 LED modules with a lens, with a better structure and design in the molding injection process, have formed the whole unit in one-time injection molding. Use one piece 2835 SMD LEDs as the light source, the SMD LED is mounted on the aluminum board for better heat dissipation. The LED modules have a transmittance PMMA lens for the wide view angle. The constant current drive ensures that the LED light modules maintain the same brightness and are stable.
- Working Temperature: -40°-+60°
- Size: 30mm*12mm*4mm(L*W*H)
- Color Rendering Index: 80
- Back With Double-sided Adhesive Tape
- Cuttable And Reconnectable

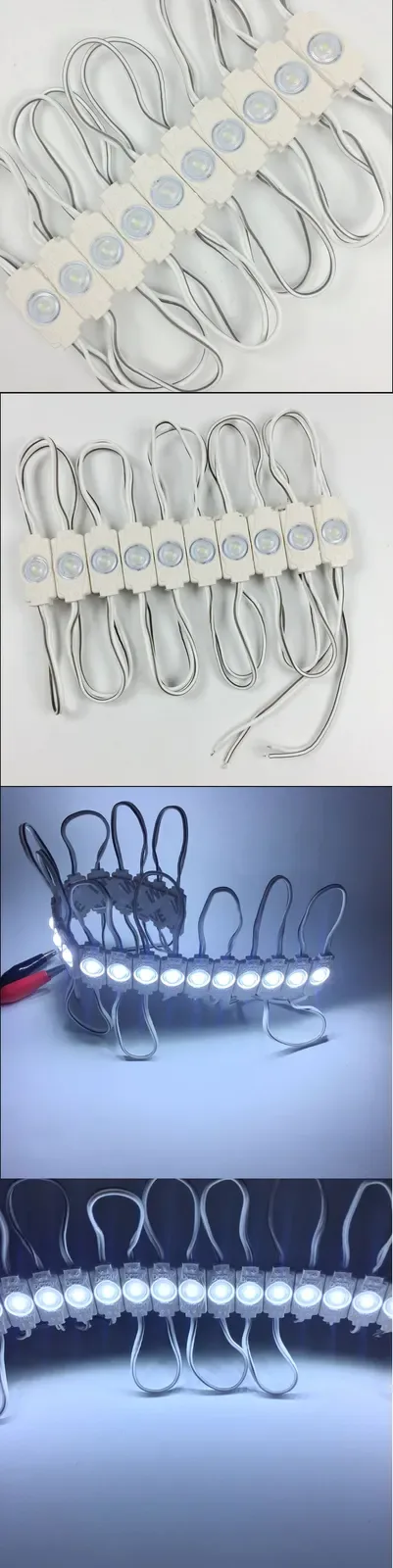

- 1 * 2835 LED Modules(20PCS Per String)

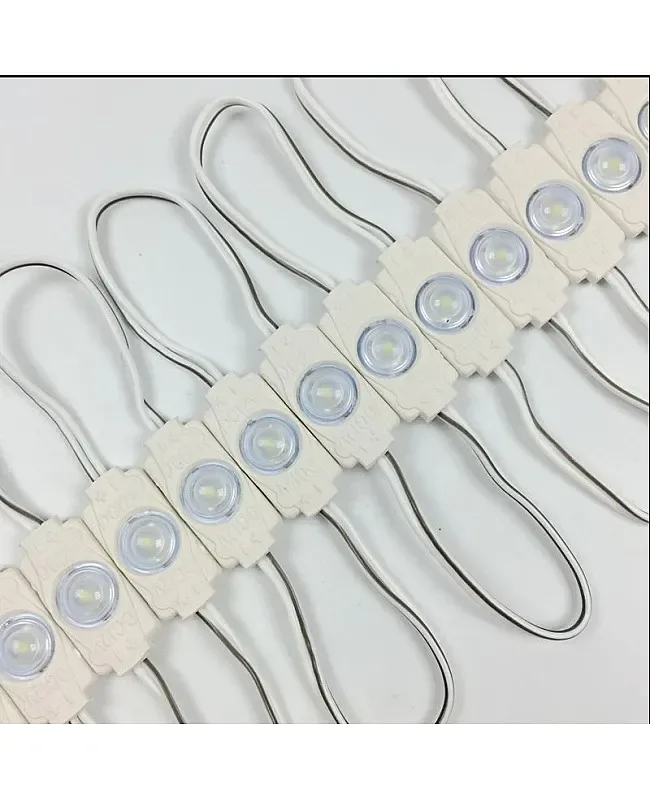

- The 2835 LED Modules With Lens for the wide view angle, working in DC12V, use 1PC 2835 SMD LED as the light source, the constant current drive ensures the same brightness and stable working situation. 20PCS per string, cuttable and reconnectable.
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 12 V
- Light engine: CCT
- LumaCircuit model: LC-MOD-6HPBTV
- Working Temperature: -40°-+60°
- Size: 30mm*12mm*4mm(L*W*H)
- Color: Cool White
- LED: 2835 SMD LEDs
- LED Quantity: 1PC
- Voltage: DC12V
- Power: 1W/PC
- IP Rating: IP65
- Lumen: 44-50lm
Control and installation
Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM.
Plan the installation around Lighting system BOMs, OEM and ODM configurations, Replacement and service parts. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview

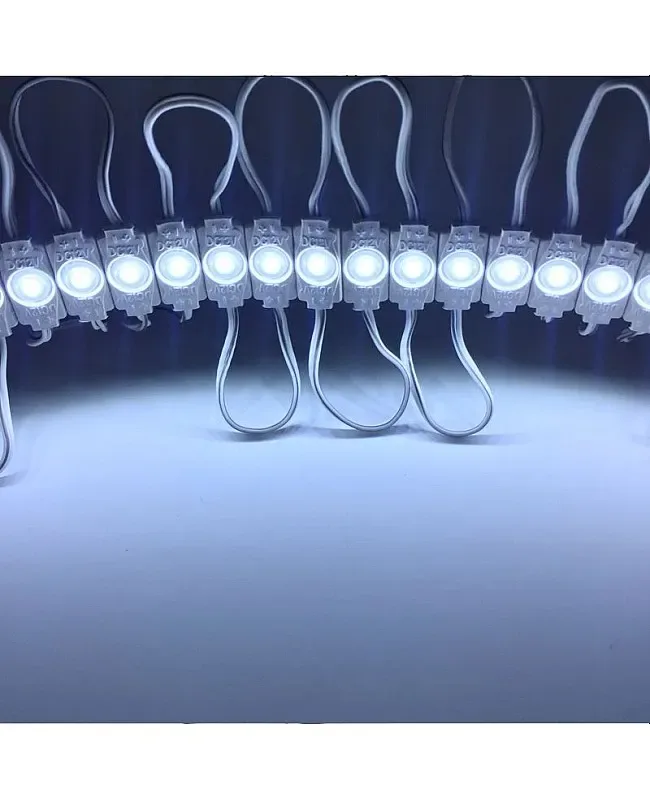

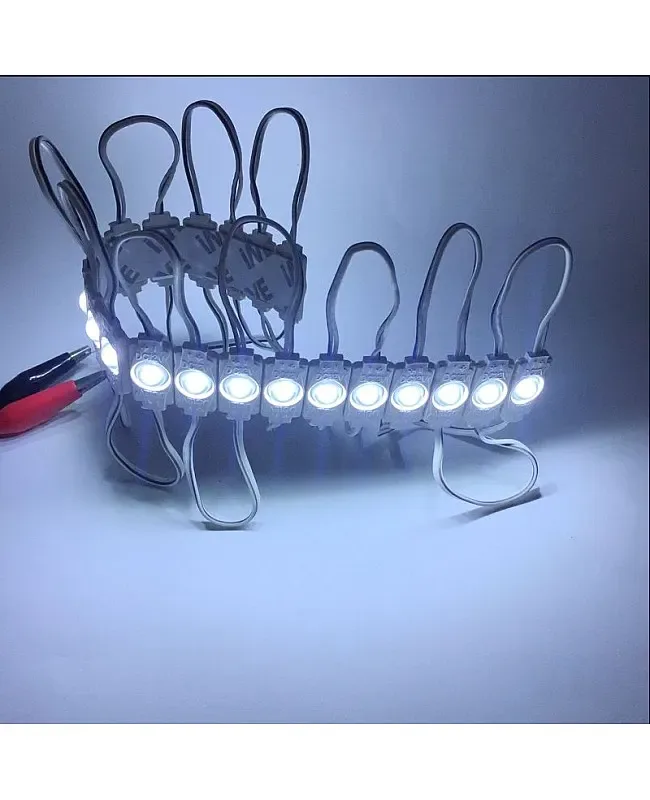

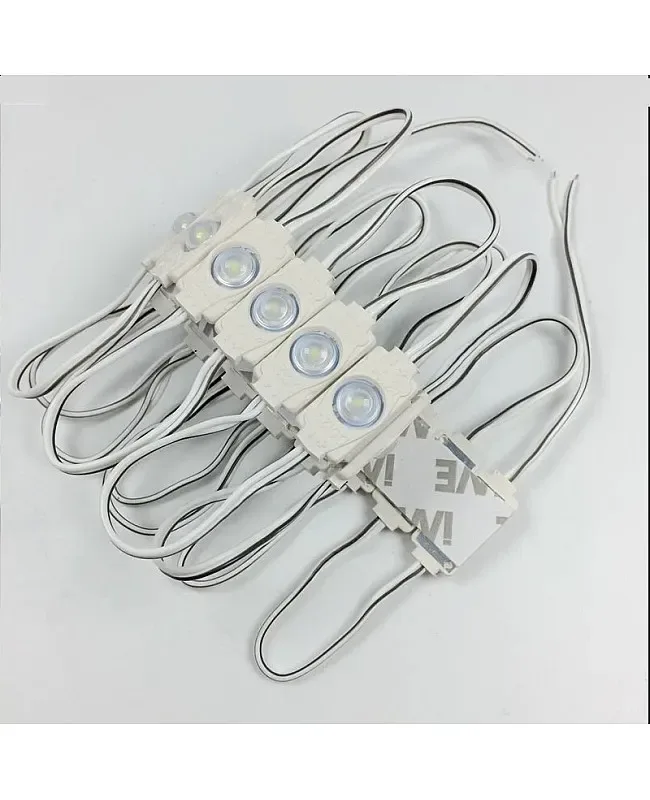

The 2835 LED modules with a lens, with a better structure and design in the molding injection process, have formed the whole unit in one-time injection molding. Use one piece 2835 SMD LEDs as the light source, the SMD LED is mounted on the aluminum board for better heat dissipation. The LED modules have a transmittance PMMA lens for the wide view angle. The constant current drive ensures that the LED light modules maintain the same brightness and are stable. The IP rating is IP65, and the installer can use them for indoor and outdoor applications. The LED modules have 20 pieces per string. The installer can cut any quantity you want for your project and reconnect them. The back with double-sided tape, the installer can stick on the place you want to install easily, both sides with the screw holes, easy to fix them with the screws too. The 2835 LED Modules work in DC12V and are safe for your children and pets. They can be connected to the AC to DC adapter to light up or to the Dimm Controller to adjust the brightness. The installer can use them as the backlight for the signs, channel letters, and billboards. The reading light for your car, truck, etc.
Specifications
Manufacturer
Working Temperature: -40°-+60°
Size: 30mm*12mm*4mm(L*W*H)
Color: Cool White
LED: 2835 SMD LEDs
LED Quantity: 1PC
Voltage: DC12V
Power: 1W/PC
IP Rating: IP65
Lumen: 44-50lm
Color Rendering Index: 80
Beam angle: 160°
20PCS Per String
Back With Double-sided Adhesive Tape
Cuttable And Reconnectable
1 * 2835 LED Modules(20PCS Per String)
Typical applications
- Lighting system BOMs
- OEM and ODM configurations
- Replacement and service parts
