Product details

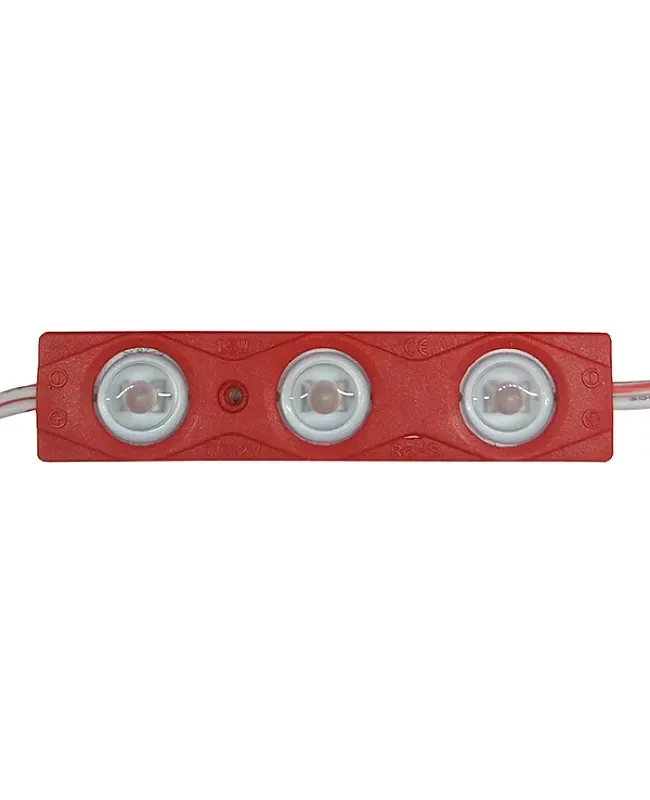

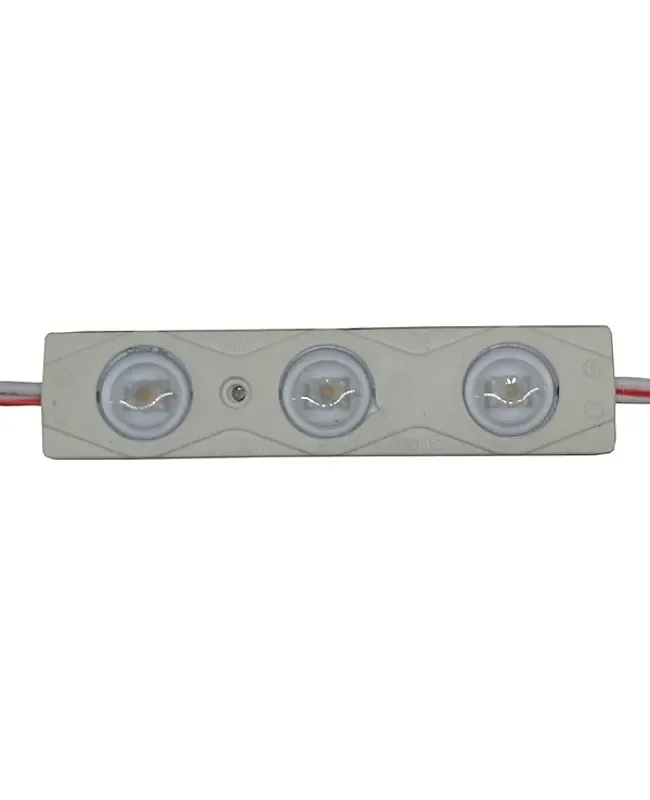

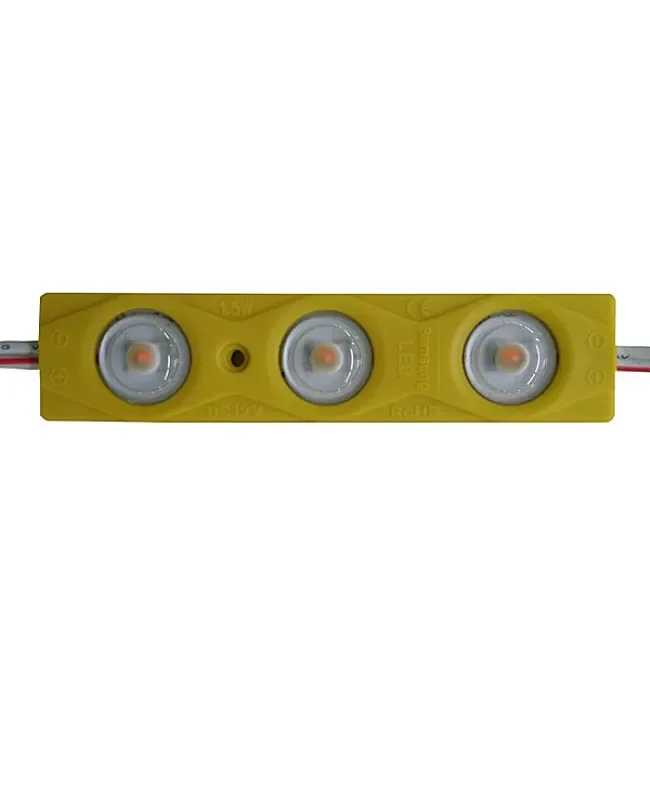

2835 LED Lighting Module 3LEDs
LumaCircuit offers 2835 LED Lighting Module 3LEDs as a configurable LED module for project builds. Typical applications include Lighting system BOMs, OEM and ODM configurations, Replacement and service parts. Cuttable And Reconnectable Back With Double-Sided Adhesive Tape The Surface With Screw Hole The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.

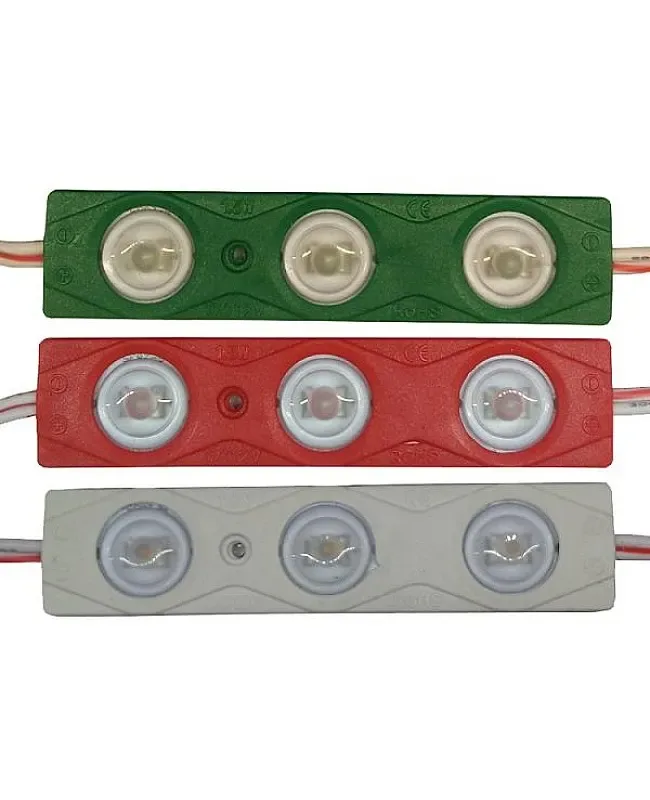

- Colors: White, Red, Yellow, Blue, Green, Warm White, Pink
- Cuttable And Reconnectable
- Back With Double-Sided Adhesive Tape
- The Surface With Screw Hole
- Working Temperature: -40-60℃
- Outdoor/Indoor use, cove Lighting
- Path and contour lighting
- Backlight for signage/ letters
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 12 V
- Light engine: CCT
- Size: 82*18(L*W)
- Working voltage: DC12V
- Chip Material: AlGaInP
- LED: 2835 SMD LEDs
- LED Quantity: 3PCS
- Wattage: 1.5W
- Colors: White, Red, Yellow, Blue, Green, Warm White, Pink
- Lumen: 150-165lm/Piece
- Working Temperature: -40-60℃
- LumaCircuit model: LC-MOD-I5CFIS
Control and installation
Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM.
Plan the installation around Lighting system BOMs, OEM and ODM configurations, Replacement and service parts. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Specifications
Size: 82*18(L*W)
Working voltage: DC12V
Chip Material: AlGaInP
LED: 2835 SMD LEDs
LED Quantity: 3PCS
Wattage: 1.5W
Colors: White, Red, Yellow, Blue, Green, Warm White, Pink
Lumen: 150-165lm/Piece
Waterproof level: IP65
View Angle: 160°
Color Rendering Index
Cuttable And Reconnectable
Back With Double-Sided Adhesive Tape
The Surface With Screw Hole
20PCS Per Packing
Working Temperature: -40-60℃
Applications
Outdoor/Indoor use, cove Lighting
Path and contour lighting
Backlight for signage/ letters
Architectural lights for canopy, corridor, window, archway
DIY lights for home use
Marine light, task lighting
Replacement of fluorescent light
Decorative lights for holidays, events, shows, and exhibitions

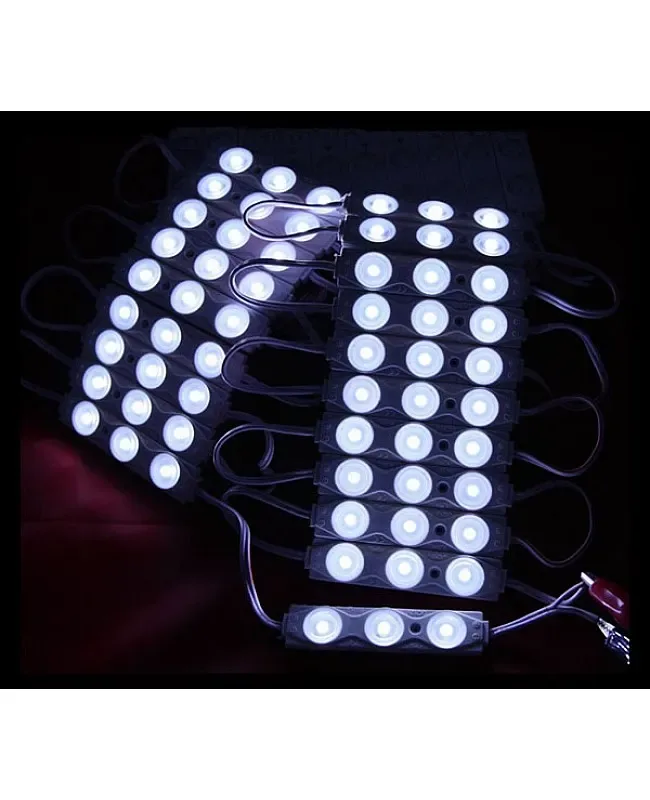

1 * 2835 LED Lighting Modules(20PCS/String)
Typical applications
- Lighting system BOMs
- OEM and ODM configurations
- Replacement and service parts
