Product details

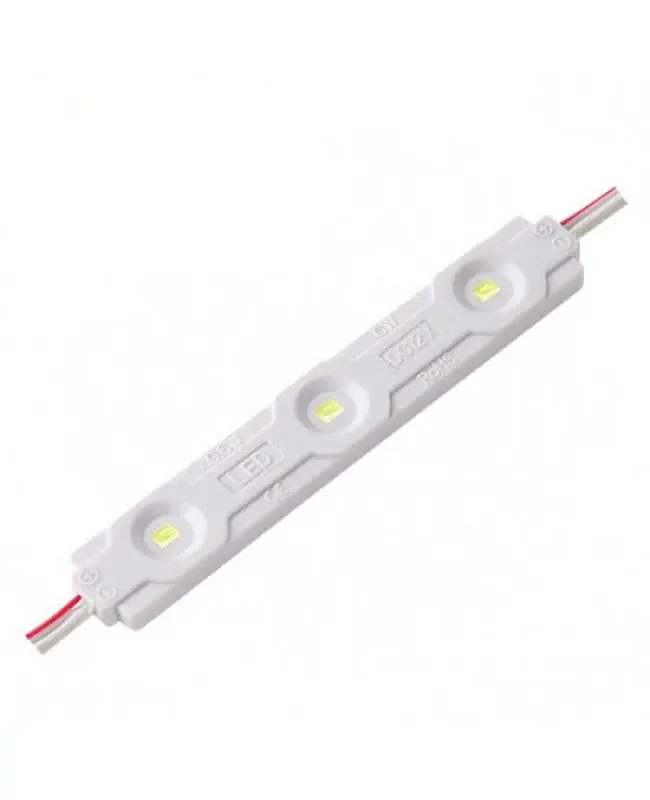

2835 SMD LED Module
LumaCircuit offers 2835 SMD LED Module as a configurable LED module for project builds. Typical applications include Lighting system BOMs, OEM and ODM configurations, Replacement and service parts. Color: Warm White/Pure White/Cool White Color Rendering Index: 80 Size: 78 mm*12 mm*4.2 mm The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- The 2835 SMD LED modules use PVC injection molding production technology, look fashionable, and have a nice structure. The SMD LED module uses 3PCS high-quality 2835 SMD LEDs as the light source, working in DC12V, 20PCS per string. The installer can cut any quantity and reconnect them for your project. The installer can connect the LED modules with an LED driver or dimmer to light them up or adjust the brightness. These 3528 LED modules have 20 times the luminous output of the 3528 LED modules.
- Color: Warm White/Pure White/Cool White
- Color Rendering Index: 80
- Size: 78 mm*12 mm*4.2 mm
- 1 * 2835 SMD LED Module(20PCS)
- 2835 SMD LED module, use 3PCS high bright 2835 SMD LEDs as a light source use PVC injection molding production technology, 20 times high luminous output than the 3528 Modules.
- A serviceable module component for a complete lighting BOM.
- The configured light engine is CCT.
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 12 V
- Light engine: CCT
- LumaCircuit model: LC-MOD-5QN871
- Color: Warm White/Pure White/Cool White
- LED: 2835 SMD LEDs
- LED Quantity: 3PCS
- Working Voltage: DC12V
- Power: 0.6W
- IP Rating: IP65
- Lumen: 60lm
- Color Rendering Index: 80
- Size: 78 mm*12 mm*4.2 mm
Control and installation
Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM.
Plan the installation around Lighting system BOMs, OEM and ODM configurations, Replacement and service parts. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview
The 2835 SMD LED modules use PVC injection molding production technology, look fashionable, and have a nice structure. The SMD LED module uses 3PCS high-quality 2835 SMD LEDs as the light source, working in DC12V, 20PCS per string. The installer can cut any quantity and reconnect them for your project. The installer can connect the LED modules with an LED driver or dimmer to light them up or adjust the brightness. These 3528 LED modules have 20 times the luminous output of the 3528 LED modules. With a constant current driver, all modules will have the same brightness.
Features
Manufacturer
Color: Warm White/Pure White/Cool White
LED: 2835 SMD LEDs
LED Quantity: 3PCS
Working Voltage: DC12V
Power: 0.6W
IP Rating: IP65
Lumen: 60lm
Color Rendering Index: 80
Size: 78 mm*12 mm*4.2 mm

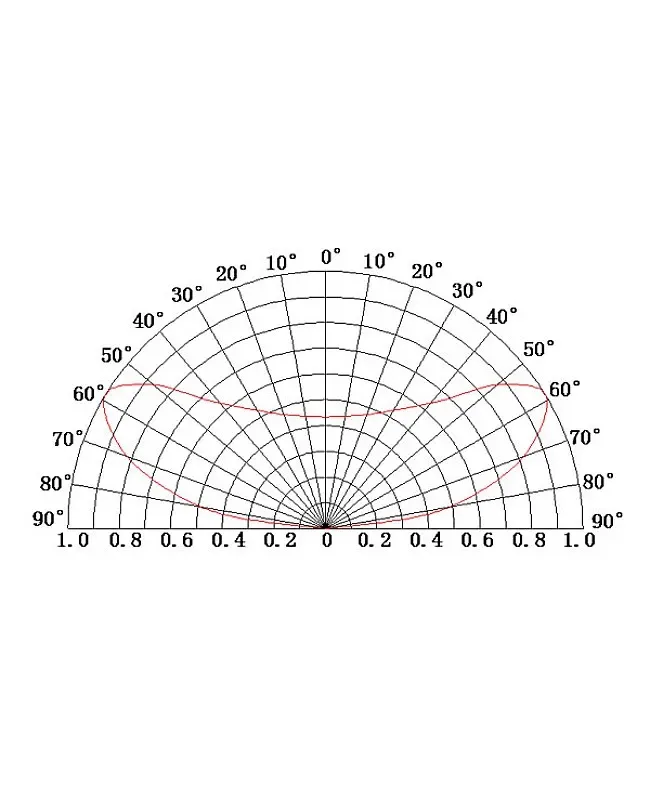

Beam angle: 120°
1 * 2835 SMD LED Module(20PCS)
Typical applications
- Lighting system BOMs
- OEM and ODM configurations
- Replacement and service parts
