110V/220V Waterproof 3 LEDs AC LED Modules
LumaCircuit offers 110V/220V Waterproof 3 LEDs AC LED Modules as a configurable LED module for project builds. Typical applications include Lighting system BOMs, OEM and ODM configurations, Replacement and service parts. Type: High-Voltage LED Modules LED Quantity: 3PCS/Piece Working Voltage: AC110V AC220V The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- The 3-LED AC LED modules are available in both 110V and 220V. They are designed for outdoor use and feature waterproof and AC power connections. They are suited to creating a bright and efficient lighting system. These module lights are easy to install and maintain and can be used in various applications, including outdoor displays, advertising channel letters, light boxes, decorative lighting, etc.
- Type: High-Voltage LED Modules
- LED Quantity: 3PCS/Piece
- Working Voltage: AC110V AC220V
- Luminous Flux: 160LM/Piece
- Colors: White, Red, Yellow, Blue, Green, Pink
- High Brightness, No Dark Areas, High CRI, Long-Lasting
- IP Rating: IP65 Waterproof
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 110 V / 220 V
- LumaCircuit model: LC-MOD-GTXUJ9
- Size: 75*16mm(L*W)
- LED: 3030 SMD LEDs
- LED Quantity: 3PCS/Piece
- Working Voltage: AC110V AC220V
- Power: 2W
- Colors: White, Red, Yellow, Blue, Green, Pink
- IP Rating: IP65 Waterproof
- Applications: Advertising Channel Letters, Light Boxes, Decorative Lighting, etc
- Dimensions found: 75x16mm / 16mm
- Model: 7216
Control and installation
Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM.
Plan the installation around Lighting system BOMs, OEM and ODM configurations, Replacement and service parts. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview

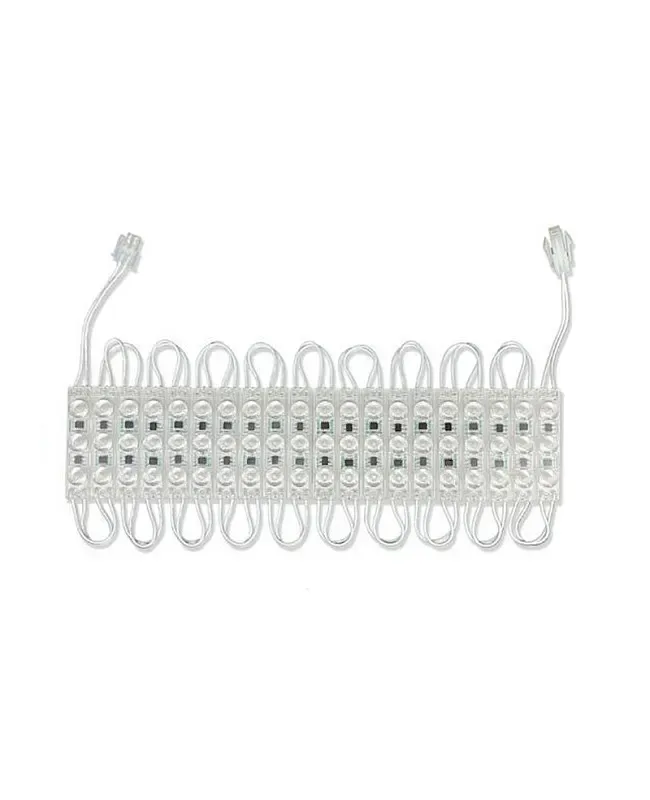

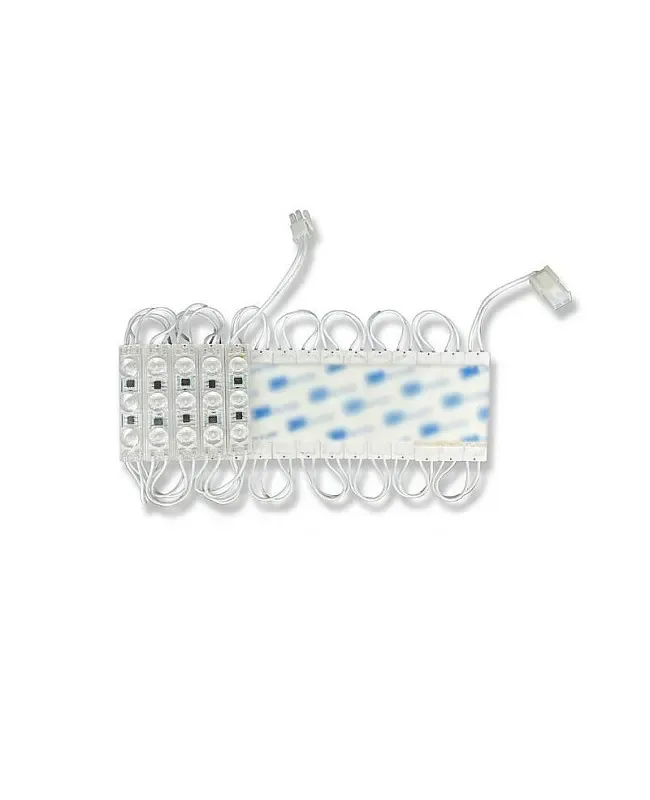

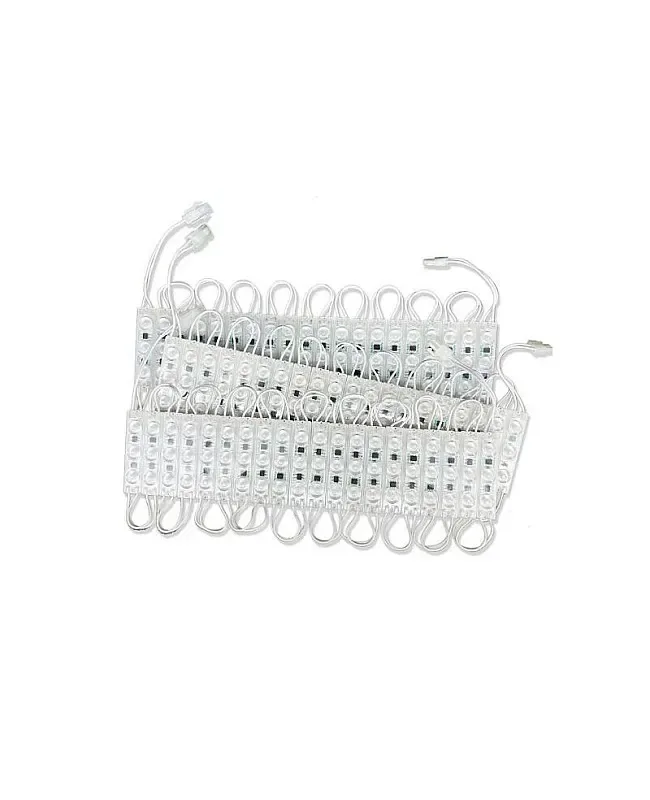

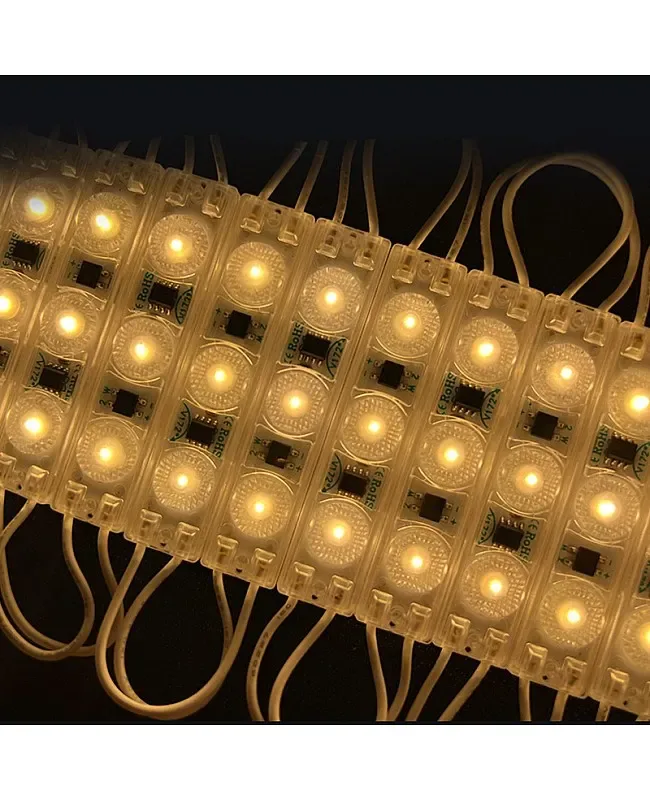

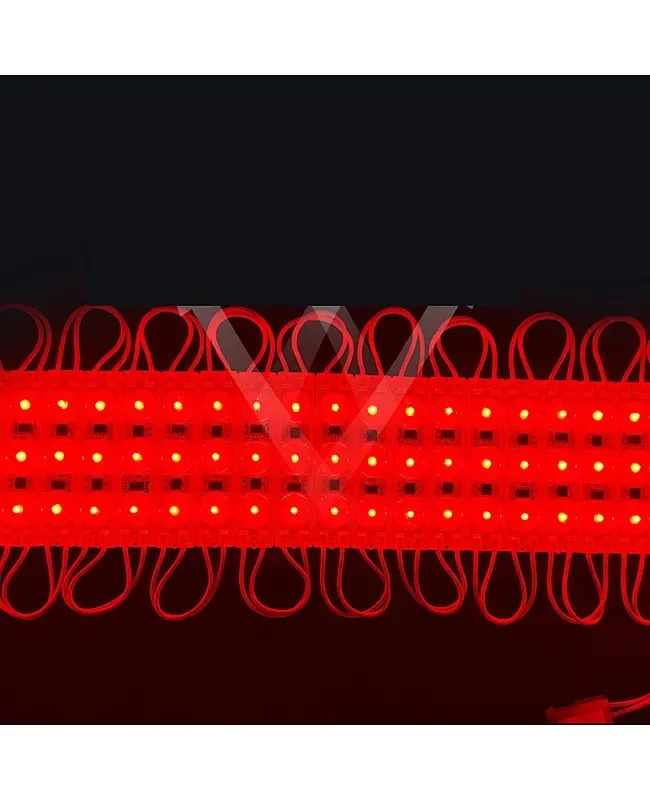

The 3-LED AC LED modules are available in both 110V and 220V. They are designed for outdoor use and feature waterproof and AC power connections. They are suited to creating a bright and efficient lighting system. These module lights are easy to install and maintain and can be used in various applications, including outdoor displays, advertising channel letters, light boxes, decorative lighting, etc. The high-voltage LED modules use three pieces of high-brightness 3030 SMD LEDs as a light source, with a surface lens for a wide viewing angle. The IP rating is IP65, allowing it to be used for indoor and outdoor applications. The back with double-sided adhesive tape, and both ends with screw holes, making it easy to stick them on the place that you want to install indoors or use screws to mount them in a wet or rainy location. The 110V AC module Lights are 20 pieces per string, cuttable, and reconnectable. The installer can freely select various colors for your project; white, red, yellow, blue, green, and pink colors are available.
Specifications
Type: High-Voltage LED Modules
Model: 7216
Size: 75*16mm(L*W)
LED: 3030 SMD LEDs
LED Quantity: 3PCS/Piece
Working Voltage: AC110V AC220V
Power: 2W
Luminous Flux: 160LM/Piece
Colors: White, Red, Yellow, Blue, Green, Pink
High Brightness, No Dark Areas, High CRI, Long-Lasting
IP Rating: IP65 Waterproof
Cuttable And Reconnectable
Back With Double-Sided Adhesive Tape
Both Ends With Screw Holes
20PCS Per String
Applications: Advertising Channel Letters, Light Boxes, Decorative Lighting, etc
Includes
1 * AC LED Modules (20PCS/String）
Typical applications
- Lighting system BOMs
- OEM and ODM configurations
- Replacement and service parts
