Product details

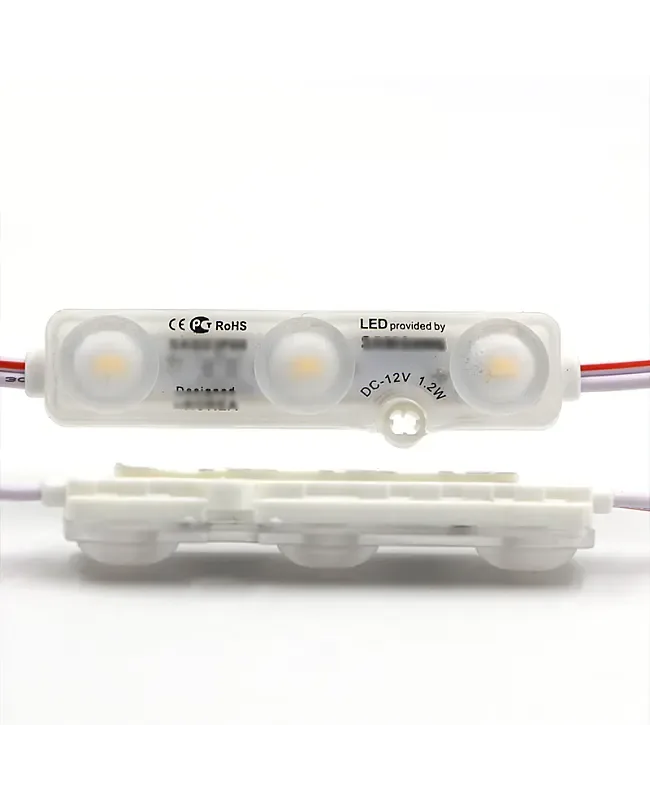

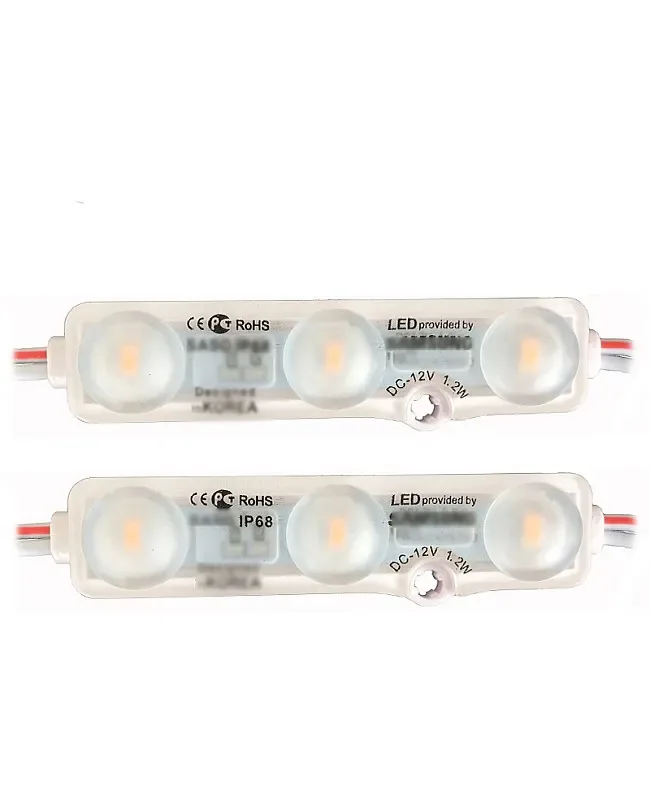

IP68 Waterproof High Light LED Modules With Lens
LumaCircuit offers IP68 Waterproof High Light LED Modules With Lens as a configurable LED module for project builds. Typical applications include Lighting system BOMs, OEM and ODM configurations, Replacement and service parts. The back has double-sided tape Colors: Warm white, cool white, blue, green, yellow, red, pink Color Rendering Index: > The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- Size(L*W): 66mm x 15mm (2.6" x 0.59")
- The back has double-sided tape
- Colors: Warm white, cool white, blue, green, yellow, red, pink
- Color Rendering Index: >
- Low heat generating, no UV or IR light radiation
- 1 * Waterproof LED module(20PCS per string)
- A serviceable module component for a complete lighting BOM.
- The configured light engine is CCT.
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 12 V
- Light engine: CCT
- LumaCircuit model: LC-MOD-BR7NQ1
- Size(L*W): 66mm x 15mm (2.6" x 0.59")
- LED Type: 5730
- Chip Material: AlGaInP
- LED Chip: Epistar
- LED Quantity: 3PCS
- Working Voltage: DC12V
- Output Power: 1.5W
- Lumen: 165-180lm/PC
- Colors: Warm white, cool white, blue, green, yellow, red, pink
Control and installation
Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM.
Plan the installation around Lighting system BOMs, OEM and ODM configurations, Replacement and service parts. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Specifications
Model
Size(L*W): 66mm x 15mm (2.6" x 0.59")
LED Type: 5730
Chip Material: AlGaInP
LED Chip: Epistar
LED Quantity: 3PCS
Working Voltage: DC12V
Output Power: 1.5W
Lumen: 165-180lm/PC
Angle View: 120°
The back has double-sided tape
With dull polish lenses
Waterproof Level: IP68
Colors: Warm white, cool white, blue, green, yellow, red, pink
Color Rendering Index: >
View Angle: 180°
Low heat generating, no UV or IR light radiation
Includes
1 * Waterproof LED module(20PCS per string)
Typical applications
- Lighting system BOMs
- OEM and ODM configurations
- Replacement and service parts
