IP65 Waterproof Injection WS8211 5050 Dreamcolor RGB LED Module
LumaCircuit offers IP65 Waterproof Injection WS8211 5050 Dreamcolor RGB LED Module as a configurable LED module for project builds. Typical applications include Low-voltage LED systems, Controller and strip power, Signage and display BOMs. Working Temperature: -20℃-+45℃ LED Chip: Epistar LED Chip Emitting Colors: RGB Full Color 16 Million Color Combinations The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Use this product on the WLED ambient route. Match the controller to the listed WS2811 LED type, voltage, data direction and total load; long runs also need a fuse and power-injection plan. WLED, Home Assistant and any show-control bridge remain separate validation points. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- Material: ABS Plastic + PC
- Working Temperature: -20℃-+45℃
- LED Chip: Epistar LED Chip
- Emitting Colors: RGB Full Color 16 Million Color Combinations
- Length of Wire Between 2PCS Modules: 10cm
- Back With Double-sided Adhesive Tape
- Red Wire: 12V+ White Wire: GND Green Wire: Data
- Driver And Controller Sold Separately
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 12 V
- Light engine: Addressable
- WLED chip: WS2811
- LumaCircuit model: LC-MOD-JXP5K2
- Material: ABS Plastic + PC
- Working Temperature: -20℃-+45℃
- LED Type: 5050
- LED Quantity: 3PCS
- LED Chip: Epistar LED Chip
- Size: 75*15*5mm(L*W*H)
- Emitting Colors: RGB Full Color 16 Million Color Combinations
- Working Voltage: DC12V
Control and installation

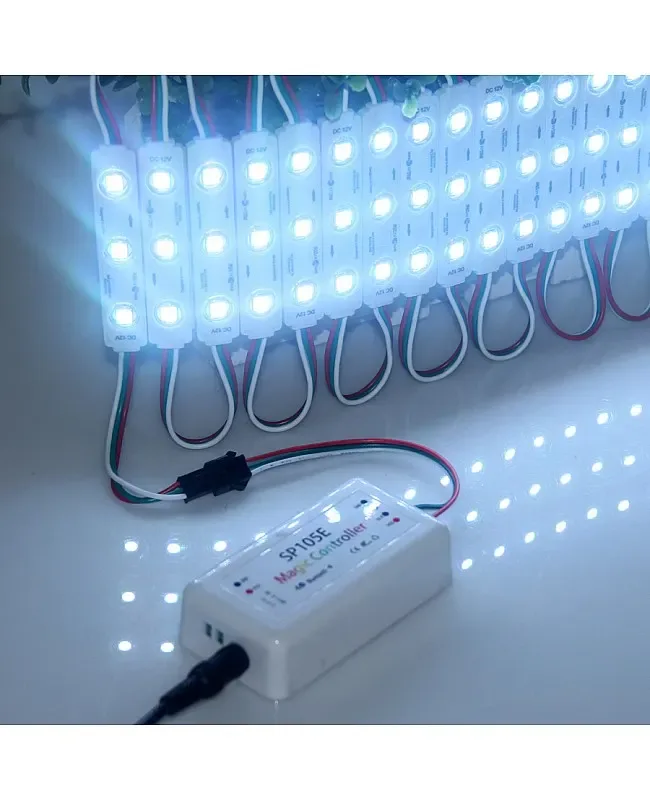

Use this product on the WLED ambient route. Match the controller to the listed WS2811 LED type, voltage, data direction and total load; long runs also need a fuse and power-injection plan. WLED, Home Assistant and any show-control bridge remain separate validation points.
Plan the installation around Low-voltage LED systems, Controller and strip power, Signage and display BOMs. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Specifications
Model
Material: ABS Plastic + PC
Working Temperature: -20℃-+45℃
LED Type: 5050
LED Quantity: 3PCS
LED Chip: Epistar LED Chip
IC Type: WS2811
Size: 75*15*5mm(L*W*H)

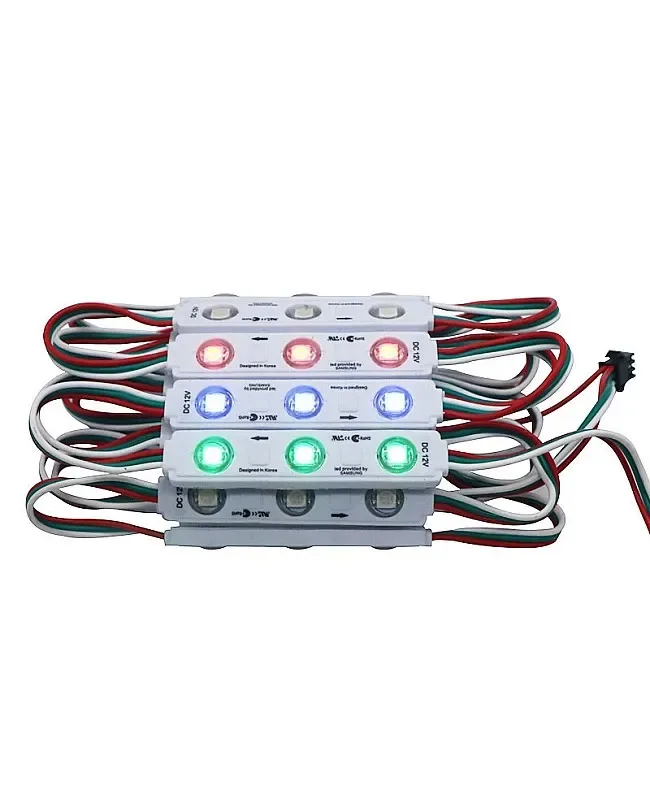

Emitting Colors: RGB Full Color 16 Million Color Combinations
Working Voltage: DC12V
Output Power: 0.72W/PC
Lumen: 54-61lm
Color Rendering Index
IP Rating: IP65
View Angle: 120°

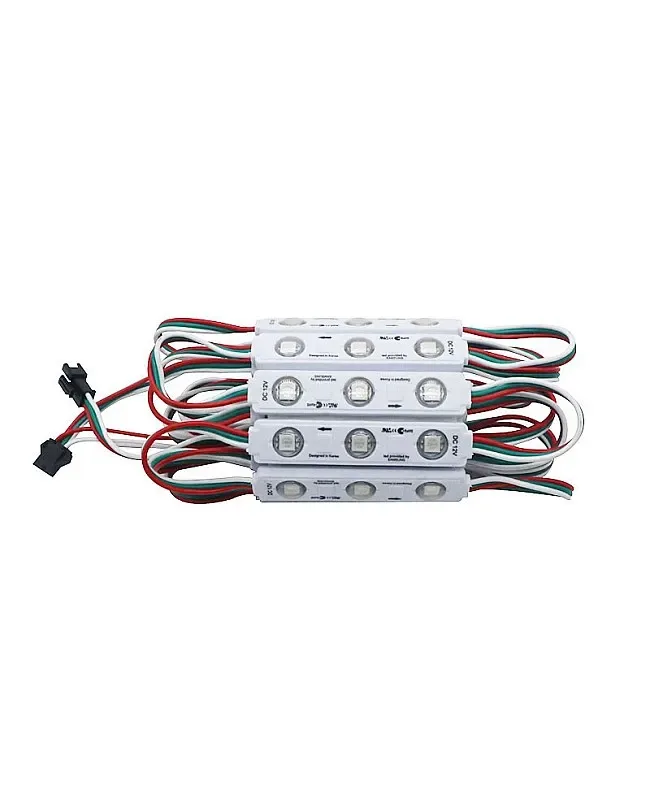

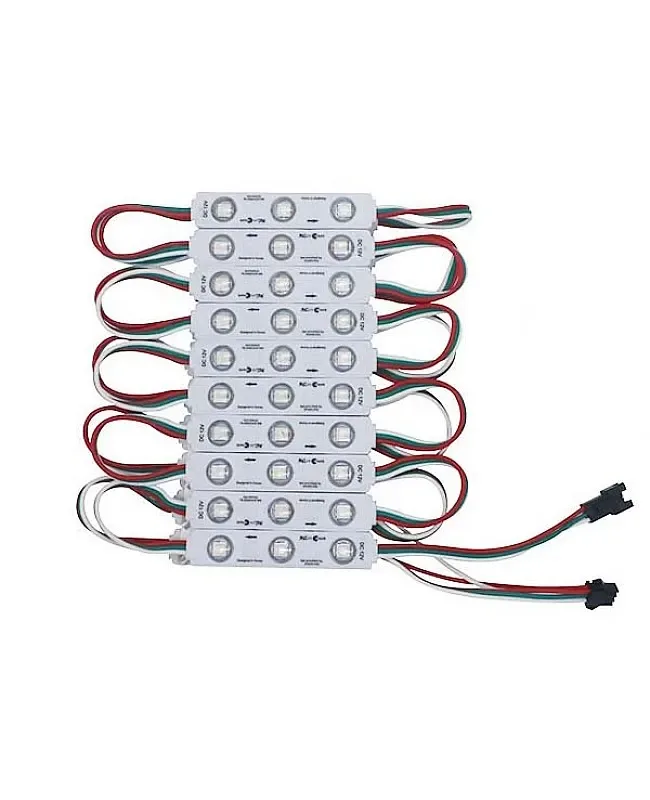

20PCS Per String
Length of Wire Between 2PCS Modules: 10cm

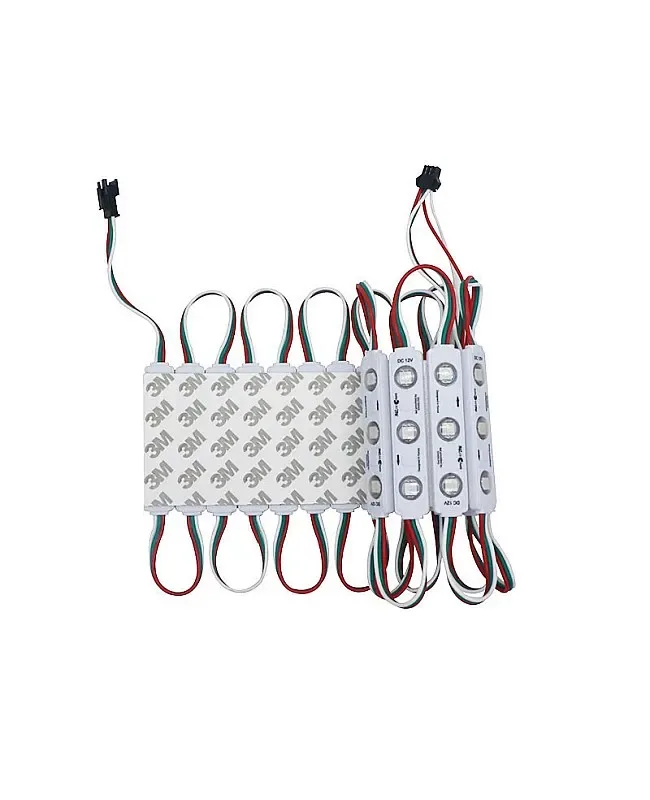

Back With Double-sided Adhesive Tape
Red Wire: 12V+ White Wire: GND Green Wire: Data
Driver And Controller Sold Separately
Includes
1 * Dreamcolor RGB LED Module(20PCS/String)
Typical applications
- Low-voltage LED systems
- Controller and strip power
- Signage and display BOMs
