Waterproof SMD 5050 LED Module With Metal Shell 20PCS/String
LumaCircuit offers Waterproof SMD 5050 LED Module With Metal Shell 20PCS/String as a configurable LED module for project builds. Typical applications include Lighting system BOMs, OEM and ODM configurations, Replacement and service parts. Color: Red/Yellow/Blue/Green/ Cool White/Warm White Color Temperature: Warm White(2700K-3200K), Cool White(9000-12000K), Red(620-625nm), Green(515-525nm), Blue(465-475nm), Yellow(585-595nm) Luminous Flux/PC: White(80-88lm), Red(26lm), Green(50lm), Blue(16lm), Yellow(20lm) The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.

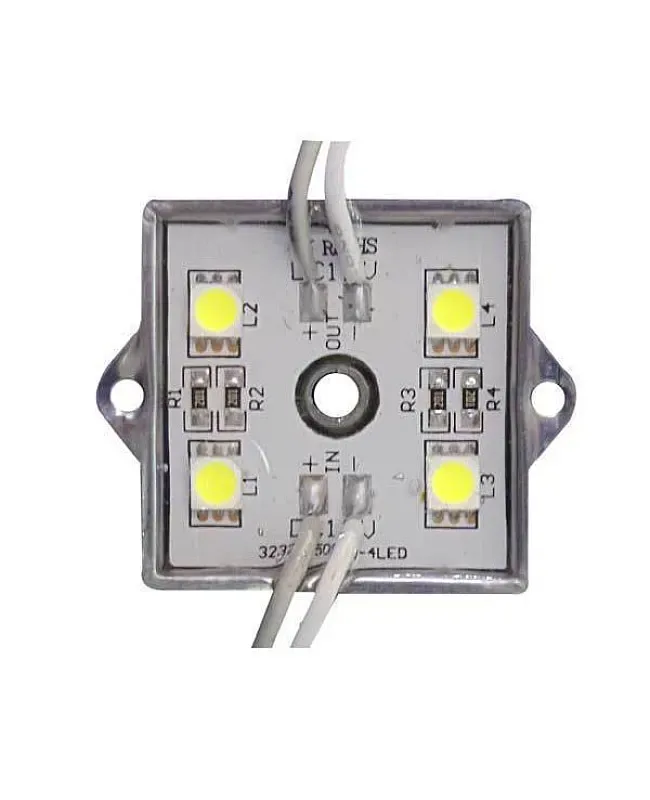

- The waterproof SMD 5050 LED modules have a super-slim square shape and metal base, uses 4PCS high-quality and super bright SMD LEDs as the light source, the LEDs mounted on the aluminum board and the metal shell for better heat dissipation, the surface with epoxy sealed, the IP rating is IP65, can be used for indoor and outdoor applications.
- Color: Red/Yellow/Blue/Green/ Cool White/Warm White
- Color Temperature: Warm White(2700K-3200K), Cool White(9000-12000K), Red(620-625nm), Green(515-525nm), Blue(465-475nm), Yellow(585-595nm)
- Luminous Flux/PC: White(80-88lm), Red(26lm), Green(50lm), Blue(16lm), Yellow(20lm)
- Luminous Flux: 55-65lm/PC
- Cuttable And Reconnectable
- Back With Double-sided Adhesive Tape
- The Center Of The Metal Shell With Screw Hole
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 12 V
- Light engine: CCT
- LumaCircuit model: LC-MOD-GETEDK
- Size: 35*35mm(L*W)
- Color: Red/Yellow/Blue/Green/ Cool White/Warm White
- Color Temperature: Warm White(2700K-3200K), Cool White(9000-12000K), Red(620-625nm), Green(515-525nm), Blue(465-475nm), Yellow(585-595nm)
- LED: 5050 SMD LEDs
- LED Quantity: 4PCS
- Voltage: DC12V
- Power: 1.2W/PC
- IP Rating: IP65
- MCD/LED: 1300-1500
Control and installation
Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM.
Plan the installation around Lighting system BOMs, OEM and ODM configurations, Replacement and service parts. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview

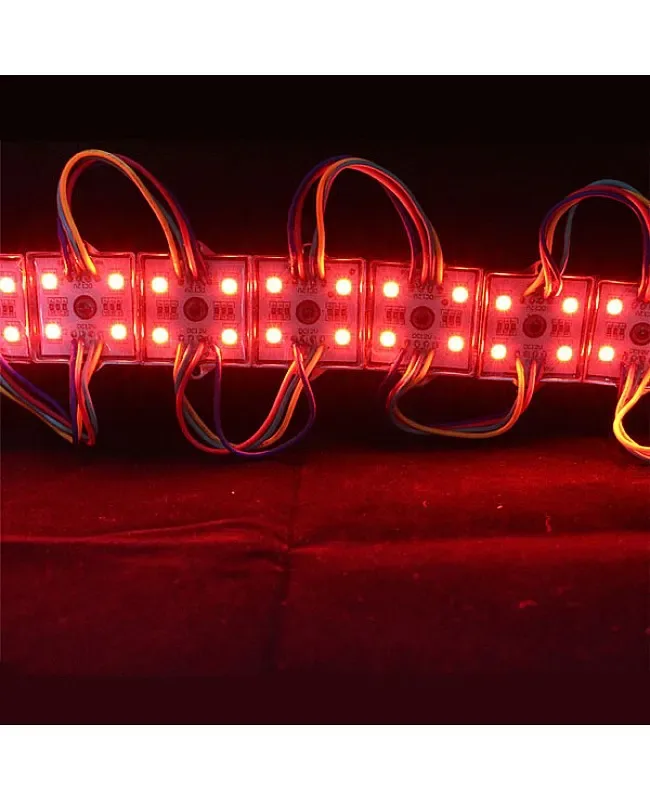

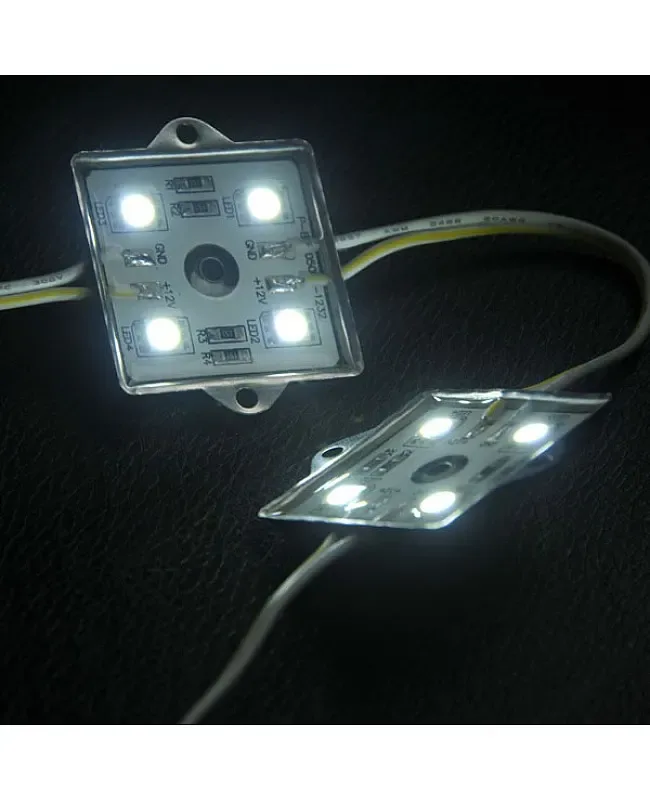

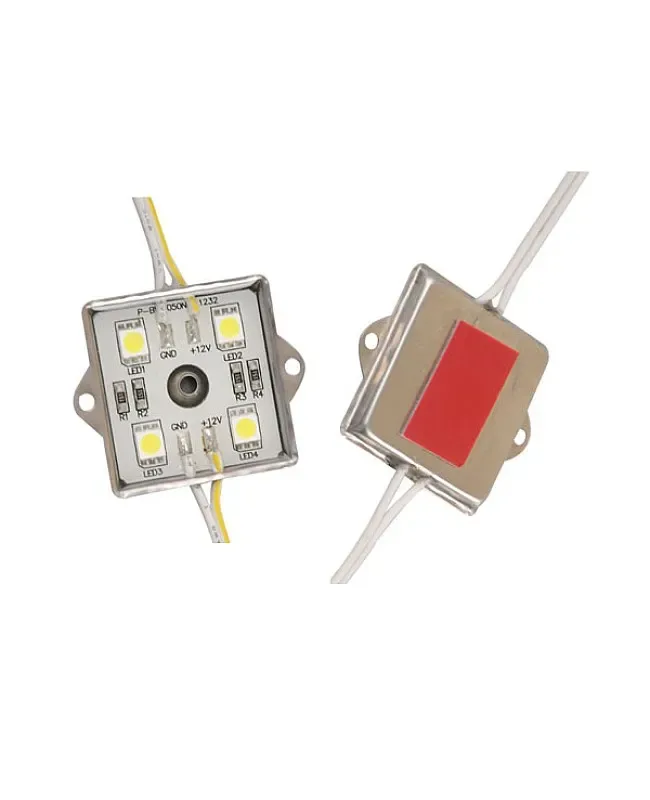

The waterproof SMD 5050 LED modules have a super-slim square shape and metal base, uses 4PCS high-quality and super bright SMD LEDs as the light source, the LEDs mounted on the aluminum board and the metal shell for better heat dissipation, the surface with epoxy sealed, the IP rating is IP65, can be used for indoor and outdoor applications. The waterproof 5050 LED modules are 20PCS per string, the back with double side adhesive tape and the center of the metal shell with screw hole, easy to stick on the place you want to install and fix with the screws. The installer can cut any quantity and reconnect them for your lighting projects. Working at DC12V, easy to connect to the LED transformer to light up or connect to the LED module dimmers to adjust the brightness. The SMD LED modules can be widely used for holiday decorations, backlight for signs, channel letters, billboards, etc.
Specifications
Manufacturer: TYoung
Size: 35*35mm(L*W)
Color: Red/Yellow/Blue/Green/ Cool White/Warm White
Color Temperature: Warm White(2700K-3200K), Cool White(9000-12000K), Red(620-625nm), Green(515-525nm), Blue(465-475nm), Yellow(585-595nm)
Luminous Flux/PC: White(80-88lm), Red(26lm), Green(50lm), Blue(16lm), Yellow(20lm)
LED: 5050 SMD LEDs
LED Quantity: 4PCS
Voltage: DC12V
Power: 1.2W/PC
IP Rating: IP65
Luminous Flux: 55-65lm/PC
MCD/LED: 1300-1500
Beam Angle: 120°
Cuttable And Reconnectable
20PCS Per String
Dimmable: YES
Back With Double-sided Adhesive Tape
The Center Of The Metal Shell With Screw Hole
Weight: 0.
Applications
Outdoor/Indoor Use, Cove Lighting
Path and contour lighting
Backlight for signage/ letters
Architectural lights for Canopy, Corridor, Window, Archway
DIY Lights For Home Use
Marine Light, Task Lighting
Replacement Of Fluorescent Light
Decorative Lights For Holidays, Events, Shows, Exhibitions
1 * SMD 5050 LED Module(20PCS/String)
Typical applications
- Lighting system BOMs
- OEM and ODM configurations
- Replacement and service parts
