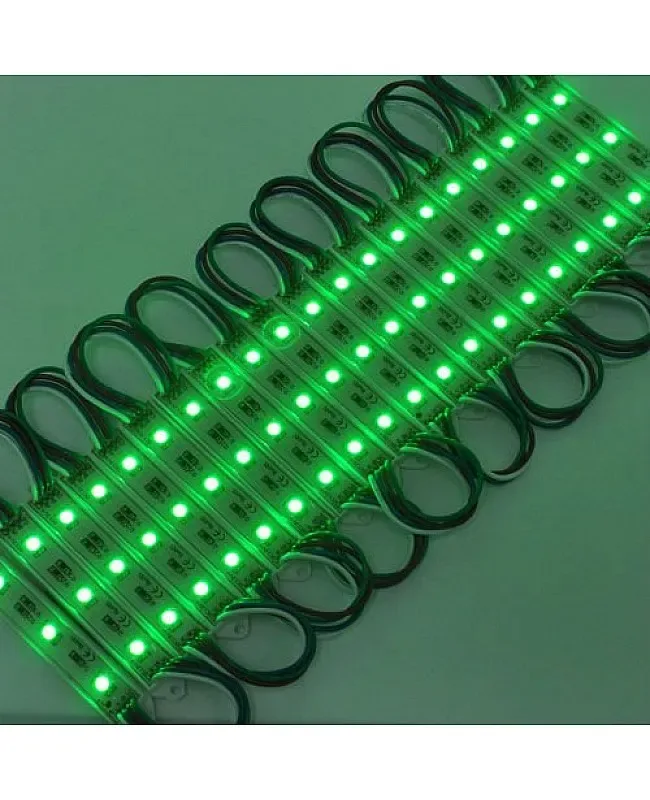

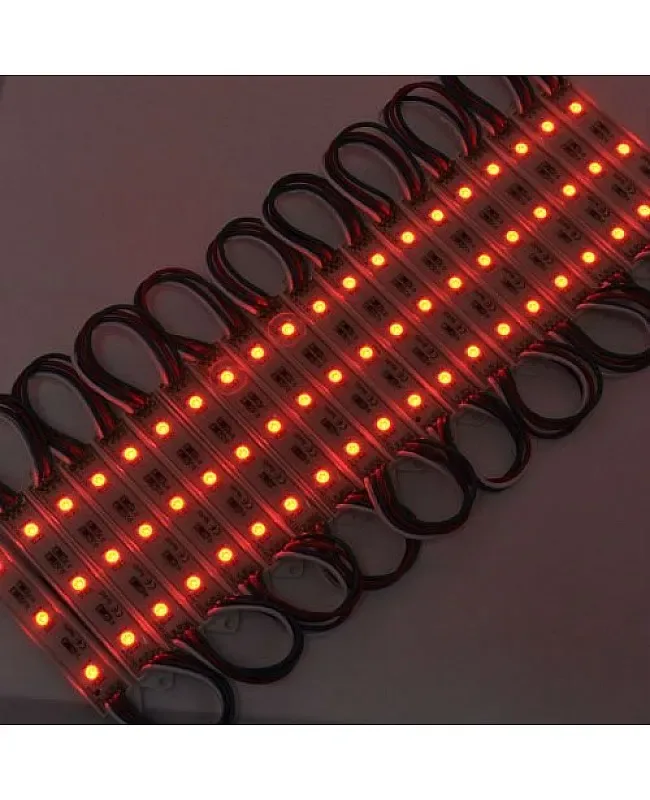

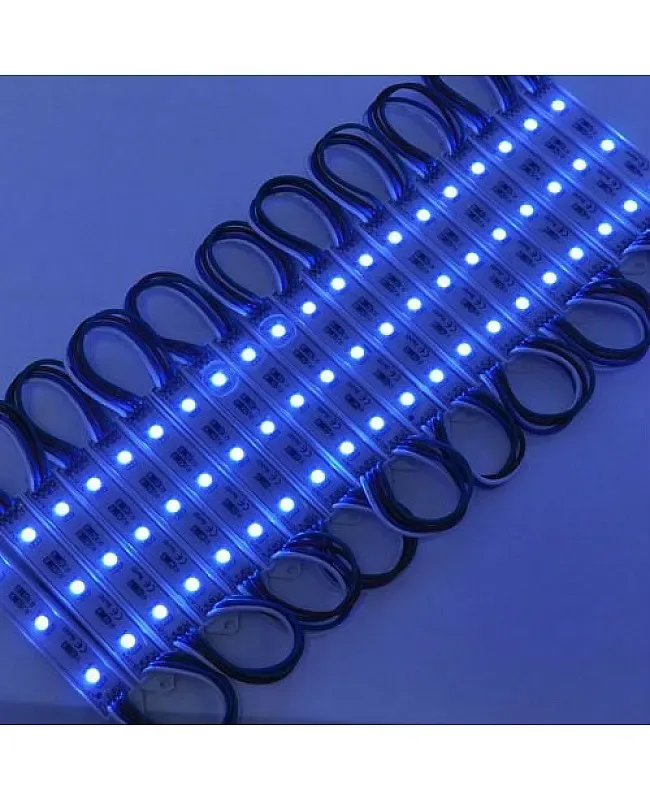

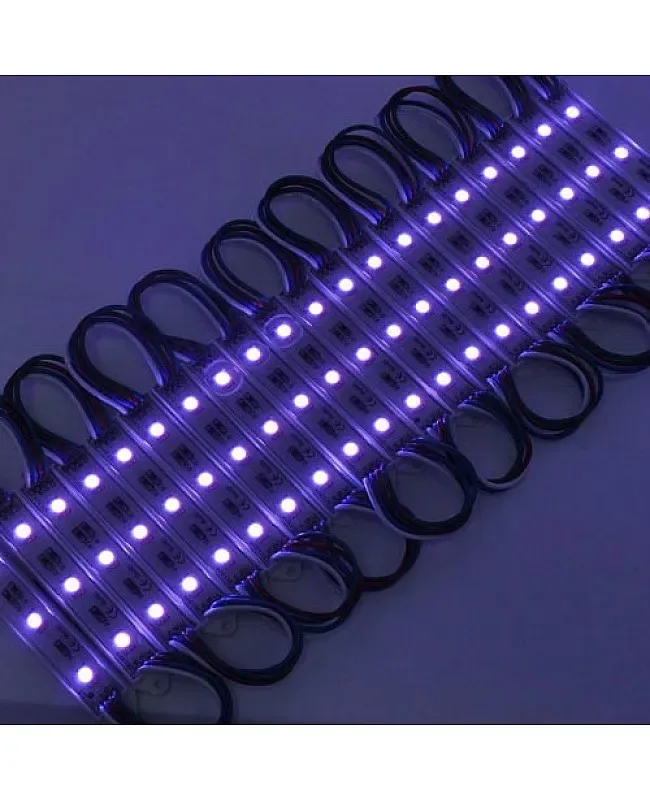

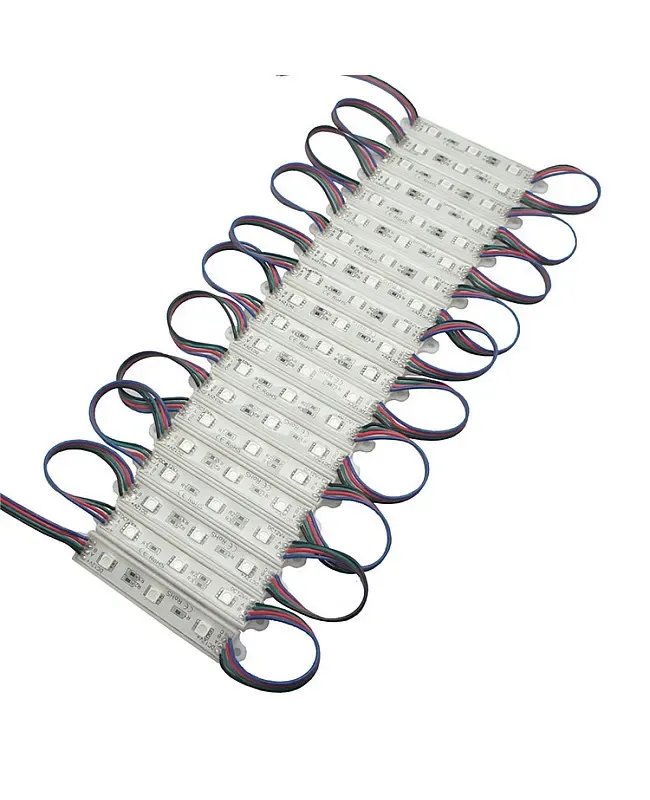

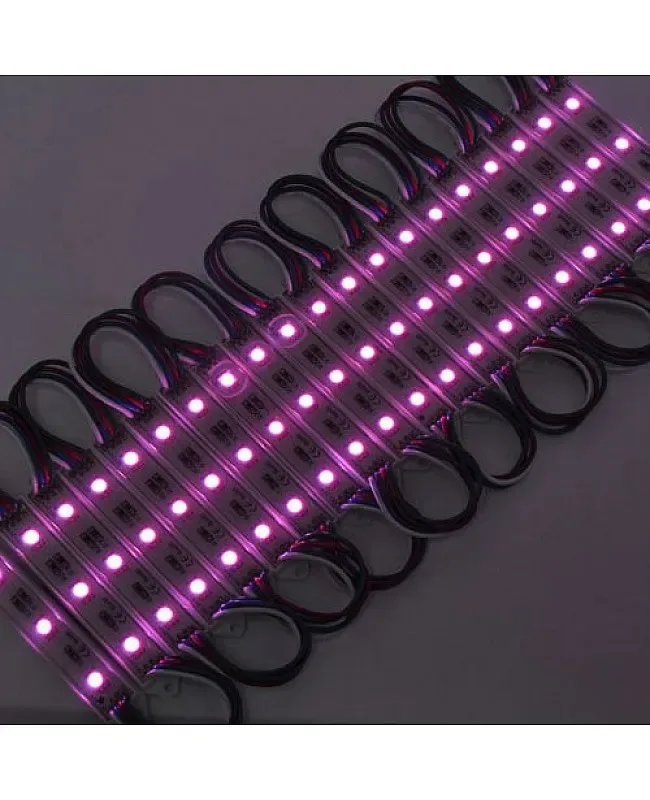

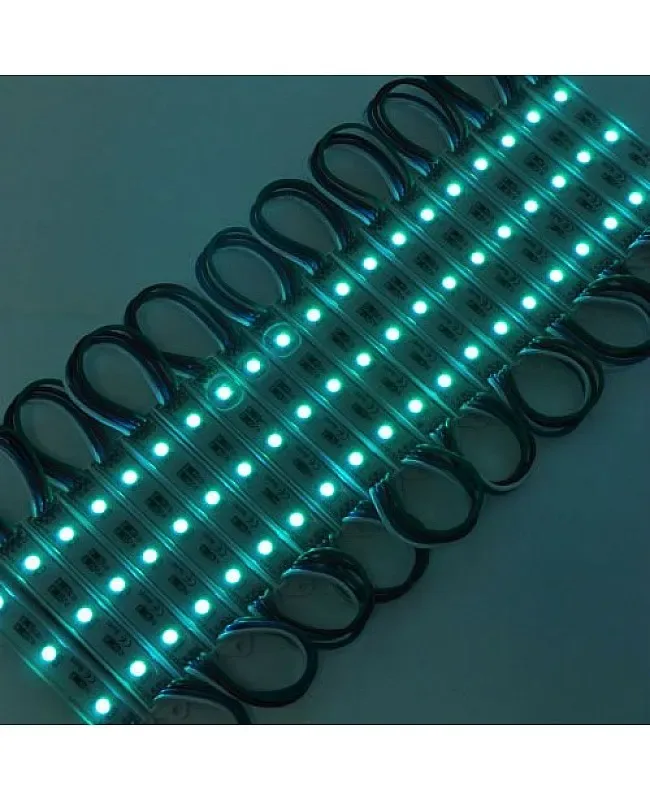

Waterproof 5050 RGB LED Module With 3LEDs
LumaCircuit offers Waterproof 5050 RGB LED Module With 3LEDs as a configurable LED module for project builds. Typical applications include Lighting system BOMs, OEM and ODM configurations, Replacement and service parts. Color: RGB(Red: 620-625nm, Green: 525-530nm, Blue: 465-470nm) Wire Length Between Modules: 10cm Cuttable And Reconnectable The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- Working Temperature: -40°-+60°
- Color: RGB(Red: 620-625nm, Green: 525-530nm, Blue: 465-470nm)
- Wire Length Between Modules: 10cm
- Cuttable And Reconnectable
- LED Adaptor And Light Controller Sold Separately
- waterproof 5050 RGB LED module, the wateproof level is IP65, use three pieces high quality 5050 SMD LEDs as light source, 20pcs per set.
- A serviceable controller component for a complete lighting BOM.
- The configured light engine is RGB.
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 12 V
- Light engine: RGB
- LumaCircuit model: LC-MOD-RRTTVK
- Working Temperature: -40°-+60°
- Material: Fireproof ABS
- Size: 75*12*5mm(L*W*H)
- Color: RGB(Red: 620-625nm, Green: 525-530nm, Blue: 465-470nm)
- LED: 5050 SMD LEDs
- LED Quantity: 3PCS
- Voltage: DC12V
- Power: 0.72W/PC
- IP Rating: IP65
Control and installation
Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM.
Plan the installation around Lighting system BOMs, OEM and ODM configurations, Replacement and service parts. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Specifications
TY-5050-RGB
Manufacturer: TYoung
Working Temperature: -40°-+60°
Material: Fireproof ABS
Size: 75*12*5mm(L*W*H)
Color: RGB(Red: 620-625nm, Green: 525-530nm, Blue: 465-470nm)
LED: 5050 SMD LEDs
LED Quantity: 3PCS
Voltage: DC12V
Power: 0.72W/PC
IP Rating: IP65
Luminous Flux: 15lm/PC
Milicandela
Beam Angle: 120°
Dimmable: YES
Color-Changing: YES
Wire Length Between Modules: 10cm
Cuttable And Reconnectable
LED Adaptor And Light Controller Sold Separately
Weight: 6.7g
Typical applications
- Lighting system BOMs
- OEM and ODM configurations
- Replacement and service parts
