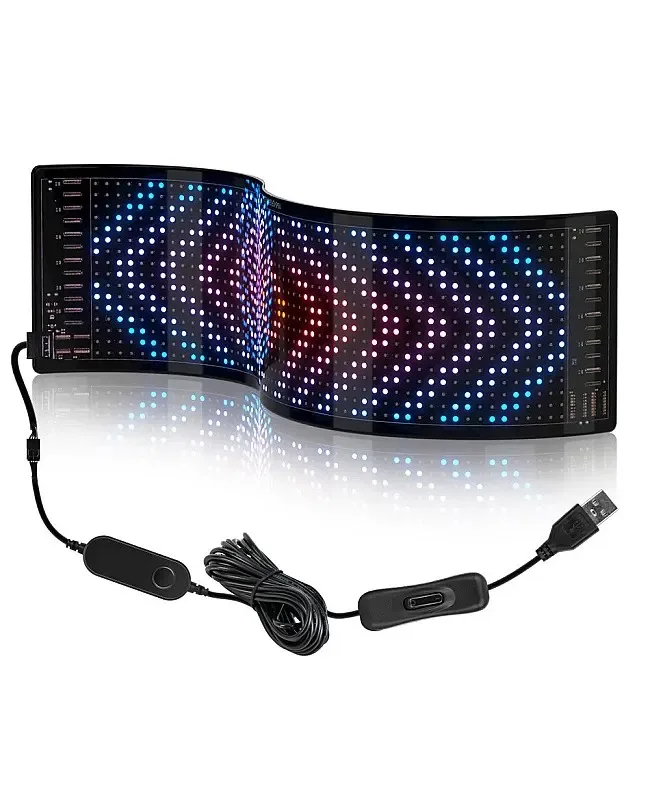

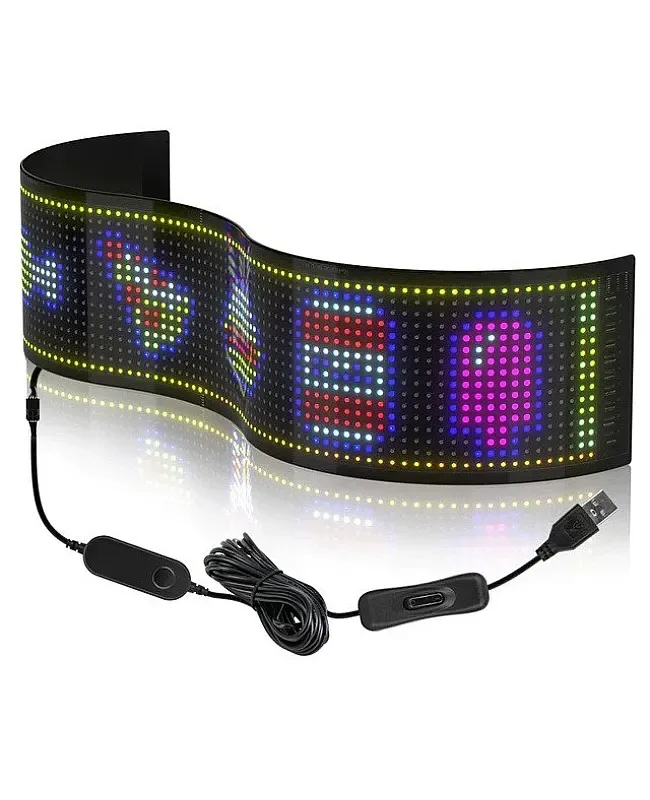

Flexible Pixel RGB LED Matrix Display Panel

Product features

The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.

• The flexible RGB LED matrix display panel can be controlled via a mobile app via Bluetooth or via button control. It supports modifying or DIYing texts, graffiti, animations, and other content to suit your needs and scenes, and the installer can adjust the brightness and speed. They are widely used in cars, trucks, SUVs, advertising, retail displays, holidays, and many applications.
• The RGB matrix display features a USB port and operates on DC 5V, allowing it to be powered by a 5V power adapter, power bank, or a car USB port for convenient use. The power cable features a controller that lets you long-press to switch ON or OFF, or quickly double-click to enable mirroring. The installer can download the app to your phone and control the matrix panel via Bluetooth connection. The app has built-in patterns, graphics, and animations, and supports DIY to meet your needs.
• Model: LED matrix pixel panel
• Size( H x W ): 7 cm x 17 cm / 9.2 cm x 37.2 cm / 12 cm x 47.5 cm / 12 cm x 68 cm / 12 cm x 98 cm
• LED type: 3528/2121 RGBIC
• LED quantity: 16 x 32PCS (7 x 17 cm) / 16 x 64 PCS (9.2 x 37.2 cm) / 16 x 64 PCS (12 x 47.5 cm ) /16 x 96 PCS (12 x 68 cm ) / 16 x 192 PCS ( 12 x 98 cm )
• Power cable length: 142 cm (7 x 17cm) / 440 cm ( 9.2 x 37.2 cm ) / 440 cm (12 x 47.5 cm ) / 440 cm ( 12 x 68 cm ) / 440 cm ( 12 x 98 cm )
• Functions: Pattern graffiti scrolling text/animation display

Configuration and technical detail

To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.

• Input: 5 V
• Light engine: Addressable
• LumaCircuit model: LC-MOD-4ZI8DE
• Size( H x W ): 7 cm x 17 cm / 9.2 cm x 37.2 cm / 12 cm x 47.5 cm / 12 cm x 68 cm / 12 cm x 98 cm
• LED type: 3528/2121 RGBIC
• LED quantity: 16 x 32PCS (7 x 17 cm) / 16 x 64 PCS (9.2 x 37.2 cm) / 16 x 64 PCS (12 x 47.5 cm ) /16 x 96 PCS (12 x 68 cm ) / 16 x 192 PCS ( 12 x 98 cm )
• Working voltage: DC5V
• Working current: 2A
• Power cable length: 142 cm (7 x 17cm) / 440 cm ( 9.2 x 37.2 cm ) / 440 cm (12 x 47.5 cm ) / 440 cm ( 12 x 68 cm ) / 440 cm ( 12 x 98 cm )
• Controller's function: Long Press: Switch ON/OFF; Quick Double-Click: Mirror

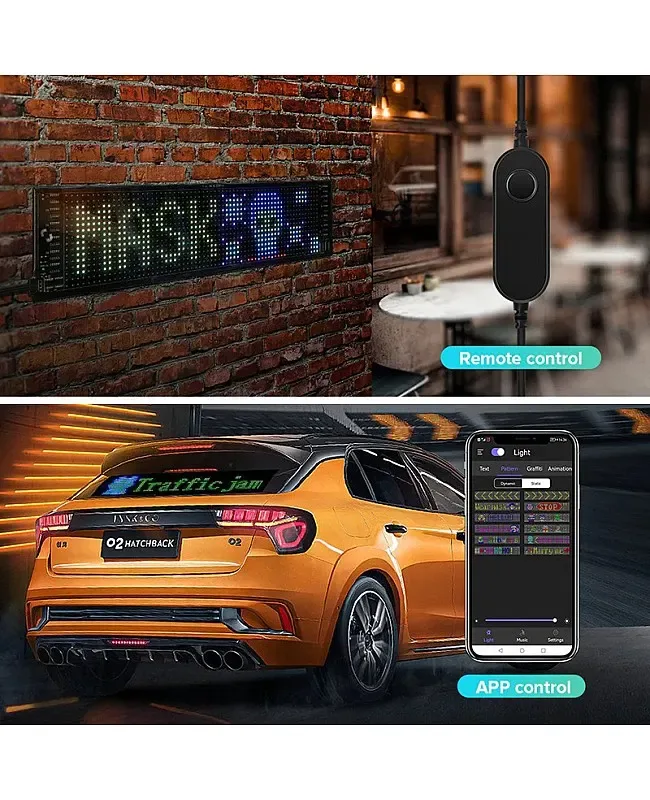

• Applications: Car signs, advertising signs, exit & entrance signs in bars, jewelry counters, sales staff, shops, hotel welcomes, companies, exhibitions, nightclubs, cinemas, etc
• Dimensions found: 7 x 17 cm / 16 x 64 / 9.2 x 37.2 cm / 12 x 47.5 cm / 16 x 96 / 12 x 68 cm

Control and installation

Use this product on the WLED ambient route. Match the controller to the exact LED IC and channel order, voltage, data direction and total load; long runs also need a fuse and power-injection plan. WLED, Home Assistant and any show-control bridge remain separate validation points.

Plan the installation around Everyday room lighting, Kitchen and cabinet task light, Retail and commercial fit-outs. Keep power, signal, heat path, access and service joints visible in the drawing.

Configuration support

Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.

Product overview

The flexible RGB LED matrix display panel can be controlled via a mobile app via Bluetooth or via button control. It supports modifying or DIYing texts, graffiti, animations, and other content to suit your needs and scenes, and the installer can adjust the brightness and speed. They are widely used in cars, trucks, SUVs, advertising, retail displays, holidays, and many applications.

The RGB matrix display features a USB port and operates on DC 5V, allowing it to be powered by a 5V power adapter, power bank, or a car USB port for convenient use. The power cable features a controller that lets you long-press to switch ON or OFF, or quickly double-click to enable mirroring. The installer can download the app to your phone and control the matrix panel via Bluetooth connection. The app has built-in patterns, graphics, and animations, and supports DIY to meet your needs.

Specifications

Model: LED matrix pixel panel

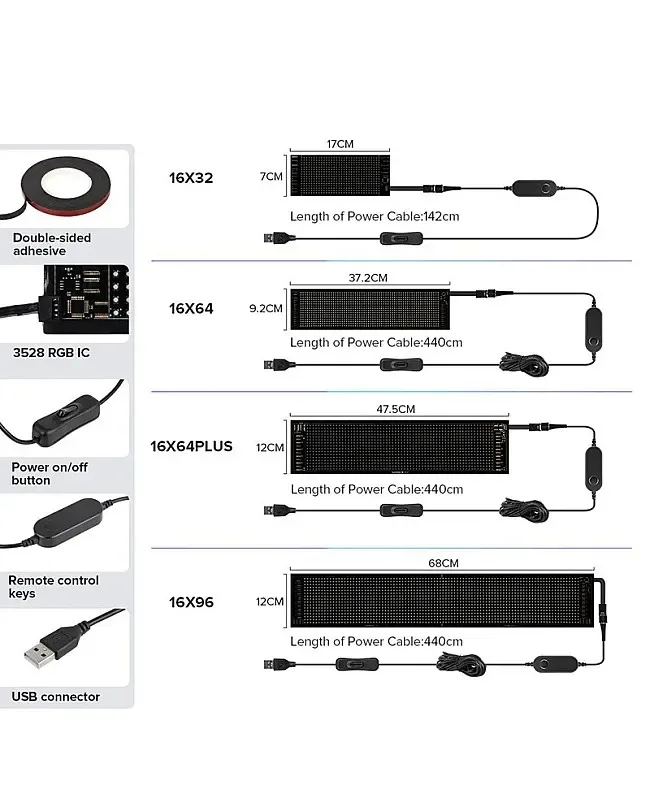

Size( H x W ): 7 cm x 17 cm / 9.2 cm x 37.2 cm / 12 cm x 47.5 cm / 12 cm x 68 cm / 12 cm x 98 cm

LED type: 3528/2121 RGBIC

LED quantity: 16 x 32PCS (7 x 17 cm) / 16 x 64 PCS (9.2 x 37.2 cm) / 16 x 64 PCS (12 x 47.5 cm ) /16 x 96 PCS (12 x 68 cm ) / 16 x 192 PCS ( 12 x 98 cm )

Working voltage: DC5V

Working current: 2A

Power cable length: 142 cm (7 x 17cm) / 440 cm ( 9.2 x 37.2 cm ) / 440 cm (12 x 47.5 cm ) / 440 cm ( 12 x 68 cm ) / 440 cm ( 12 x 98 cm )

Functions: Pattern graffiti scrolling text/animation display

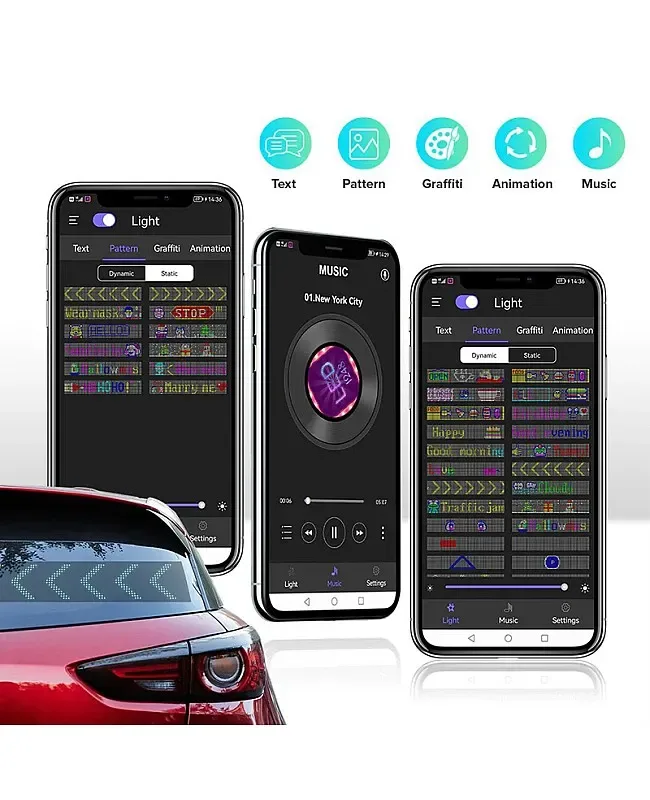

APP and remote control

App name

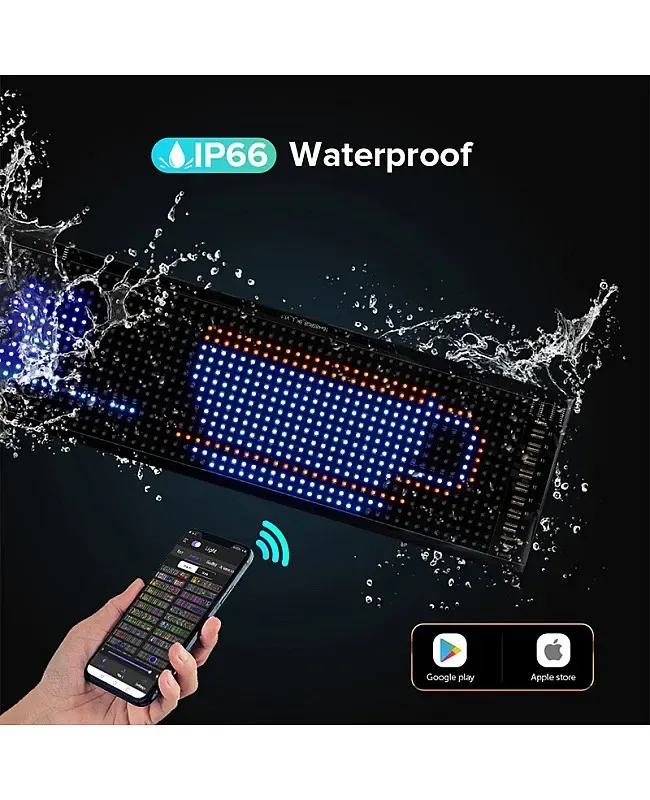

Waterproof level: IP66 waterproof

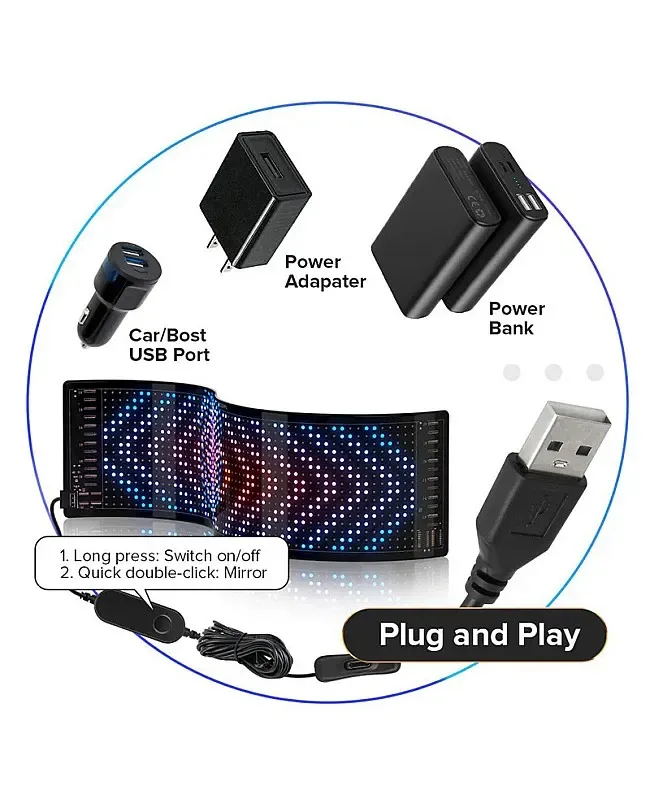

Powered by power adapters/mobile banks/car USB

The power cable integrates an ON/OFF switch and controller

Controller's function: Long Press: Switch ON/OFF; Quick Double-Click: Mirror

Support languages: English, Spanish, Portuguese, German, Korean, Japanese, Russian, French, Italian

Applications: Car signs, advertising signs, exit & entrance signs in bars, jewelry counters, sales staff, shops, hotel welcomes, companies, exhibitions, nightclubs, cinemas, etc

Includes

1 * Pixel LED matrix panel display

1 * Controller with USB connector

1 * Double-sided tape

1 * User manual
