12V Waterproof 5050 SMD LED Module String
LumaCircuit offers 12V Waterproof 5050 SMD LED Module String as a configurable LED module for project builds. Typical applications include Lighting system BOMs, OEM and ODM configurations, Replacement and service parts. Emitting Colors: Warm White, White, Blue, Green, Yellow, Pink Color Temperature: Warm White(3000-3500K)/Cool White(10000-12000K)/Neutral White(6000-6500K)/Red(620-625nm)/Green(520-530nm)/Blue(465-470nm)/Yellow(585-590nm) Back With 3M Double-Sided Tape The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- The LED module strings use the 5PCS high-quality 5050 SMD LEDs as the light source. With a fireproof ABS shell and epoxy sealing, the SMD LEDs are mounted on the aluminum PC board for better heat dissipation. The IP rating is IP65 for indoor and outdoor applications. The LED string modules work at DC12V, are available in single color or RGB color, and can easily connect to the LED controller or dimmer to change the color-changing mode or adjust the brightness. The back has double-sided adhesive tape.
- Emitting Colors: Warm White, White, Blue, Green, Yellow, Pink
- Color Temperature: Warm White(3000-3500K)/Cool White(10000-12000K)/Neutral White(6000-6500K)/Red(620-625nm)/Green(520-530nm)/Blue(465-470nm)/Yellow(585-590nm)

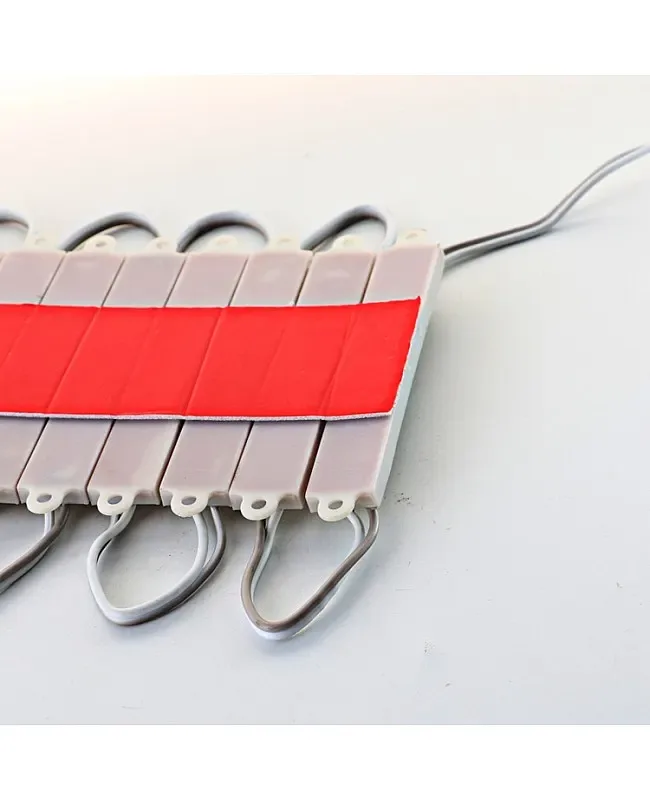

- Back With 3M Double-Sided Tape
- Cable Length Between 2PCS Modules: 8cm for Single Color/9mm for RGB
- Applications: Backlighting, Concealed Lighting, Channel Letters, Advertise Signs, etc
- 1 * 5050 LED Module String(20PCS/String)
- The LED Module String, which uses 5PCS 5050 SMD LEDs as the light source, with epoxy sealed and IP rating is IP65, 20PCS per string, cuttable and reconnectable, back with double side adhesive tape, easy to install and use.
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 12 V
- Light engine: CCT
- LumaCircuit model: LC-MOD-K5ZO6K
- Size: 75*12*8mm(L*W*H)
- LED Type: 5050 SMD LEDs
- LED Quantity: 5PCS
- Working Voltage: DC12V
- Output Power: 1.2W/PC
- Lumen: 70-80lm
- IP Rating: IP65
- Emitting Colors: Warm White, White, Blue, Green, Yellow, Pink
- Color Temperature: Warm White(3000-3500K)/Cool White(10000-12000K)/Neutral White(6000-6500K)/Red(620-625nm)/Green(520-530nm)/Blue(465-470nm)/Yellow(585-590nm)
Control and installation
Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM.
Plan the installation around Lighting system BOMs, OEM and ODM configurations, Replacement and service parts. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview

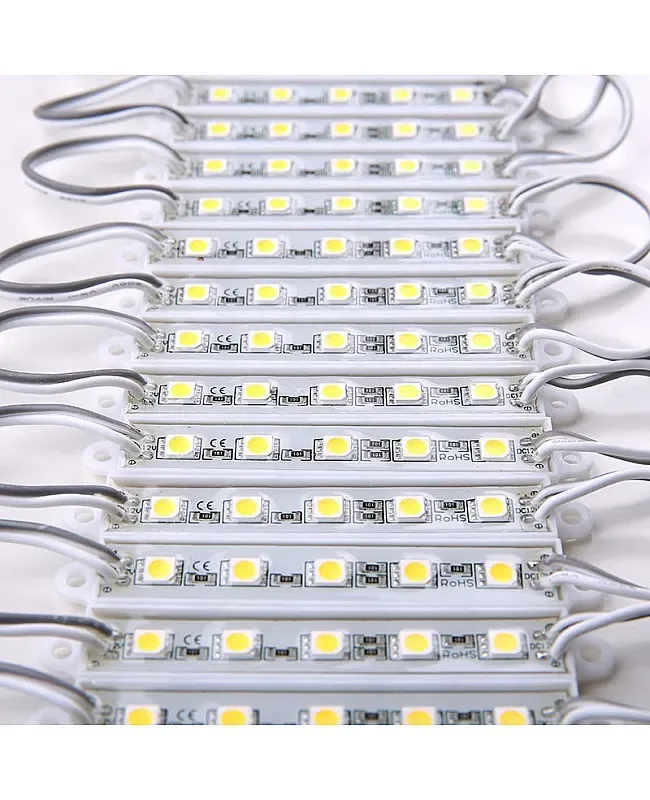

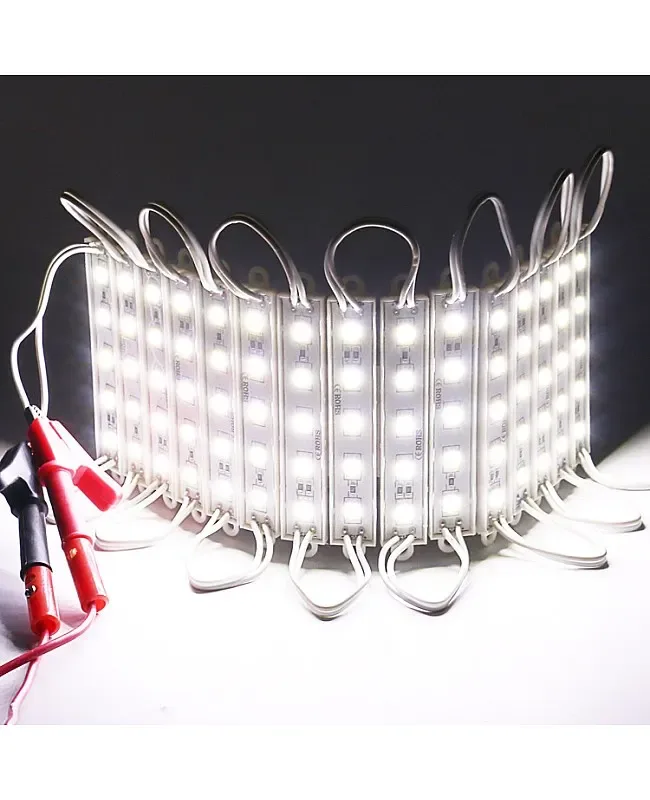

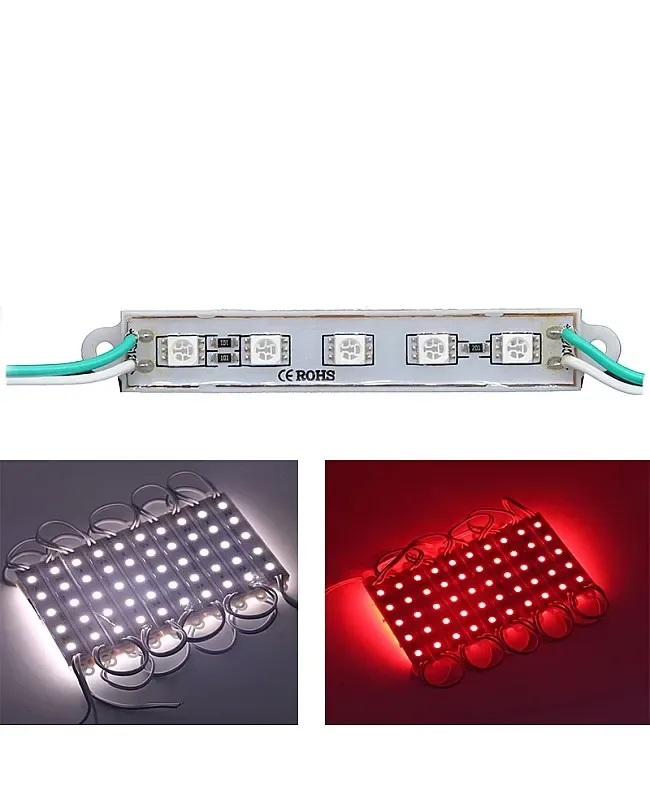

The LED module strings use the 5PCS high-quality 5050 SMD LEDs as the light source. With a fireproof ABS shell and epoxy sealing, the SMD LEDs are mounted on the aluminum PC board for better heat dissipation. The IP rating is IP65 for indoor and outdoor applications. The LED string modules work at DC12V, are available in single color or RGB color, and can easily connect to the LED controller or dimmer to change the color-changing mode or adjust the brightness. The back has double-sided adhesive tape. Please remove the protector from the tape and stick it where you want to install it. The installer can use them to replace the Neon Light or other traditional advertising lights. The 5050 SMD LED module string has 20 pieces per string, and the installer can cut any quantity and reconnect them for the application.
Specifications
Model
Size: 75*12*8mm(L*W*H)
LED Type: 5050 SMD LEDs
LED Quantity: 5PCS
Working Voltage: DC12V
Output Power: 1.2W/PC
Lumen: 70-80lm
IP Rating: IP65
Emitting Colors: Warm White, White, Blue, Green, Yellow, Pink
Color Temperature: Warm White(3000-3500K)/Cool White(10000-12000K)/Neutral White(6000-6500K)/Red(620-625nm)/Green(520-530nm)/Blue(465-470nm)/Yellow(585-590nm)
View Angle: 120°

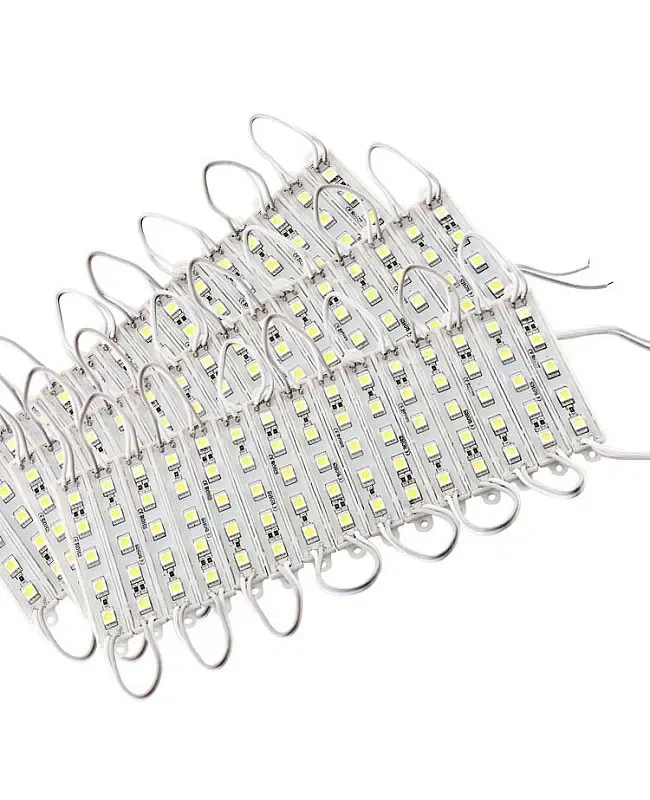

20PCS Per String
Back With 3M Double-Sided Tape
Cable Length Between 2PCS Modules: 8cm for Single Color/9mm for RGB
Applications: Backlighting, Concealed Lighting, Channel Letters, Advertise Signs, etc
Includes
1 * 5050 LED Module String(20PCS/String)
Typical applications
- Lighting system BOMs
- OEM and ODM configurations
- Replacement and service parts
