Product details

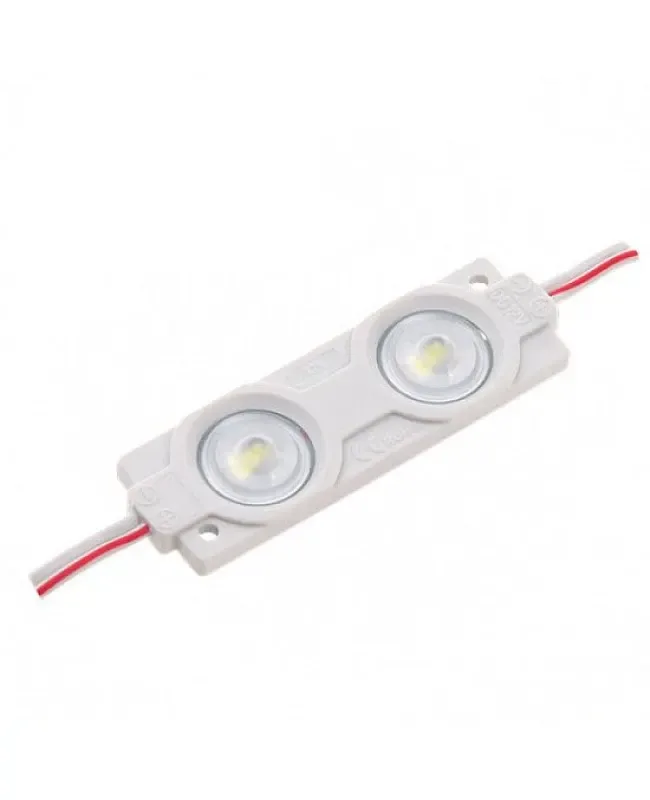

2PCS 2835 LED Module With Lens
LumaCircuit offers 2PCS 2835 LED Module With Lens as a configurable LED module for project builds. Typical applications include Lighting system BOMs, OEM and ODM configurations, Replacement and service parts. Color: Warm White/Pure White/Cool White Color Rendering Index: 80 Size: 58 mm*18 mm*7.3 mm The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- The 2835 LED modules look fashionable, with a high luminous flux 20 times that of other 3528 Modules, and with one-time injection molding technology. 2PCS high-quality 2835 SMD LEDs are used as the light source, and the LEDs are fixed on the PCB board, which allows for better heat dissipation. The LED modules have a high light transmittance PMMA lens and a 160-degree angle view.
- Color: Warm White/Pure White/Cool White
- Color Rendering Index: 80
- Size: 58 mm*18 mm*7.3 mm
- 1 * 2835 LED Modules With Lens(20PCS/String)
- The 2835 LED Module with the lens, working in DC12V, 20PCS per string, IP65 waterproof level, use the one-time injection molding technology, look fashionable, with high light transmittance PMMA lens.
- A serviceable module component for a complete lighting BOM.
- The configured light engine is CCT.
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 12 V
- Light engine: CCT
- LumaCircuit model: LC-MOD-C4ULGJ
- Color: Warm White/Pure White/Cool White
- LED: 2835 SMD LEDs
- LED Quantity: 2PCS
- Voltage: DC12V
- Power: 1.2W
- IP Rating: IP65
- Lumen: 80-100lm
- Color Rendering Index: 80
- Size: 58 mm*18 mm*7.3 mm
Control and installation
Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM.
Plan the installation around Lighting system BOMs, OEM and ODM configurations, Replacement and service parts. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview
The 2835 LED modules look fashionable, with a high luminous flux 20 times that of other 3528 Modules, and with one-time injection molding technology. 2PCS high-quality 2835 SMD LEDs are used as the light source, and the LEDs are fixed on the PCB board, which allows for better heat dissipation. The LED modules have a high light transmittance PMMA lens and a 160-degree angle view. The LED module 2835 with constant current driver IC ensures all modules keep the same brightness at the same time when connected to the LED power supply. 20PCS modules per string, the installer can cut and reconnect the modules for your project. The backside is equipped with double-sided tape, making it easy to install and use.
Specifications
Manufacturer
Color: Warm White/Pure White/Cool White
LED: 2835 SMD LEDs
LED Quantity: 2PCS
Voltage: DC12V
Power: 1.2W
IP Rating: IP65
Lumen: 80-100lm
Color Rendering Index: 80
Size: 58 mm*18 mm*7.3 mm
Beam angle: 160°
1 * 2835 LED Modules With Lens(20PCS/String)
Typical applications
- Lighting system BOMs
- OEM and ODM configurations
- Replacement and service parts
