5050 Injection Waterproof LED Module
LumaCircuit offers 5050 Injection Waterproof LED Module as a configurable LED module for project builds. Typical applications include Lighting system BOMs, OEM and ODM configurations, Replacement and service parts. Emitting Colors: Warm White, White, Red, Green, Blue, Yellow, RGB Luminous Flux: Red(18-21lm)/Green(45-50lm)/Blue(13.5-15lm)/Yellow(18-21lm)/Warm White(58.2-63lm)/Cool White(58.2-63lm)/Neutral White(58.2-63lm) Cuttable And Reconnectable The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- Working Temperature: -40-50℃
- Emitting Colors: Warm White, White, Red, Green, Blue, Yellow, RGB
- Luminous Flux: Red(18-21lm)/Green(45-50lm)/Blue(13.5-15lm)/Yellow(18-21lm)/Warm White(58.2-63lm)/Cool White(58.2-63lm)/Neutral White(58.2-63lm)
- Cuttable And Reconnectable
- Wire Length Between 2PCS Modules: 5cm
- Back With Double-sided Adhesive Tape
- The Surface With Screw Holes

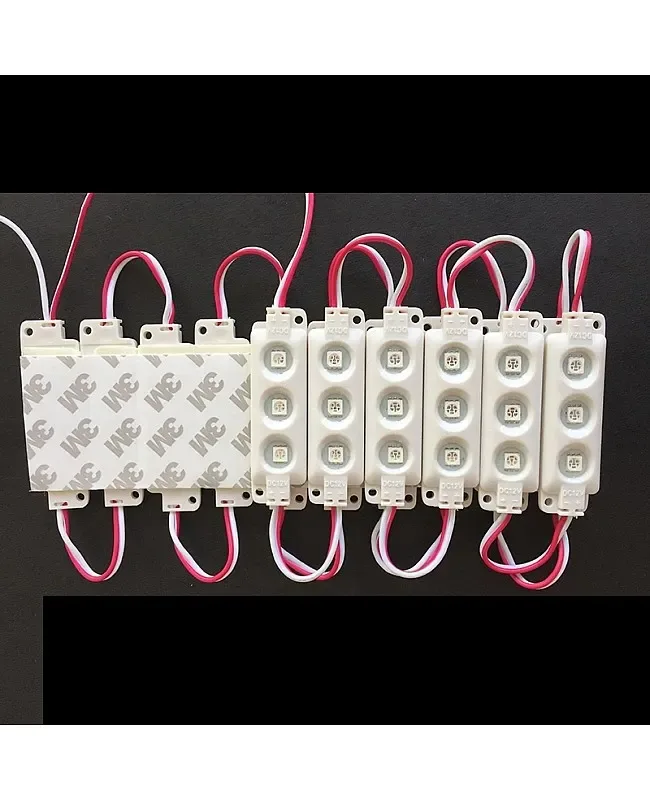

- 1 * Waterproof LED Modules(20PCS/String)
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 12 V
- Light engine: CCT
- LumaCircuit model: LC-MOD-EMZT5U
- Working Temperature: -40-50℃

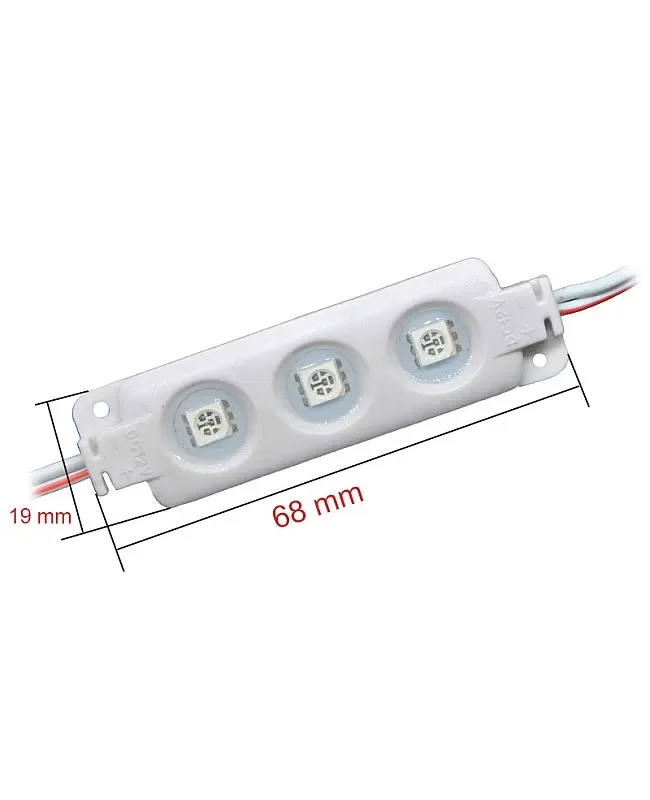

- Size: 68*19mm(L*W)
- LED: 5050 SMD LEDs
- LED Quantity: 3PCS
- Working Voltage: DC12V
- Power: 0.72W/PC

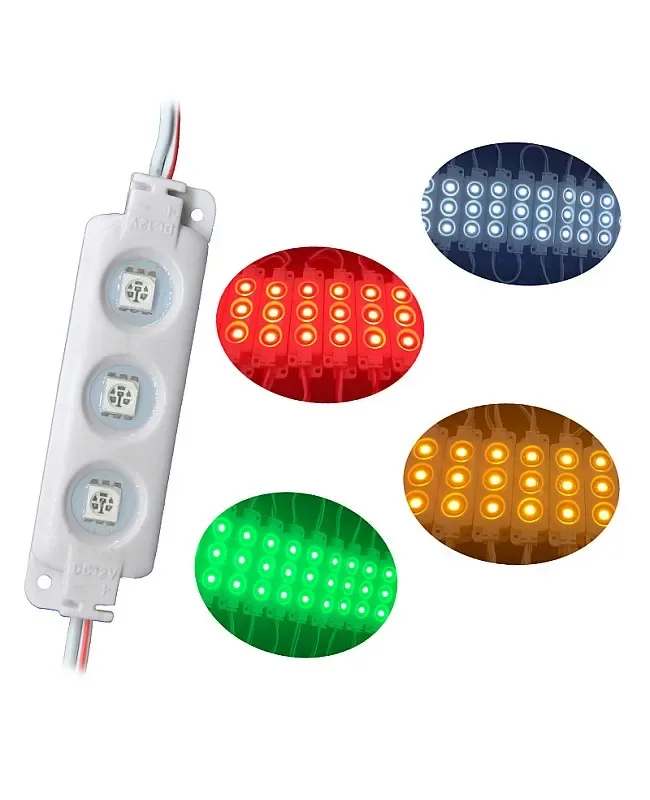

- Emitting Colors: Warm White, White, Red, Green, Blue, Yellow, RGB
- Wire Length Between 2PCS Modules: 5cm
- Dimensions found: 68x19mm / 19mm
Control and installation
Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM.
Plan the installation around Lighting system BOMs, OEM and ODM configurations, Replacement and service parts. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Specifications
Model
Working Temperature: -40-50℃
Size: 68*19mm(L*W)
LED: 5050 SMD LEDs
LED Quantity: 3PCS
Working Voltage: DC12V
Power: 0.72W/PC
Emitting Colors: Warm White, White, Red, Green, Blue, Yellow, RGB
Luminous Flux: Red(18-21lm)/Green(45-50lm)/Blue(13.5-15lm)/Yellow(18-21lm)/Warm White(58.2-63lm)/Cool White(58.2-63lm)/Neutral White(58.2-63lm)
View Angle: 120 °
Color Rendering Index
Waterproof Level: IP65
Cuttable And Reconnectable
Wire Length Between 2PCS Modules: 5cm
Back With Double-sided Adhesive Tape
The Surface With Screw Holes
Weight: 200g
Includes
1 * Waterproof LED Modules(20PCS/String)
Typical applications
- Lighting system BOMs
- OEM and ODM configurations
- Replacement and service parts
