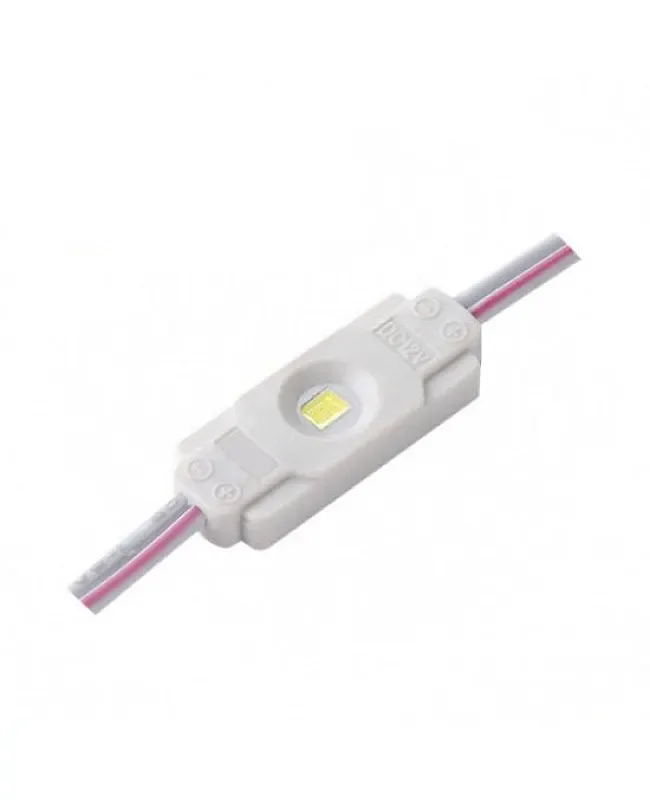

DC12V 2835 LED Light Module
LumaCircuit offers DC12V 2835 LED Light Module as a configurable LED module for project builds. Typical applications include Lighting system BOMs, OEM and ODM configurations, Replacement and service parts. Color Rendering Index: 80 Size: 26 mm*10 mm*4.2 mm Landscape, commercial, home, and stage The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- Color: Warm White/Pure White/Cool White
- Color Rendering Index: 80
- Size: 26 mm*10 mm*4.2 mm
- Landscape, commercial, home, and stage
- Logo or letters backlighting
- Advertisement signs, light boxes, and billboards backlighting
- A serviceable module component for a complete lighting BOM.
- The configured light engine is CCT.
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 12 V
- Light engine: CCT
- LumaCircuit model: LC-MOD-CK6RZS
- Color: Warm White/Pure White/Cool White
- LED: 2835 SMD LEDs
- LED Quantity: 1pc
- Voltage: DC12V
- Power: 0.2W
- IP Rating: IP65
- Lumen: 20lm
- Color Rendering Index: 80
- Size: 26 mm*10 mm*4.2 mm
Control and installation
Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM.
Plan the installation around Lighting system BOMs, OEM and ODM configurations, Replacement and service parts. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Specifications
Manufacturer
Color: Warm White/Pure White/Cool White
LED: 2835 SMD LEDs
LED Quantity: 1pc
Voltage: DC12V
Power: 0.2W
IP Rating: IP65
Lumen: 20lm
Color Rendering Index: 80
Size: 26 mm*10 mm*4.2 mm
Beam angle: 120 degrees
Applications
Landscape, commercial, home, and stage
Logo or letters backlighting
Advertisement signs, light boxes, and billboards backlighting
Typical applications
- Lighting system BOMs
- OEM and ODM configurations
- Replacement and service parts
