Waterproof Injection 5730 12V LED Module 3LEDs
LumaCircuit offers Waterproof Injection 5730 12V LED Module 3LEDs as a configurable LED module for project builds. Typical applications include Lighting system BOMs, OEM and ODM configurations, Replacement and service parts. Working Temperature: -40°-+60° Material: ABS Anti-Static Size: 75*12*5.7mm(L*W*H) The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- The 12V LED modules have 20 pieces per string, are cuttable, and reconnectable. The installer can cut any quantity and reconnect them for your lighting projects. The LED modules use 3PCS high-quality and super bright 5730 SMD LEDs as the light source, and the LEDs are mounted on a high-quality aluminum board for better heat dissipation. The shell is made of ABS material, and with a molding injection process, the surface features an optical lens for wide-angle lighting.
- Working Temperature: -40°-+60°
- Material: ABS Anti-Static
- Size: 75*12*5.7mm(L*W*H)

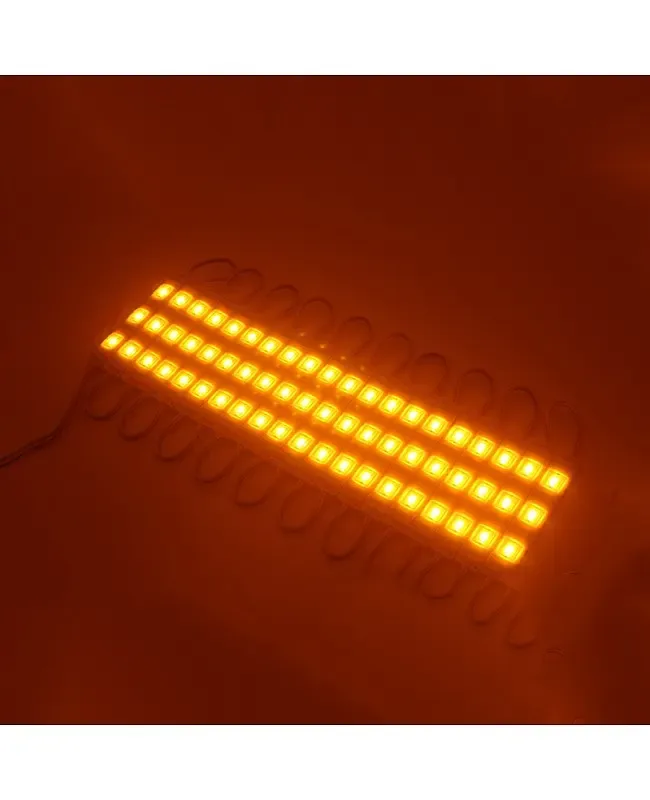

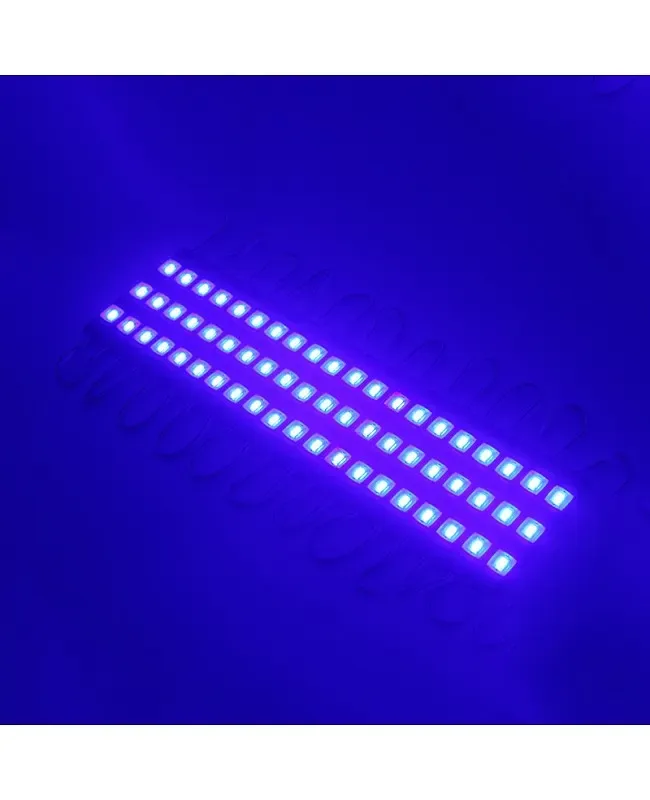

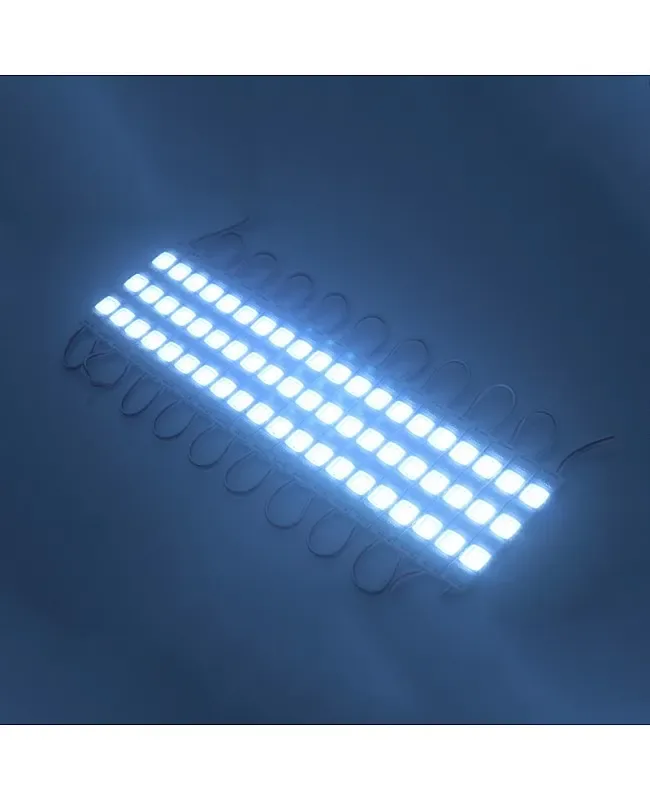

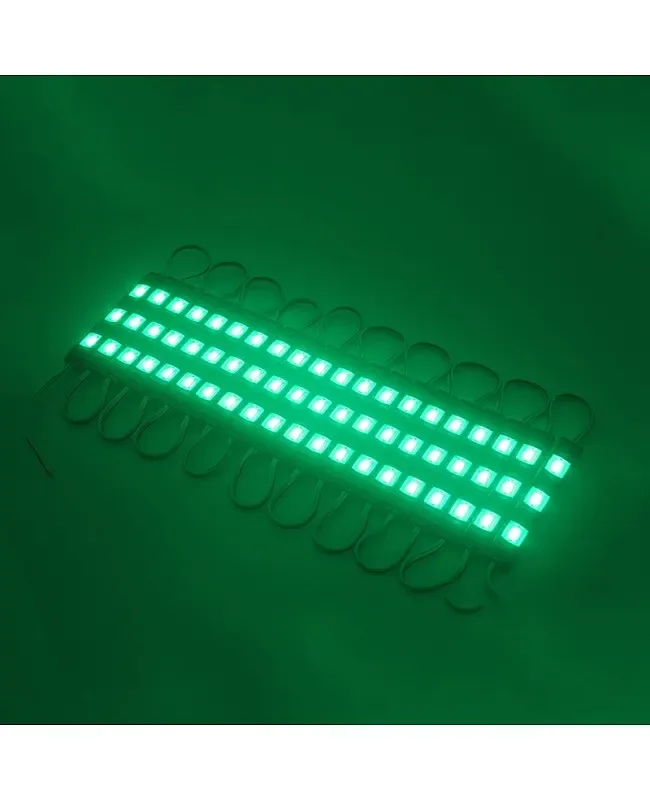

- Colors: Cool White, Warm White, Green, Blue, Red, Yellow, Pink
- Back With Double-sided Adhesive Tape
- Cuttable And Reconnectable
- Outdoor/Indoor Use, Cove Lighting
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 12 V
- Light engine: CCT
- LumaCircuit model: LC-MOD-LXDJ3O
- Working Temperature: -40°-+60°
- Material: ABS Anti-Static
- Size: 75*12*5.7mm(L*W*H)
- LED: 5730 SMD LEDs
- LED QTY: 3PCS/PC
- Working voltage: DC12V
- Wattage: 0.72W/PC
- Colors: Cool White, Warm White, Green, Blue, Red, Yellow, Pink
- IP Rating: IP65
Control and installation
Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM.
Plan the installation around Lighting system BOMs, OEM and ODM configurations, Replacement and service parts. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview

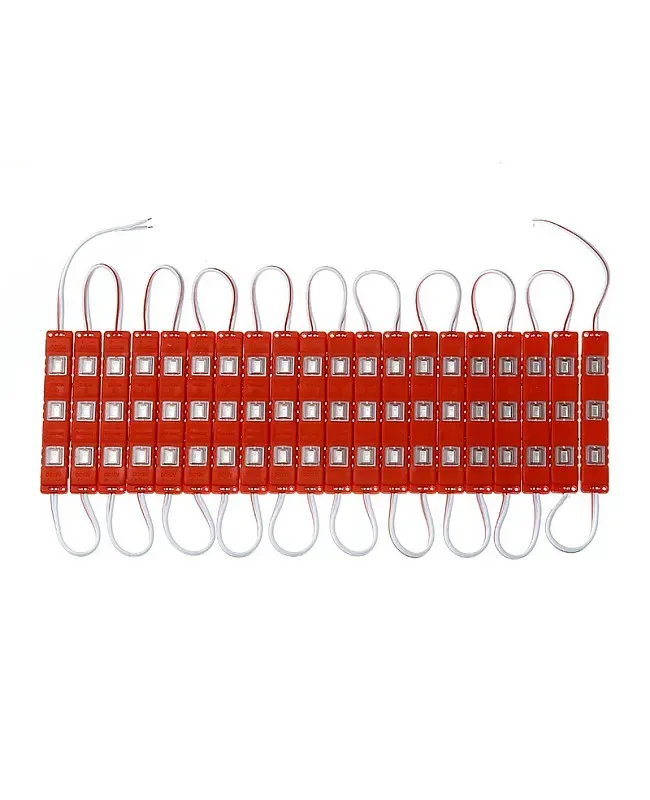

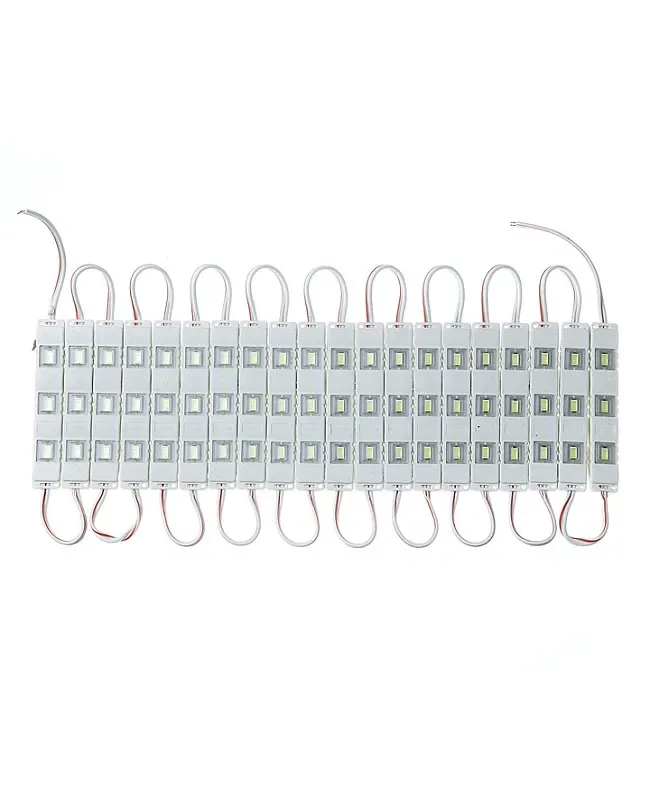

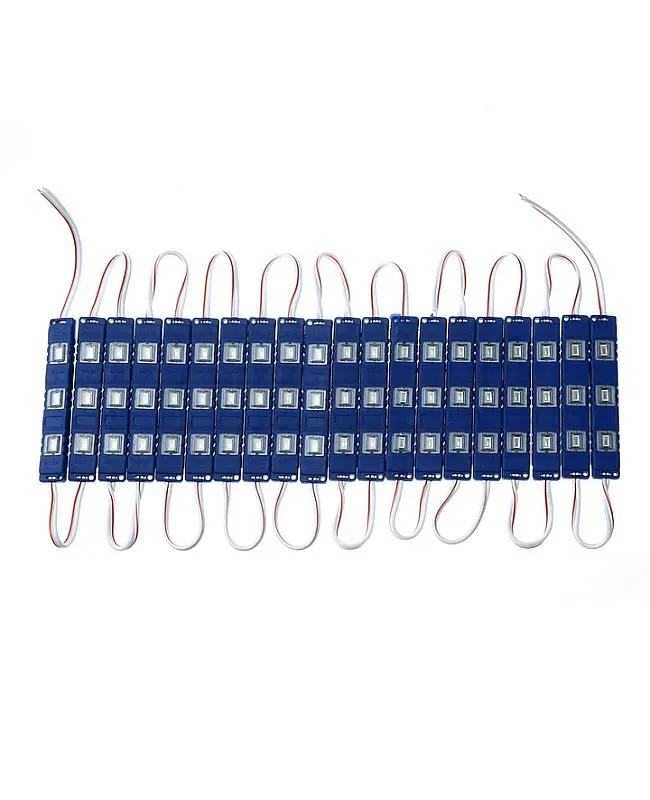

The 12V LED modules have 20 pieces per string, are cuttable, and reconnectable. The installer can cut any quantity and reconnect them for your lighting projects. The LED modules use 3PCS high-quality and super bright 5730 SMD LEDs as the light source, and the LEDs are mounted on a high-quality aluminum board for better heat dissipation. The shell is made of ABS material, and with a molding injection process, the surface features an optical lens for wide-angle lighting. The IP rating is IP65 and can be used for indoor and outdoor lighting projects. The back has double-sided adhesive tape; remove the protector on the tape, and the installer can stick it to your desired place. The waterproof LED modules working on can connect to the DC adapters to light up or connect to the LED module dimmer to adjust the brightness. The installer can use it as the backlight for advertisement signs, billboards, channel letters, holiday decorations, etc.
Specifications
Model
Working Temperature: -40°-+60°
Material: ABS Anti-Static
Size: 75*12*5.7mm(L*W*H)
LED: 5730 SMD LEDs
LED QTY: 3PCS/PC
Working voltage: DC12V
Wattage: 0.72W/PC
Colors: Cool White, Warm White, Green, Blue, Red, Yellow, Pink
IP Rating: IP65
View angle: 120°
Lumen: 240-400lm
Color Rendering Index
Optical Attenuation: 1%

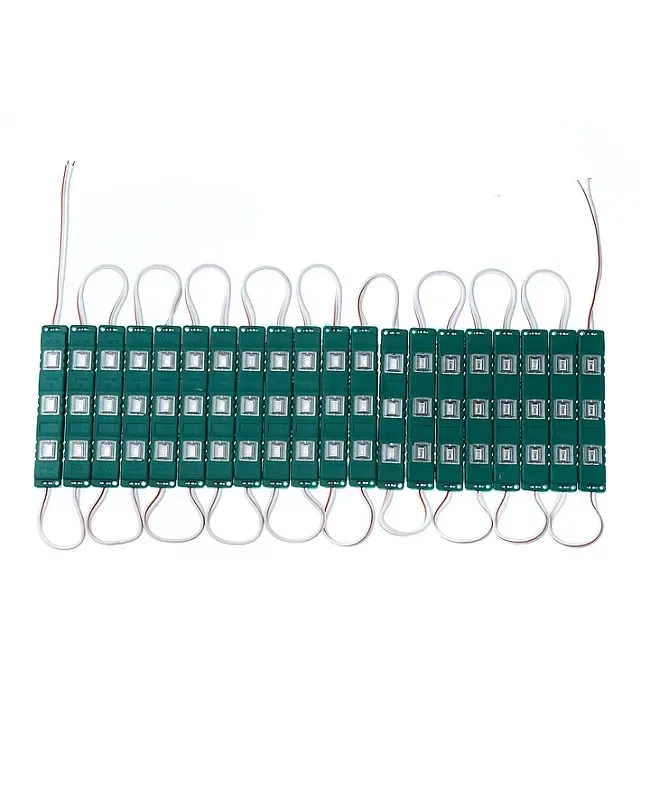

20PCS Per String

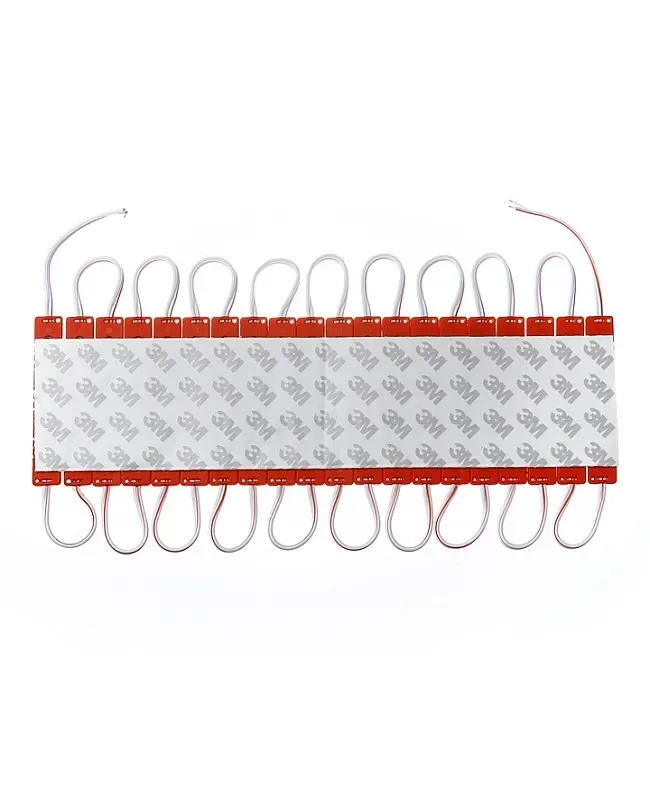

Back With Double-sided Adhesive Tape
Cuttable And Reconnectable
Applications
Outdoor/Indoor Use, Cove Lighting
Path and contour lighting
Backlight for signage/ letters
Architectural lights for Canopy, Corridor, Window, Archway
DIY Lights for home use
Marine light, Task lighting
Replacement of Fluorescent light
Decorative lights for holidays, events, shows, and exhibitions
1 * 5730 12V LED Module( 20PCS String )
