Product details

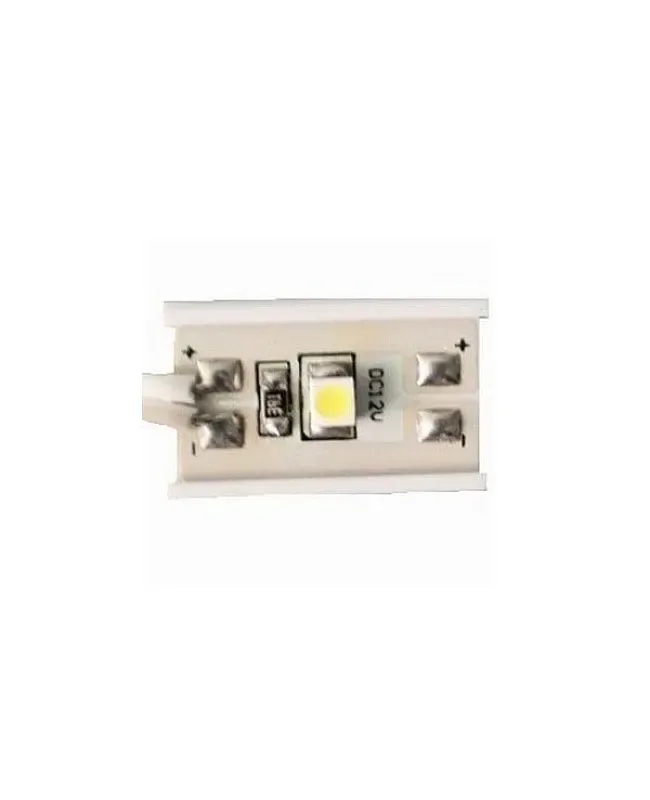

3528 LED Light Module Non Waterproof
LumaCircuit offers 3528 LED Light Module Non Waterproof as a configurable LED module for project builds. Typical applications include Lighting system BOMs, OEM and ODM configurations, Replacement and service parts. 3528 LED light module, non-waterproof, uses one piece 3528 SMD LED as light source, works in DC12V, outputs 0.3 watts per piece, 20 pieces per string, has a 120-degree view angle, and is available in six colors. Indoor Use, Cove Lighting, Path, and contour lighting Backlight for signage/ letters The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- Light Source: 3528 SMD LED
- 3528 LED light module, non-waterproof, uses one piece 3528 SMD LED as light source, works in DC12V, outputs 0.3 watts per piece, 20 pieces per string, has a 120-degree view angle, and is available in six colors.
- Indoor Use, Cove Lighting, Path, and contour lighting
- Backlight for signage/ letters
- Architectural lights for Canopy, Corridor, Window, Archway
- Marine light, Task lighting
- Replacement of Fluorescent light
- Decorative lights for holiday, event, show, exhibition
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 12 V
- Working Voltage: DC12V
- LED Quality: 1PC
- Power: 0.3W/PC
- Size: 20*12mm
- LumaCircuit model: LC-MOD-Y0KA48
- Dimensions found: 20x12mm / 12mm
Control and installation
Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM.
Plan the installation around Lighting system BOMs, OEM and ODM configurations, Replacement and service parts. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Specifications
Working Voltage: DC12V
Waterproof Level: IP20
Light Source: 3528 SMD LED
LED Quality: 1PC
Power: 0.3W/PC
View Angle: 120 degrees
Size: 20*12mm
Brightness: 600-(Red)
500-(Yellow)
500-(Blue)
2000-(Green)
2000-(White)
2000-(Warm white)
Features
3528 LED light module, non-waterproof, uses one piece 3528 SMD LED as light source, works in DC12V, outputs 0.3 watts per piece, 20 pieces per string, has a 120-degree view angle, and is available in six colors.
Applications
Indoor Use, Cove Lighting, Path, and contour lighting
Backlight for signage/ letters
Architectural lights for Canopy, Corridor, Window, Archway
DIY Lights for home use
Marine light, Task lighting
Replacement of Fluorescent light
Decorative lights for holiday, event, show, exhibition
1*3528 LED light modules(20Pcs/String)
Typical applications
- Lighting system BOMs
- OEM and ODM configurations
- Replacement and service parts
